Multilayer High Frequency inductor
CIH05T Series (1005/ EIA 0402)
APPLICATION
Mobile communication systems, noise suppression
at high frequency and Impedance matching.
FEATURES
Lowest value of specific resistivity, good property of Q
and high SRF.
Possible to use at range above 100MHz
Monolithic structure for high reliability.
Do not contain lead and support lead-free soldering.
RoHS compliant

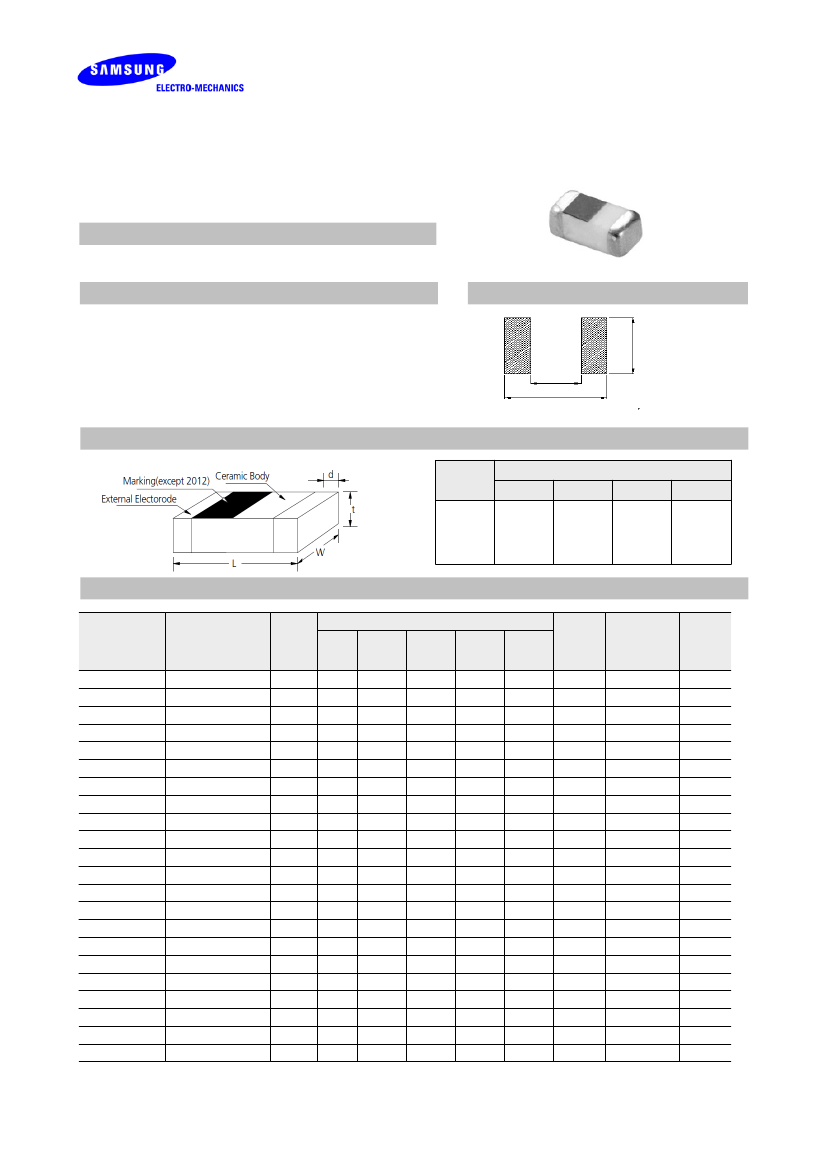

RECOMMENDED LAND PATTERN
0.45~
0.55mm
1.25~1.55mm
0.45~0.55mm
DIMENSION
Type
Dimension [mm]
L
W
t
d
05
1.0±0.05 0.5±0.05 0.5±0.05. 0.25±0.1
DESCRIPTION
Inductance
Part No.
CIH05T1N0
□
CIH05T1N2
□
CIH05T1N5
□
CIH05T1N8
□
CIH05T2N0
□
CIH05T2N2
□
CIH05T2N4
□
CIH05T2N7
□
CIH05T3N0
□
CIH05T3N3
□
CIH05T3N6
□
CIH05T3N9
□
CIH05T4N3
□
CIH05T4N7
□
CIH05T5N1
□
CIH05T5N6
□
CIH05T6N2
□
CIH05T6N8
□
CIH05T7N5
□
CIH05T8N2
□
CIH05T9N1
□
CIH05T10N
□
(nH)
@100MHz
1.0±0.2nH,0.3nH
1.2±0.2nH,0.3nH
1.5±0.2nH,0.3nH
1.8±0.2nH,0.3nH
2.0±0.2nH,0.3nH
2.2±0.2nH,0.3nH
2.4±0.2nH,0.3nH
2.7±0.2nH,0.3nH
3.0± 0.2nH,0.3nH
3.3±0.2nH,0.3nH
3.6±0.2nH,0.3nH
3.9±0.2nH,0.3nH
4.3±0.2nH,0.3nH
4.7±0.2nH,0.3nH
5.1±0.2nH,0.3nH
5.6±0.2nH,0.3nH
6.2±0.2nH,0.3nH
6.8±5%, 10%
7.5±5%, 10%
8.2±5%, 10%
9.1±5%, 10%
10.0±5%, 10%
Q
(min)
100MHz
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
500
MHz
23
23
23
20
22
22
22
22
24
24
24
22
22
23
22
22
22
22
22
22
22
22
800
MHz
29
29
29
26
27
27
27
27
30
30
30
28
28
30
28
28
28
28
28
28
28
28
Q (typical.)
1.8GHz
48
48
47
41
44
44
44
43
46
46
46
43
43
45
42
42
40
40
38
38
37
37
2.0GHz
50
50
50
43
47
47
47
45
48
48
48
45
45
47
43
43
41
41
38
38
36
36
2.4GHz
56
56
56
49
52
52
52
50
53
53
53
50
50
50
45
45
41
41
36
36
31
31
SRF
(MHz)
Min
10000
10000
6000
6000
6000
6000
6000
6000
6000
6000
6000
4000
4000
4000
4000
4000
3900
3900
3600
3600
3200
3200
DC resistance
(Ω) Max.
0.12
0.12
0.13
0.14
0.16
0.16
0.16
0.17
0.19
0.19
0.19
0.22
0.24
0.24
0.27
0.27
0.32
0.32
0.37
0.37
0.42
0.42
Rated
current
(mA) Max.
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
Ver 201207
Inductance
Part No.
(nH)
@100MHz
CIH05T12N
□
CIH05T15N
□
CIH05T18N
□
CIH05T22N
□
CIH05T27N
□
CIH05T33N
□
CIH05T39N
□
CIH05T47N
□
CIH05T56N
□
CIH05T68N
□
CIH05T82N
□
CIH05TR10
□
12.0±5%, 10%
15.0±5%, 10%
18.0±5%, 10%
22.0±5%, 10%
27.0±5%, 10%
33.0±5%, 10%
39.0±5%, 10%
47.0±5%, 10%
56.0±5%, 10%
68.0±5%, 10%
82.0±5%, 10%
100.0±5%, 10%
Q
(min)
100MHz
8
8
8
8
8
8
8
8
8
8
8
8
500
MHz
22
22
23
22
20
20
20
19
19
17
16
15
800
MHz
28
28
28
27
23
23
21
20
18
15
11
9
Q (typical.)
1.8GHz 2.0GHz 2.4GHz
33
29
26
21
10
3
-
-
-
-
-
-
31
26
22
14
3
-
-
-
-
-
-
-
23
17
11
2
-
-
-
-
-
-
-
-
SRF
(MHz)
Min
2700
2300
2100
1900
1600
1300
1200
1000
750
750
600
600
DC resistance
(Ω) Max.
0.50
0.55
0.65
0.80
0.90
1.00
1.20
1.30
1.40
1.40
1.60
1.60
Rated
current
(mA) Max.
300
300
250
250
250
250
200
200
180
180
150
130
*
Operating temperature range –55 to +125°C
※
Tolerance (C :±0.2nH, S :±0.3nH, J :±5%, K :±10%)
※
Measurement equipment & Jig: Agilent E4991A+16192A or Equivalent
※
The Rated Current is either the DC value at witch the internal Ls value is decreased within 5%
(Reference ambient temperature:20
℃
)
with the application
of DC_Current, or the value of current at which the temperature of the element is increased within 20
℃
PRODUCT IDENTIFICATION
CI H
(1) (2)
(1)
(3)
(5)
(7)
(8)
05
(3)
T
(4)
10N
(5)
J N C
(6) (7) (8)
Chip Inductor
(2) H:High frequency type
Dimension
(4) Material code(T:Dielectric material)
Inductance(4N7:4.7nH, 10N:10nH, R10:100nH)
(6) Tolerance(C:±0.2nH, S:±0.3nH, J:±5%, K:±10%)
Thickness option(N:Standard, A:Thinner than standard, B:Thicker than standard)
Packaging(C:paper tape, E:embossed tape)

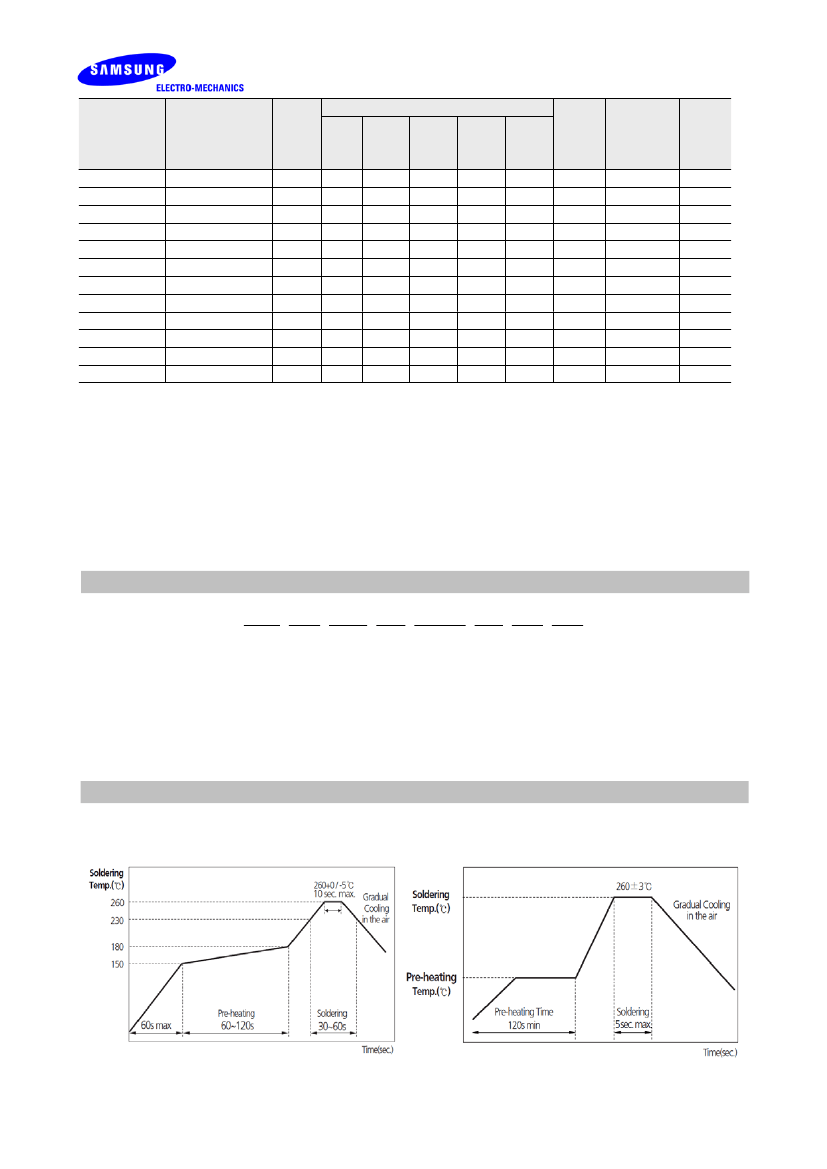

RECOMMENDED SOLDERING CONDITION
REFLOW SOLDERING
FLOW SOLDERING
Ver 201207
PACKAGING
Packaging Style
Card Board Taping
Quantity(pcs/reel)
10,000
■
NOTICE :All specifications are subject to change without previous notice. Please contact with
product representatives or engineers to check specifications.
