BR24A16F-W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR24A16F-W

BR24A16F-W: DescriptionEEPROM, 2KX8, Serial, CMOS, PDSO8, SOP-8; Categorystorage storage; File Size247KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BR24A16F-W Overview

EEPROM, 2KX8, Serial, CMOS, PDSO8, SOP-8

BR24A16F-W Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SOP-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum clock frequency (fCLK)	0.4 MHz
JESD-30 code	R-PDSO-G8
length	5 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	2048 words
character code	2000
Operating mode	SYNCHRONOUS
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
organize	2KX8
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.71 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm
Maximum write cycle time (tWC)	5 ms

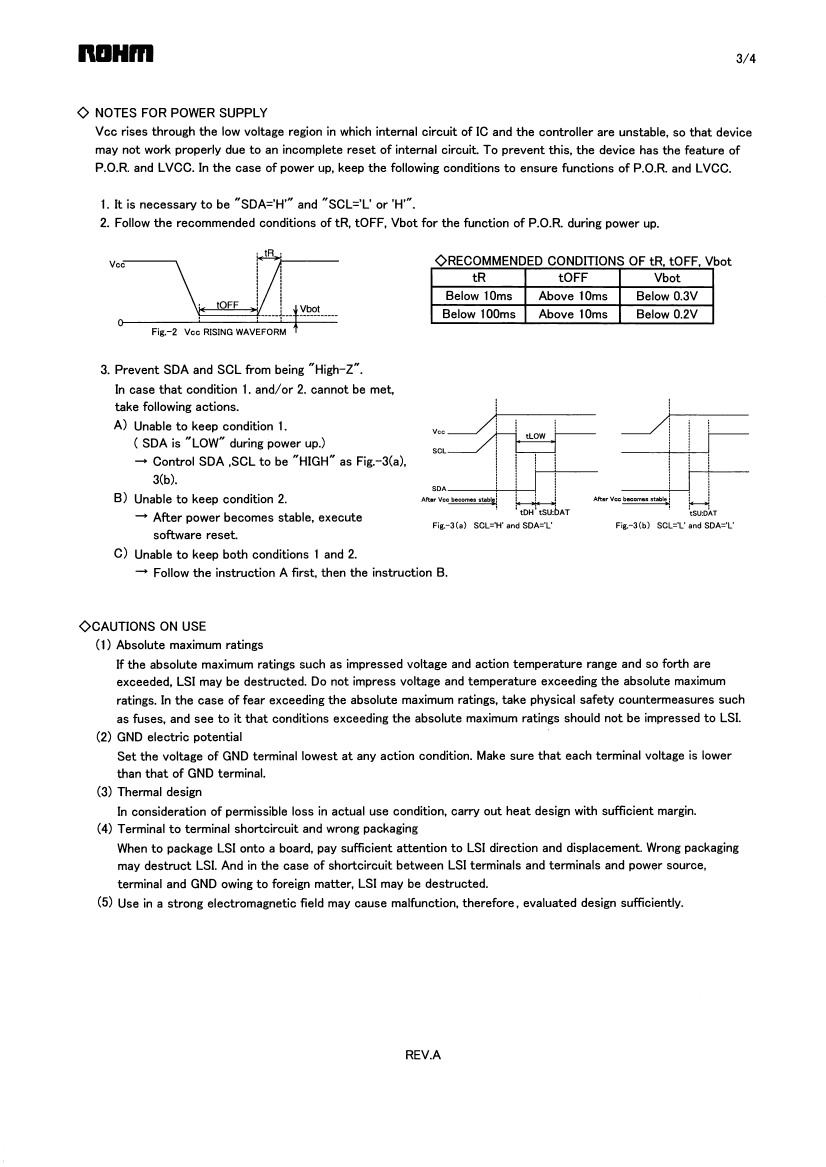

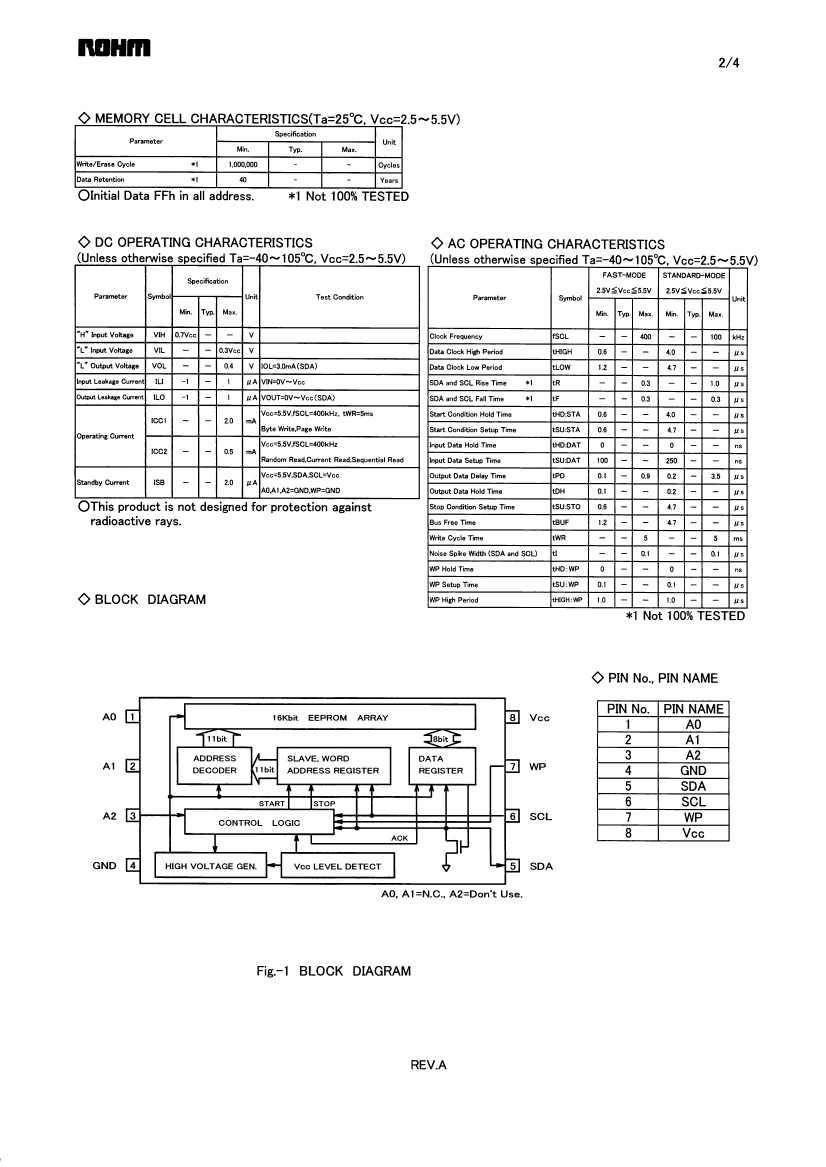

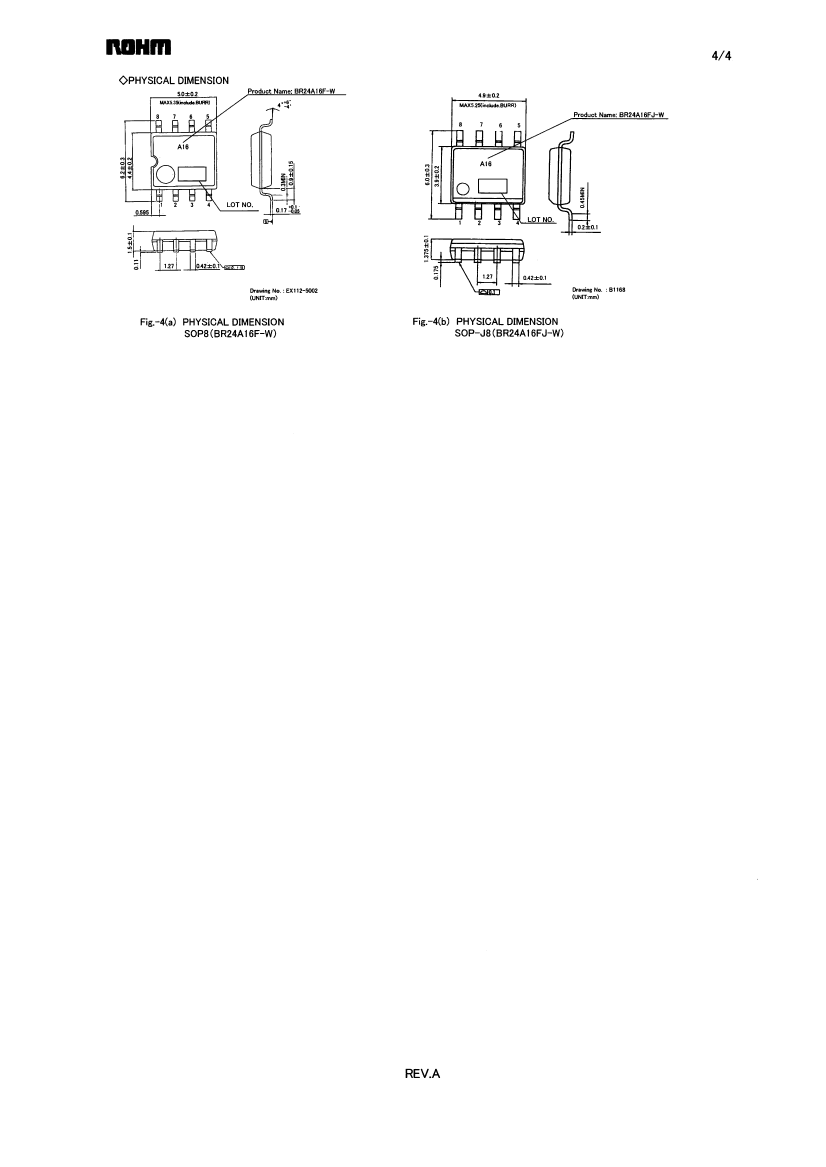

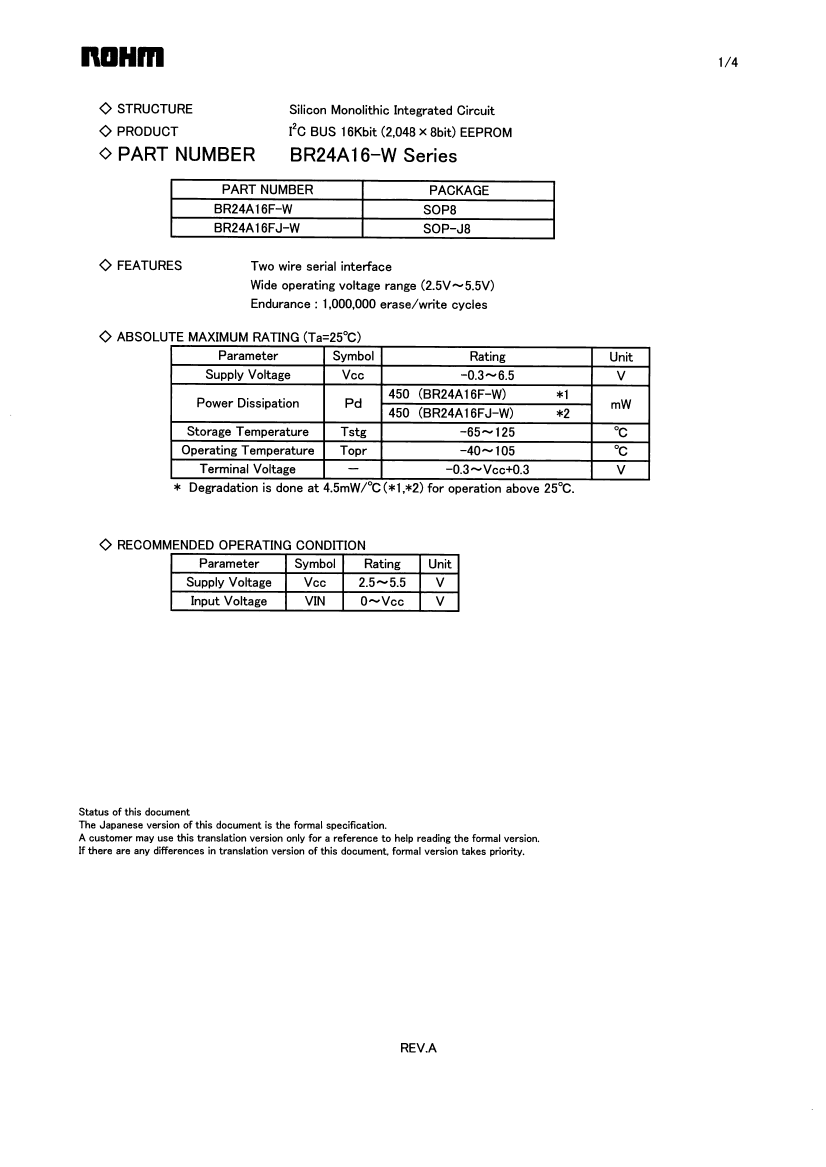

BR24A16F-W Preview
