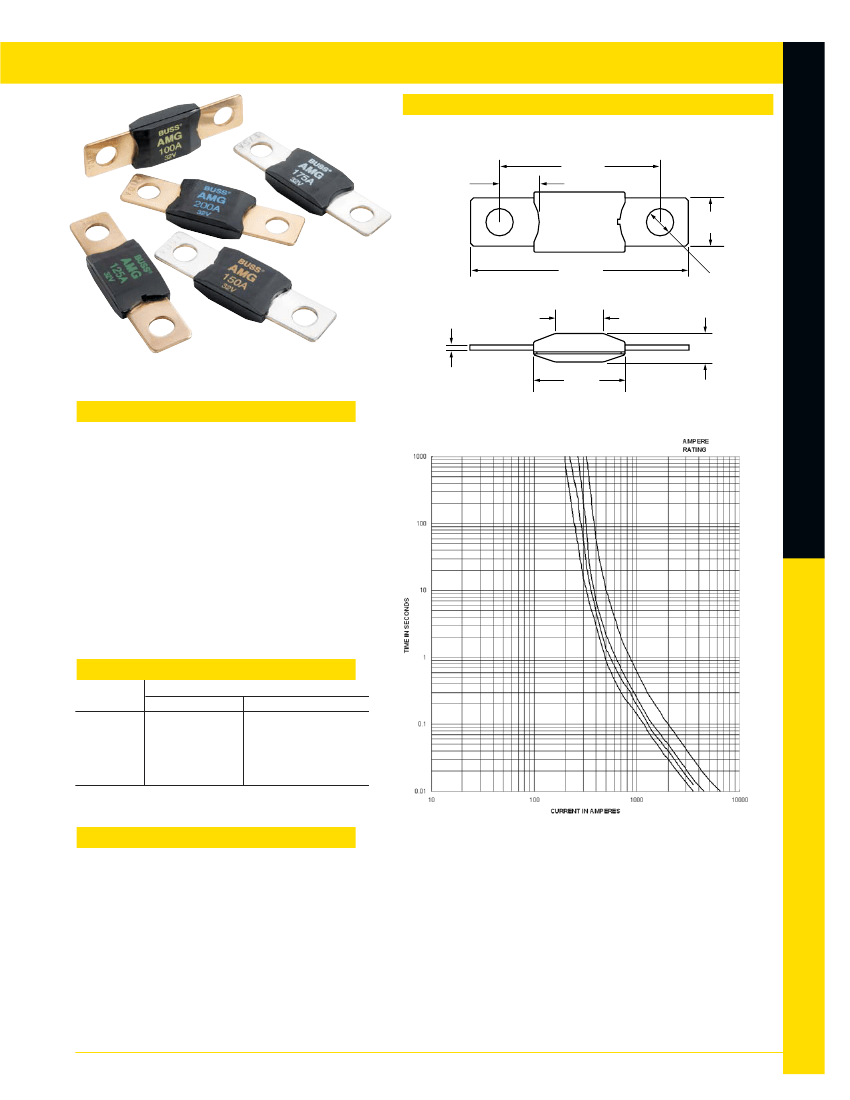

AMG SERIES
DIMENSIONS
(Dims. are shown for reference only. Consult factory for latest prints)
50.80"
(2.000)
12.18"
(0.480)
15.40"
(0.606)
68.40"
(2.693)
Ø8.60"
(0.339)
29.20"
(1.150)
9.00"
(0.354)
1.52"
(0.06)
29.20"
(1.150)
BOLT IN AUTOMOTIVE FUSES
SPECIFICATIONS:
Applications:
For high current applications. Use
with Bussmann HMG or FMG fuseholders. (See
pages 12-13.)
Current Rating:
100-300A.
Voltage Rating:
32VDC.*
Interrupt Rating:
1,000A @ 32VDC.
Housing Material:
UL-Rated 94V-0
thermoplastic.
Terminal Material:
Copper.
Mounting:
M8 or 5/16-18 or less studs on 2.00 in
(50.8mm) centers.
Marking:
Color-coded amperage ratings.
*Consult factory for higher voltage fuses.
TIME-CURRENT SPECIFICATIONS
Opening Time
% of
Rating
Minimum
Maximum
100
135
200
350
600
100 hrs
120 s
1s
0.1 s
0.02 s
1800 s
30 s
5s
1s
150
175
200
250
BOLT-IN FUSE PROTECTION
PART NUMBERING SYSTEM
Series
Rating
B K / A M G
❏❏❏❏❏❏
–
❏❏❏
100 – 100 amps
125 – 125 amps
150 – 150 amps
175 – 175 amps
200 – 200 amps
225 – 225 amps
250 – 250 amps
300 – 300 amps
Cooper Bussmann Transportation Products
• Phone: 1-888-867-8194 • Website: http://www.coopertp.com
