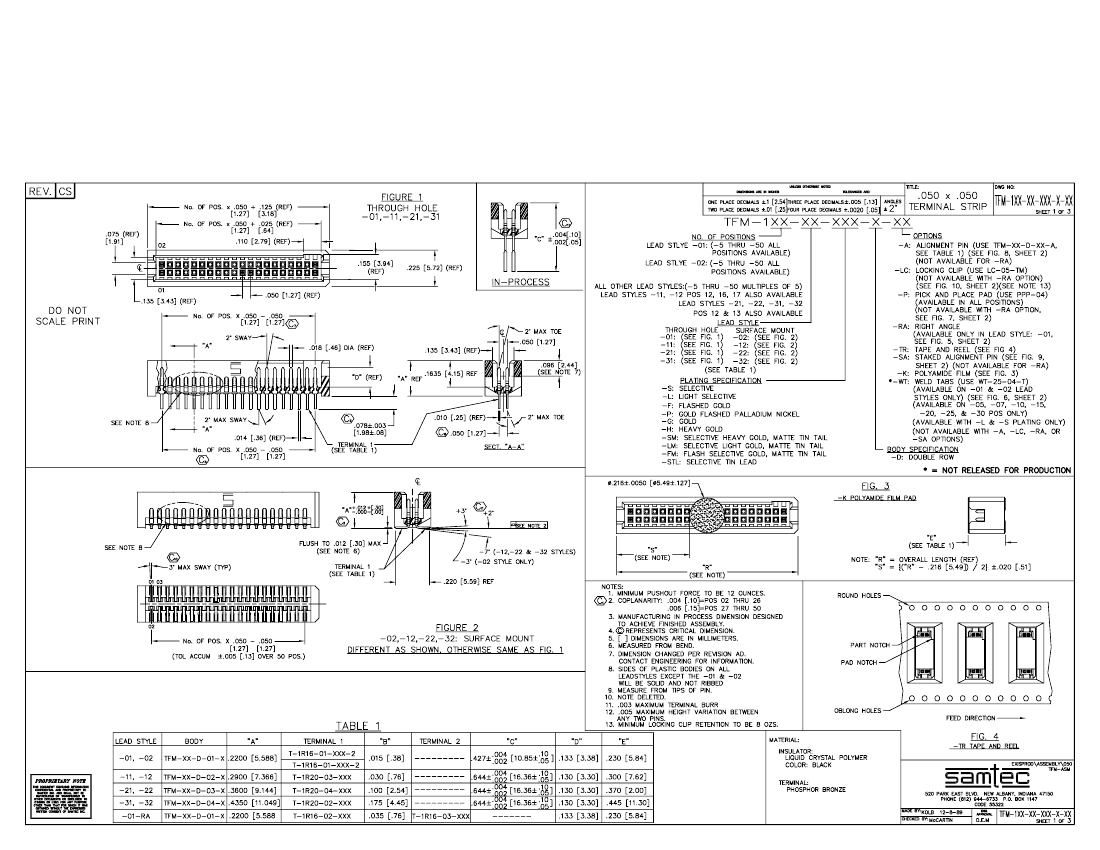

TFM-136-01-G-D-RA datasheet, PDF

TFM-136-01-G-D-RA: DescriptionBoard Connector, 72 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

TFM-136-01-G-D-RA Overview

Board Connector, 72 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
body width	0.225 inch
subject depth	0.29 inch
body length	1.925 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Rated current (signal)	3.2 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	72
