Main Feature

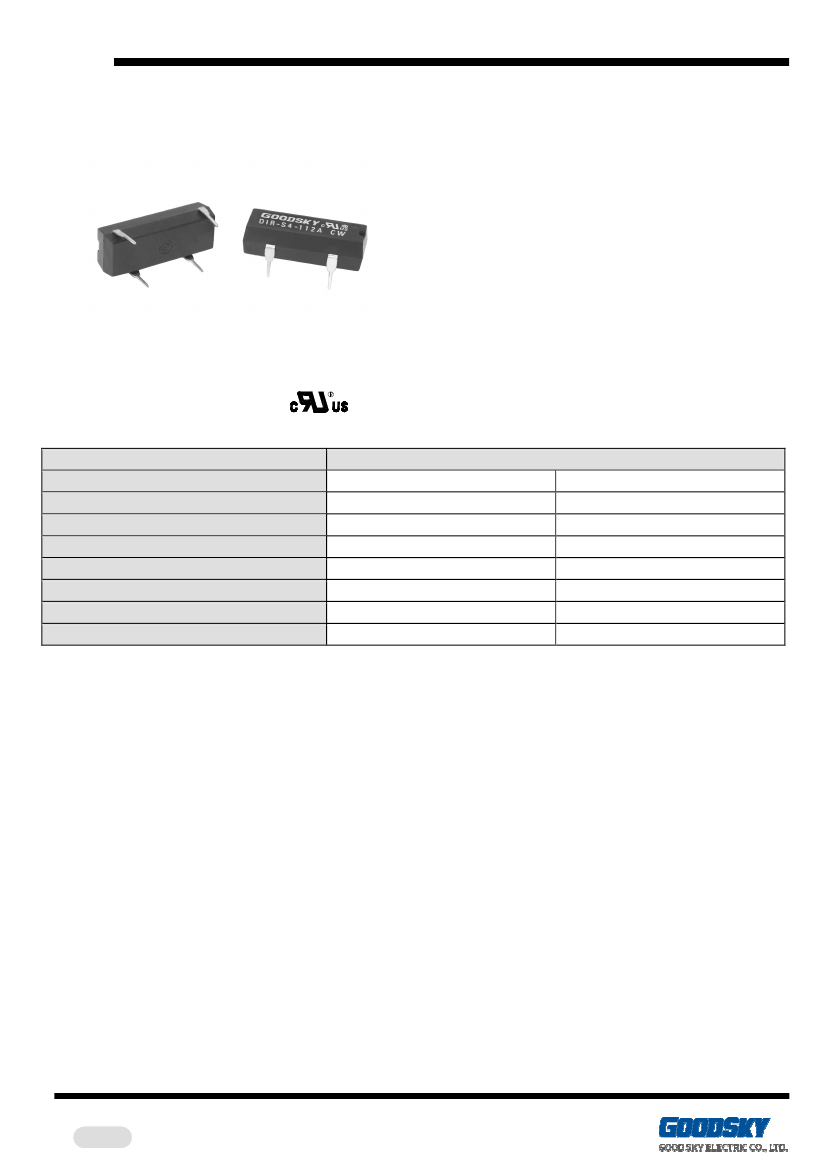

Epoxy molded Dual-In-Line package.
Low profile, mounting space compatible with DIP IC.
Completely washable.
Provide high speed, miniature and cost effective
switching solution.
5. Comply with RoHS and REACH regulations
1.
2.
3.
4.
Contact Rating
Load Type
Rated Load (Resistive)
Rated Carrying Current
Max. Allowable Voltage
Max. Allowable Current
Max. Allowable Power Force
Min. Switching Load
Contact Material
Contact Form
0.5A 100VDC
0.5A
100 VDC
0.5A
10 VA
DC 1V, 1mA
Rh Alloy
SPST/DPST
DIR/DID
0.2A 30VDC
0.2A
30 VDC
0.2A
3 VA
DC 1V, 1mA
Rh Alloy
SPDT
Application
Security System, Modem and Telecommunication
Products
Performance (at Initial Value)
Contact Resistance ............. 150 mΩ Max.@
100mA, 6VDC
Operate Time ...................... 0.5 mSec. Max.
Release Time ...................... 0.5 mSec. Max.
Dielectric Strength:
Between Coil & Contact....... 1,400 VDC
4,000 VDC (4 Lead)
Insulation Resistance: ......... 100 MΩ Minimum
Between Contacts ............... 200 VDC
Temperature Range:
Operating .............................-40~+85
°C
Storage.................................-55~125
°C
Humidity Range....................45~85% RH.
Vibration ...............................20 G
Shock .................................100 G
Life Expectancy:
8
Electrical...............................10 Operations at
ref. 10VDC, 10mA
Weight………………………..About 1.8g
Safety Standard & File Number
UL & C-UL............................E141060
Coil Specification (at 20
°
C)
Nominal
Coil Sensitivity
Voltage (VDC)
5
12
24
5
12
24
5
12
24
5
12
24
Nominal
Current (mA)
10
12
11
36
24
11
10
12
11
25
24
11
Power
Coil Resistance
Consumption
(Ω±10%)
(mW)
500
50
1,000
144
2,150
268
140
179
500
288
2,150
268
500
50
1,000
144
2,150
268
200
125
500
288
2,150
268
Pull-In Voltage
Drop-Out
(VDC)
Voltage (VDC)
3.75
9.00
18.00
3.75
9.00
18.00
4.20
9.00
18.00
3.75
9.00
18.00
0.8
1.0
2.0
0.8
1.0
2.0
0.6
1.0
2.0
0.8
1.0
2.0
DIR
Maximum
Allowable
Voltage (VDC)
16
20
32
11
20
32
6
14.5
29
11
20
32
1A
2A
1B
1C
Ordering Information
DIR -
S
4
-
1
05
A
Contact Form:
A:
One Form A
B:
One Form B
C:
One Form C
05:
5V,
12:
12V,
24:
24V
1:
One Pole
2:
Two Poles (Make Contact Only)
4:
4 Leads
8:
8 Leads
S:
Standard (DIP)
C:
Lead 2 &13 are connected (DIP)
M:
Standard (SMD)
N:
Lead 2 & 13 are connected (SMD)
DIR:
Without Diode
DID:
With Diode
Coil Voltage:
Number of Pole:
Lead Number:
Terminal shape:
Type:
Classification
Model
Terminal shape
Lead 2 &13
Lead Type
Contact Form
Connected
4 Leads
-
8 Leads
1A/1B/1C/2A
DIR-C8-1□□A
DIR-C8-1□□B
DIR-C8-1□□C
Ordering Type
-
DIP
Disconnected
4 Leads
1A
8 Leads
1A/1B/1C/2A
DIR-S8-1□□A
DIR-S8-1□□B
DIR-S8-1□□C
-
Connected
4 Leads
-
8 Leads
1A/1B/1C/2A
DIR-N8-1□□A
DIR-N8-1□□B
DIR-N8-1□□C
DIR/DID
SMD
Disconnected
4 Leads
1A/1B/1C/2A
8 Leads
1A/1B/1C/2A
DIR-M8-1□□A
DIR-M8-1□□B
DIR-M8-1□□C
DIR-C8-2□□A DIR-S4-1□□A DIR-S8-2□□A
DID-C8-1□□A DID-S4-1□□A DID-S8-1□□A
DID-C8-1□□C
DID-C8-2□□A
DID-C8-1□□B
DID-S8-1□□C
DID-S8-2□□A
DID-S8-1□□B
DIR-N8-2□□A DIR-M4-1□□A DIR-M8-2□□A
DID-N8-1□□A DID-M4-1□□A DID-M8-1□□A
DID-N8-1□□C
DID-N8-2□□A
DID-N8-1□□B
DID-M8-1□□C
DID-M8-2□□A
