T102F06BBC datasheet, PDF - EEWORLD Datasheet

T102F06BBC: DescriptionSilicon Controlled Rectifier, 220A I(T)RMS, 102000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element,; CategoryAnalog mixed-signal IC Trigger device; File Size268KB，4 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric View All

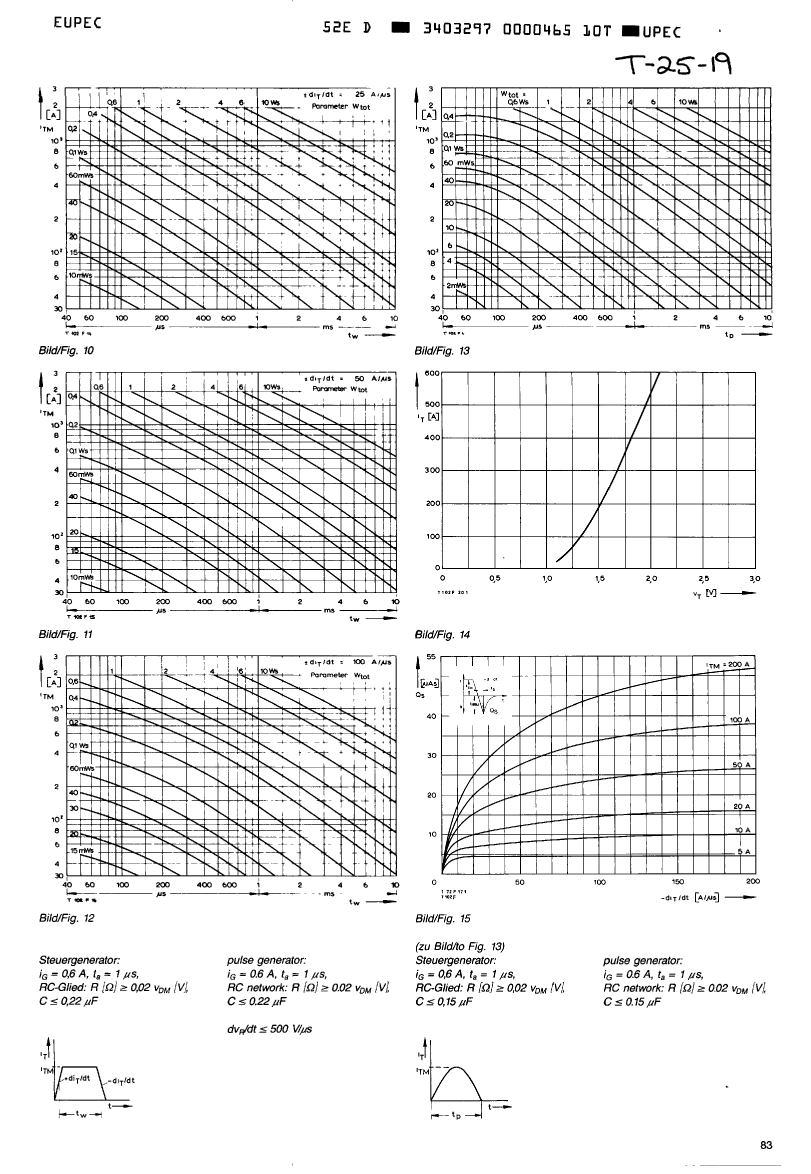

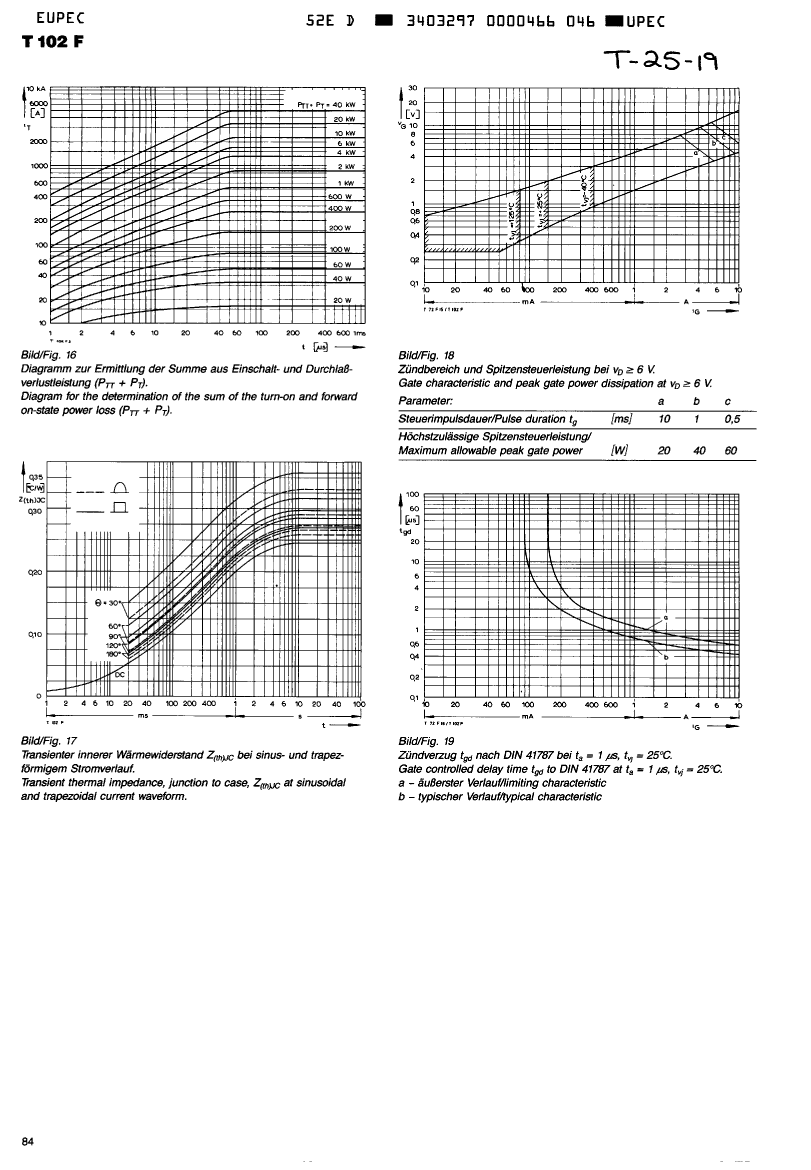

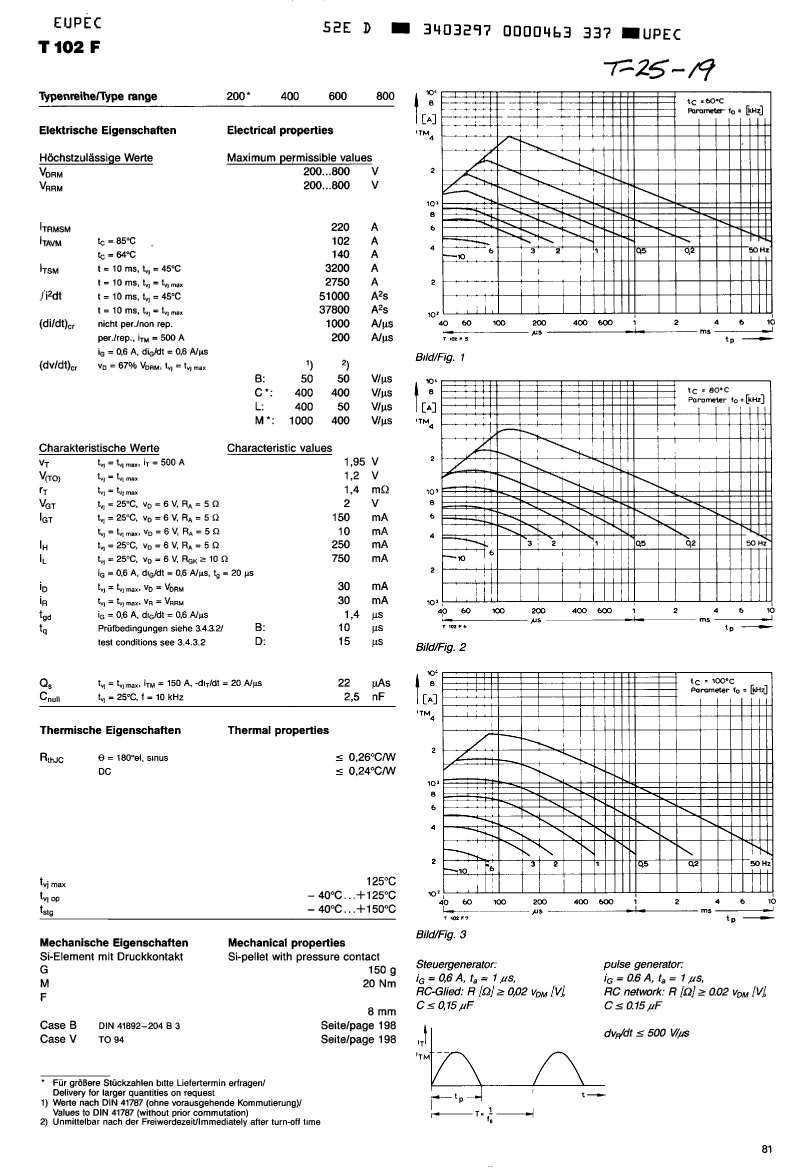

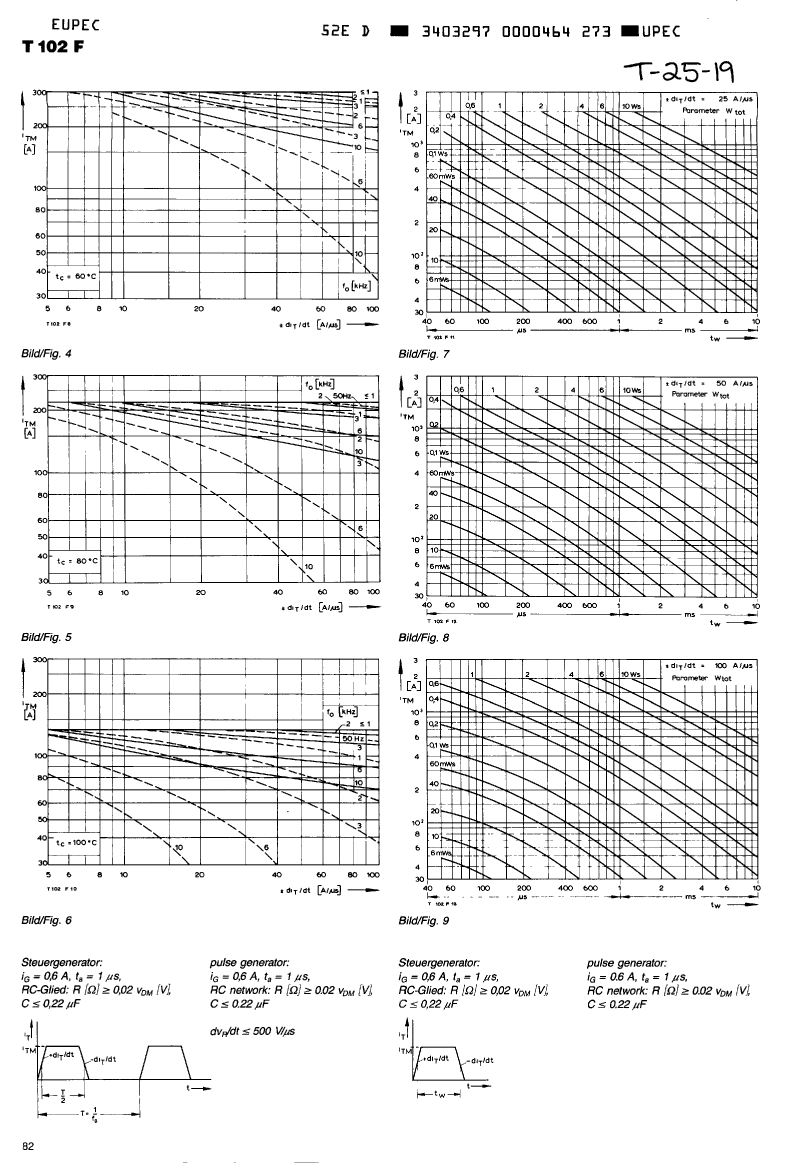

T102F06BBC Overview

Silicon Controlled Rectifier, 220A I(T)RMS, 102000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element,

Parameter Name	Attribute value
Maker	EUPEC [eupec GmbH]
Reach Compliance Code	unknown
Other features	FAST
Shell connection	ANODE
Nominal circuit commutation break time	10 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	250 mA
JESD-30 code	O-MUPM-H3
Maximum leakage current	30 mA
On-state non-repetitive peak current	2800 A
Number of components	1
Number of terminals	3
Maximum on-state current	102000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	220 A
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR
