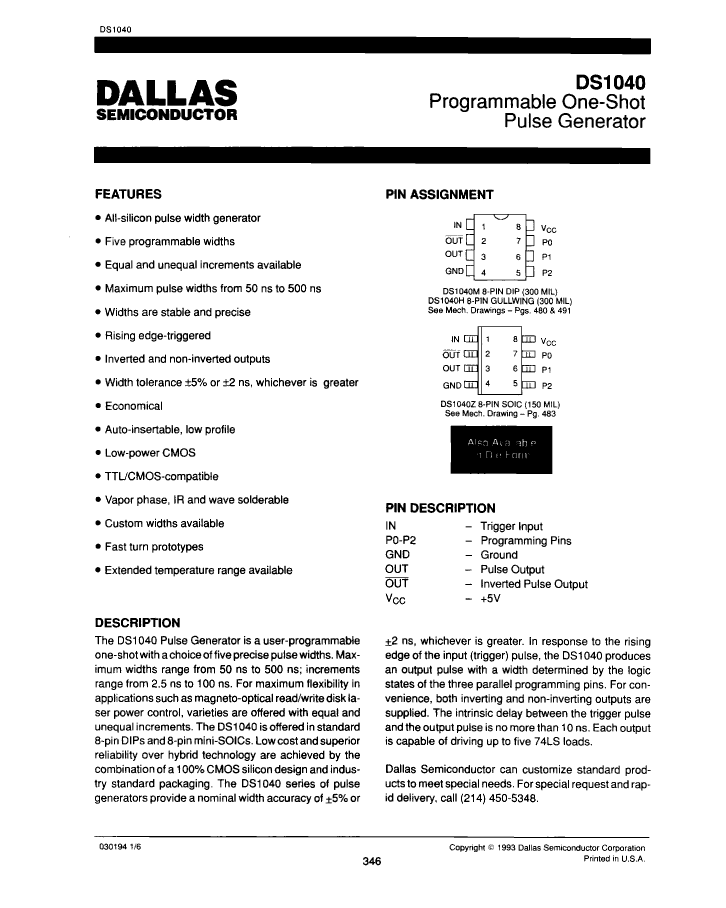

DS1040(DIE)-A20 datasheet, PDF

DS1040(DIE)-A20: DescriptionPulse Generator Delay Line, Programmable, 1-Func, 5-Tap, Complementary Output, CMOS, DIE; Categorylogic logic; File Size147KB，6 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric View All

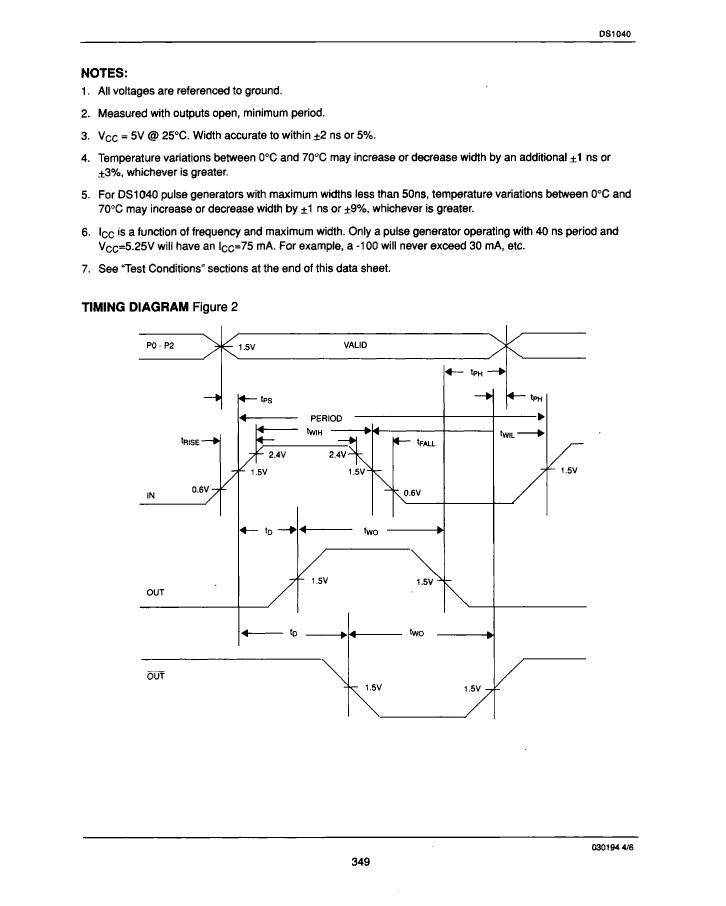

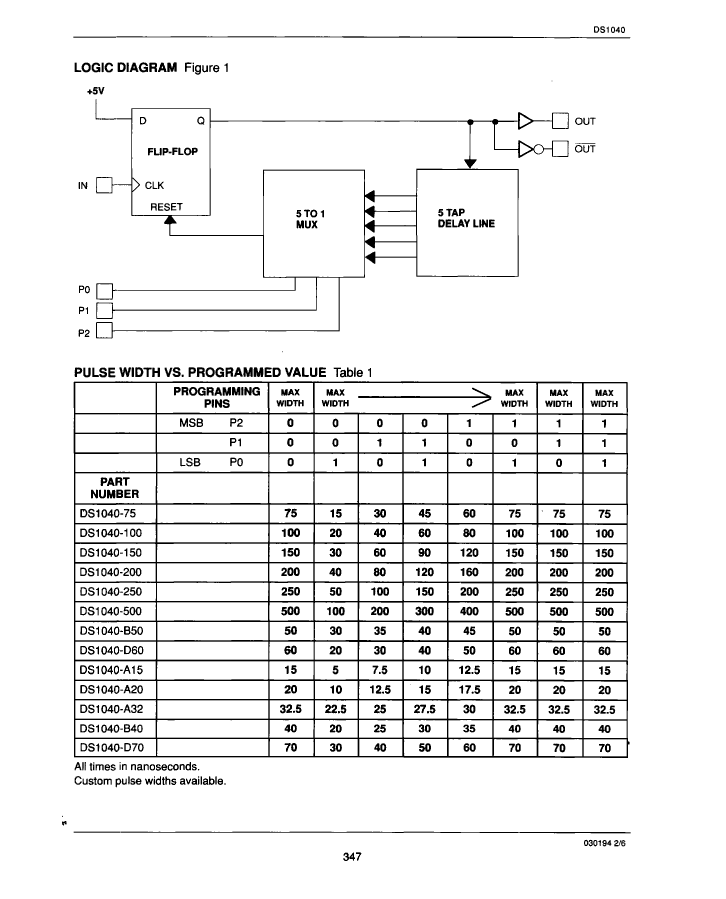

DS1040(DIE)-A20 Overview

Pulse Generator Delay Line, Programmable, 1-Func, 5-Tap, Complementary Output, CMOS, DIE

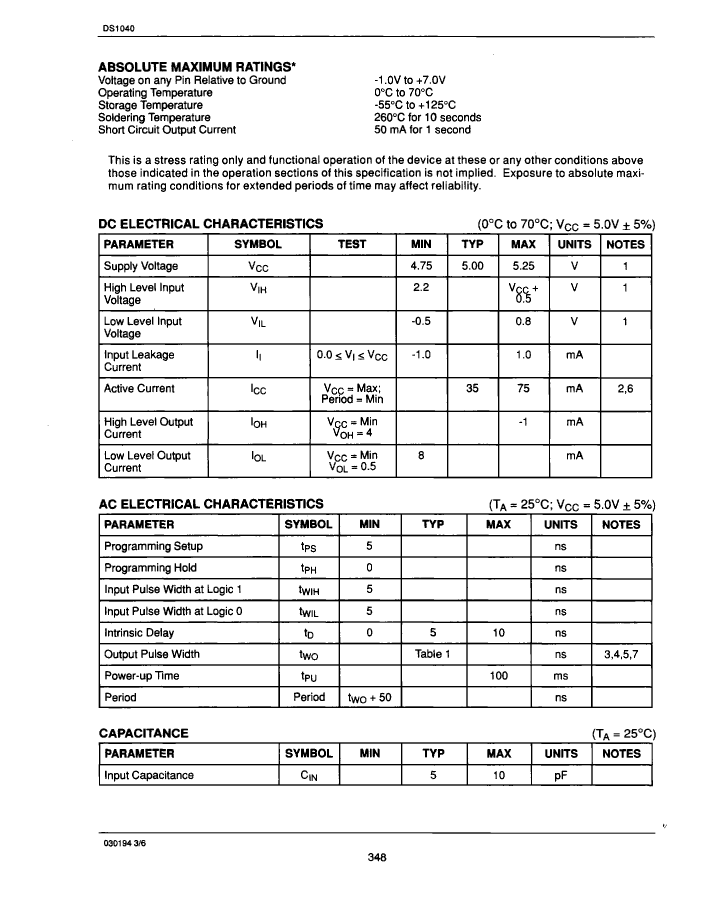

Parameter Name	Attribute value
Maker	DALLAS
package instruction	DIE
Reach Compliance Code	unknown
Other features	SILICON PULSE GENERATOR; PULSE WIDTH CHANGE PER STEP = 2.5NS
series	CMOS/TTL
Input frequency maximum value (fmax)	14.2857 MHz
JESD-30 code	X-XUUC-N
Logic integrated circuit type	PULSE GENERATOR DELAY LINE
Number of functions	1
Number of taps/steps	5
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
programmable delay line	YES
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER
