2065-11-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2065-11-9

2065-11-9: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

2065-11-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2065-11-9	-	-	View	Buy Now

2065-11-9 Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug

2065-11-9 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.29
Base Number Matches	1

Preview

Download Datasheet

View All

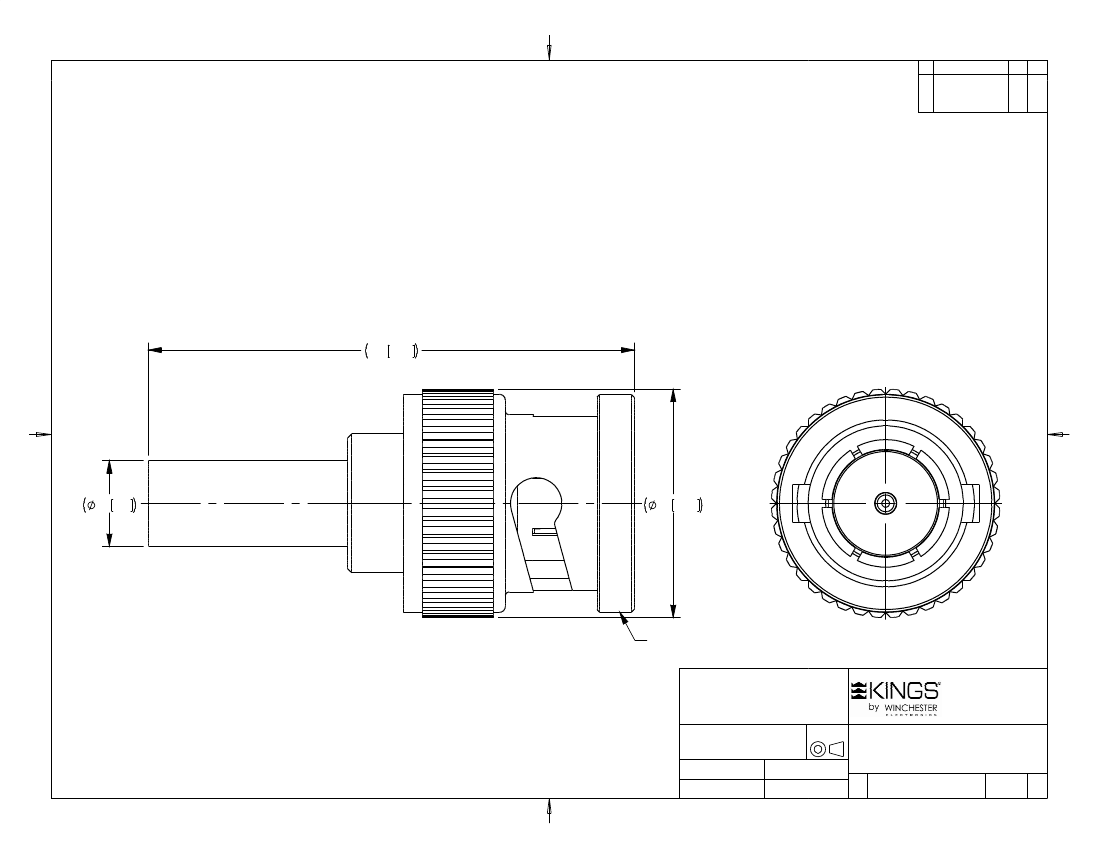

NOTES:

1. FOR USE WITH COM M SCOPE 77538 & BELDEN 1855A & 1865A CABLES.

2. FOR CABLING INSTRUCTIONS SEE 3-661-1.

3. FOR CRIM PING USE DIE KTH-2025.

4. CENTER CONTACT, 1-6690-7M A9, AND K-GRIP SLEEVE 1-33983-1M 06 SUPPLIED UNASSEM BLED.

5. INTERFACE PER M IL-STD-348, FIG. 301-1 (AS APPLICABLE).

6. M ATERIAL SPECIFICATIONS:

INSULATOR: TEFLON PER ASTM D4894.

GASKET: SILICONE RUBBER PER ZZ-R765.

SPRING WASHER AND OUTER CONTACT: BERYLLIUM COPPER PER ASTM B196.

ALL OTHER M ETAL PARTS: BRASS PER ASTM B16.

7. FINISH SPECIFICATIONS:

CENTER CONTACT: GOLD PER M IL-G-45204

SPRING WASHER: SILVER PER QQ-S-365

ALL OTHER M ETAL PARTS: NICKEL PER QQ-N-290

8. ELECTRICAL SPECIFICATIONS:

IM PEDANCE: 75 OHM S

WORKING VOLTAGE: 500 VOLTS RM S

FREQUENCY RANGE: DC - 12 GHz

RETURN LOSS: -30dB M AX TO 3.0 GHz

-20dB M AX TO 6.0 GHz

9. COM PLIANT TO 3G/6G/12G SDI SM PTE REQUIREM ENTS.

10. M ARK PACKAGE: KINGS 2065-11-9.

REV

DESCRI PTI ON

AP PD

D AT E

04/1 0/15

E R057798

1.22 30.9

.22 5.5

.56 14.2

STAM P: KINGS 2065-11-9

Y RWK (DATE CODE)

PER ASME Y1 4. 5M-1 99 4

U NLESS OTHERWI SE SPECI FI ED:

DI MENSI ONS ARE I N I NC HES [ MM]

TOLER ANC ES:

DECI MAL: .XX [ X.X ] ± .01 [ 0.3]

. X XX [ X. XX] ± .0 0 5 [ 0 .1 3 ]

. XXXX [ X.XXX ] ± .XX XX

ANG LES: ± 2°

SC ALE: 4:1

W i n c he s t e r E l e c t r o n i c s C o r p o r a t i o n

1 9 9 P a r k R o a d E x t S u ite 1 0 4

M id d le b u r y , C o n n e c tic u t 0 6 7 6 2

CATALOG P/N: 2065-11-9

CUSTOMER

SALES DRAWING

D R AW N

APPRO VED

D ATE APPR OVED

04 /09/20 15 M AR

D ATE APPR OVED

04/09/201 5 XX X

THI RD

ANG LE

D AT E

07/2 8/201 5

D AT E

XX/ XX/ XX

75 OHM BNC PLUG

FOR BELDEN 1855A OR EQUIVALENT

CABLE (RoHS)

SD2065-11-9

SH T

R EV

1 1 J

DM F 0 2 9 B
