TC55465AP-35 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> TC55465AP-35

TC55465AP-35: DescriptionIC 64K X 4 CACHE SRAM, 35 ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28, Static RAM; Categorystorage storage; File Size354KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC55465AP-35 Overview

IC 64K X 4 CACHE SRAM, 35 ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28, Static RAM

TC55465AP-35 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP28,.3
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	35 ns
I/O type	COMMON
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	34.9 mm
memory density	262144 bit
Memory IC Type	CACHE SRAM
memory width	4
Number of functions	1
Number of terminals	28
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum standby current	0.001 A
Minimum standby current	4.5 V
Maximum slew rate	0.1 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

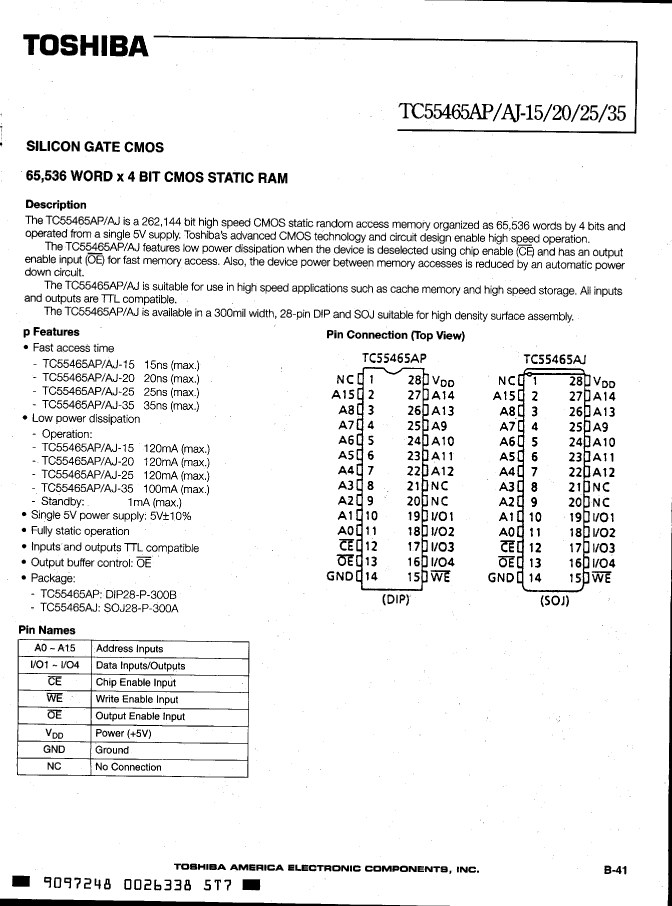

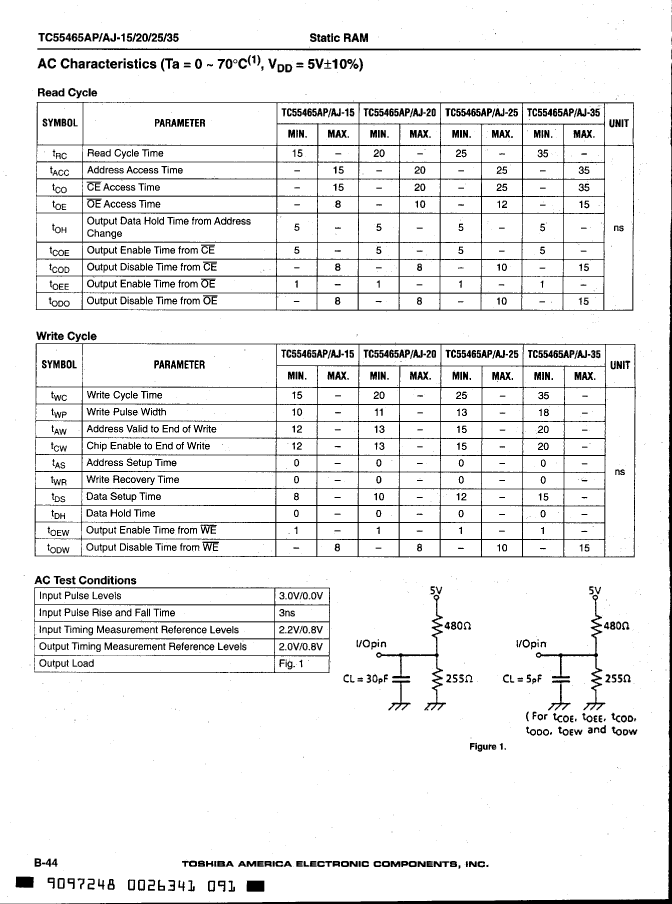

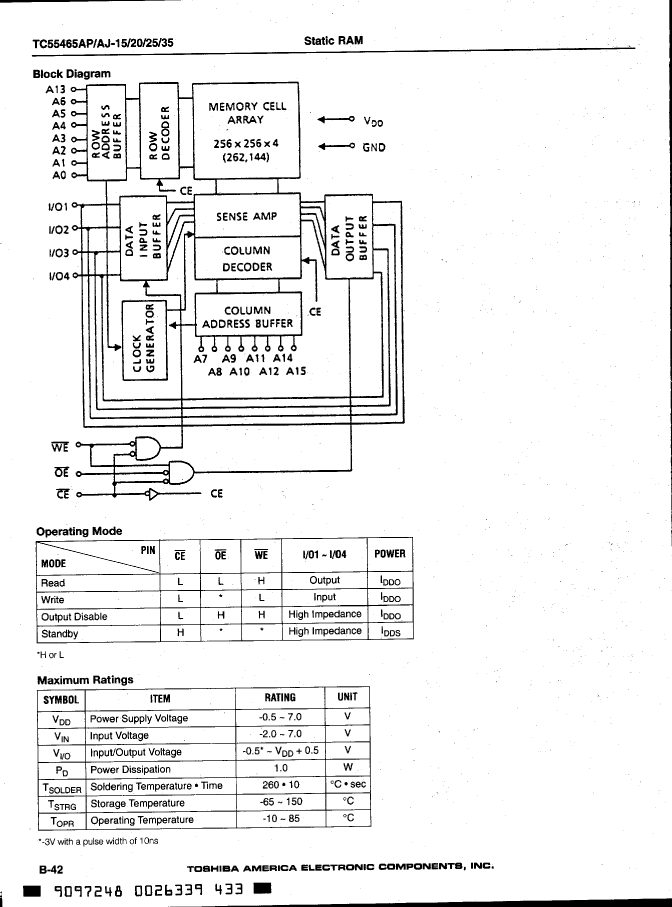

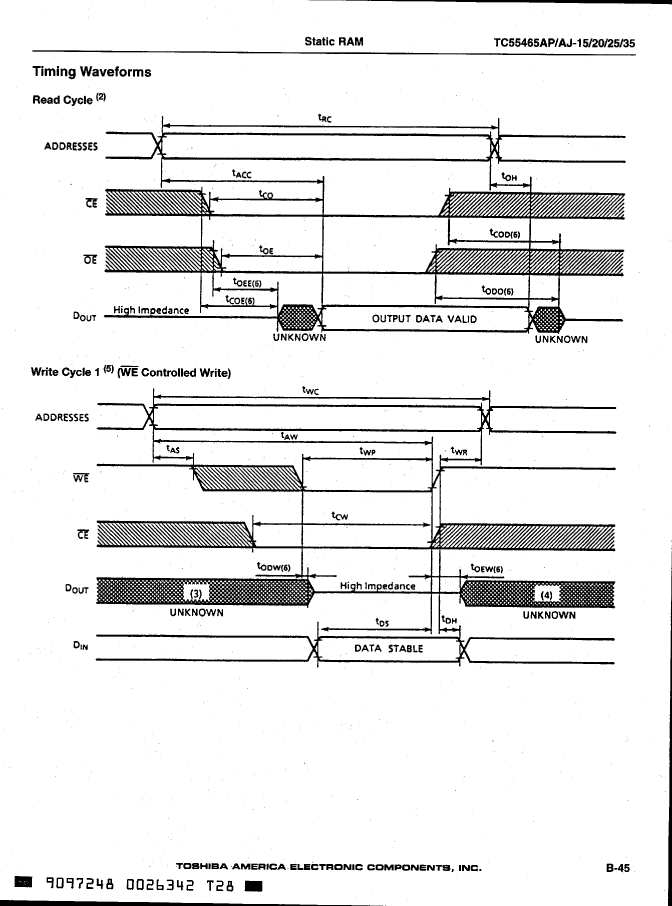

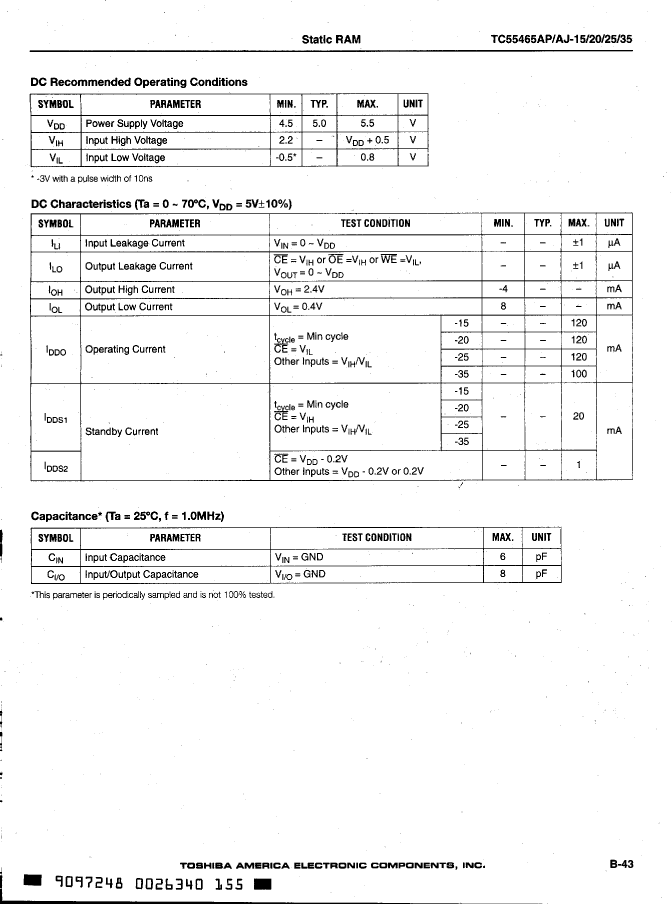

TC55465AP-35 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC55465AP-35 Related Products

	TC55465AP-35	TC55465AJ-15	TC55465AJ-35	TC55465AJ-20	TC55465AP-25	TC55465AJ-25	TC55465AP-20
Description	IC 64K X 4 CACHE SRAM, 35 ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28, Static RAM	IC 64K X 4 CACHE SRAM, 15 ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28, Static RAM	IC 64K X 4 CACHE SRAM, 35 ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28, Static RAM	IC 64K X 4 CACHE SRAM, 20 ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28, Static RAM	IC 64K X 4 CACHE SRAM, 25 ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28, Static RAM	IC 64K X 4 CACHE SRAM, 25 ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28, Static RAM	IC 64K X 4 CACHE SRAM, 20 ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28, Static RAM
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIP	SOJ	SOJ	SOJ	DIP	SOJ	DIP
Contacts	28	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Maximum access time	35 ns	15 ns	35 ns	20 ns	25 ns	25 ns	20 ns
JESD-30 code	R-PDIP-T28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDIP-T28	R-PDSO-J28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	34.9 mm	18.42 mm	18.42 mm	18.42 mm	34.9 mm	18.42 mm	34.9 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bi
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOJ	SOJ	SOJ	DIP	SOJ	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	240
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.45 mm	3.7 mm	3.7 mm	3.7 mm	4.45 mm	3.7 mm	4.45 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	YES	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	J BEND	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.7 mm	7.7 mm	7.7 mm	7.62 mm	7.7 mm	7.62 mm
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead
package instruction	DIP, DIP28,.3	SOJ, SOJ28,.34	SOJ, SOJ28,.34	SOJ, SOJ28,.34	DIP, DIP28,.3	-	DIP, DIP28,.3
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	-	COMMON
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE
Encapsulate equivalent code	DIP28,.3	SOJ28,.34	SOJ28,.34	SOJ28,.34	DIP28,.3	-	DIP28,.3
power supply	5 V	5 V	5 V	5 V	5 V	-	5 V
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	-	0.001 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Maximum slew rate	0.1 mA	0.12 mA	0.1 mA	0.12 mA	0.12 mA	-	0.12 mA
technology	CMOS	CMOS	CMOS	CMOS	CMOS	-	CMOS
