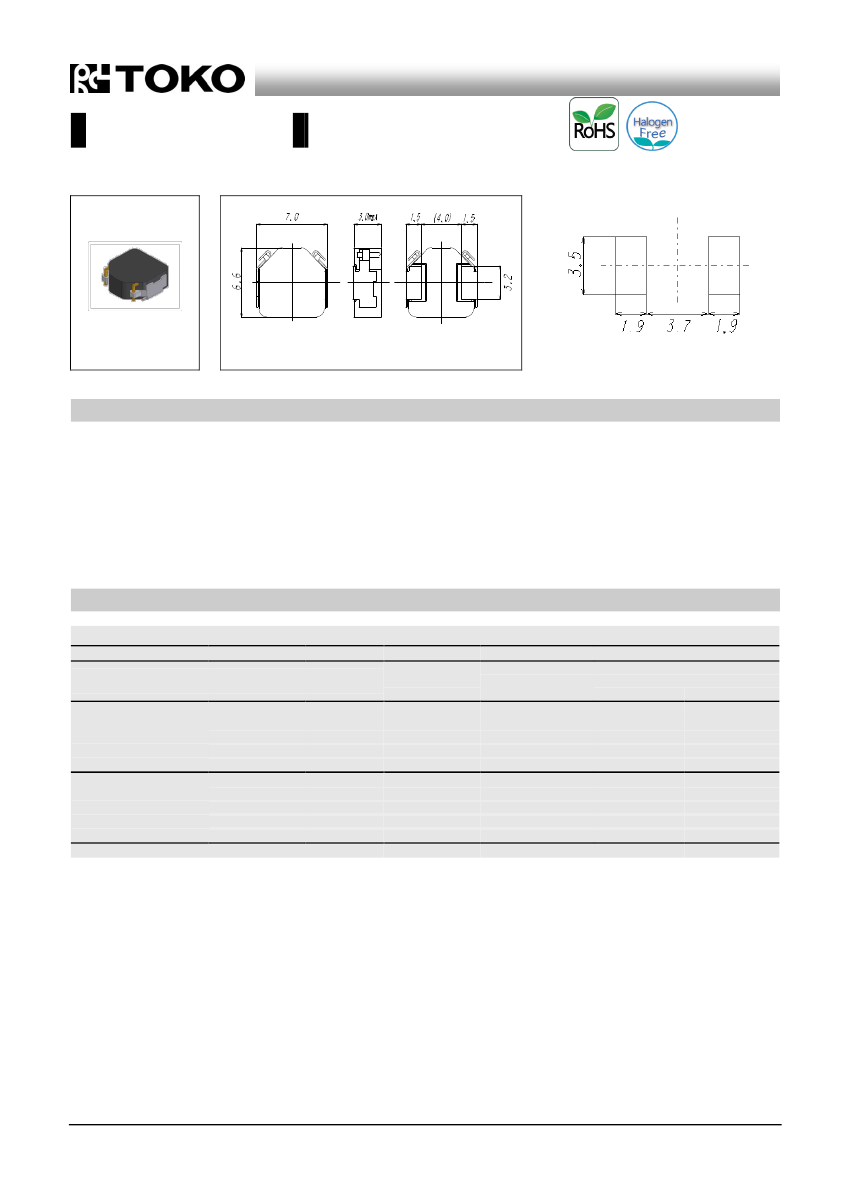

DFEH7030D

Inductance Range:

1.0~22H

Recommended patterns

推奨パターン図

Tolerance：±0.3mm

(Unit: mm)

FEATURES



特長



7.3



6.9mm

角、高さ3.0mm

Max.

閉磁路構造、½直流抵抗

大電流対応

½コアロス鉄系磁性粉を用いた高効率化対応

½コア鳴きノイズ

DC-DC

コンバータ用インダクタなどに最適

動½温度範囲：-40½+155℃

AEC-Q200対応

7.3



6.9mm square and 3.0mm Max. height.

Magnetically shielded construction, low DC resistance.

Suitable for large current

The use of low loss iron powder ensure capability for high

efficiency.



Low audible core noise.



Operating temperature range : -40½+155°C



AEC-Q200 compliant.

STANDARD PART NUMBERS

標準品一覧

TYPE DFEG7030D (Quantity/reel; 1,000 PCS)

品番

Part

Number

DFEH7030D-1R0M=P3

DFEH7030D-1R5M=P3

DFEH7030D-2R2M=P3

DFEH7030D-3R3M=P3

DFEH7030D-4R7M=P3

DFEH7030D-5R6M=P3

DFEH7030D-6R8M=P3

DFEH7030D-8R2M=P3

DFEH7030D-100M=P3

DFEH7030D-150M=P3

DFEH7030D-220M=P3

インダクタンス

Inductance

L(H)

1.0

1.5

2.2

3.3

4.7

5.6

6.8

8.2

許容差

Tolerance

(%)

±20

測定周波数

Test

Frequency

(MHz)

100

直流抵抗

DC Resistance

(m)

Max. (Typ.)

9.9 (8.2)

15 (12)

18 (15)

29 (24)

41 (34)

54 (45)

59 (49)

78 (65)

82 (68)

147 (122)

198 (170)

最大許容電流

Rated DC Current

(A) Max. (Typ.)

ΔL/L=20%

ΔT=40C

9.0 (12)

9.1 (11)

7.3 (9.7)

7.6 (9.5)

6.9 (9.2)

7.1 (8.9)

5.3 (7.1)

5.4 (6.7)

4.2 (5.6)

4.2 (5.3)

4.1 (5.4)

3.8 (4.7)

3.9 (5.2)

3.5 (4.4)

3.2 (4.2)

3.1 (3.9)

3.2 (4.2)

3.0 (3.7)

2.4 (3.2)

2.2 (2.7)

2.0 (2.7)

1.9 (2.4)

(1) Inductance is measured with a LCR meter 4284A(Agilent

Technologies) or equivalent. Test frequency at 100kHz

(2) DC resistance is measured with 34420A (Agilent Technologies) or

3541(HIOKI). (Reference ambient temperature 25°C)

(3) Maximum allowable DC current is that which causes a 30%

inductance reduction from the initial value, coil temperature to rise

by 40°C, whichever is smaller.

(Reference ambient temperature 25°C)

(4) Absolute maximum voltage : 50VDC

(1)

インダクタンスはLCRメータ4284A(Agilent

Technologies)または

同等品により測定する。測定周波数は100kHz。

(2)

直流抵抗は測定器34420A（Agilent

Technologies）または3541

（HIOKI）と同等品により測定する。（周囲温度25°C）

(3)

最大許容電流は½直流重畳電流を流した時インダクタンスの値が

初期値より20％減少する直流電流値、または直流電流により、

コイルの温度が40°C上昇の½れか小さい値。

(周囲温度25°Cを基準とする。）

(4)

絶対最大電圧

50VDC
