PBA series
Piezo switches Ø 22 (.866)
Overview
PBA
SERIES
Bushing / operator
All models with Ø 22 bushing

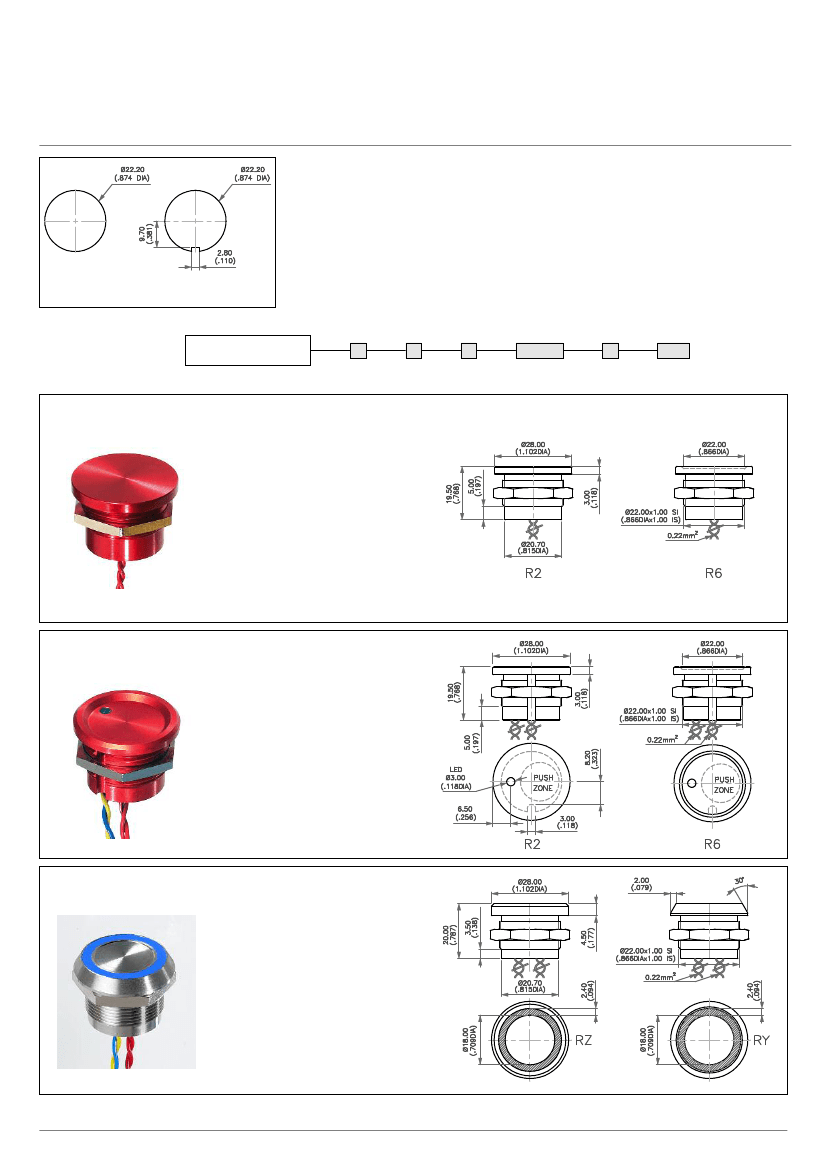

R2
R6
Flat, operator height 3 mm (.118)
Not available w. illuminated ring.
With finger location, operator
height 3 mm (.118).
Not available
with illuminated ring.
With chamfer, operator height
4,5 mm (.177).
Available with thin
or large illuminated ring only.
Flat, operator height 4,5 mm
(.177).
Available with thin or large
illuminated ring only.
F
C
Z
Terminals
Flying leads
Cable
Solder lug/
quick-connect
Ratings
000
200mA 24VAC/DC
(std)
002
1A 24VAC/DC
(NO pulse only)
LED colours
Blank
0B
0G
0S
0Y
0W
2A
2B
2C
2D
2E
2F
2G
2H
2I
2K
Non-illum.
Blue
Green
Red
Yellow
White
Red/green
Red/yellow
Red/blue
Red/white
Green/blue
Green/yellow
Green/white
Blue/yellow
Blue/white
Yellow/white
RY
Colours / Materials
0
1
2
3
5
6
B
Natural anodized
Blue anodized
Black anodized
Green anodized
Gold anodized
Red anodized
Stainless steel 316L
Type of
illumination/voltage
Blank
C
D
E
F
G
H
L
P
J
RZ
Electrical function
A
B
C
1
NO (pulse)
NC (pulse)
NO prolongated
pulse
ON - OFF*
Non-illuminated
thin ring - 5VDC
thin ring - 12VDC
thin ring - 24VDC
large ring - 5VDC
large ring - 12VDC
large ring - 24VDC
dot - 5VDC
dot - 12VDC
LED colours (continued)
dot - 24VDC
3A
3B
3D
3E
3F
3G
3H
3I
3J
3K
* requires external
power supply.
Red/green/blue
Red/green/yellow
Red/green/white
Red/blue/yellow
Red/blue/white
Red/yellow/white
Green/blue/yellow
Green/blue/white
Green/yellow/white
Blue/yellow/white
For options not listed above, please refer to our “Custom configurations” pages.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
Mounting accessories
: standard hardware supplied :1 hex nut U6440 (25 mm ac. flats) and 1 O-ring
Packaging unit
: 20 pieces
16
www.apem.com
APEM
PBA series
Piezo switches Ø 22 (.866)
Illuminated and non-illuminated
• Operator Ø 28 mm (1.102)
MODEL
STRUCTURE
Wire colours
: see “Electrical functions” page.
Non-illuminated - operator height 3 mm (.118)
Flat
PBAR2
With finger location
PBAR6
PBAR2AF6000
With illuminated dot - operator height 3 mm (.118)
Flat
PBAR2
With finger location
PBAR6
PBAR6AF6000L0G

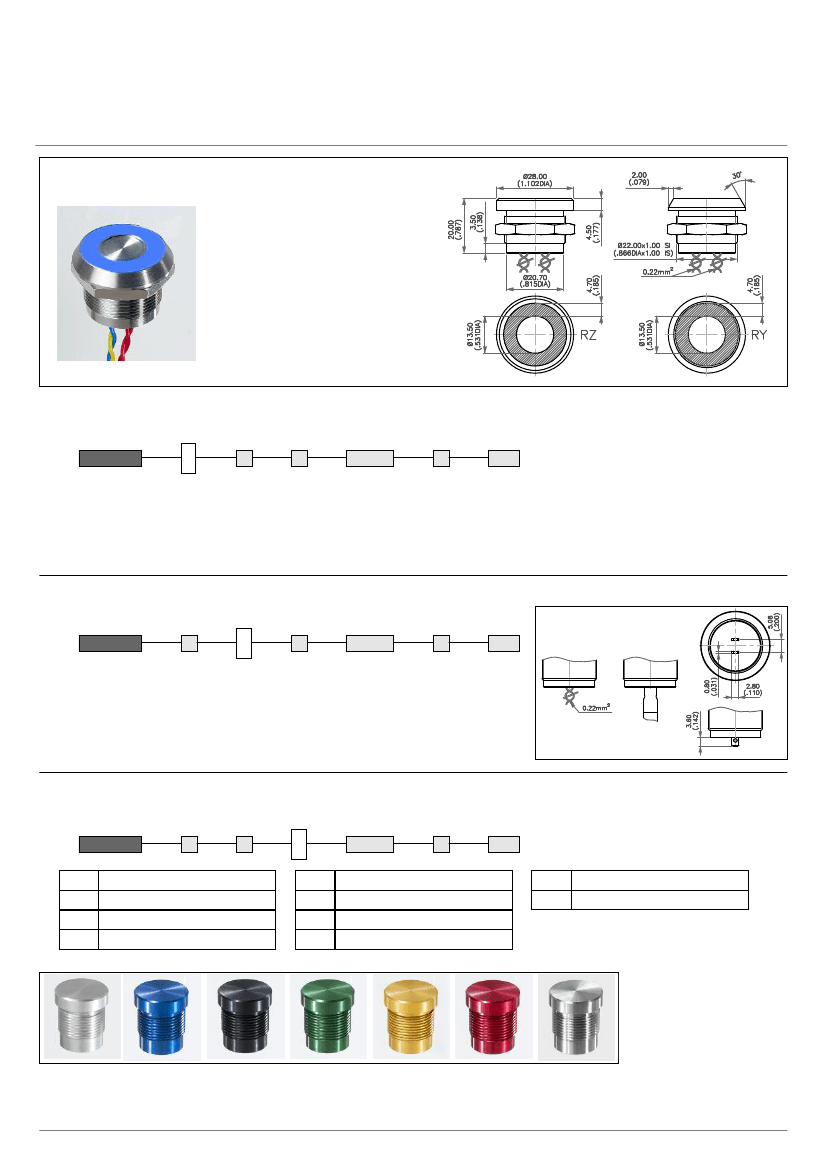

With thin illuminated ring - operator height 4,50 (.177)
Flat
PBARZ
With chamfer
PBARY
PBARYAF0000C0B
APEM
www.apem.com
17
PBA series
Piezo switches
Illuminated and non-iluminated
With large illuminated ring - operator height 4,50 (.177)
Flat
PBARZ
With chamfer
PBARY
PBARYAF0000F0B
ELECTRICAL FUNCTION
A
B
C
1
NO pulse
NC pulse
NO prolongated pulse
ON - OFF - Requires external power supply
TERMINALS
F
C
Z
Flying leads
Cable
Solder lug / quick-connect
CASE COLOURS
/
MATERIALS
Code
0
1
2
Colour
Natural anodized aluminium
Blue anodized aluminium
Black anodised aluminium
Code
3
5
6
Colour
Green anodized aluminium
Gold anodized aluminium
Red anodised aluminium
Code
B
Colour
Stainless steel 316L
0
1
2
3
5
6
B
18
www.apem.com
APEM
PBA series
Piezo switches Ø 22 (.866)
Options
RATINGS
000
002
200mA 24VAC or DC (standard)
1A 24VAC or DC (NO pulse only)
TYPE OF ILLUMINATION
/
VOLTAGE
5V
C
F
L
12V
D
G
P
24V
E
H
J

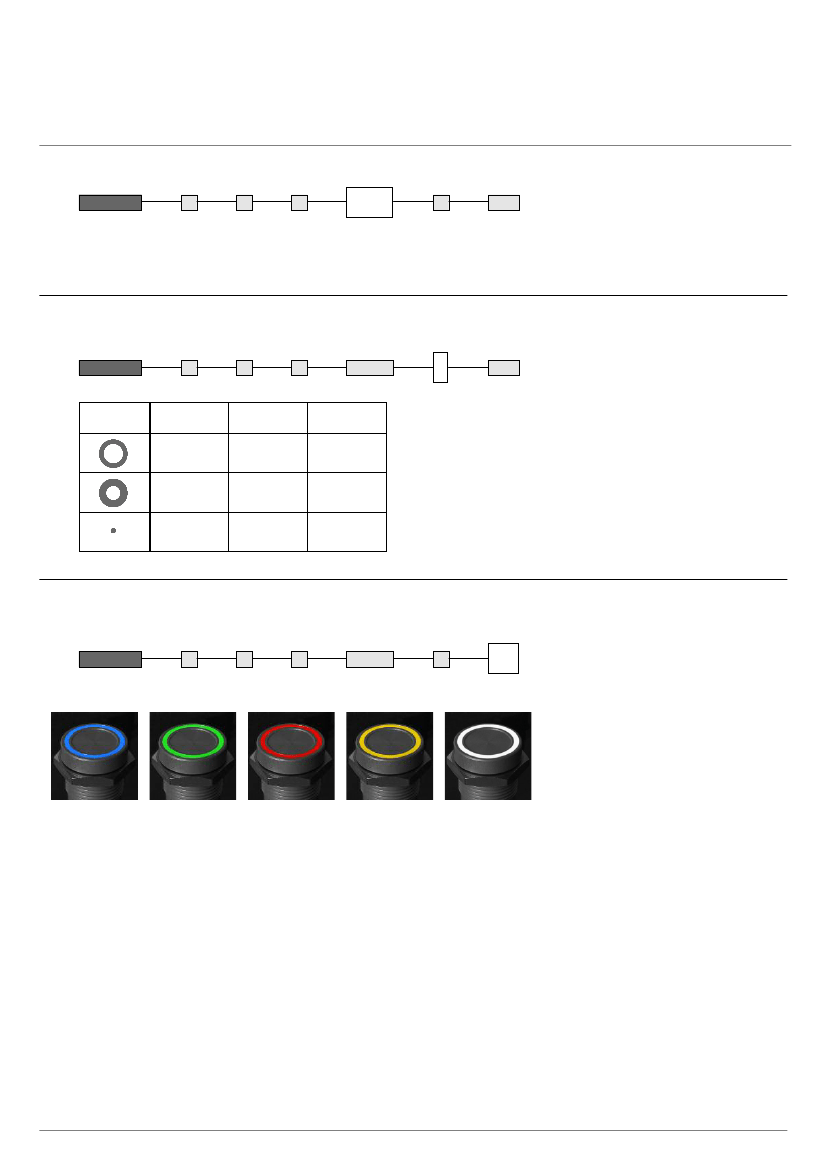

LED COLOURS
Integrated LED resistor
Blank
: non-illuminated
0B
0G
0S
0Y
0W
Illuminated 1 LED *
0B
: blue -
0G
: green -
0S
: red -
0Y
: yellow -
0W
: white
Illuminated 2 LEDs
2A
: red/green -
2B
: red/yellow -
2C
: red/blue -
2D
: red/white -
2E
: green/blue -
2F
: green/yellow -
2G
: green/white
2H
: blue/yellow -
2I
: blue/white -
2K
: yellow/white
Illuminated 3 LEDs
3A
: red/green/blue -
3B
: red/green/yellow -
3D
: red/green/white -
3E
: red/blue/yellow -
3F
: red/blue/white
3G:
red/yellow/white -
3H
: green/blue/yellow -
3I
: green/blue/white -
3J
: green/yellow/white -
3K
: blue/yellow/white
* LED colour is indicated by the bottom of the product.
