AM2Q-4815SZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AM2Q-4815SZ

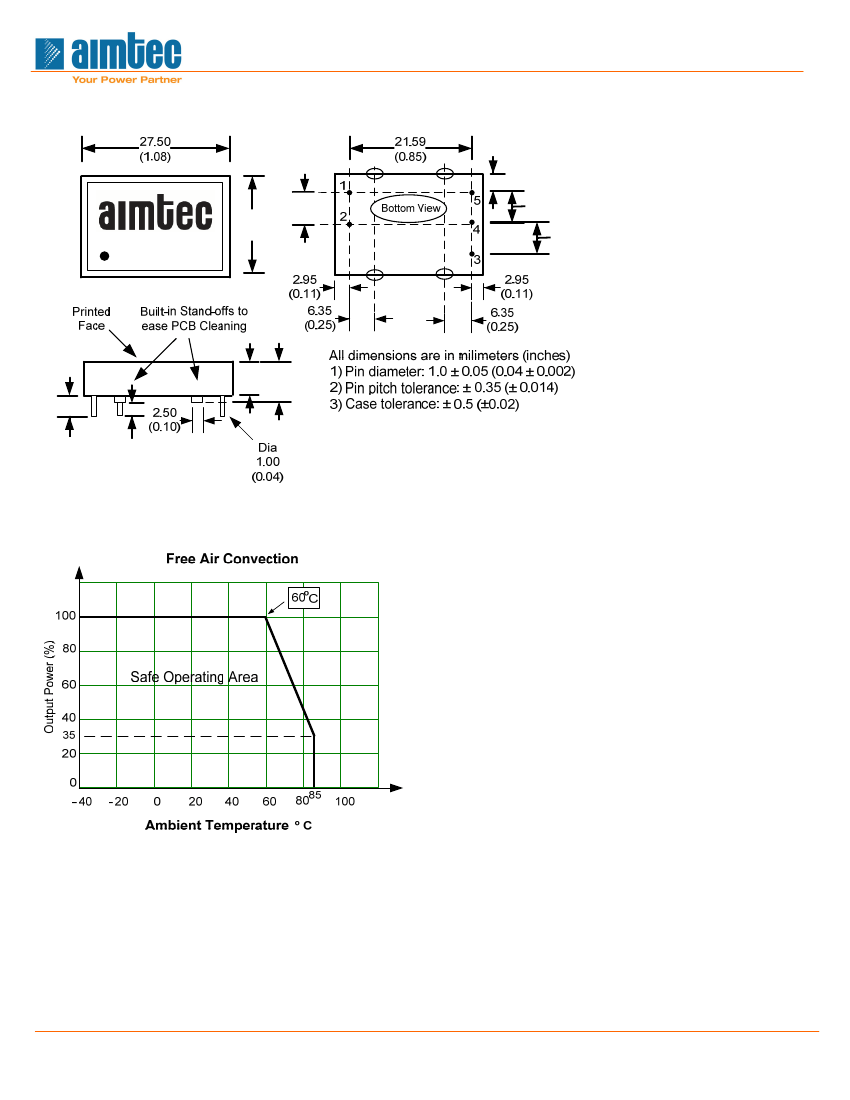

AM2Q-4815SZ: DescriptionDC/DC Converter; Product Weight (grams): 10; Input voltage min (V): 36; Input voltage max (V): 75; Output voltage min: 15; Output voltage max: 15; Output voltage dual assymetric (y/n): Single; Output Power (W): 1.5; Max Output current (A): 0.1; Efficiency (%): 78; Max Capacitive load (µF): 100; Package type: 7mm (Encap.); Mounting: PCB; W (in): 0.7; L (in): 1.08; H (in): 0.28; W (mm): 18; L (mm): 27.5; H (mm): 7; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VAC): 500; Case material: Copper; Application 4 (building automation/IoT): 1; MTBF (h): 1600000; Derating : 85; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 50; Switching Frequency typ (KHz): 100; Short circuit protection: Continuous; CategoryPower/power management The power supply circuit; File Size626KB，3 Pages; ManufacturerAimtec; Websitehttp://www.aimtec.ca/; Environmental Compliance

Download Datasheet View All

AM2Q-4815SZ Overview

DC/DC Converter; Product Weight (grams): 10; Input voltage min (V): 36; Input voltage max (V): 75; Output voltage min: 15; Output voltage max: 15; Output voltage dual assymetric (y/n): Single; Output Power (W): 1.5; Max Output current (A): 0.1; Efficiency (%): 78; Max Capacitive load (µF): 100; Package type: 7mm (Encap.); Mounting: PCB; W (in): 0.7; L (in): 1.08; H (in): 0.28; W (mm): 18; L (mm): 27.5; H (mm): 7; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VAC): 500; Case material: Copper; Application 4 (building automation/IoT): 1; MTBF (h): 1600000; Derating : 85; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 50; Switching Frequency typ (KHz): 100; Short circuit protection: Continuous

Preview

Download Datasheet

View All

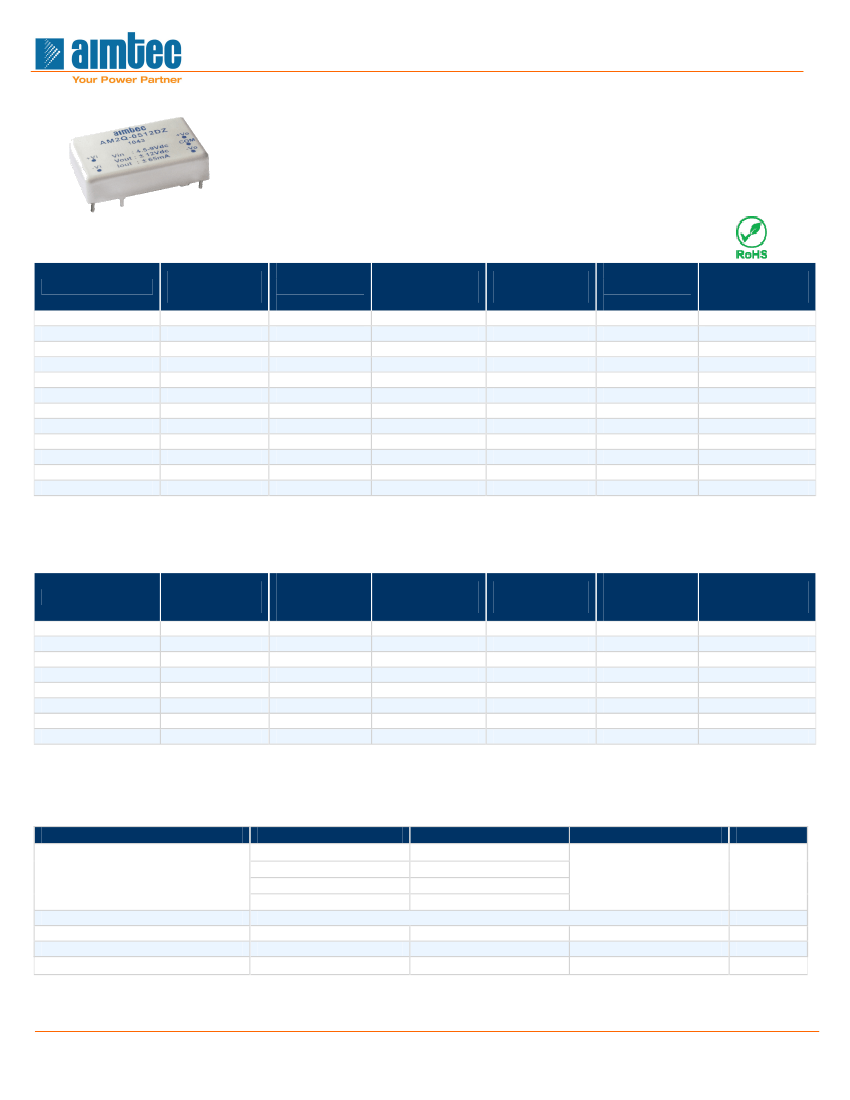

Series AM2Q-Z

2 Watt | DC-DC Converter

FEATURES:



RoHS Compliant

Wide 2:1 input range

High Efficiency up to 83%

Continuous short circuit



Operating Temperature -40ºC to 85ºC

Input / Output Isolation of 500VAC

No Tantalum capacitors used inside

Over voltage protection

Models

Single output

Model

AM2Q-0505SZ

AM2Q-0512SZ

AM2Q-0515SZ

AM2Q-1205SZ

AM2Q-1212SZ

AM2Q-1215SZ

AM2Q-2405SZ

AM2Q-2412SZ

AM2Q-2415SZ

AM2Q-4805SZ

AM2Q-4812SZ

AM2Q-4815SZ

Input Voltage

(V)

4.5-9

9-18

18-36

36-75

Output

Voltage

(V)

Output Current

max (mA)

300

130

100

300

130

100

300

130

100

300

130

100

Isolation

(VAC)

500

Max

Capacitive

Load (uF)

100

Efficiency

(%)

Models

Dual output

Model

AM2Q-0512DZ

AM2Q-0515DZ

AM2Q-1212DZ

AM2Q-1215DZ

AM2Q-2412DZ

AM2Q-2415DZ

AM2Q-4812DZ

AM2Q-4815DZ

Input Voltage

(V)

4.5-9

9-18

18-36

36-75

Output

Voltage

(V)

±12

±15

±12

±15

±12

±15

±12

±15

Output Current

max (mA)

±65

±50

±65

±50

±65

±50

±65

±50

Isolation

(VAC)

500

Max

Capacitive

Load (uF)

±100

Efficiency

(%)

NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at

rated output load unless otherwise specified.

Input Specifications

Parameters

Voltage range

Filter

Start up time

No Load Input Current

Input reflected current

Nominal

Typical

4.5-9

9-18

18-36

36-75

LC Type

Maximum

Units

VDC

www.aimtec.com

F 051e R12.E

Tel: +1 514 620 2722

1 of 3

Toll free: + 1 888 9 AIMTEC

(924 6832)

North America only
