NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.

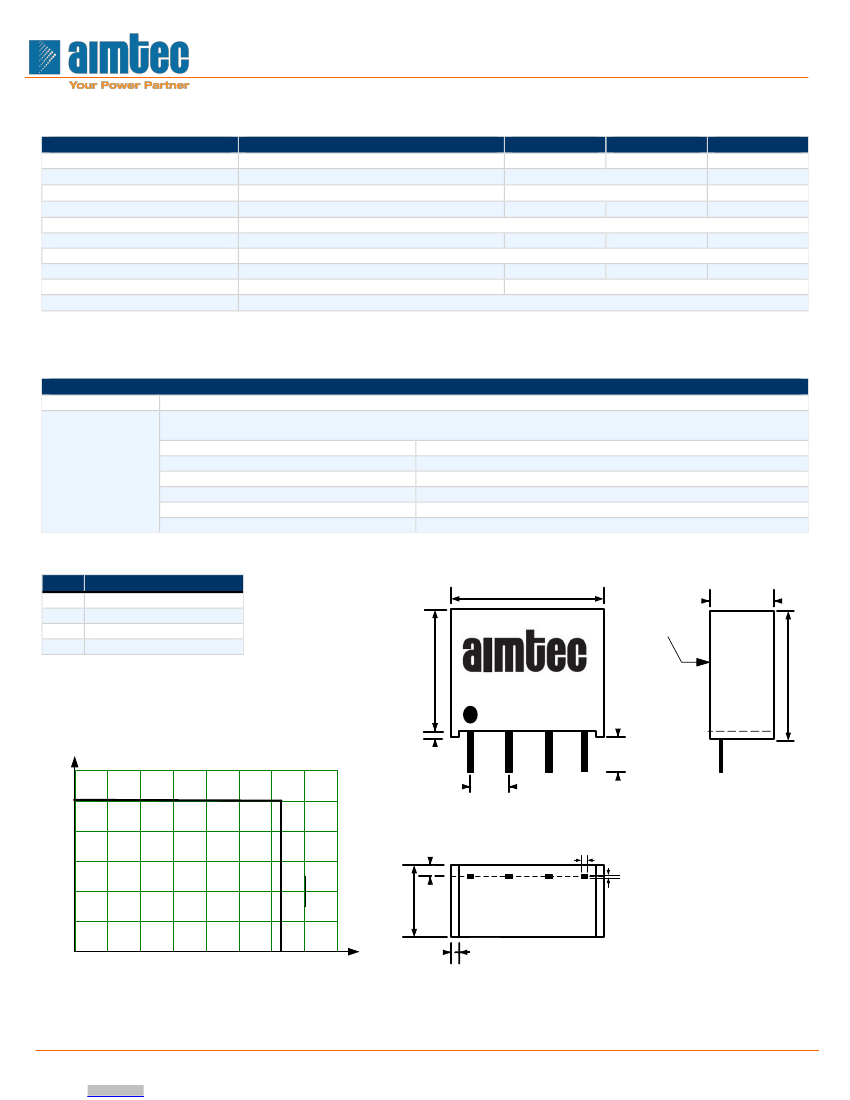

Safety Specifications
Parameters
Agency Approval
CE
EN55032 (Radiated Emissions) class B
EN55032 (Conducted Emissions) class B (with the Application Circuit)
Electrostatic Discharge Immunity
IEC 61000-4-2 Criteria A
RF, Electromagnetic Field Immunity
IEC 61000-4-3 Criteria A
Electrical Fast Transient/Burst Immunity
IEC 61000-4-4 Criteria A (with a 470µF/100V filter capacitor)
Surge Immunity
IEC 61000-4-5 Criteria A (with a 470µF/100V filter capacitor)
RF, Conducted Disturbance Immunity
IEC 61000-4-6 Criteria A
Power frequency Magnetic Field Immunity
IEC 61000-4-8 Criteria A
Standards
Pin Out Specifications
Pin
1
2
3
4
Dimensions
1000 and 3000VDC
-V Input
+V Input
-V Output
+V Output
9.65
(0.38)
11.68
(0.46)
PRINTED
FACE
7.50
(0.29)
10.15
(0.40)
Derating
Free Air Convection
0.50
(0.02)
2.54
(0.10)
3.05
(0.12)
100
Output Power (%)
80
60
40
20
0
- 40
- 20
0
20
40
60
80
85
Safe Operating Area
7.50
(0.29)
2.00
(0.08)
0.50
(0.02)
0.30
(0.01)
100
0.50
(0.02)
Ambient Temperature
º C
www.aimtec.com
F 051e R11.H
Rev: 04/20/A
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM2S-Z
2 Watt | DC-DC Converter
Application Circuit, & Conducted Emissions
L
C1
C2
+V input
+V output
DC/DC
Converter
Load
Vin
5
12
15
24
48
C1
2.2uF/100V
2.2uF/100V
2.2uF/100V
2.2uF/100V
10uF/100V
L
18uH
18uH
18uH
18uH
18uH
C2
N/A
N/A
N/A
2.2uF/100V
2.2uF/100V
C3
N/A
N/A
N/A
470pF/2KV
470pF/2KV
-V input
C3
-V output
Typical Efficiency Example Charts
AM2S-2405SZ Efficiency vs. Loading
100
80
60
40
20
0
20%
40%
60%
Loading %
80%
100%
AM2S-1205SZ Efficiency vs. Loading
100
80
60
40
20
0
20%
40%
60%
Loading %
80%
100%
Eff %
AM2S-2405SZ Efficiency vs. Loading
100
80
60
40
20
0
20%
40%
60%
Loading %
80%
100%
Eff %
Eff %
AM2S-4824SZ Efficiency vs. Loading
100
80
60
40
20
0
20%
40%
60%
Loading %
80%
100%
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
