29-3840: DescriptionRF Connector Adapter, SMA-N, Female-Male, ROHS COMPLIANT; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerCinch Connectivity Solutions; Environmental Compliance

Download Datasheet Parametric View All

29-3840 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	29-3840	-	-	View	Buy Now

29-3840 Overview

RF Connector Adapter, SMA-N, Female-Male, ROHS COMPLIANT

29-3840 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Adapter type	SMA-N
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

Preview

Download Datasheet

View All

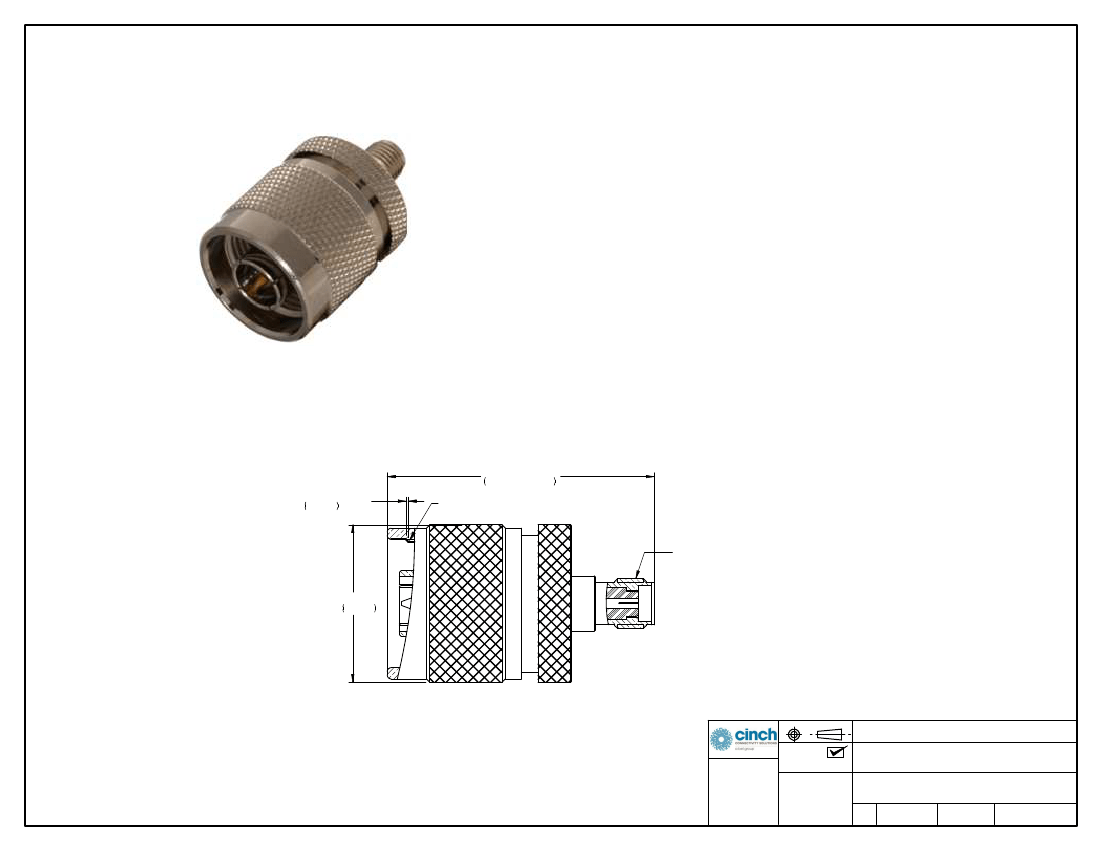

DESCRIPTION:

MODEL NUMBER:

APPLICATION:

CRIMP TOOL:

IMPEDANCE:

CPAD810 SMA(F)-N(M) ADAPTER

29-3840

SMA(F) to N(M) ADAPTER

N/A

50 OHM

FREQUENCY RANGE: N/A

MATERIAL:

BODY

NUT

BRASS

NICKEL PLATED

INSULATOR PTFE

CONTACT

RoHS COMPLIANCE:

TECHNICAL DETAIL:

YES

N END REFER TO CINCH DOCUMENT P/N 26-0000

BRASS GOLD PLATED

32.7 ±0.5

1.287 ±.020

REF

0.6

.024

X45

v

5/8-24 UNEF

1/4-36UNS

O

20.0

.787

3RD ANGLE PROJECTION

AIM-Cambridge

Title:

RoHS2

This PROPRIETARY Document

is property of Cinch Connectivity

Solutions. It is confidential in

nature, non-transferable, and

issued with the clear

understanding that it is not

traced or copied without

permission and is returnable

upon demand.

2011/65/EU

UNLESS OTHERWISE SPECIFIED

UNITS: METRIC

CPAD810 SMA(F)-N(M) ADAPTER

Model No.

INTERPRET DRAWING IN

ACCORDANCE WITH ASME

Y14.5-2009.

.XX

u

.51

.XXX

u

.127

ANGLES

u

2

v

29-3840

Size

A

DO NOT SCALE

Date:

2016/3/7

DRAWING

Sheet 1 of 1
