Series AM30K-NZ
FEATURES:
•
•
•
•
RoHS compliant
Remote On/Off control
High Efficiency up to 90%
Input Under voltage protection
•
•
•
•
Trim adjustment
Power modules for PCB mounting
Operating temperature range: -40 to +85ºC
Standard package
30 Watt | DC-DC Converter
Models
Single output
Model
AM30K-1203S-NZ
AM30K-1205S-NZ
AM30K-1212S-NZ
AM30K-1215S-NZ
AM30K-1224S-NZ
AM30K-2403S-NZ
AM30K-2405S-NZ
AM30K-2412S-NZ
AM30K-2415S-NZ
AM30K-2424S-NZ
AM30K-4803S-NZ
AM30K-4805S-NZ
AM30K-4812S-NZ
AM30K-4815S-NZ
AM30K-4824S-NZ
Input Voltage
(V)
9 – 18
9 – 18
9 – 18
9 – 18
9 – 18
18 – 36
18 – 36
18 – 36
18 – 36
18 – 36
36 – 75
36 – 75
36 – 75
36 – 75
36 – 75
Output Voltage
(V)
3.3
5
12
15
24
3.3
5
12
15
24
3.3
5
12
15
24
Output Current
max (A)
6
6
2.5
2
1.25
6
6
2.5
2
1.25
6
6
2.5
2
1.25
Maximum
capacitive load
(µF)
19500
10200
3240
1100
900
19500
10200
3240
1100
900
19500
10200
3240
1100
900
Efficiency
(%)
85
87
88
88
88
86
88
89
89
88
87
89
90
90
90
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input
voltage and at rated output load unless otherwise specified.
Input Specifications
Parameters
Voltage range
Filter
Start up time
Absolute Maximum Rating
Peak Input Voltage time
Remote On/Off Control
Under Voltage protection
Nominal
12
24
48
Typical
12 Vin
24 Vin
48 Vin
On
Off
9-18 Vin OFF
18-36 Vin OFF
36-75 Vin OFF
9-18
18-36
36-75
π(Pi)
Network
25
Maximum
Units
VDC
ms
20
40
VDC
80
100
ms
3.5 to 12VDC or open circuit
0 to 1.2VDC or short circuit between pin 2 and 3
8
16
VDC
33
Isolation Specifications
Tested I/O voltage
Resistance
Capacitance
Parameters
Conditions
60 sec
At 500Vdc
100KHz / 1V
Typical
>1000
1000
Rated
1500
VDC
MOhm
pF
Units
www.aimtec.com
F 051e R8.G
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM30K-NZ
Output Specifications
Voltage accuracy
Line voltage regulation
Load voltage regulation
Short Circuit protection
Short Circuit restart
Over current protection
Temperature coefficient
Ripple & Noise
Transient Response Recovery Time
Transient response overshoot
Voltage adjustment range
30 Watt | DC-DC Converter
Units
Parameters
Conditions
LL-HL
10% to 100% Load
Input Voltage Range
20MHZ Bandwidth
25% load step change
Typical
±1
±0.2
±0.5
Continuous
Auto Recovery
>120
0.02
100
200
±2
±10
Maximum
%
% of Vin
%
%
%/
o
C
mV p-p
μs
% of Vout
%
160
±5
General Specifications
Switching frequency
Operating temperature
Storage temperature
Case temperature
Cooling
Humidity
Case material
Weight
Dimensions
(L X W X H)
MTBF
Parameters
100% load
With derating above +71°C
Conditions
Typical
300
-40 to +85
-55 to +105
Maximum
Units
KHz
o
C
o
C
o
C
%
Free air convection
Copper, Nickel Plated
45
2.00 x 1.60 x 0.42 inches
>1 000 000 hrs
95
95
Tolerance ±0.5mm
g
50.80 x 40.60 x 10.60 mm
Pin Out Specifications
Pin
1
2
3
4
5
6
+V Input
-V Input
On/Off Control
+V Output
-V Output
Trim

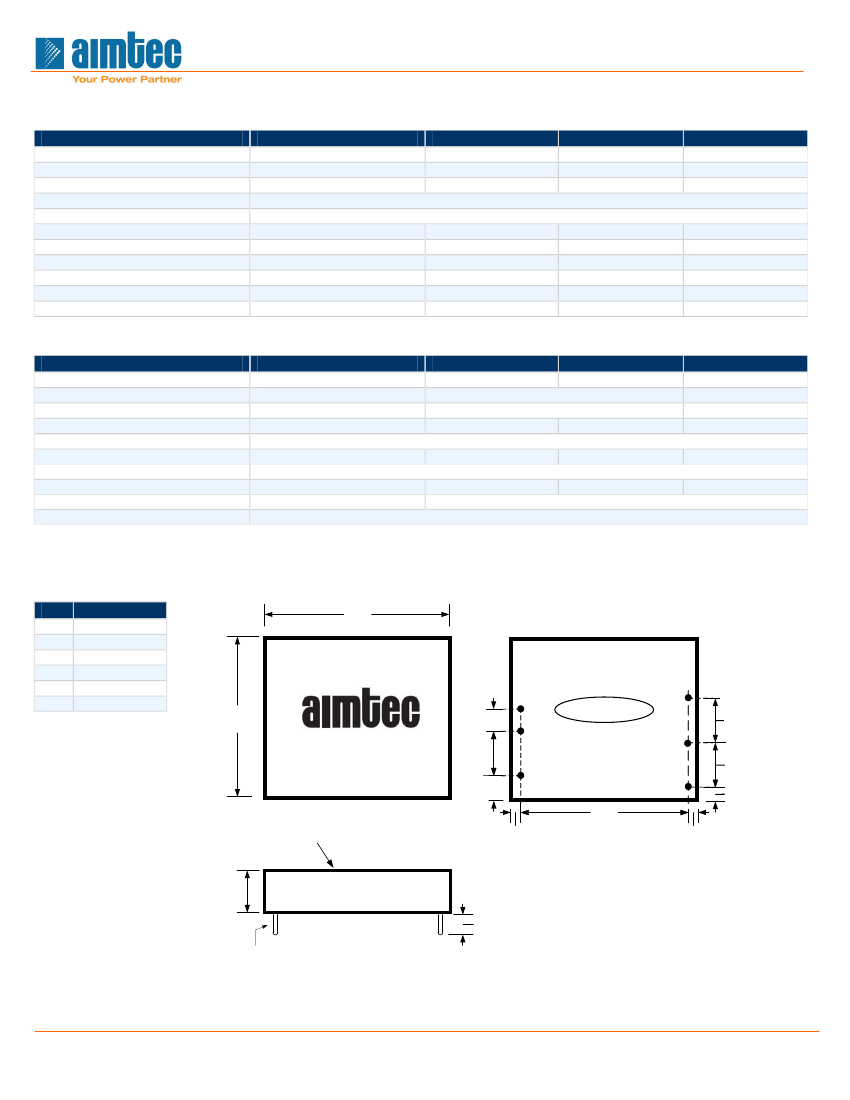

Dimensions
50.80
(2.00)
Single
40.60
(1.60)
7.62 10.16 5.08
(0.30) (0.40) (0.20)
2
5
3
45.72
(1.80)
6
Printed Face
2.54
(0.10)
11.80
(0.47)
Dimensions mm (inch)
Case Tolerance ±0.50 (±0.02)
Pin Pitch Tolerance ±0.35 (±0.014)
2.54
(0.10)
Ø 1.50
(0.06)
www.aimtec.com
F 051e R8.G
Tel: +1 514 620 2722
2 of 3
4.10
(0.16)
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
5.10 10.16
(0.20) (0.40)
10.16
(0.40)
1
4
Bottom View
Series AM30K-NZ

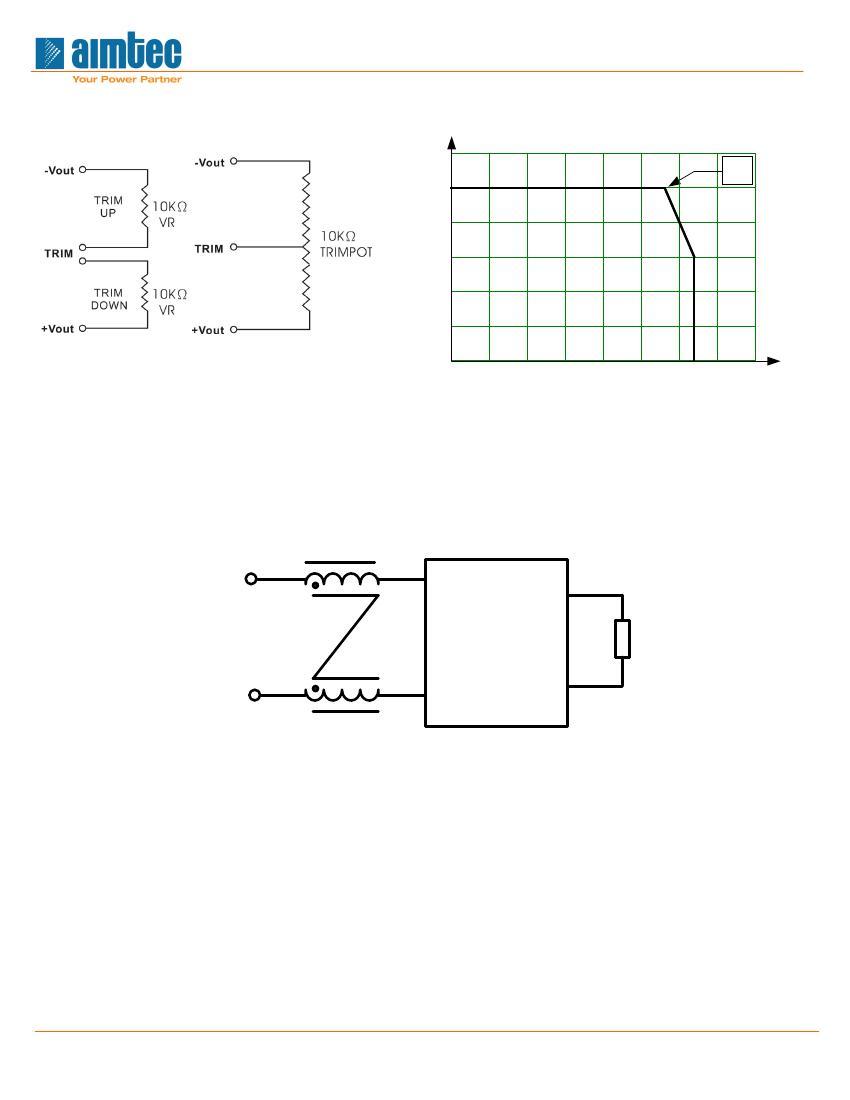

Trimming
Derating
Free Air Convection
71ºC
100
Output Power (%)
30 Watt | DC-DC Converter
80
60
40
20
0
- 40
- 20
0
20
40
60
80
85
Safe Operating Area
100
Ambient Temperature
º C
Recommended EMI Filtering (if required by end application)
Note: should your application not require filtering, no additional circuits are required.
Input +
LCM (3.8mH)
V+
AM30K-NZ
Vo+
Input -
V-
Vo-
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
