6-316514-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6-316514-0

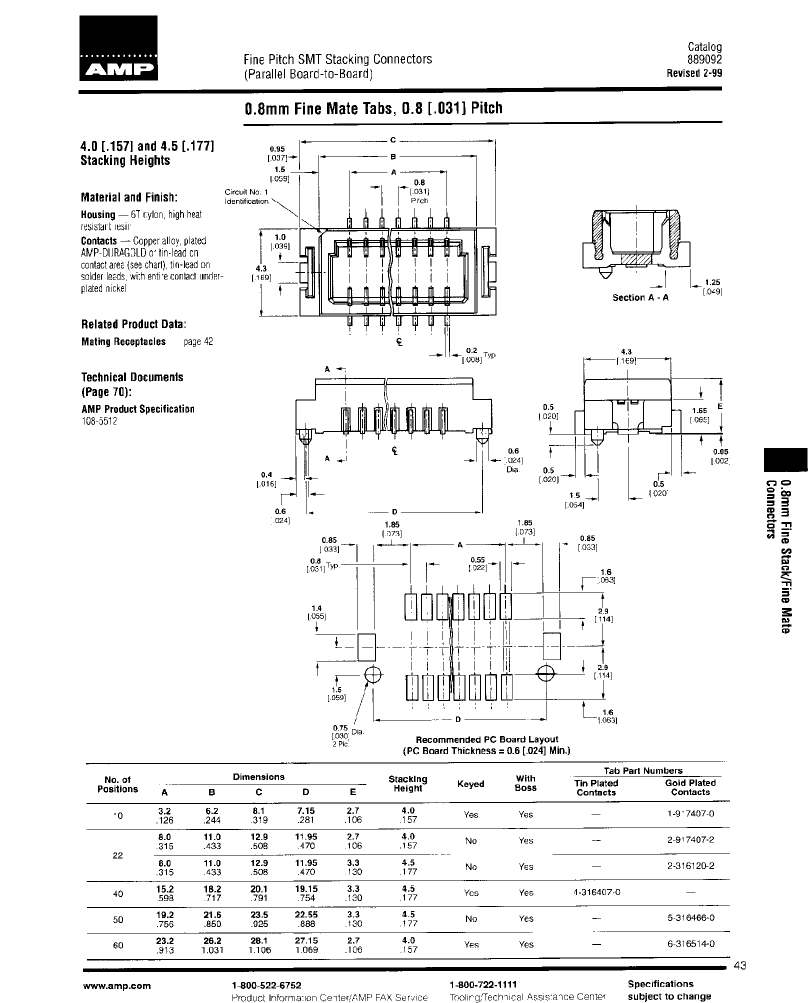

6-316514-0: Description60 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size26KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

6-316514-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6-316514-0	-	-	View	Buy Now

6-316514-0 Overview

60 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE

6-316514-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARISED
Board mount options	PEG
body width	0.169 inch
subject depth	0.108 inch
body length	1.106 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.031 inch
Plug information	6-917408-0
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
polarization key	ENDS
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	60

Preview

Download Datasheet

View All

6-316514-0 Related Products

	6-316514-0	4-316407-0	5-316466-0
Description	60 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.031 PITCH	50 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT
Reach Compliance Code	compliant	unknow	compliant
Other features	POLARISED	WITH BOSS	WITH BOSS
Board mount options	PEG	PEG	PEG
body width	0.169 inch	0.169 inch	0.169 inch
subject depth	0.108 inch	0.132 inch	0.132 inch
body length	1.106 inch	0.791 inch	0.925 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	SN ON NI	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
insulator material	NYLON	NYLON	NYLON
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.191 mm	4.191 mm	4.191 mm
polarization key	ENDS	ENDS	ENDS
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.8 mm	0.7874 mm	0.8 mm
Total number of contacts	60	40	50
Is it Rohs certified?	incompatible	-	incompatible
Maker	TE Connectivity	-	TE Connectivity
ECCN code	EAR99	-	EAR99
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Plug information	6-917408-0	-	5-316464-0
Mixed contacts	NO	-	NO
Installation type	BOARD	-	BOARD
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Termination type	SURFACE MOUNT	-	SURFACE MOUNT
Base Number Matches	-	1	1
