IEC61000-4-4, Perf. Criteria B (external 220uF/100V cap required)
IEC61000-4-5, Perf. Criteria B (external 220uF/100V cap required)
IEC61000-4-6, Perf. Criteria A
IEC61000-4-8, Perf. Criteria A
Safety Standards
Pin Out Specifications
Pin
1
2
3
10
11
12
13
14
15
22
23
24
1000VDC
Single
+V Input
N.C.
N.C.
-V Output
+V Output
-V Input
-V Input
+V Output
-V Output
N.C.
N.C.
+V Input
3000 and 5200VDC
Single
+V Input
+V Input
No pin
No pin
No pin
-V Output
+V Output
No pin
No pin
No pin
-V Input
-V Input
www.aimtec.com
F 051e R8.G
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM3N-S-Z
3 Watt | DC-DC Converter

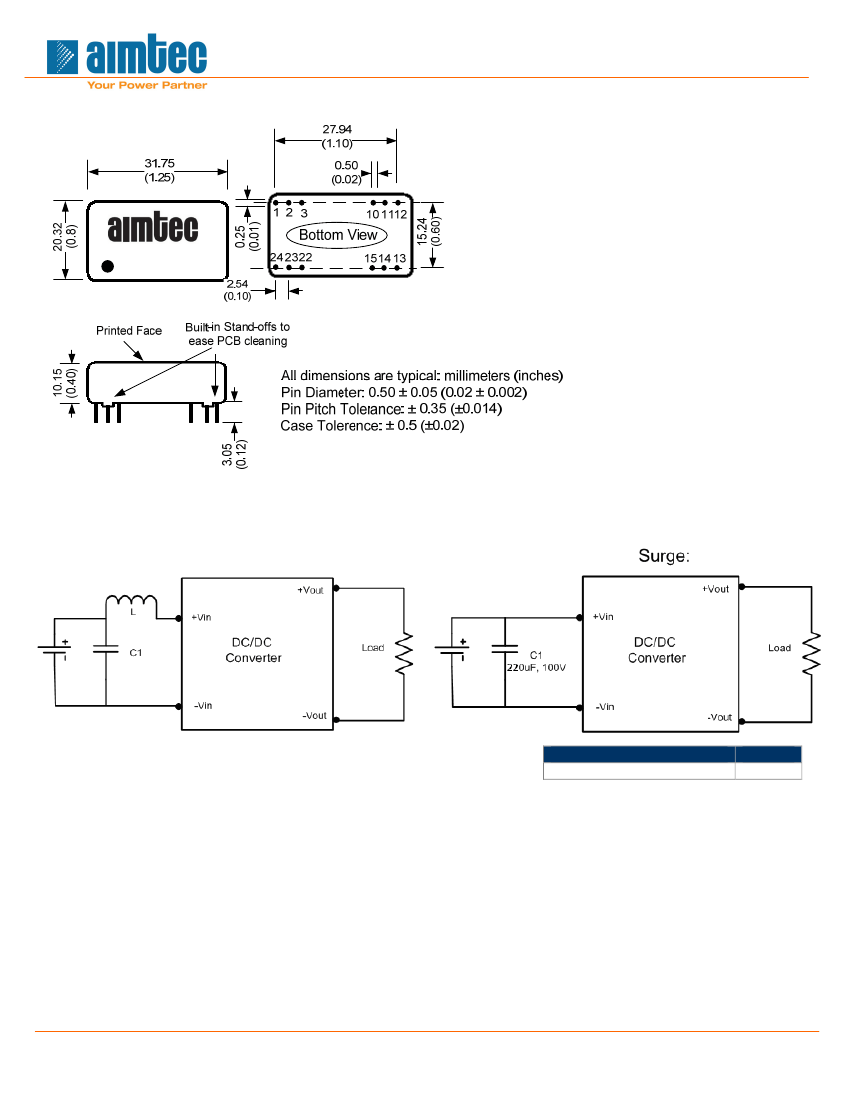

Dimensions
Test Circuits
Conducted Emissions:
C1
220µF/100V
L1
12µH
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
