Part Number

Search

DS1233B-15

Description
Power Supply Support Circuit, Fixed, 1 Channel, PBCY3,
CategoryPower/power management    The power supply circuit
File Size103KB,4 Pages
ManufacturerDALLAS
Websitehttp://www.dalsemi.com
Download Datasheet Parametric Compare View All

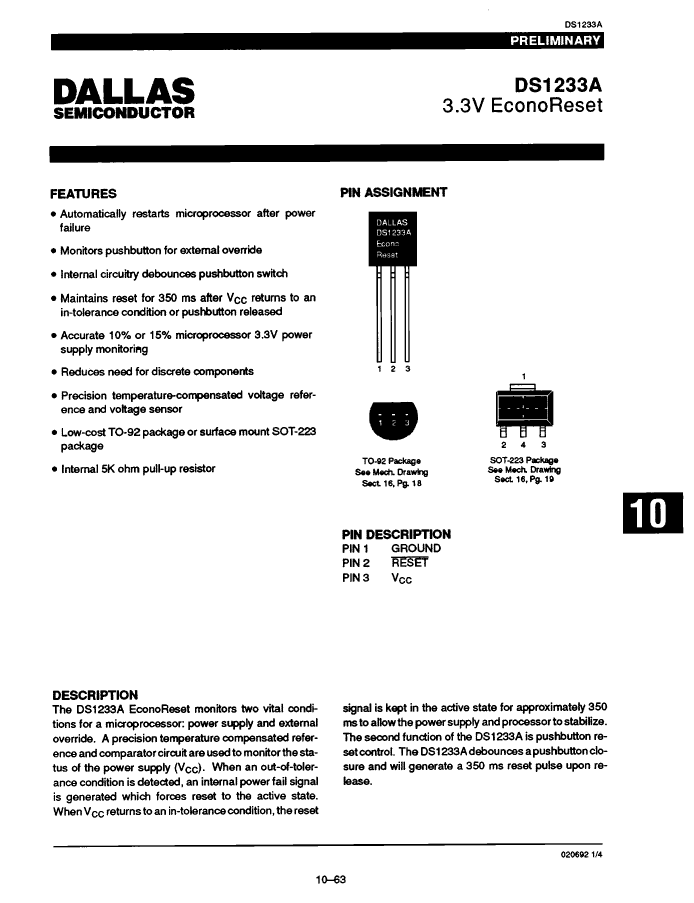

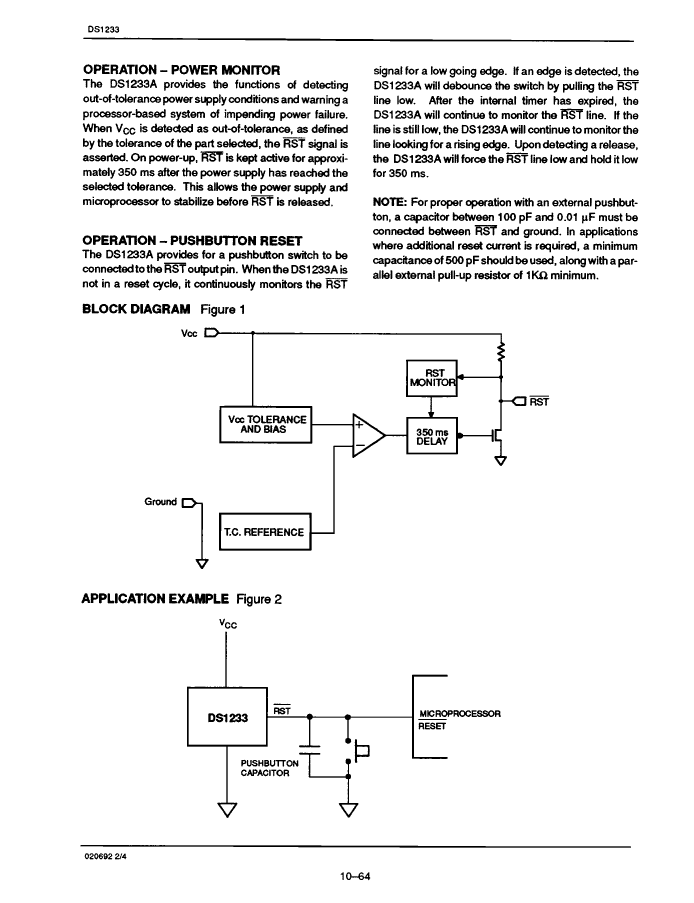

DS1233B-15 Overview

Power Supply Support Circuit, Fixed, 1 Channel, PBCY3,

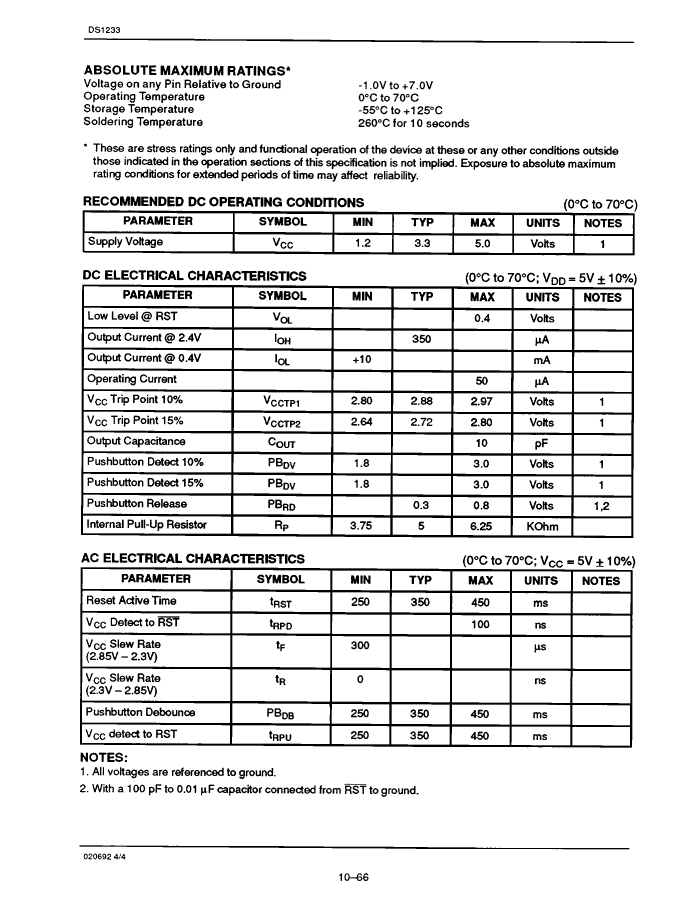

DS1233B-15 Parametric

Parameter NameAttribute value
MakerDALLAS
Reach Compliance Codeunknown
Adjustable thresholdNO
Analog Integrated Circuits - Other TypesPOWER SUPPLY SUPPORT CIRCUIT
JESD-30 codeO-PBCY-W3
Number of channels1
Number of functions1
Number of terminals3
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Certification statusNot Qualified
Maximum supply voltage (Vsup)5 V
Minimum supply voltage (Vsup)1.2 V
Nominal supply voltage (Vsup)3.3 V
surface mountNO
Temperature levelCOMMERCIAL
Terminal formWIRE
Terminal locationBOTTOM

DS1233B-15 Related Products

DS1233B-15 DS1233BZ-10N DS1233BZ-15 DS1233B-15N DS1233BZ-10 DS1233B-10N DS1233B-10 DS1233BZ-15N
Description Power Supply Support Circuit, Fixed, 1 Channel, PBCY3, Power Supply Support Circuit, Fixed, 1 Channel, PDSO4, Power Supply Support Circuit, Fixed, 1 Channel, PDSO4, Power Supply Support Circuit, Fixed, 1 Channel, PBCY3, Power Supply Support Circuit, Fixed, 1 Channel, PDSO4, SOT-223, 4 PIN Power Supply Support Circuit, Fixed, 1 Channel, PBCY3, Power Supply Support Circuit, Fixed, 1 Channel, PBCY3, Power Supply Support Circuit, Fixed, 1 Channel, PDSO4,
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown
Adjustable threshold NO NO NO NO NO NO NO NO
Analog Integrated Circuits - Other Types POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code O-PBCY-W3 R-PDSO-G4 R-PDSO-G4 O-PBCY-W3 R-PDSO-G4 O-PBCY-W3 O-PBCY-W3 R-PDSO-G4
Number of channels 1 1 1 1 1 1 1 1
Number of functions 1 1 1 1 1 1 1 1
Number of terminals 3 4 4 3 4 3 3 4
Maximum operating temperature 70 °C 85 °C 70 °C 85 °C 70 °C 85 °C 70 °C 85 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND RECTANGULAR RECTANGULAR ROUND RECTANGULAR ROUND ROUND RECTANGULAR
Package form CYLINDRICAL SMALL OUTLINE SMALL OUTLINE CYLINDRICAL SMALL OUTLINE CYLINDRICAL CYLINDRICAL SMALL OUTLINE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Minimum supply voltage (Vsup) 1.2 V 1.2 V 1.2 V 1.2 V 1.2 V 1.2 V 1.2 V 1.2 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V
surface mount NO YES YES NO YES NO NO YES
Temperature level COMMERCIAL INDUSTRIAL COMMERCIAL INDUSTRIAL COMMERCIAL INDUSTRIAL COMMERCIAL INDUSTRIAL
Terminal form WIRE GULL WING GULL WING WIRE GULL WING WIRE WIRE GULL WING
Terminal location BOTTOM DUAL DUAL BOTTOM DUAL BOTTOM BOTTOM DUAL
Maker DALLAS DALLAS - DALLAS DALLAS DALLAS DALLAS DALLAS
