MC68HC05E16CFU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC68HC05E16CFU

MC68HC05E16CFU: Description8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PQFP64, PLASTIC, QFP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size10MB，156 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC68HC05E16CFU Overview

8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PQFP64, PLASTIC, QFP-64

MC68HC05E16CFU Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	QFP
package instruction	QFP, QFP64,.66SQ,32
Contacts	64
Reach Compliance Code	unknown
ECCN code	EAR99
Has ADC	YES
Other features	ALSO OPERATES AT 3.3V SUPPLY AT 1.05 MHZ
Address bus width
bit size	8
CPU series	6805
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
length	14 mm
Number of I/O lines	49
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.66SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	352
rom(word)	16240
ROM programmability	MROM
Maximum seat height	2.457 mm
speed	2.1 MHz
Maximum slew rate	12 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	HCMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

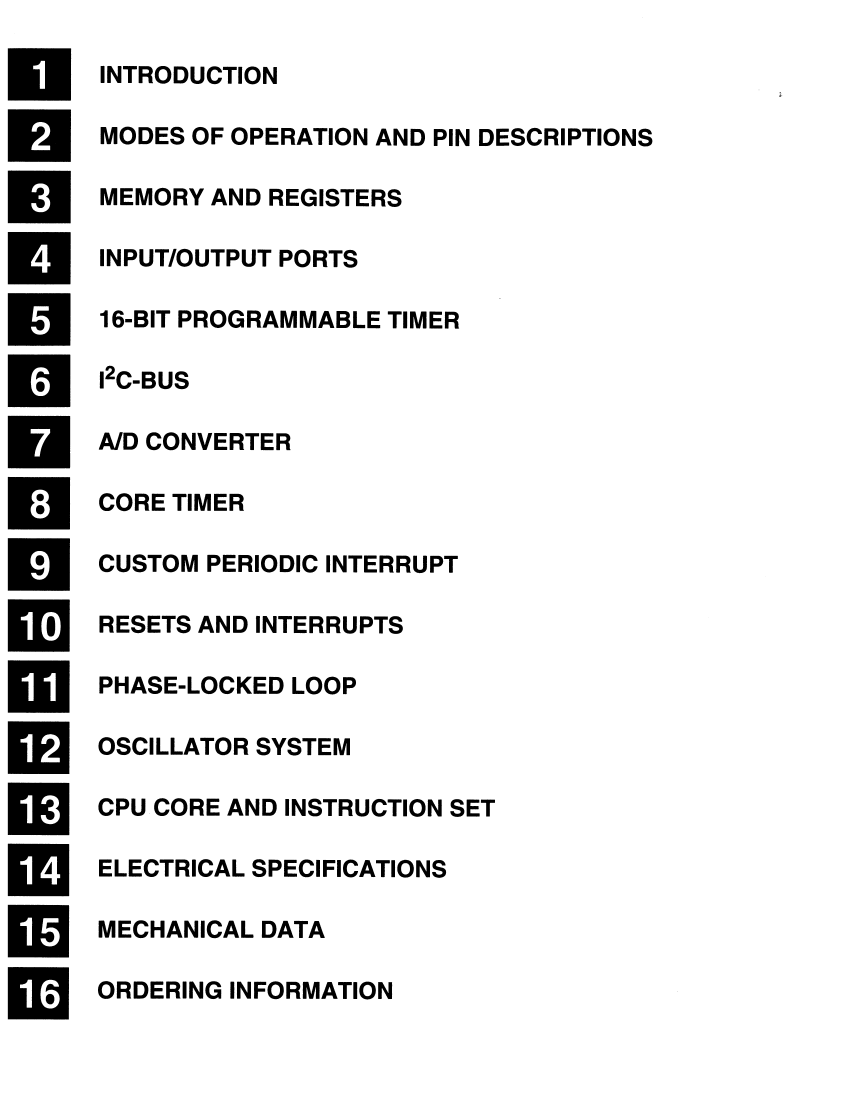

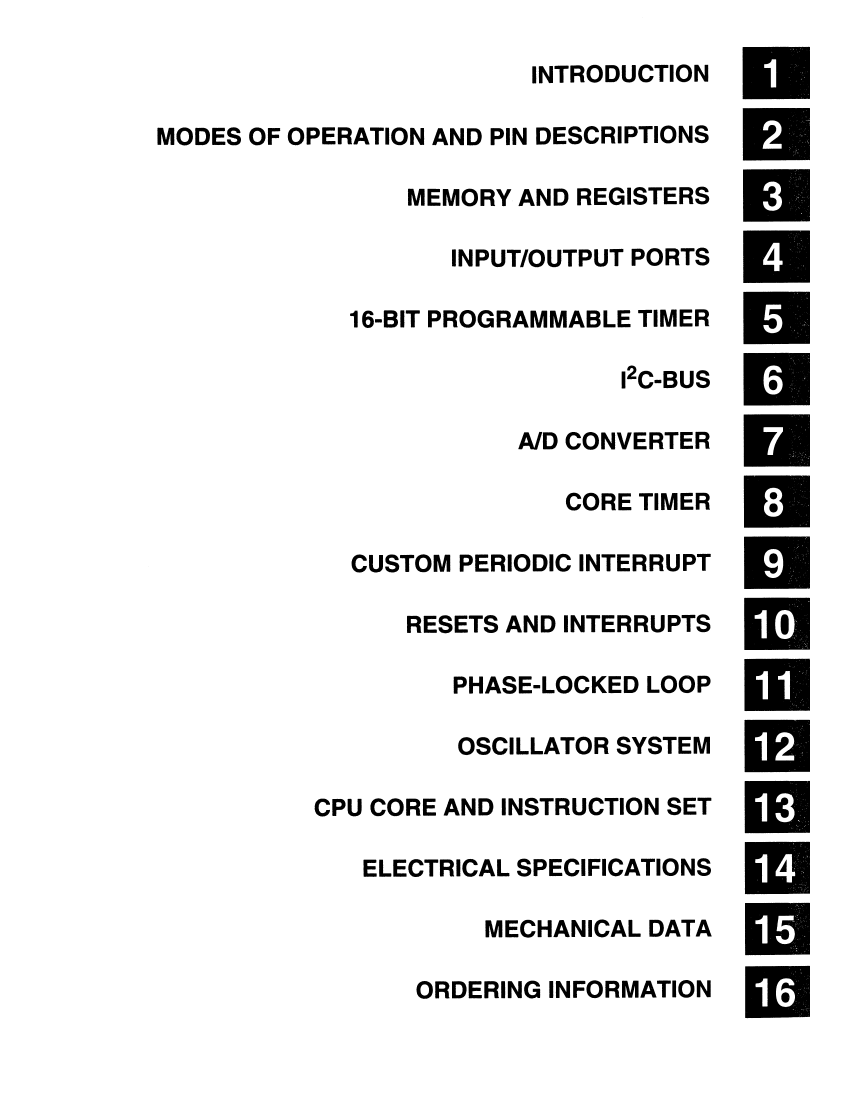

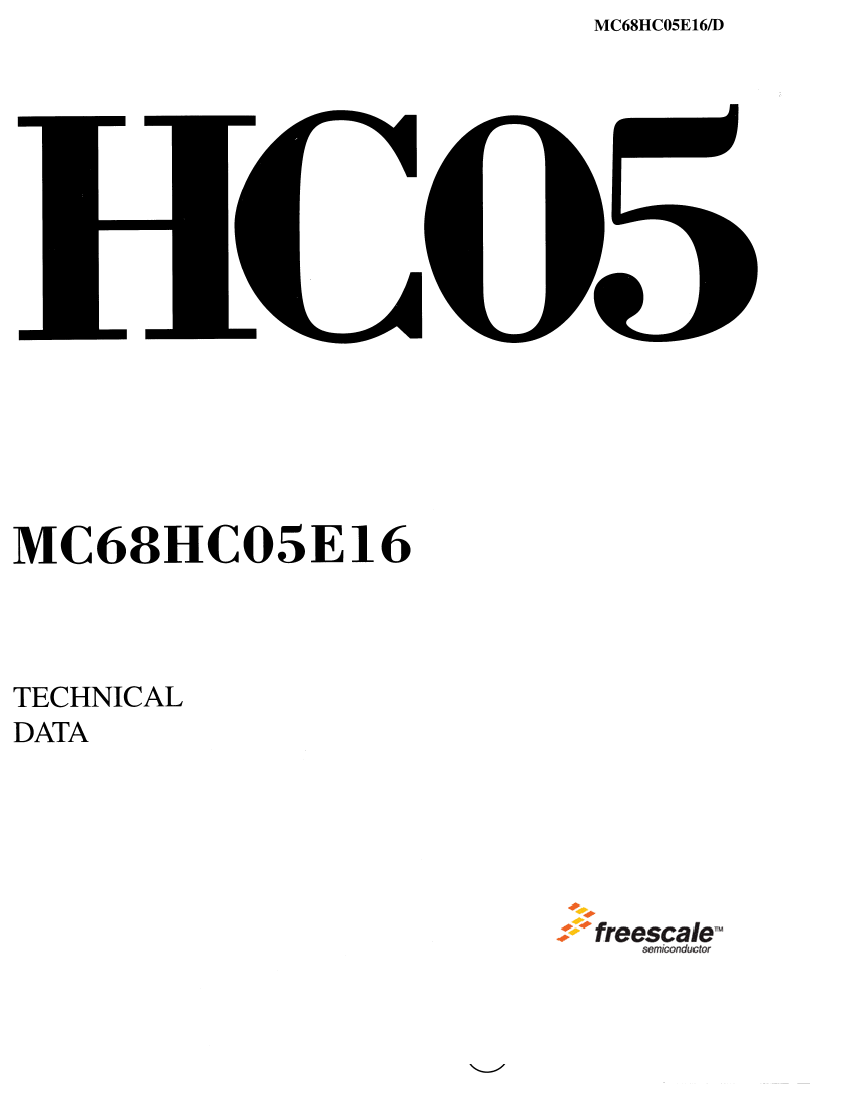

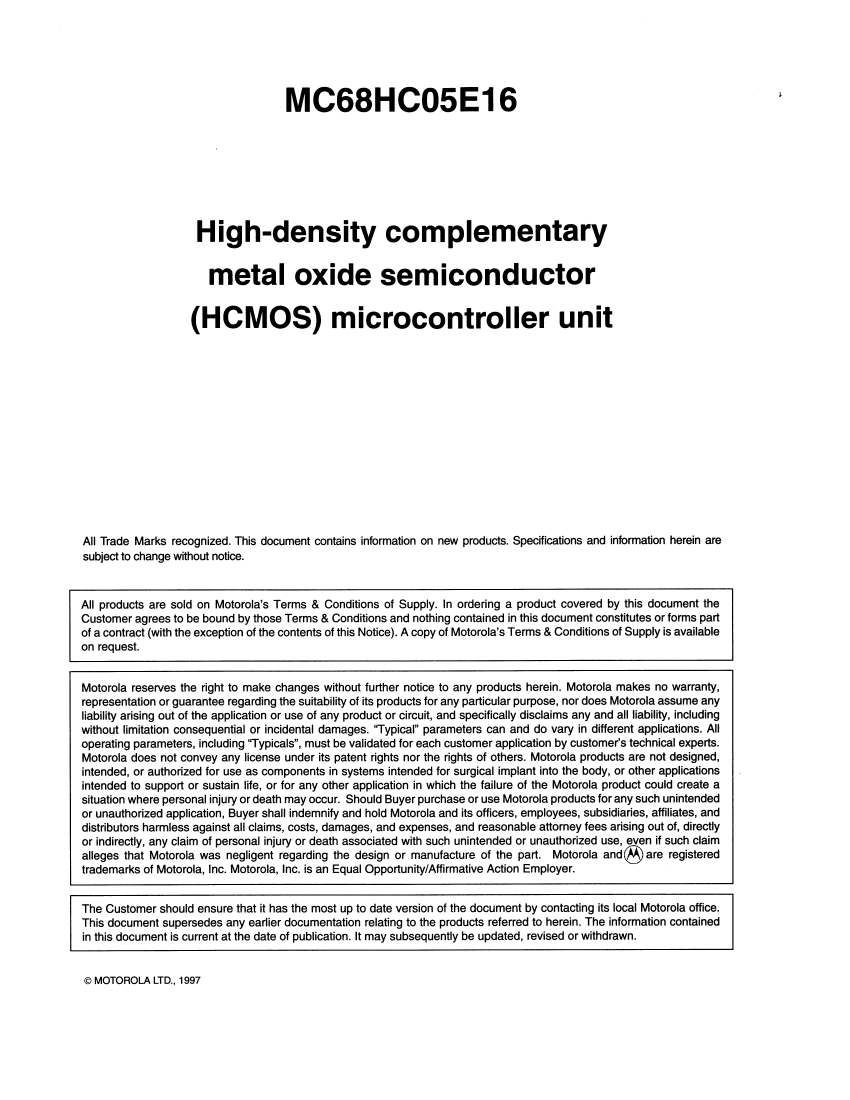

Preview

Download Datasheet

View All

Freescale Semiconductor, Inc.

Freescale Semiconductor, Inc...

For More Information O

Go to: www.freescale.com

MC68HC05E16CFU Related Products

	MC68HC05E16CFU	MC68HC05E16FB	MC68HC05E16CFB	MC68HC05B16FB	MC68HC05B16CFB	MC68HC05E16B	MC68HC05E16CB
Description	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PQFP64, PLASTIC, QFP-64	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PQFP44, PLASTIC, QFP-44	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PQFP44, PLASTIC, QFP-44	MC68HC05B16FB	MC68HC05B16CFB	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PDIP56, SHRINK, PLASTIC, DIP-56	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PDIP56, SHRINK, PLASTIC, DIP-56
package instruction	QFP, QFP64,.66SQ,32	QFP,	QFP, QFP44,.52SQ,32	,	,	SDIP, SDIP56,.6	SDIP, SDIP56,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maker	NXP	-	-	NXP	NXP	NXP	NXP
Parts packaging code	QFP	QFP	QFP	-	-	DIP	DIP
Contacts	64	44	44	-	-	56	56
ECCN code	EAR99	-	EAR99	-	-	EAR99	EAR99
Has ADC	YES	YES	YES	-	-	YES	YES
Other features	ALSO OPERATES AT 3.3V SUPPLY AT 1.05 MHZ	ALSO OPERATES AT 3.3V SUPPLY AT 1.05 MHZ	ALSO OPERATES AT 3.3V SUPPLY AT 1.05 MHZ	-	-	ALSO OPERATES AT 3.3V SUPPLY AT 1.05 MHZ	ALSO OPERATES AT 3.3V SUPPLY AT 1.05 MHZ
bit size	8	8	8	-	-	8	8
CPU series	6805	-	6805	-	-	6805	6805
maximum clock frequency	4.2 MHz	4.2 MHz	4.2 MHz	-	-	4.2 MHz	4.2 MHz
DAC channel	NO	NO	NO	-	-	NO	NO
DMA channel	NO	NO	NO	-	-	NO	NO
JESD-30 code	S-PQFP-G64	S-PQFP-G44	S-PQFP-G44	-	-	R-PDIP-T56	R-PDIP-T56
length	14 mm	10 mm	10 mm	-	-	52.07 mm	52.07 mm
Number of I/O lines	49	29	29	-	-	29	29
Number of terminals	64	44	44	-	-	56	56
Maximum operating temperature	85 °C	70 °C	85 °C	-	-	70 °C	85 °C
PWM channel	NO	NO	NO	-	-	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	-	-	SDIP	SDIP
Encapsulate equivalent code	QFP64,.66SQ,32	-	QFP44,.52SQ,32	-	-	SDIP56,.6	SDIP56,.6
Package shape	SQUARE	SQUARE	SQUARE	-	-	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	-	-	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
power supply	3.3/5 V	-	3.3/5 V	-	-	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified
RAM (bytes)	352	-	352	-	-	352	352
rom(word)	16240	-	16240	-	-	16240	16240
ROM programmability	MROM	MROM	MROM	-	-	MROM	MROM
Maximum seat height	2.457 mm	2.45 mm	2.45 mm	-	-	5.08 mm	5.08 mm
speed	2.1 MHz	2.1 MHz	2.1 MHz	-	-	2.1 MHz	2.1 MHz
Maximum slew rate	12 mA	-	12 mA	-	-	12 mA	12 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	-	-	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	-	-	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	-	-	5 V	5 V
surface mount	YES	YES	YES	-	-	NO	NO
technology	HCMOS	HCMOS	HCMOS	-	-	HCMOS	HCMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	-	-	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	-	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	-	-	1.778 mm	1.778 mm
Terminal location	QUAD	QUAD	QUAD	-	-	DUAL	DUAL
width	14 mm	10 mm	10 mm	-	-	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	-	-	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	-	1	1	1	1	-	-
