6 PIN DIP RANDOM-PHASE TRIAC
PHOTOCOUPLER
Features:
•
Peak breakdown voltage
- 250V, EL301x
- 400V, EL302x
- 600V, EL305x
•
High isolation voltage between input
and output (Viso=5000 V rms )
•
Compact dual-in-line package
•
Pb free and RoHS compliant.
•
UL approved ()
•
VDE approved (pending)
•
SEMKO approved (pending)
•
NEMKO approved (pending)
•
DEMKO approved (pending)
•
FIMKO approved (pending)
•
CSA approved (pending)
EL301x Series
EL302x Series
EL305x Series
Description
The EL201x, EL302X and EL305x series products consist of GaAs
infrared emitting diode optically coupled to a monolithic silicon random
phase photo Triac.
They are designed for interfacing between electronic controls and
power triacs to control resistive and inductive loads for 115 to 240
VAC operations.
.

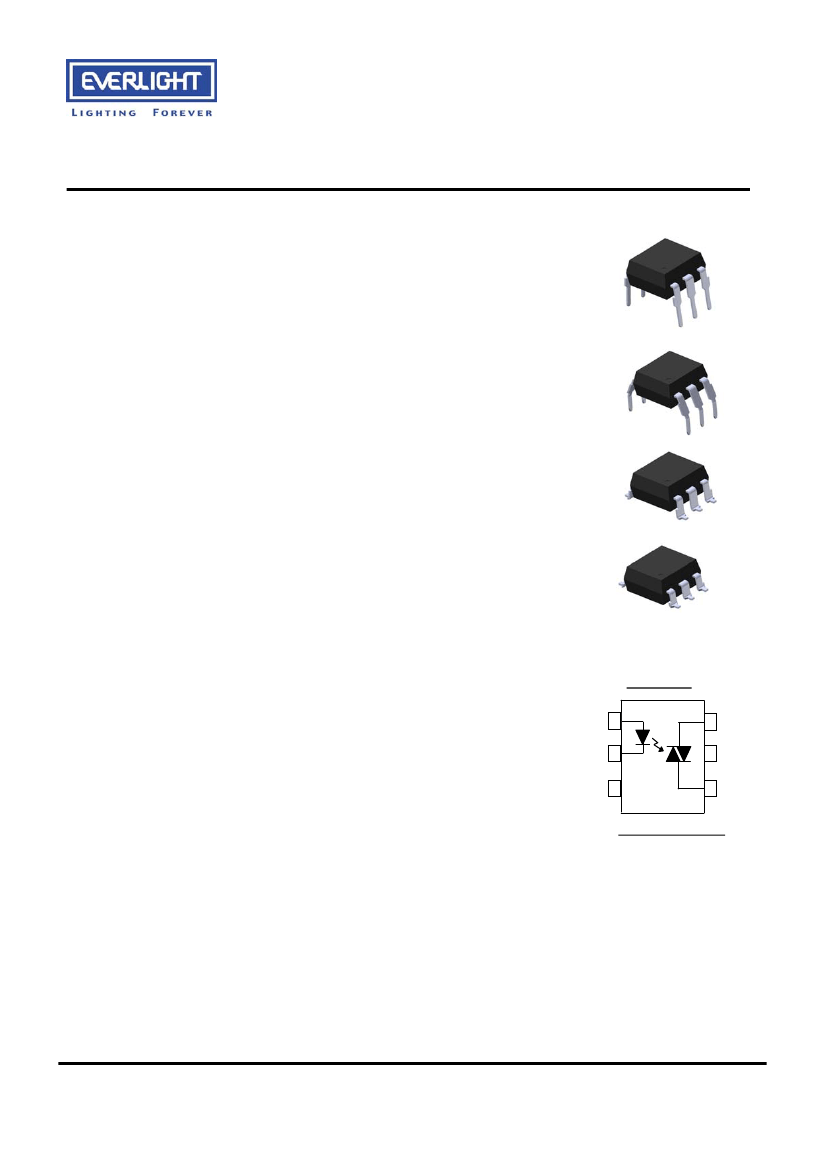

Schematic
Applications
Solenoid/valve controls
Lamp ballasts
Static AC power switch
Interfacing microprocessors to 115 to 240Vac peripherals
Incandescent lamp dimmers
Temperature controls
Motor controls
1
2
3
6
5
4
Pin Configuration
1. Anode
2. Cathode
3. No Connection
4. Terminal
5. No Connection
6 Terminal
Everlight Electronics Co., Ltd.
Document No：PDS-ELRP-001 Rev. 0
1
http://www.everlight.com
January 24, 2008
6 PIN DIP RANDOM-PHASE TRIAC
PHOTOCOUPLER
Absolute Maximum Ratings (T
a
=25°C)
Parameter
Forward current
Input
Reverse voltage
Power dissipation
EL301x
Off-state Output Terminal
Voltage
Output
EL302x
EL305x
Peak Repetitive Surge Current
Power dissipation
Isolation voltage
*1
Total power dissipation
Operating temperature
Storage temperature
Soldering temperature
*2
I
TSM
P
D
V
iso
P
D
T
opr
T
stg
T
sol
V
DRM
Symbol
I
F
V
R
P
D
EL301x Series
EL302x Series
EL305x Series
Rating
60
6
100
250
400
600
1
300
5000
330
-55~+100
-55~+125
260
Unit
mA
V
mW
V
A
mW
V rms
mW
°C
°C
°C
Notes
*1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6
are shorted together.
*2 For 10 seconds.
Everlight Electronics Co., Ltd.
Document No：PDS-ELRP-001 Rev. 0
2
http://www.everlight.com
January 24, 2008
6 PIN DIP RANDOM-PHASE TRIAC
PHOTOCOUPLER
Electrical Characteristics (T
a
=25°C unless specified otherwise)
Input
Parameter
Forward voltage
Reverse Leakage current
Symbol
V
F
I
R
Min.
-
-
Typ.*
1.18
-
Max.
1.5
10
Unit
V
µA
EL301x Series
EL302x Series
EL305x Series
Condition
I
F
= 10mA
V
R
= 6V
Output
Parameter
Peak Blocking Current
Peak On-state Voltage
Critical Rate of Rise
off-state Voltage
Symbol
I
DRM
V
TM
dv/dt
Min.
-
-
1000
Typ.*
-
-
-
Max.
100
2.5
-
Unit
nA
V
V/µs
Condition
V
DRM
= Rated V
DRM
I
F
= 0mA
I
TM
=100mA peak, I
F
=Rated
I
FT
Fig.
Transfer Characteristics
Parameter
EL3010
EL3021
EL3051
LED Trigger
Current
EL3011
EL3022
EL3052
EL3012
EL3023
EL3053
Holding Current
* Typical values at T
a
= 25°C
IH
IFT
Symbol
Min.
-
Typ.*
-
Max.
15
Unit
Condition
-
-
10
mA
Main terminal Voltage=3V
-
-
-
250
5
-
µA
Everlight Electronics Co., Ltd.
Document No：PDS-ELRP-001 Rev. 0
3
http://www.everlight.com
January 24, 2008
6 PIN DIP RANDOM-PHASE TRIAC
PHOTOCOUPLER

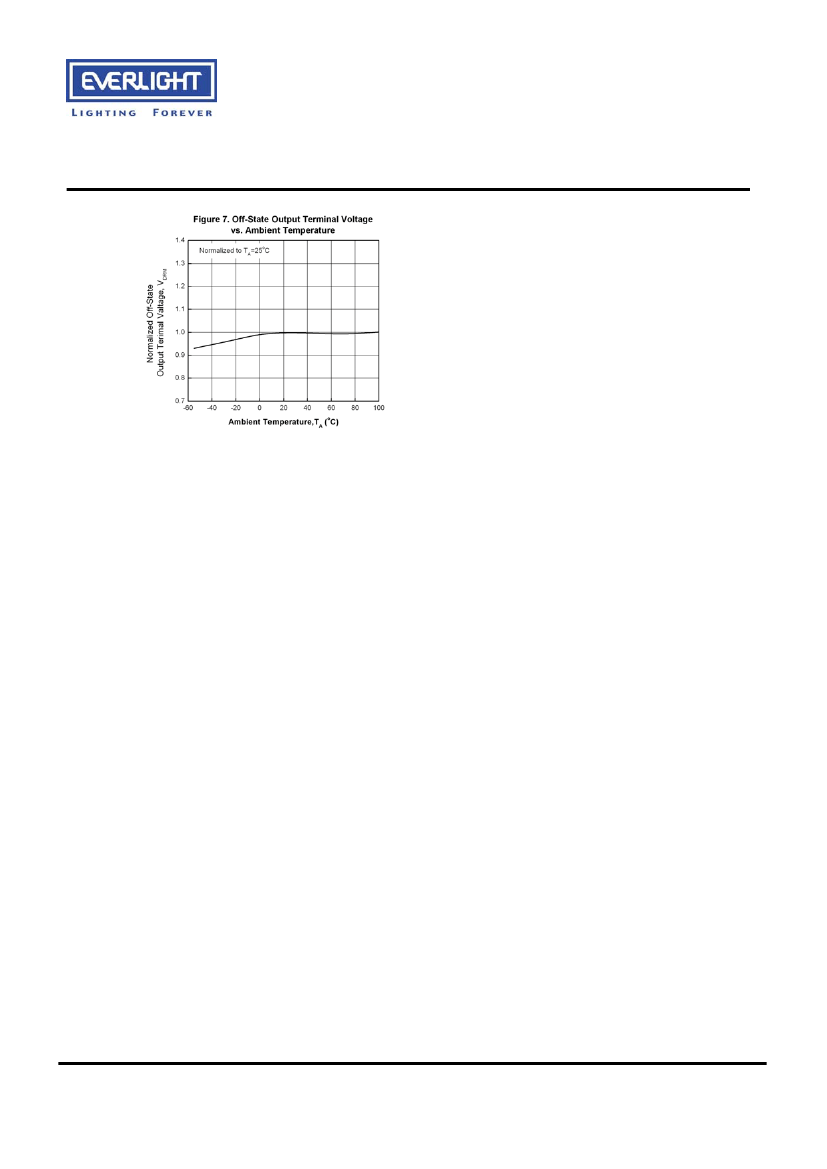

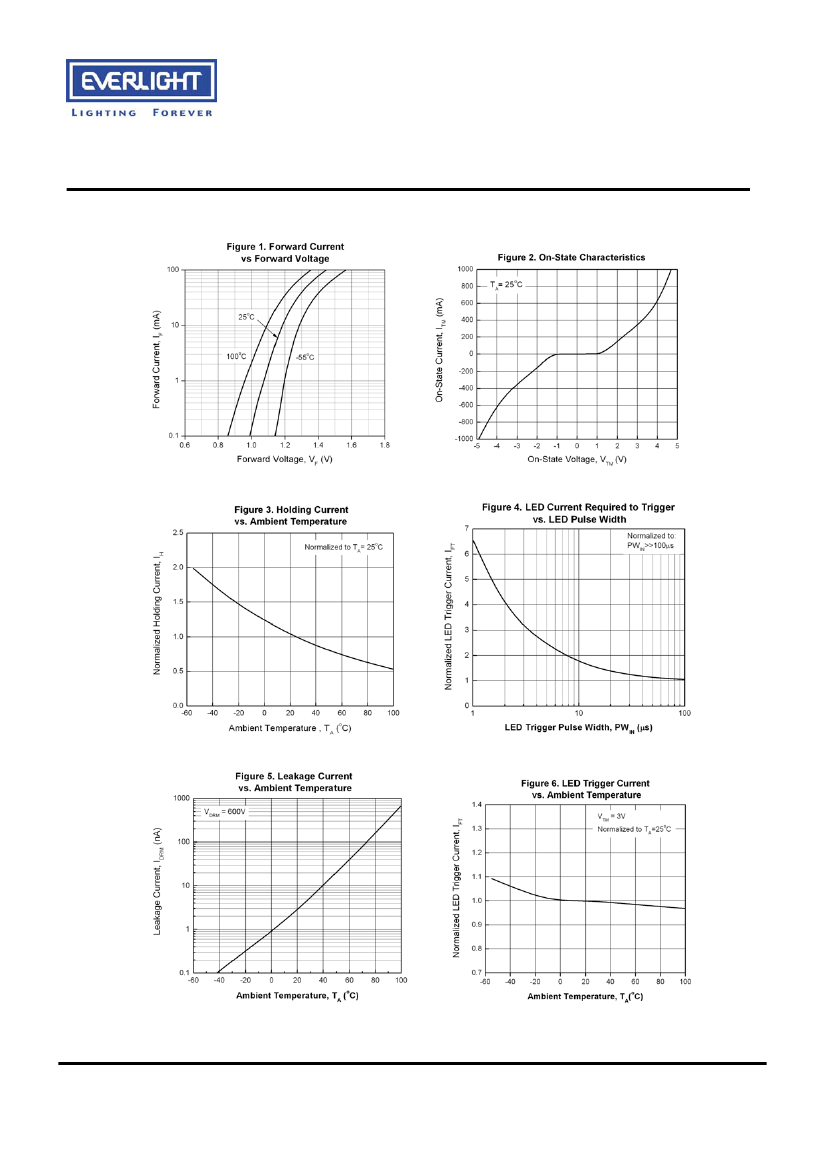

Typical Performance Curves
EL301x Series
EL302x Series
EL305x Series
Everlight Electronics Co., Ltd.
Document No：PDS-ELRP-001 Rev. 0
4
http://www.everlight.com
January 24, 2008
6 PIN DIP RANDOM-PHASE TRIAC
PHOTOCOUPLER
EL301x Series
EL302x Series
EL305x Series
Everlight Electronics Co., Ltd.
Document No：PDS-ELRP-001 Rev. 0
5
http://www.everlight.com
January 24, 2008
