2065-28-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2065-28-9

2065-28-9: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size593KB，2 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

2065-28-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2065-28-9	-	-	View	Buy Now

2065-28-9 Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug

2065-28-9 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 179/U, RG 187/U
Body/casing type	PLUG
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2065-28-9
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	3 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

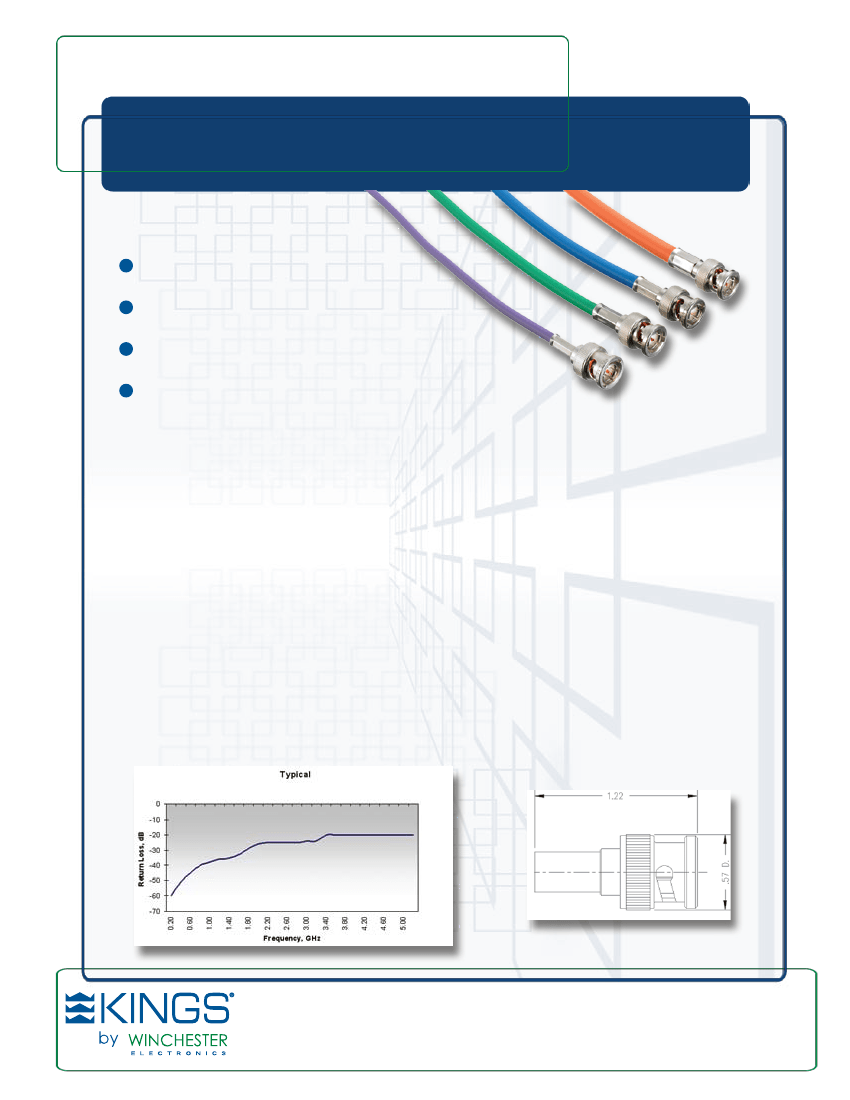

Winchester Electronics Presents...

2065 Series BNC Connectors

Product Benefits

Full crimp design

Designed for analog & digital cables

Field installable

Meets or exceeds HDTV standards

Specifications

Electrical

Characteristic Impedance

Voltage Rating

Return Loss

75 Ohms

500 Volts RMS

Less than -36 dB to 1 GHz;

-25 dB to 2 GHz;

-23 dB to 3 GHz;

-20 dB to 5 GHz

Center Contact .0014 Ohms

Outer Contact .002 Ohms

5000 megohms

Environmental

Thermal Shock

Moisture Resistance

Corrosion (Salt Spray)

Flammability

Vibration

Solvent Resistance

-65°C to +165°C

0 to 95%: MIL-STD-202

Method 106

MIL-STD-202 Method 101

Test Condition B

UL 94-VO Rated

(Center Conductor Insulator)

MIL-STD-202 Method 204

Test Condition B

MIL-STD-202 Method 215

Contact Resistance

Insulation Resistance

Mechanical

Durability

Center Contact Retention

Coupling Mechanism

Force to Engage/Disengage

Interface Dimension

500 Cycles Min. Center Contact

6 lbs. Minimum

100 lbs. Minimum

Torque 2.5 in-lbs. Max.;

Longitudinal force 3.0 lbs. Max.

MIL-C-39012 except 75 Ohms

Finishes

Body/Bayonet

Center Conductor

Nickel

50 millionths inch gold plating

over copper plate

Return Loss

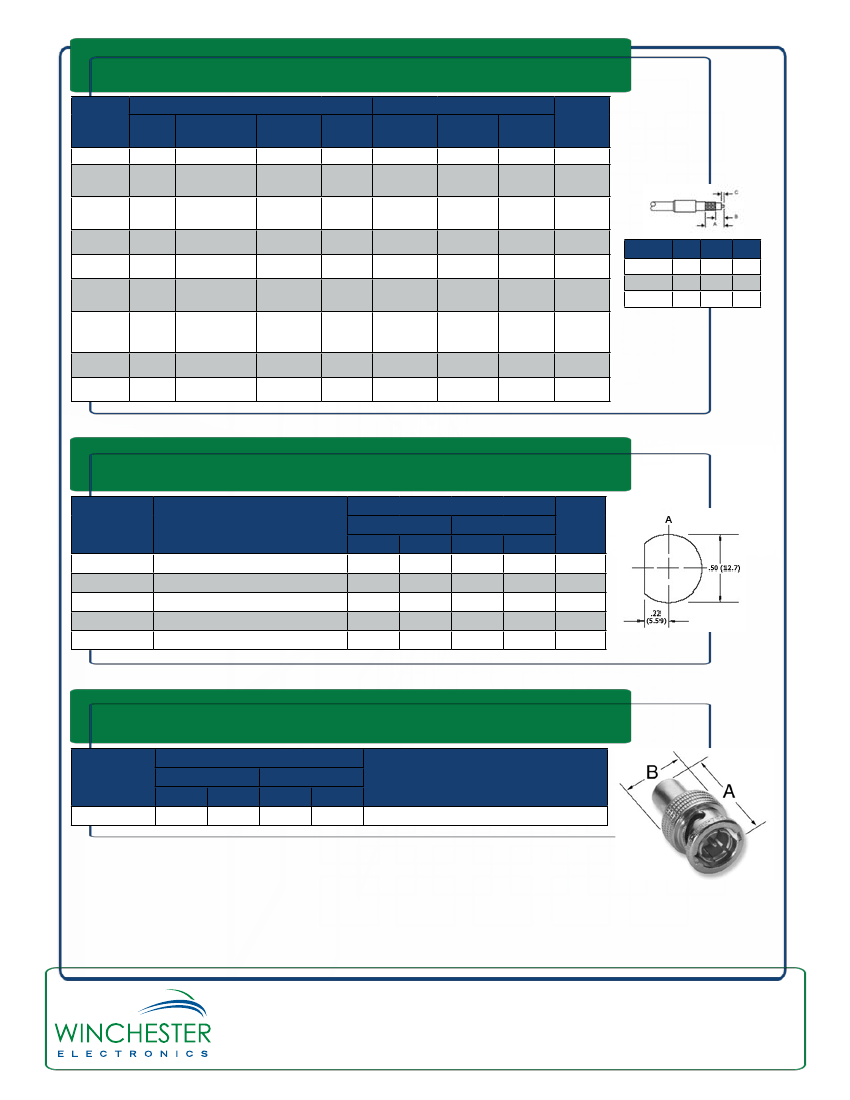

Outline Drawing (Plug)

June 2009

www.winchesterelectronics.com

2065-28-9 Related Products

	2065-28-9	2029-15-9	2065-15-9	2065-1-9	2555-3-32	2029-16-9
Description	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF Connector Adapter, BNC-BNC, Female-Female	RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug	RF BNC Connector, Plug	RF/Microwave Termination, 75ohm	RF Connector Adapter
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Base Number Matches	1	1	1	1	1	1
Connector type	RF BNC CONNECTOR	RF CONNECTOR ADAPTER	RF BNC CONNECTOR	RF BNC CONNECTOR	-	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD	-	GOLD	GOLD	-	GOLD
Contact completed and terminated	GOLD	-	GOLD	GOLD	-	GOLD
DIN compliance	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	-	NO
JESD-609 code	e4	-	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	-	NO
Manufacturer's serial number	2065-28-9	2029-15-9	-	2065-1-9	-	2029-16-9
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
