NPI65T561KTRF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> NPI65T561KTRF

NPI65T561KTRF: DescriptionGeneral Purpose Inductor, 560uH, 10%, 1 Element, SMD, 2424, ROHS COMPLIANT; CategoryPassive components inductor; File Size216KB，8 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NPI65T561KTRF Overview

General Purpose Inductor, 560uH, 10%, 1 Element, SMD, 2424, ROHS COMPLIANT

NPI65T561KTRF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	2424
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2424
structure	Chip Type
DC Resistance	2.3 Ω
Nominal inductance(L)	560 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	4.9 mm
Package length	6 mm
Package form	SMT
Package width	6 mm
method of packing	TR
Maximum rated current	0.25 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	10%

Preview

Download Datasheet

View All

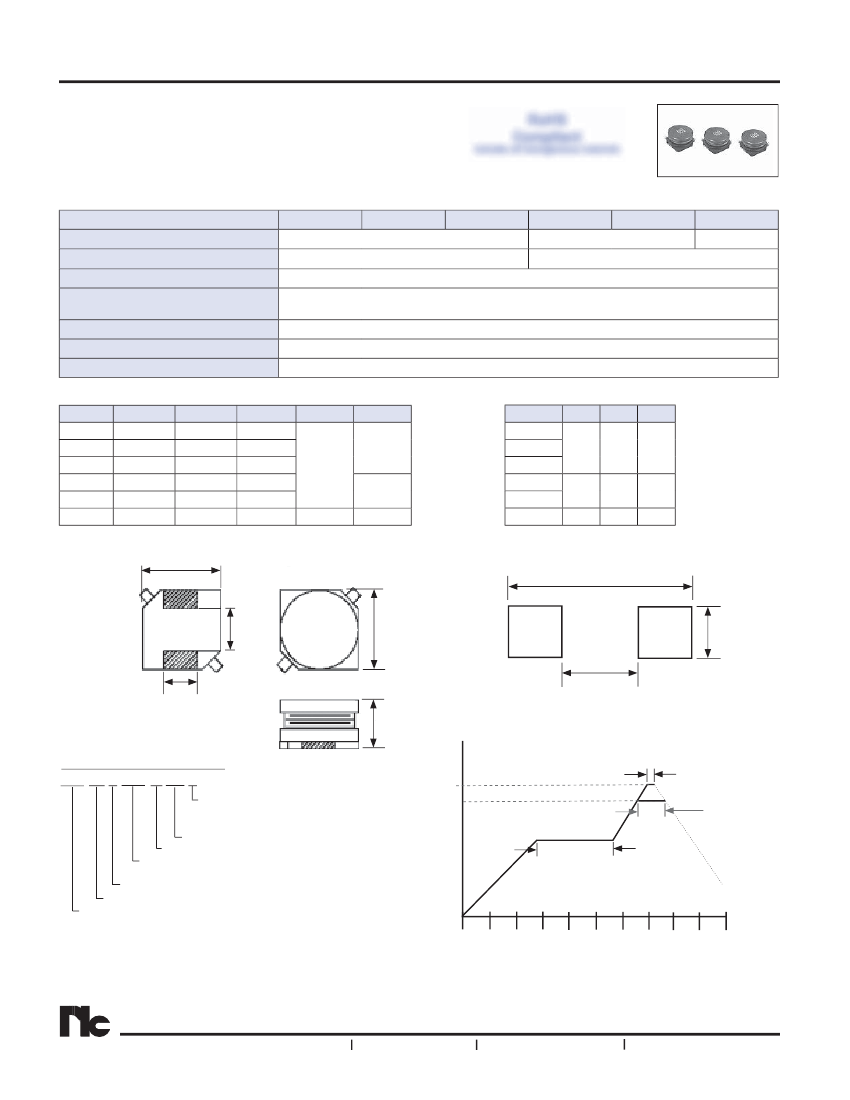

NPI Power Inductors

Not Recommended for New Designs

(Click to see EOL Notification)

NPI__T Series

FEATURES

• CURRENT RATINGS UP TO 5.5 AMPS

• SURFACE MOUNTABLE CONSTRUCTION

• LOW PROFILE (3.2mm ~ 4.9mm MAXIMUM HEIGHT)

• TAPED AND REELED FOR AUTOMATIC INSERTION

• FOR USE IN DC/DC CONVERTERS

CHARACTERISTICS

Case Size

Inductance Range

Inductance Tolerance

Ambient Operating Temperature Range

Maximum Component Temperature

(Ambient + Self-Heating)

Inductance Change at Isat

Temperature Rise at Irms

Resistance to Solder Heat

NPI63T

NPI64T

1.2 ~ 1,000μH

includes all homogeneous materials

RoHS

Compliant

*See Part Number System for Details

NPI65T

NPI73T

NPI75T

NPI104T

1.8 ~ 1,000μH

1.0 ~ 1,000μH

-40°C ~ +105°C

+145°C

-10% max.

+40°C max.

±10% (K) & ±20% (M)

±10% (K), ±15% (L) & ±20% (M)

260°C for 10 seconds (Inductance change ±10% max.)

CASE DIMENSIONS (mm)

Series

NPI63T

NPI64T

NPI65T

NPI73T

NPI75T

NPI104T

6.0 ± 0.3

7.0 ± 0.3

10.0 ± 0.3

6.0 ± 0.3

7.0 ± 0.3

10.0 ± 0.3

2.9 ± 0.3

3.9 ± 0.3

4.9 ± 0.3

3.0 ± 0.3

4.6 ± 0.3

2.4 ± 0.2

2.0 ± 0.2

4.0 ± 0.2

6.0 ± 0.2

3.0 ± 0.2

LAND PATTERN DIMENSIONS (mm)

Series

NPI63T

NPI64T

NPI65T

NPI73T

NPI75T

NPI104T

7.5

10.7

3.7

5.7

2.2

2.8

6.6

2.8

2.2

PART NUMBER SYSTEM

NPI 64 T 220 M TR F

Temperature °C

RoHS Compliant

Packaging: TR = Tape & Reel

Inductance Tolerance Code: M=±20%

Inductance Code (μH): 1st two digits are signiﬁcant,

3rd digit is multiplier for values from 10μH and up.

Construction Code (see drawing for details)

Size Code (see table for details)

Series

REFLOW SOLDERING PROFILE

300

250

200

150

100

90 120 150 180 210 240 270 300

Time - Seconds

Pre-Heat

150°C ~ 180°C

60 ~ 120 sec.

Time above 230°C

30 seconds max.

Cool Down

Soldering 260°C max.

5 seconds max.

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Recommended Resources
