BAS21A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Small signal switching diode> BAS21A

BAS21A: Description0.2 A, 250 V, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor Small signal switching diode; File Size199KB，2 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

BAS21A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS21A	-	-	View	Buy Now

BAS21A Overview

0.2 A, 250 V, 2 ELEMENT, SILICON, SIGNAL DIODE

BAS21A Parametric

Parameter Name	Attribute value
Case Style	SOT-23
IF（mA）	200
Maximum recurrent peak reverse voltage	250
TRR（nS)	50
Maximum instantaneous forward voltage	1.25
@IF（uA）	200
Maximum reverse curre	1.0
@VR	200
class	Diodes

Preview

Download Datasheet

View All

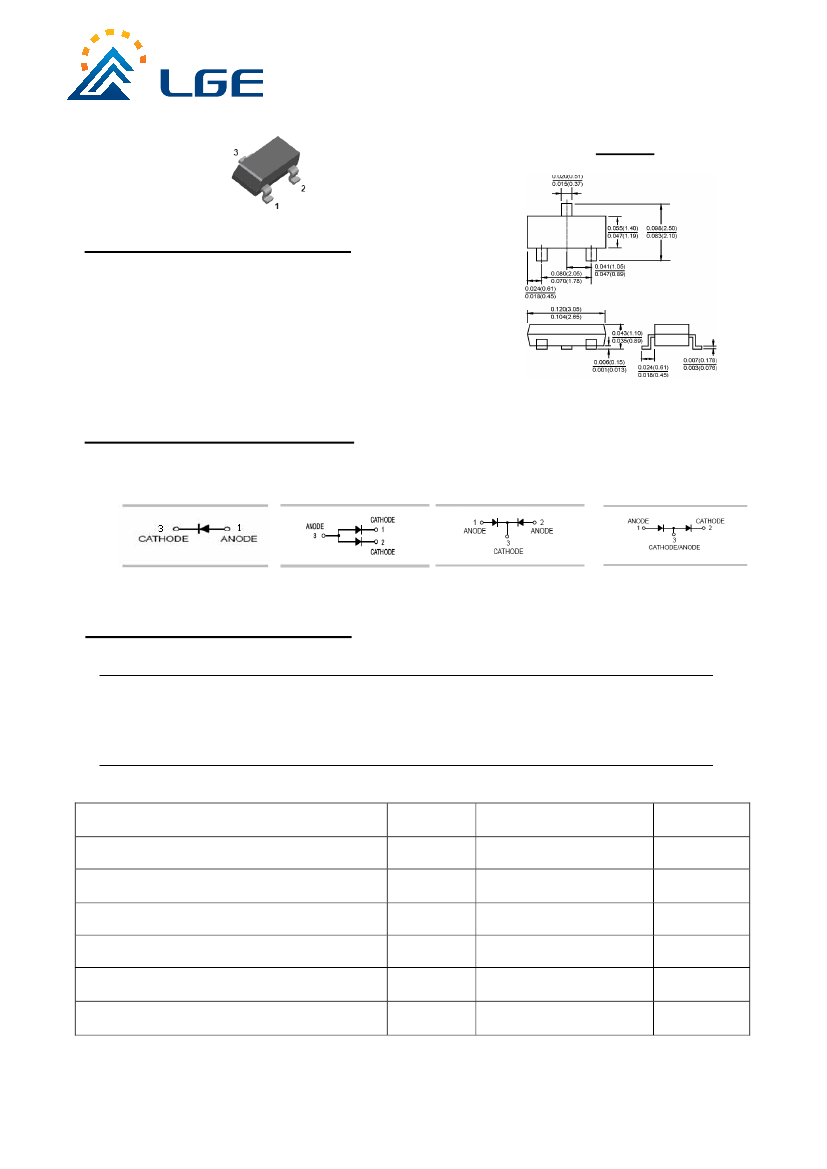

BAS21/A/C/S

Surface Mount Switching Diode

SOT-23

Features

Fast switching speed.

Surface mount package ideally suited for

Automatic insertion.

For general purpose switching applications.

High conductance.

Dimensions in inches and (millimeters)

Applications

High speed switching application.

BAS21

BAS21A

BAS21C

BAS21S

Ordering Information

Type No.

BAS21

BAS21A

BAS21C

BAS21S

Marking

JS2

JS3

JS4

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Forward Continuous Current

Power Dissipation

Thermal Resistance Junction to Ambient Air

Operating Junction Temperature Range

Storage Temperature Range

Symbol

θJA

STG

Value

250

200

250

500

150

-65 to +150

Unit

℃/W

℃

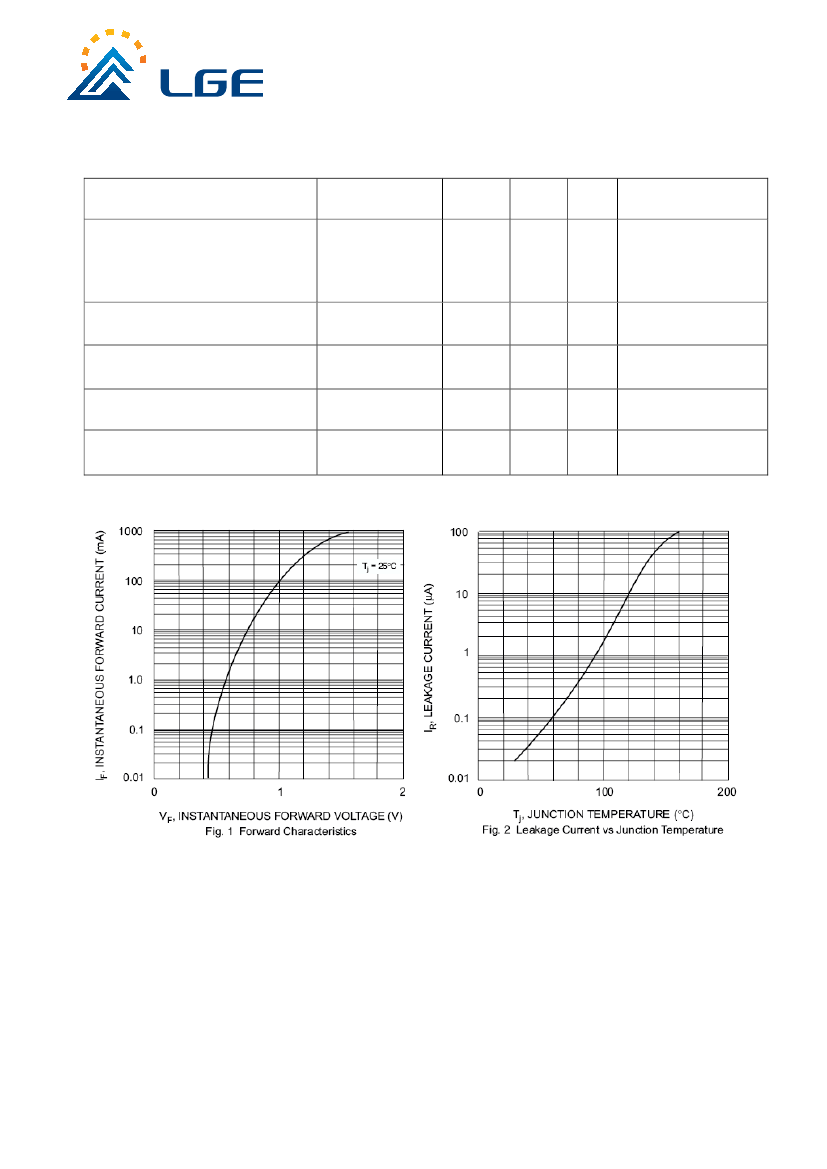

http://www.luguang.cn

mail:lge@luguang.cn
