2227-5161: DescriptionBoard Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

2227-5161 Overview

Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Locking

2227-5161 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.339 inch
subject depth	0.61 inch
body length	2.126 inch
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
Contact style	RND PIN-SKT
DIN compliance	YES
Durability	500 Cycles
Manufacturer's serial number	2227
Plug contact pitch	0.2 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

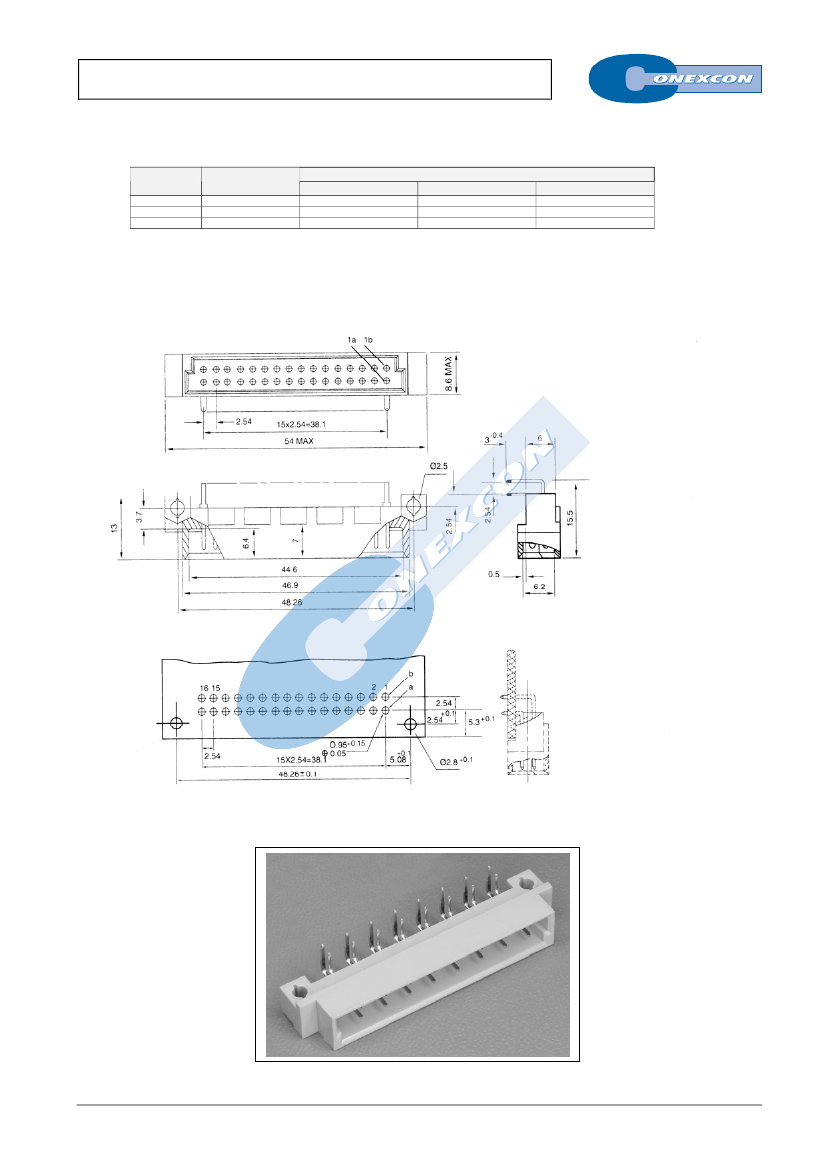

DIN 41612 EUROCARD CONNECTORS

2227 SERIES.

Right Angle

Circuit Size

16

32

Configuration

a

a+b

Male Type Half B Connectors

Part Number

PCB Solder 4 mm

2227 –

T061

2227 –

T161

2227 –

T321

Wrap post tail length 13 mm Wrap post tail length 17 mm

-

T = Plating and class connector



T =

3.

0.20 µ” over 1.27 µ” Ni. 200 cycles class 2B

T =

4.

0.38 µ” over 1.27 µ” Ni. 400 cycles class 2

T =

5.

0.76 µ” over 1.27 µ” Ni. 500 cycles class 1

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

Q-XX

2227-5161 Related Products

	2227-5161	2227-3161	2227-3321	2227-5321	2227-4061	2227-4161	2227-4321
Description	Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking
Reach Compliance Code	unknow	unknown	unknown	unknow	unknown	unknown	unknown
body width	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch
subject depth	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch
body length	2.126 inch	2.126 inch	2.126 inch	2.126 inch	2.126 inch	2.126 inch	2.126 inch
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES	YES
Durability	500 Cycles	200 Cycles	200 Cycles	500 Cycles	400 Cycles	400 Cycles	400 Cycles
Manufacturer's serial number	2227	2227	2227	2227	2227	2227	2227
Plug contact pitch	0.2 inch	0.2 inch	0.1 inch	0.1 inch	0.1 inch	0.2 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Loaded row name	A,B	A,B	A,B	A,B	A	A,B	A,B
PCB row number	2	2	2	2	1	2	2
Number of rows loaded	2	2	2	2	1	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	8u inch	8u inch	30u inch	15u inch	15u inch	15u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
Terminal pitch	5.08 mm	5.08 mm	2.54 mm	2.54 mm	2.54 mm	5.08 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	16	32	32	16	16	32
Maker	-	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-	-
ECCN code	-	-	-	EAR99	EAR99	EAR99	EAR99
