BAT17E6327

Description
SILICON, VHF-UHF BAND, MIXER DIODE
CategoryDiscrete semiconductor    diode
File Size852KB,9 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric View All

BAT17E6327 Overview

SILICON, VHF-UHF BAND, MIXER DIODE

BAT17E6327 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeSOT-23
package instructionR-PDSO-G3
Contacts3
Reach Compliance Codecompli
ECCN codeEAR99
ConfigurationSINGLE
Maximum diode capacitance0.75 pF
Diode component materialsSILICON
Diode typeMIXER DIODE
Maximum forward voltage (VF)0.35 V
frequency bandVERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Maximum power dissipation0.15 W
Certification statusNot Qualified
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature40
Base Number Matches1

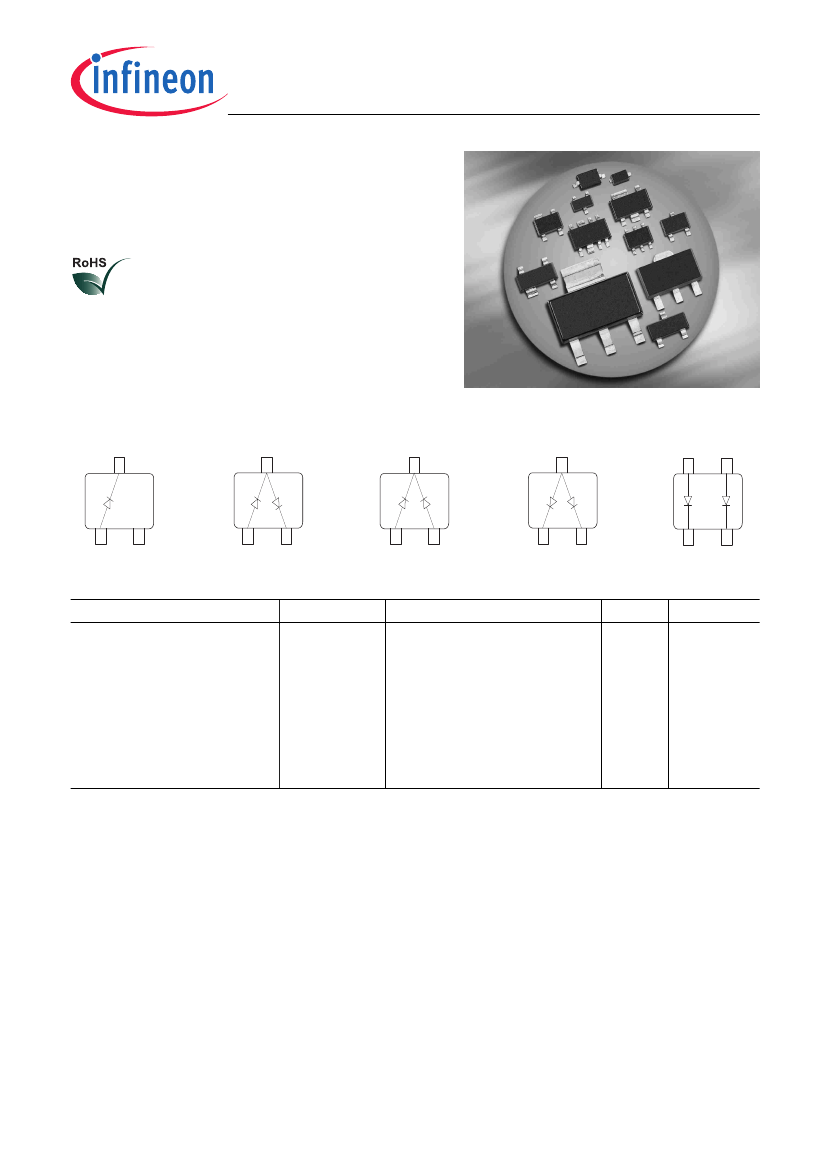

BAT17...
Silicon Schottky Diode
For mixer applications in VHF/UHF range
For high-speed switching application
Pb-free (RoHS compliant) package
BAT17
!
BAT17-04
BAT17-04W
!
BAT17-05
BAT17-05W
!
BAT17-06W
!
BAT17-07
"
!
,
,
,
,
,
,
,
,





ESD
(
E
lectro
s
tatic
d
ischarge) sensitive device, observe handling precaution!
Type
BAT17
BAT17-04
BAT17-04W
BAT17-05
BAT17-05W
BAT17-06W
BAT17-07
Package
SOT23
SOT23
SOT323
SOT23
SOT323
SOT323
SOT143
Configuration
single
series
series
common cathode
common cathode
common anode
parallel pair
L
S
(nH)
1.8
1.8
1.4
1.8
1.4
1.4
2
Marking
53s
54s
54s
55s
55s
56s
57s
1
2011-06-15
