SERIES RIGHT-ANGLE TYPE CONNECTORS

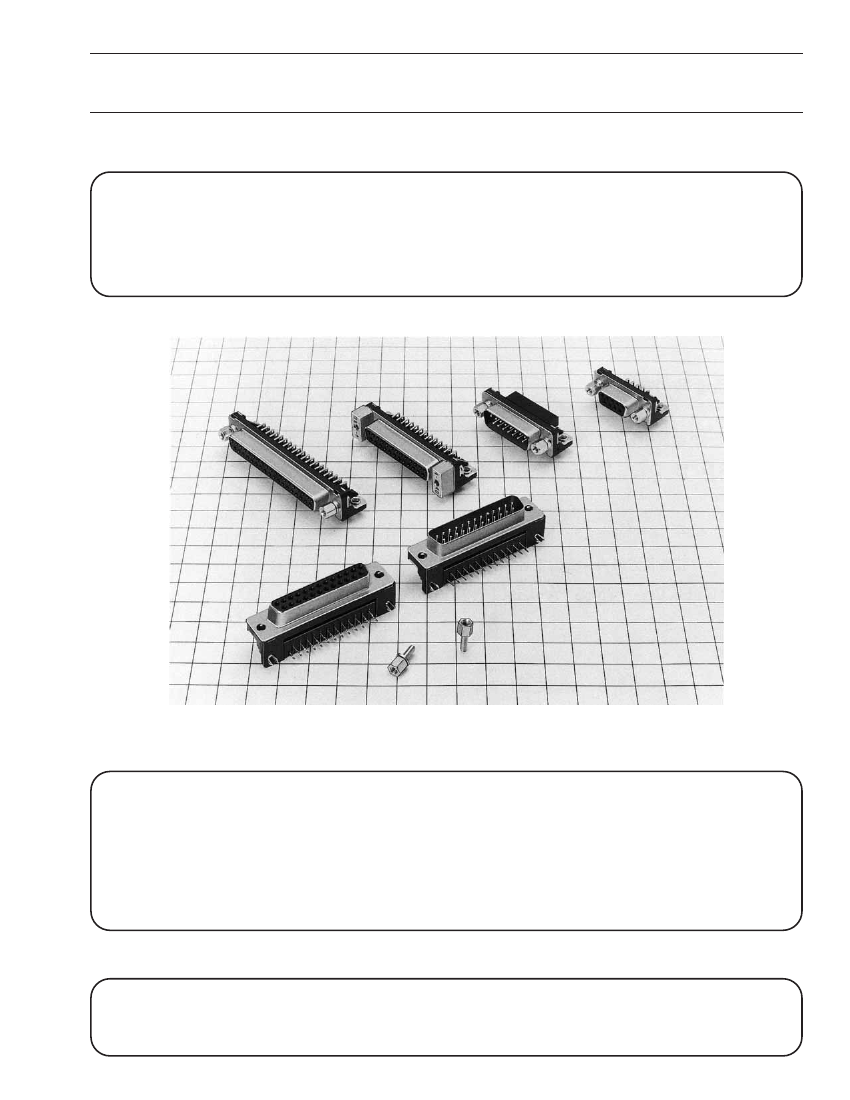

General
The RD※D Series use a molded one-piece design for
parallel mounting on a PCB. Designed to be directly
connected to the circuits in PCBs, the RD*D Series is
suitable for labor-saving in connection work and en-
hancing the reliability of wiring.
9, 15, 25, and 37-contact models available. (37-
contact) : Female connector only
Features
(1) Compact and sturdy due to a metal shell.
(2) Simple construction of RD type single mold.
(3) Offers direct parallel mounting on PCBs in high
density and easily connectable to a cable plug.
(4) Gold plated for contact area and mounting area.
(5) A wide variety of combinations available, such as
dip soldering (HD), crimping (CD), and ribbon IDC
termination (FD).
(6) Uses insulation of highly heat-resistant and che-
mical-resistant UL synthetic resin.
(7) Meets your application requirements with a variety
of accessories.
Application
Most suitable for modems in communications equip-
ment such as computers, peripherals and terminals,
control equipment, measuring instruments, and export
equipment.
04/2009
23
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

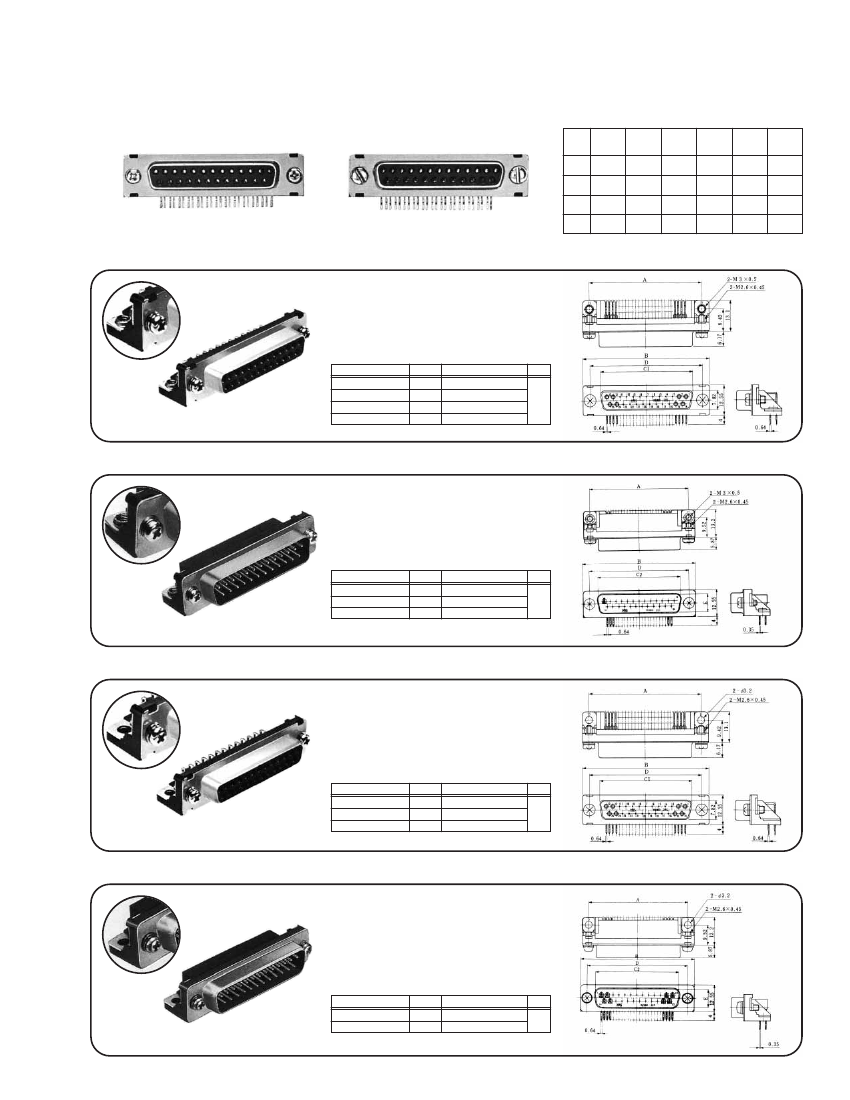

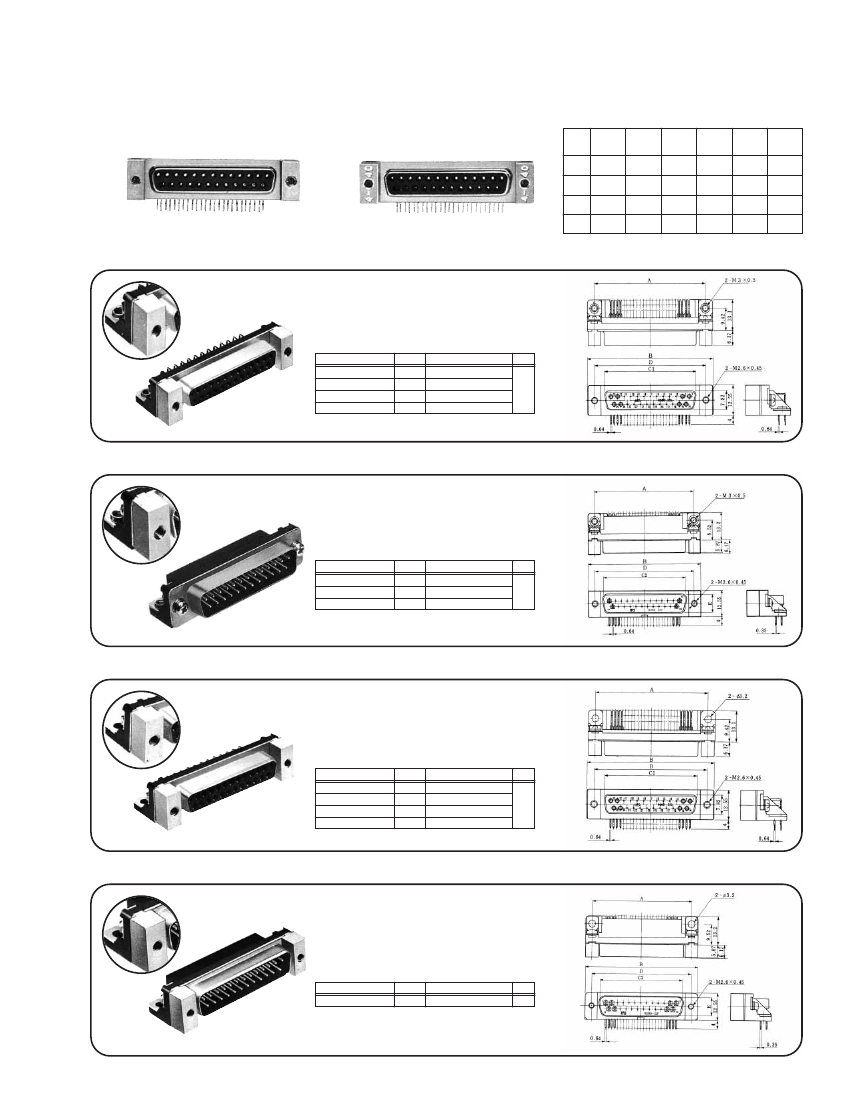

Standard/No Insert
Dimensions
No. of
Pin
9
15
25
37
A
24.99
33.32
47.04
63.5
B
30.81
39.14
53.04
69.32
C
1
16.4
24.59
38.3
54.76
C
2
16.9
25.24
39.01
――
D
24.99
33.32
47.04
63.5
E
8.34
8.34
8.4
――
Metric thread
#4-40 thread
Panel-mounting threaded holes: M2.6×0.45 (metric)
Ground terminal (PCB-mounting): M3×0.5
HRS No
CL211-0312-3-55
CL211-0315-1-55
CL211-0294-3-55
CL211-0318-0-55
No. of Pin
9
15
25
37
Part No.
RDED-9S
（55）
RDAD-15S
（55）
RDBD-25S
（55）
RDCD-37S
（55）
RoHS
YES
RDBD-25S
（55）
Panel-mounting threaded holes: M2.6×0.45 (metric)
Ground terminal (PCB-mounting): M3×0.5
HRS No
CL211-0475-8-55
CL211-0496-8-55
CL211-0367-5-55
No. of Pin
9
15
25
Part No.
RDED-9P
（55）
RDAD-15P
（55）
RDBD-25P
（55）
YES
RoHS
RDBD-25P
（55）
Panel-mounting threaded holes: M2.6×0.45 (metric)
Ground terminal (PCB-mounting): Through-holes
HRS No
CL211-0412-8-55
CL211-0413-0-55
CL211-0297-1-55
No. of Pin
9
15
25
Part No.
RDED-9SA
（55）
RDAD-15SA
（55）
RDBD-25SA
（55）
YES
RoHS
RDBD-25SA
（55）
Panel-mounting threaded holes: M2.6×0.45 (metric)
Ground terminal (PCB-mounting): Through-holes
HRS No
CL211-0502-9-55
CL211-0373-8-55
No. of Pin
15
25
Part No.
RDAD-15PA
（55）
RDBD-25PA
（55）
RoHS
YES
RDBD-25PA
（55）
04/2009
25
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

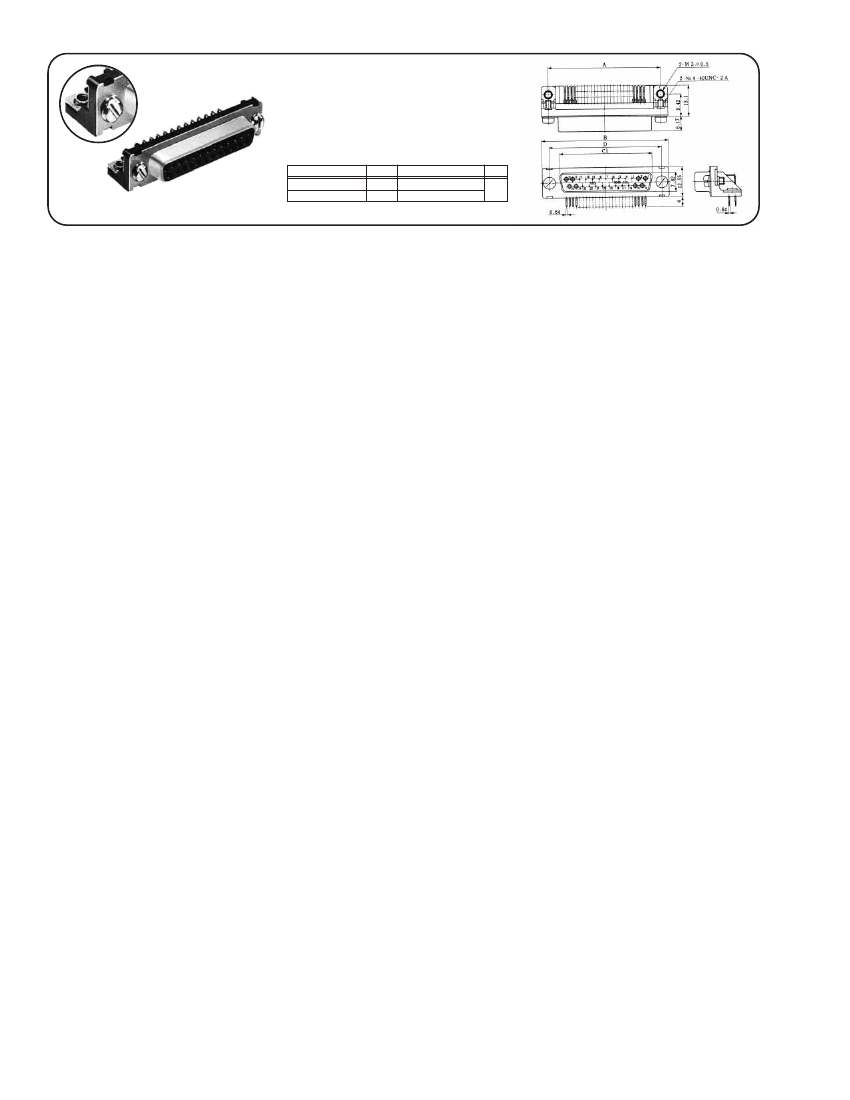

Panel-mounting threaded holes: No.4-40 UNC (inch)
Ground terminal (PCB-mounting): M3×0.5
HRS No
CL211-0399-1-55
CL211-0300-4-55
No. of Pin
15
25
Part No.
RDAD-15S
（4-40）55）
（
RDBD-25S
（4-40）55）
（
RoHS
YES
RDBD-25S 4-40）
（
（55）
26
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Locking Device with Rectangular Mating Locking Base (LN Type)
