SB5150: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 150V V(RRM), Silicon, DO-201AD,; CategoryDiscrete semiconductor diode; File Size42KB，4 Pages; ManufacturerWon-Top Electronics Co., Ltd.; Websitehttps://www.wontop.com/

Download Datasheet Parametric Compare View All

SB5150 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 150V V(RRM), Silicon, DO-201AD,

SB5150 Parametric

Parameter Name	Attribute value
Maker	Won-Top Electronics Co., Ltd.
package instruction	O-PALF-W2
Reach Compliance Code	compliant
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.9 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	200 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

SB5150 – SB5200

5.0A HIGH VOLTAGE SCHOTTKY BARRIER DIODE

WON-TOP ELECTRONICS

Features



Schottky Barrier Chip

Guard Ring for Transient and ESD Protection

Surge Overload Rating to 150A Peak

Low Power Loss, High Efficiency

Ideally Suited for Use in High Frequency

SMPS, Inverters and As Free Wheeling Diodes

Mechanical Data



Case: DO-201AD, Molded Plastic

Terminals: Plated Leads Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 1.2 grams (approx.)

Mounting Position: Any

Marking: Type Number

Lead Free: For RoHS / Lead Free Version,

Add “-LF” Suffix to Part Number, See Page 4

Dim

DO-201AD

Min

25.4

7.20

1.20

4.80

Max

—

9.50

1.30

5.30

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Single Phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

=25°C unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current (Note 1)

Non-Repetitive Peak Forward Surge Current

8.3ms Single Half Sine-Wave Superimposed on

Rated Load (JEDEC Method)

Forward Voltage

Peak Reverse Current

At Rated DC Blocking Voltage

Typical Junction Capacitance (Note 2)

Thermal Resistance, Junction to Ambient (Note 3)

Thermal Resistance, Junction to Lead (Note 3)

Operating and Storage Temperature Range

= 5.0A

= 25°C

= 100°C

Symbol

RRM

RWM

R(RMS)

FSM

θJA

θJL

, T

STG

SB5150

SB5200

Unit

150

105

5.0

150

0.9

0.2

5.0

120

8.0

-65 to +150

200

140

°C/W

°C

Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.

2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.

3. Vertical PCB mounting with 12.7mm lead length on 63.5 x 63.5mm copper pad.

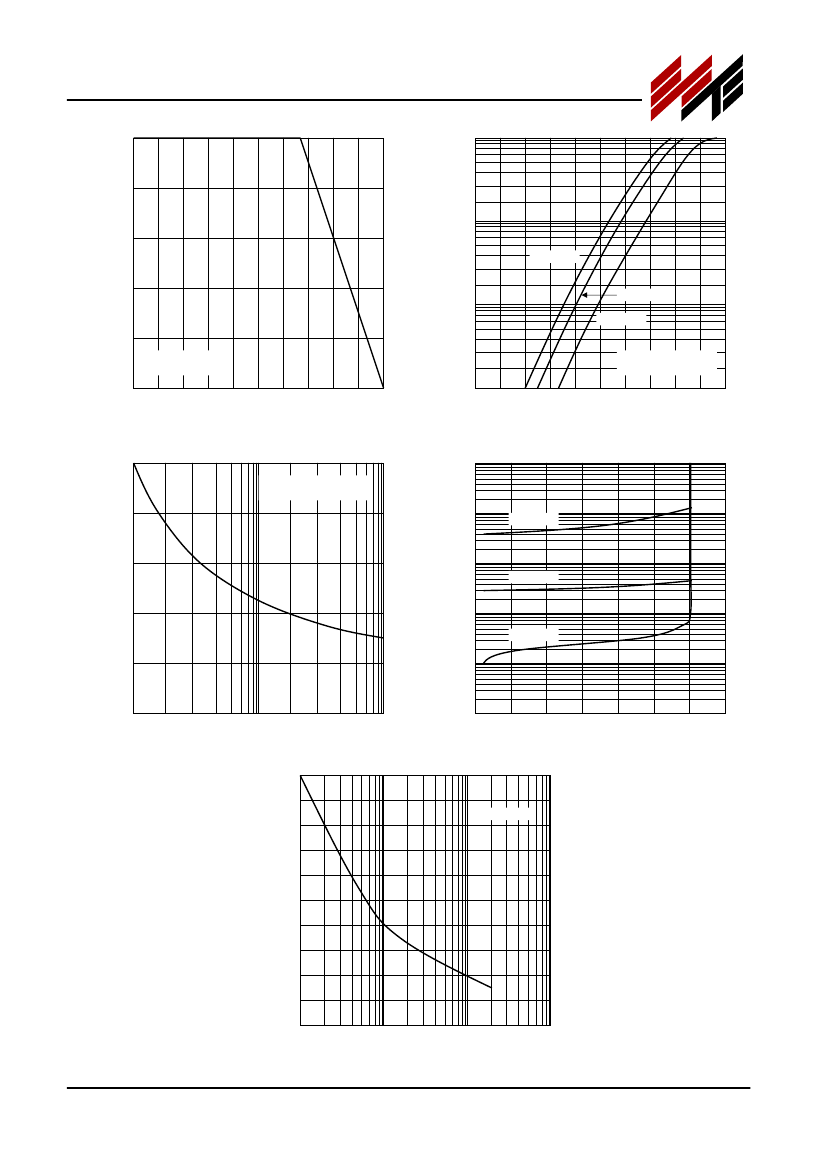

Revision: September, 2012

www.wontop.com
