BC848A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC848A

BC848A: Description100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size330KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

BC848A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC848A	-	-	View	Buy Now

BC848A Overview

100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR

BC848A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	SOT-23
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	_compli
ECCN code	EAR99
Is Samacsys	N
Other features	LOW NOISE
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	110
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	300 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

BC846 SERIES

BC847 SERIES

BC848 SERIES

SURFACE MOUNT

NPN SILICON TRANSISTOR

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR BC846, BC847

and BC848 Series types are NPN Silicon Transistors

manufactured by the epitaxial planar process, epoxy

molded in a surface mount package, designed for

general purpose switching and amplifier applications.

MARKING CODE: SEE MARKING CODE TABLE

ON FOLLOWING PAGE

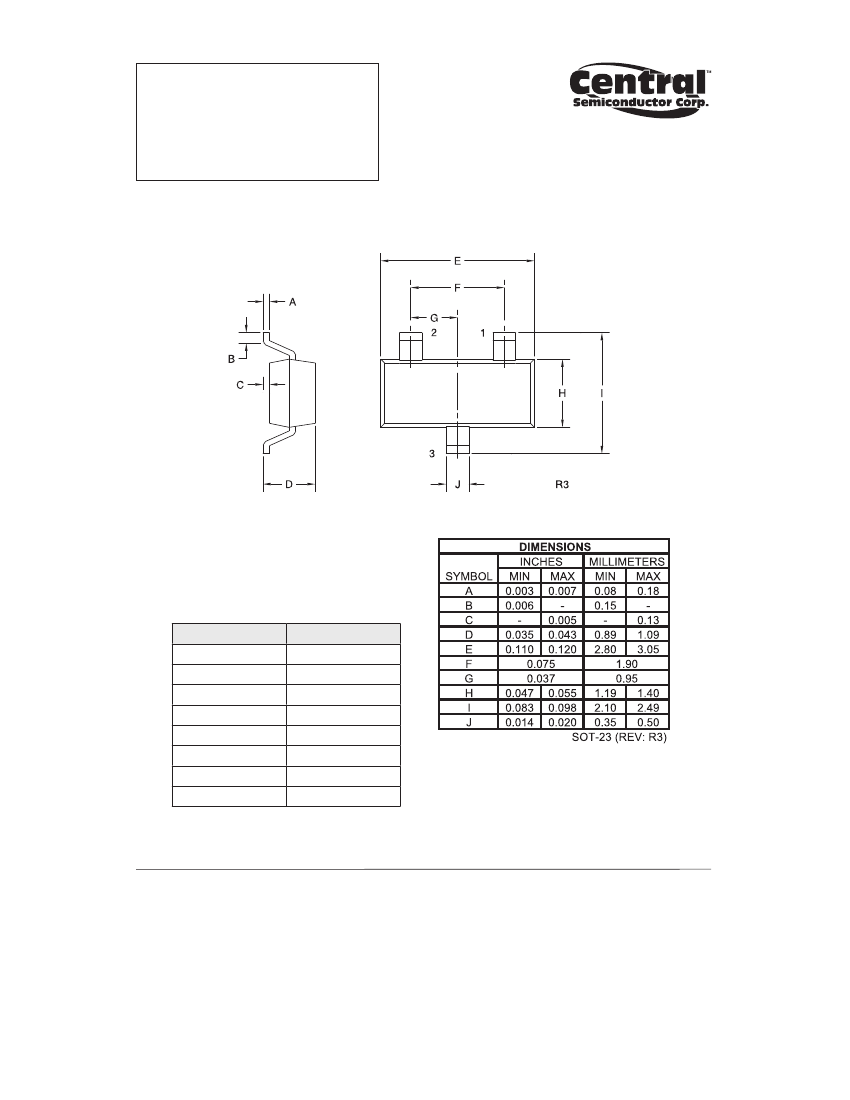

SOT-23 CASE

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Peak Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL

SYMBOL

ICBO

IEBO

BVCBO

BVCEO

BVEBO

VCE(SAT)

VBE(ON)

Note: Reverse Lead Codes Available, Add “R” to

the end of the Part # and Marking Code.

SYMBOL

VCBO

VCEO

VEBO

ICM

IBM

TJ, Tstg

BC848

BC847

5.0

100

200

350

-65 to +150

357

BC846

UNITS

°C

°C/W

CHARACTERISTICS:

(TA=25°C unless otherwise noted)

TEST CONDITIONS

MIN

VCB=30V

VCB=30V, TA=150°C

VEB=5.0V

IC=10μA (BC848)

IC=10μA (BC847)

IC=10μA (BC846)

IC=10mA (BC848)

IC=10mA (BC847)

IC=10mA (BC846)

IE=10μA

5.0

IC=10mA, IB=0.5mA

IC=100mA, IB=5.0mA

IC=2.0mA, VCE=5.0V

0.58

IC=10mA, VCE=5.0V

VCE=5.0V, IC=10mA, f=100MHz

100

VCE=5.0V, IC=200μA,

RS=2.0KΩ, f=1.0KHz, BW=200Hz

BC846A

BC847A

BC848A

MIN MAX

110 220

MAX

5.0

100

0.25

0.60

0.70

0.77

UNITS

μA

MHz

BC846B

BC847B

BC848B

MIN MAX

200

450

hFE

VCE=5.0V, IC=2.0mA

BC847C

BC848C

MIN

MAX

420

800

R1 (20-November 2009)

BC848A Related Products

	BC848A	BC847A	BC847C	BC848B	BC846	BC846A	BC846B	BC847B	BC848C
