BR62256A-F-15L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> BR62256A-F-15L

Preview

BR62256A-F-15L: DescriptionStandard SRAM, 32KX8, 150ns, CMOS, PDSO28; Categorystorage storage; File Size259KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BR62256A-F-15L Overview

Standard SRAM, 32KX8, 150ns, CMOS, PDSO28

BR62256A-F-15L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
package instruction	SOP, SOP28,.5
Reach Compliance Code	compliant
Maximum access time	150 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.5
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.00005 A
Minimum standby current	2 V
Maximum slew rate	0.07 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

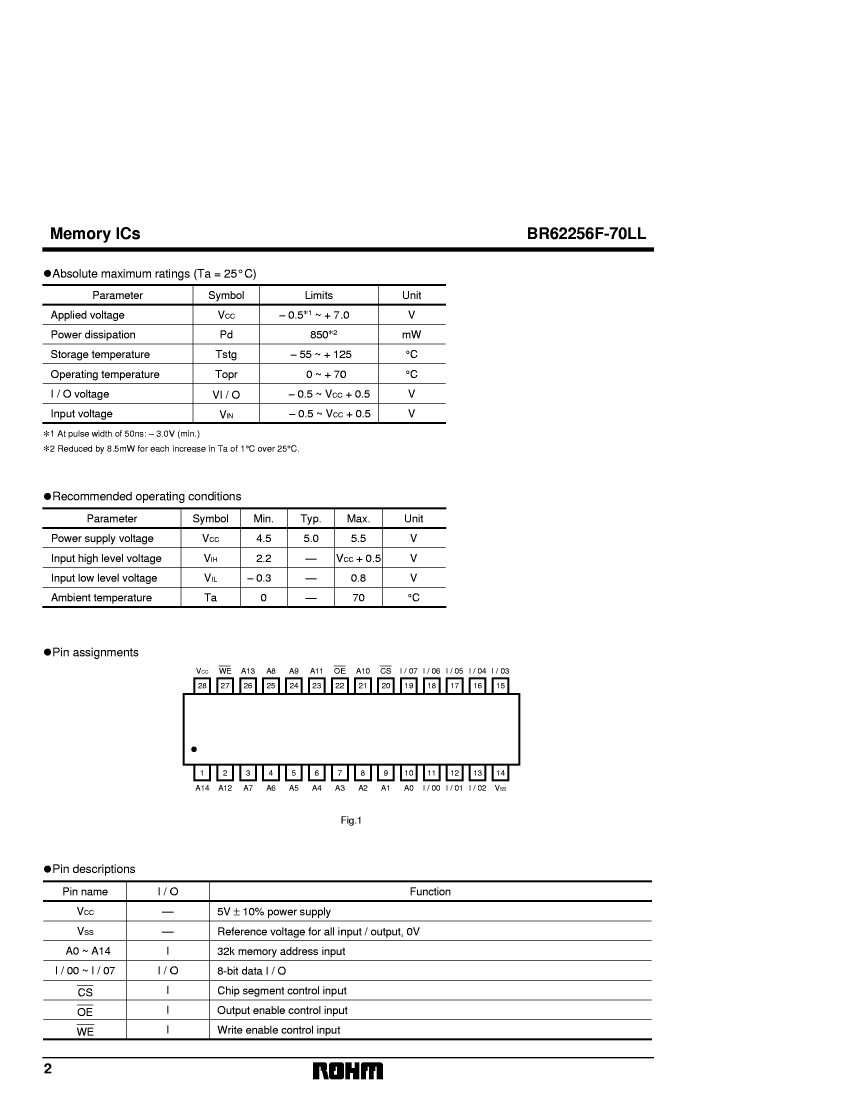

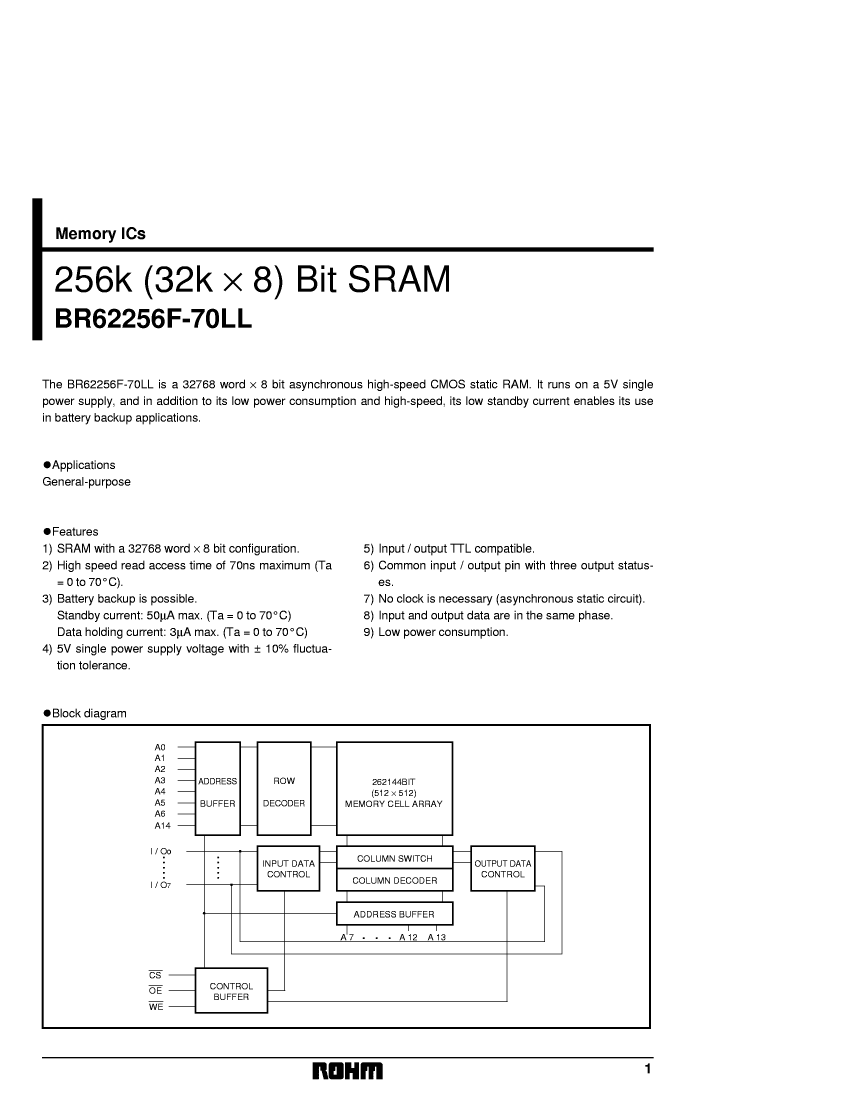

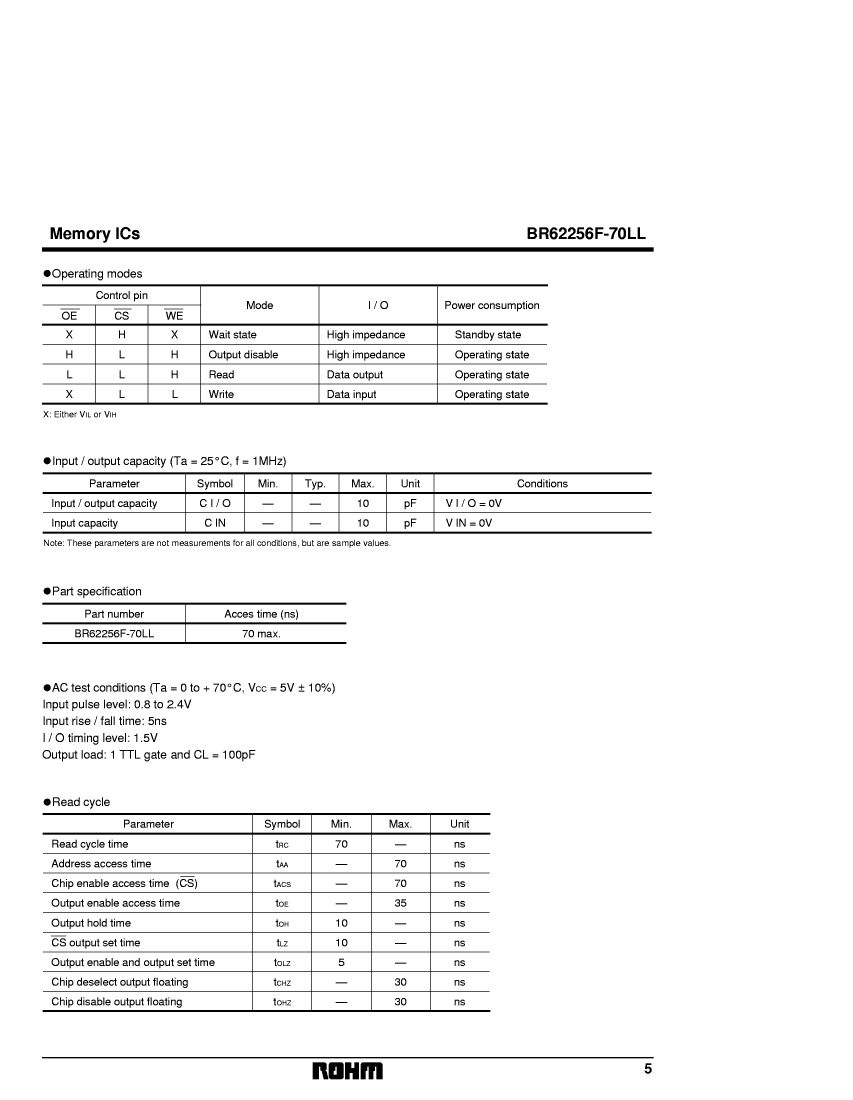

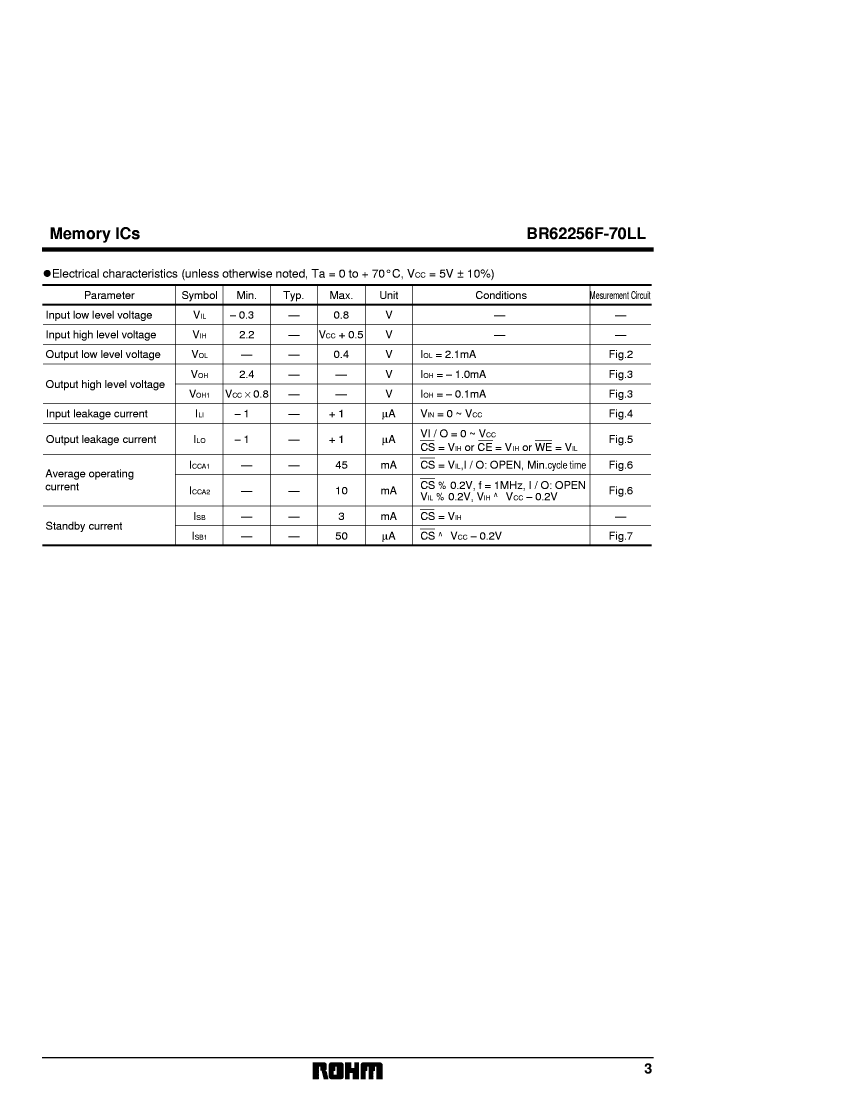

BR62256A-F-15L Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BR62256A-F-15L Related Products

	BR62256A-F-15L	BR62256A-10L	BR62256A-12L	BR62256A-15L	BR62256A-F-10L	BR62256A-F-12L	BR62256T
Description	Standard SRAM, 32KX8, 150ns, CMOS, PDSO28	Standard SRAM, 32KX8, 100ns, CMOS, PDIP28,	Standard SRAM, 32KX8, 120ns, CMOS, PDIP28	Standard SRAM, 32KX8, 150ns, CMOS, PDIP28	Standard SRAM, 32KX8, 100ns, CMOS, PDSO28,	Standard SRAM, 32KX8, 120ns, CMOS, PDSO28	Standard SRAM, 32KX8, 150ns, CMOS
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	SOP, SOP28,.5	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	SOP, SOP28,.5	SOP, SOP28,.5	, TAB,28PINS,.02
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum access time	150 ns	100 ns	120 ns	150 ns	100 ns	120 ns	150 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8
Number of terminals	28	28	28	28	28	28	28
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SOP28,.5	DIP28,.6	DIP28,.6	DIP28,.6	SOP28,.5	SOP28,.5	TAB,28PINS,.02
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	0.5 mm
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	incompatible	incompatible	-
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28	-
JESD-609 code	e0	e0	-	e0	e0	e0	-
encapsulated code	SOP	DIP	DIP	DIP	SOP	SOP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-
