BBS-6/10: DescriptionFAST BLOW ELECTRIC FUSE, 0.6A, 600VAC, 10000A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size362KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BBS-6/10 Overview

FAST BLOW ELECTRIC FUSE, 0.6A, 600VAC, 10000A (IR), INLINE/HOLDER

BBS-6/10 Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
Fusing characteristics	FAST
body height	35.05 mm
Body length or diameter	10.41 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	BBS
Installation features	INLINE/HOLDER
physical size	10.41mm x 35.05mm
Rated breaking capacity	10000 A
Rated current	0.6 A
Rated voltage (AC)	600 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

Technical Data 2010

Effective April 2014

Supersedes October 2002

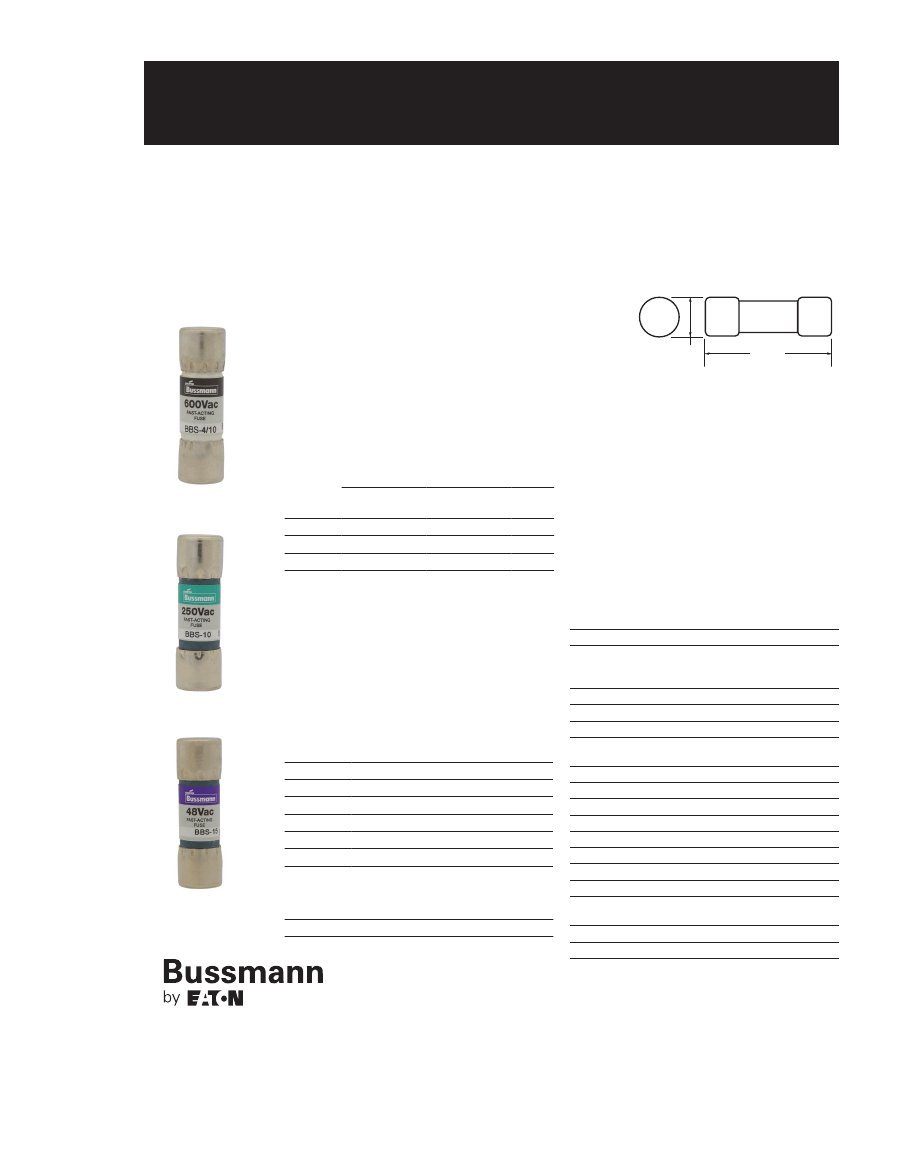

BBS Series

13⁄32˝ x 1-3/8˝ 600Vac Fast-acting supplemental fuses

Description

Fast-acting supplemental fuse.

For superior protection, Bussmann recommends

upgrading to Low-Peak Class CC fuses. See data

sheet # 1023.

Dimensions - in

Catalog symbol / color code

•

0.41"

(±0.004)

1.38"

(±0.031)

BBS

- Black (600Vac max voltage 1/10 to 6A)

- Green (250Vac max voltage 7 to 10A)

- Purple (48Vac max voltage 12 to 30A)

Features

•

Color coded for 600Vac (Black) 250Vac (Green)

and 48Vac (Purple) for maximum voltage ratings

Fiber tube construction

Nickel-plated brass endcaps.

Ratings

Fuse

Amp

Range

1/10 to 6

7 to 10

12 to 30*

Interrupting Rating at

System Voltage

600

Vac

10kA

-

250

Vac

-

10kA

-

48

Vac

-

Agency

Information

UL

X

-

CSA

X

-

Typical applications

•

600Vac

1/10 to 6A

Control circuits

Gaseous vapor fixtures

HID ballasts

Electronic circuits

Hand-held meters

* For interrupting rating, contact factory.

Agency information

•

Recommended fuse blocks/fuse holders

Series

Description

Blocks

BMM Series

BM Series

CHM Series

1-, 2- & 3-Pole modular

blocks with optional

covers

1-, 2- & 3-Pole blocks

1-, 2- & 3-Pole

3-Pole protection

module

3-Pole holder

3-Pole holder + switch

Panel Mount Holders

HPF-L

HPS-L

HEH

1A3400, 5956 &

5960 Series

SAMI-7

1-Pole holder

In-line

1-Pole holder

Fuseclips

2124

2114

2113

10235

1104

3185

1109

1102

1103

Data Sheet #

CE

UL Listed, Std. 248-14 (1/10-6A@600Vac,

7-10A@250Vac), Guide JDYX, File E19180

CSA Certified, C22.2 No. 248.14

(1/10-6A@600Vac, 7-10A@250Vac),

Class 1422-01, File 53787

250Vac

7 to 10A

DIN-Rail Holders / Switches

Catalog numbers (amps)

BBS-1/10

BBS-2/10

BBS-1/4

BBS-4/10

BBS-1/2

BBS-6/10

BBS-3/4

BBS-8/10

BBS-1

BBS-1-1/2

BBS-1-6/10

BBS-1-8/10

BBS-2

BBS-3

BBS-4

BBS-5

BBS-6

BBS-7

BBS-8

BBS-10

BBS-12

BBS-15

BBS-20

BBS-25

BBS-30

Optima NG

Optima

48Vac

12 to 30A

Carton quantity

Amps

1/10 to 30

Qty.

10

PCB Fuseclips

Fuse Covers

Finger-safe fuse cover

2132

1204

BBS-6/10 Related Products

	BBS-6/10	BBS-10	BBS-2/10	BBS-4/10	BBS-8/10	BBS-1-1/2	BBS-1-8/10	BBS-1/10
Description	FAST BLOW ELECTRIC FUSE, 0.6A, 600VAC, 10000A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 10A, 250VAC, 10000A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.2A, 600VAC, 10000A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.4A, 600VAC, 10000A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.8A, 600VAC, 10000A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 1.5A, 600VAC, 10000A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 1.8A, 600VAC, 10000A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.1A, 600VAC, 10000A (IR), INLINE/HOLDER
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST
body height	35.05 mm	35.05 mm	35.05 mm	35.05 mm	35.05 mm	35.05 mm	35.05 mm	35.05 mm
Body length or diameter	10.41 mm	10.41 mm	10.41 mm	10.41 mm	10.41 mm	10.41 mm	10.41 mm	10.41 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Manufacturer's serial number	BBS	BBS	BBS	BBS	BBS	BBS	BBS	BBS
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
physical size	10.41mm x 35.05mm	10.41mm x 35.05mm	10.41mm x 35.05mm	10.41mm x 35.05mm	10.41mm x 35.05mm	10.41mm x 35.05mm	10.41mm x 35.05mm	10.41mm x 35.05mm
Rated breaking capacity	10000 A	10000 A	10000 A	10000 A	10000 A	10000 A	10000 A	10000 A
Rated current	0.6 A	10 A	0.2 A	0.4 A	0.8 A	1.5 A	1.8 A	0.1 A
Rated voltage (AC)	600 V	250 V	600 V	600 V	600 V	600 V	600 V	600 V
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Maker	Eaton	Eaton	Eaton	Eaton	Eaton	-	-	-
Base Number Matches	-	1	1	1	1	1	1	1
