PHAP4383VU4522: DescriptionKeypad Switch, 1 Switches, DPDT, Momentary, 0.1A, 30VDC, 2.5N, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size168KB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric Compare View All

PHAP4383VU4522 Overview

Keypad Switch, 1 Switches, DPDT, Momentary, 0.1A, 30VDC, 2.5N, Solder Terminal, Through Hole-straight

PHAP4383VU4522 Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
body width	8.4 mm
body height	8.5 mm
Body length or diameter	8.4 mm
Circuit configuration	1X1
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (DC)	30 V
Electrical life	10000 Cycle(s)
Manufacturer's serial number	PHAP40
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating force	2.5 N
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	BULK
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	KEYPAD SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

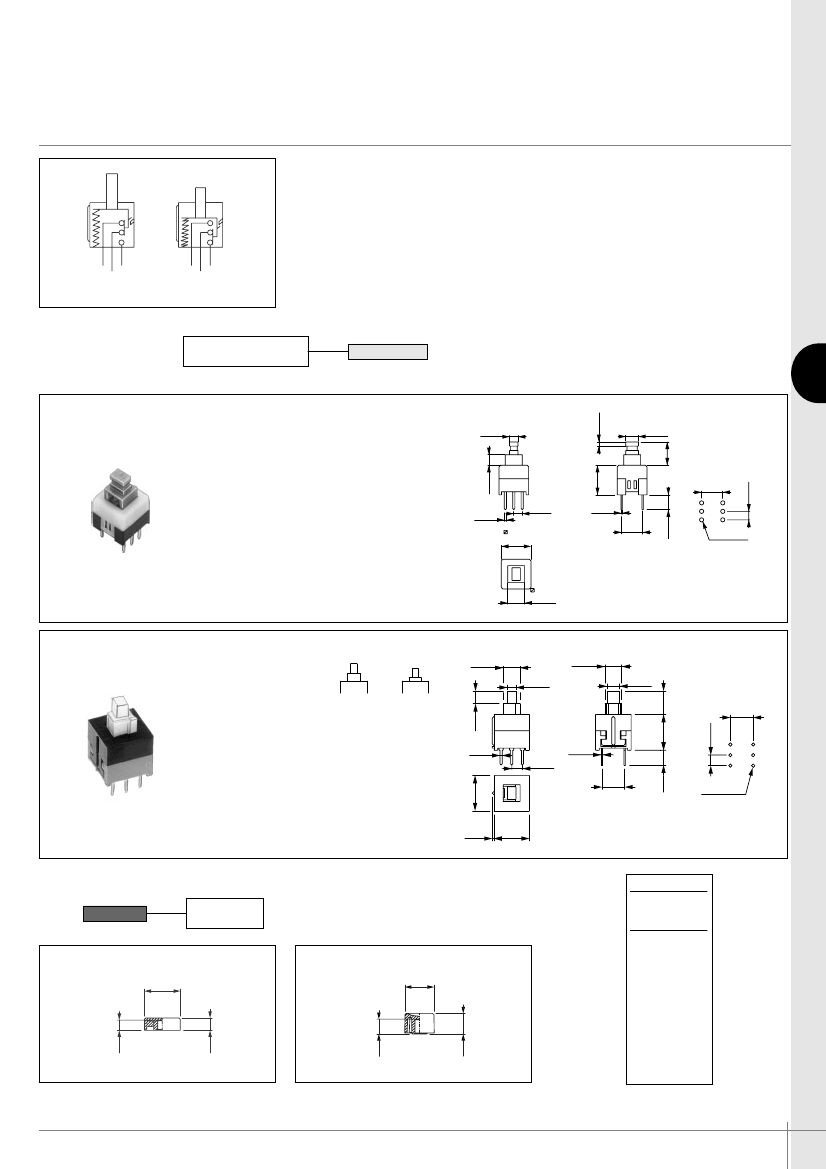

PHAP40 series

Momentary or latching action key switches

Distinctive features and pecifications

❑

The smallest latching action switch of the range

❑

Audible “click”

❑

Models with 6 x 6 mm case on request

B

ELECTRICAL SPECIFICATIONS

MATERIALS

• Max. current/voltage rating with resistive load : 100mA 30VDC

• Initial contact resistance : 100 mΩ max.

• Insulation resistance : 100 MΩ min. at 500VDC

• Dielectric strength : 500 Vrms min. (1 min.)

• Electrical life : 10.000 cycles

• Case : polyamide

• Actuator : polyamide

• Contacts : brass, silver plated

GENERAL SPECIFICATIONS

• Travel : see next page.

• Wave soldering : 255°C, 5 seconds

• Manual soldering : 300°C ± 10°C, 3 seconds

• Operating force :

- Model PHAP4673 : 1,4N

± 0,5N

- Models PHAP4683W and PHAP4383V : 2N

± 0,5N

• Operating temperature : -20°C to +70°C

Dimensions

: first dimensions are in mm while inches are shown as bracketted numbers.

Packaging unit

: 1.000 pieces.

B-88

www.apem.com

APEM

PHAP4383VU4522 Related Products

	PHAP4383VU4522	PHAP4383VU4532	PHAP4673U4522	PHAP4673U4532	PHAP4683WU4522	PHAP4683WU4532
Description	Keypad Switch, 1 Switches, DPDT, Momentary, 0.1A, 30VDC, 2.5N, Solder Terminal, Through Hole-straight	Keypad Switch, 1 Switches, DPDT, Momentary, 0.1A, 30VDC, 2.5N, Solder Terminal, Through Hole-straight	Keypad Switch, 1 Switches, DPDT, Latched, 0.1A, 30VDC, 1.9N, Solder Terminal, Through Hole-straight	Keypad Switch, 1 Switches, DPDT, Latched, 0.1A, 30VDC, 1.9N, Solder Terminal, Through Hole-straight	Keypad Switch, 1 Switches, DPDT, Latched, 0.1A, 30VDC, 2.5N, Solder Terminal, Through Hole-straight	Keypad Switch, 1 Switches, DPDT, Latched, 0.1A, 30VDC, 2.5N, Solder Terminal, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	8.4 mm	8.4 mm	7 mm	7 mm	8.4 mm	8.4 mm
body height	8.5 mm	8.5 mm	7 mm	7 mm	8.5 mm	8.5 mm
Body length or diameter	8.4 mm	8.4 mm	7 mm	7 mm	8.4 mm	8.4 mm
Circuit configuration	1X1	1X1	1X1	1X1	1X1	1X1
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V	30 V	30 V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
Manufacturer's serial number	PHAP40	PHAP40	PHAP40	PHAP40	PHAP40	PHAP40
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of switches	1	1	1	1	1	1
Maximum operating force	2.5 N	2.5 N	1.9 N	1.9 N	2.5 N	2.5 N
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
surface mount	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	LATCHED	LATCHED	LATCHED	LATCHED
switch function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Switch type	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	APEM	-	APEM	APEM	APEM	APEM
