RT425730: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 740mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size245KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RT425730 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 740mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

RT425730 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	33 weeks
Other features	COIL OPERATE VOLTAGE(AC): 172.5 V, COIL RELEASE VOLTAGE(AC): 34.5 V
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Coil current (AC) maximum value	0.003 A
Coil power	740 mW
Coil resistance	32500 Ω
Maximum coil voltage (AC)	230 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	8A@400VAC
Maximum contact current (AC)	8 A
Maximum contact voltage (AC)	400 V
Contact/Output Power Type	AC
Electrical life	30000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	29mm x 12.7mm x 15.7mm
Guideline	BEAB; CSA; UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
seal	RT2
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

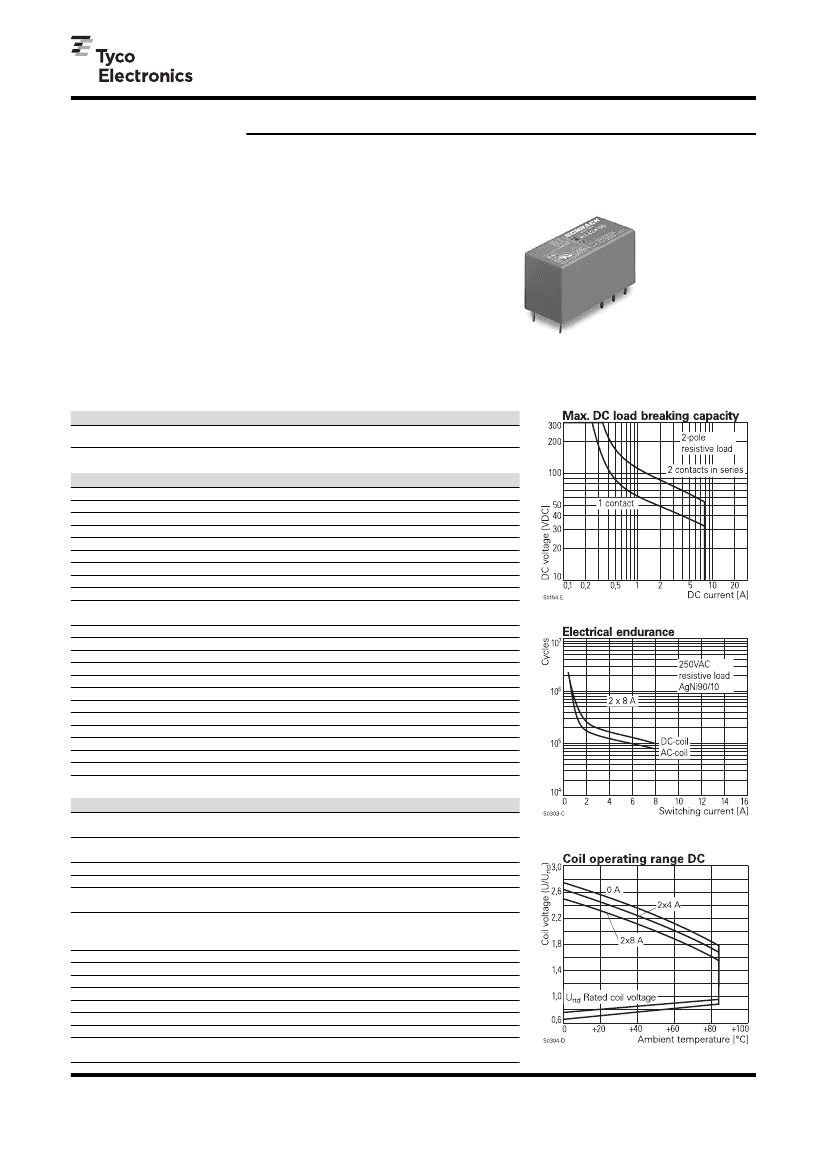

General Purpose Relays

SCHRACK

Power PCB Relay RT2

I

2 pole 8 A, 2 CO or 2 NO contacts

DC- or AC-coil

Sensitive coil 400 mW

Reinforced insulation

WG version: Product in accordance to IEC60335-1

RoHS compliant (Directive 2002/95/EC)

as per product date code 0413

Applications

Domestic appliances, heating control, emergency lighting,

modems

F0149-B

Approvals

V

REG.-Nr.

of

6106,

Z

on request

b

14385,

B

C0786

E214025,

Technical data approved types

Contact data

Contact configuration

2 CO or 2 NO

Contact set

single contact

Type of interruption

micro disconnection

Rated current

8 A, UL: 10 A

Rated voltage / max.switching voltage AC

250/400 VAC

Limiting continuous current

UL: 10 A

Maximum breaking capacity AC

2000 VA

Limiting making capacity, max 4 s, duty factor 10%

15 A

Contact material

AgNi 90/10, AgNi 90/10 gold plated, AgSnO

2

Mechanical endurance DC coil

> 30 x 10

6

cycles

AC coil

> 5 x 10

6

cycles

Rated frequency of operation with / without load

6 / 1200 min-1

Contact

Type

RT424

RT444

RT424

ratings

Load

8 A, 250 VAC, NO contact, 70°C, EN61810-1

6(3) A, 250 VAC, NO contact, 85°C; EN60730-1

6(2) A, 250 VAC, NO/NC contact, 85°C; EN60730-1

10 A, 250 VAC, CO contact, 70°C; General purpose, UL508

1/2hp @ 240 VAC, 1/4hp @ 120 VAC, UL508

Pilot duty B300, UL508

8 A, 30 VDC, General Purpose, UL508

4 A, 230 VAC, cosϕ=0.6, gas burner

Cycles

100x10

3

100x10

3

100x10

3

30x10

3

150x10

3

Coil data

Rated coil voltage range DC coil

AC coil

Coil power DC coil

AC coil

Operative range

Coil insulation system according UL1446

5...110 VDC

24...230 VAC

typ 400 mW

typ 0,75 VA

2

class F

Coil versions, DC-coil

Coil

Rated

Operate

Release

Coil

Rated coil

code

voltage

resistance

power

VDC

c

mW

005

5

3.5

0.5

62+10%

403

006

6

4.2

0.6

90+10%

400

012

12

8.4

1.2

360+10%

400

024

24

16.8

2.4

1440+10%

400

048

48

33.6

4.8

5520+10%

417

060

60

42.0

6.0

8570+12%

420

110

77.0

11.0

28800+12%

420

All figures are given for coil without preenergization, at ambient temperature +23°C

Other coil voltages on request

1

Datasheet

Rev. HG1

Issued 2008/07

www.tycoelectronics.com

www.schrackrelays.com

Dimensions are in mm unless

otherwise specified and are

shown for reference purposes

only.

Product specification

according to IEC 61810-1.

Product data, technical para-

meters, test conditions and

processing information

only to be used together

with the 'Definitions' at

schrackrelays.com in the

‘Schrack’ section.

Specifications subject to

change.
