REVISION Z
DO NOT
SCALE FROM
THIS PRINT
.1195 3.035 REF
02
.2450 6.223 REF
01
.0200 0.508 REF
.0283 0.718
C
BSE-060-01-X-D-LC SHOWN
(No OF POSITIONS x.0315[.80]) + .2075[5.27] REF
C
FIG 1
BSE-XXX-01-X-D-XX
OPTION
-A: ALIGNMENT PINS
(USE BSE-XXX-01-D-A)
-LC: LOCKING CLIPS
(USE LC-08-TM-01)
-TR: TAPE & REEL (80 POS. MAX)
-FL: FRICTION LOCK (SEE FIG 2)
(-020 THRU -100 POSITIONS ONLY)
(USE BSE-XXX-01-D-X-FL)
(No OF POSITIONS -1) x .0315[.80]
No OF POSITIONS
-020, -040, -060,
*-080, *-090, *-100, *-120
(PER ROW)
.2850 7.239
REF
LEAD STYLE
-01: .1280 [3.25]
BSE-XXX-01-D
* = SEE NOTE 8
.1500 3.810 REF
ROW SPECIFICATION
PLATING SPECIFICATION
-D: DOUBLE (USE BSE-XXX-01-D-X)
-F: FLASH SELECTIVE GOLD WITH MATTE TIN TAILS (SEE NOTE 6 & 9)
-L: LIGHT SELECTIVE GOLD WITH MATTE TIN TAILS (SEE NOTE 9)
-H: HEAVY GOLD WITH MATTE TIN TAILS (SEE NOTE 9)
-C: ELECTRO-POLISHED SELECTIVE (SEE NOTE 9)
C-126-21-X
(SEE NOTE 9)
C
.006 0.147 REF
.1280
- .0010
3.251
- 0.03
(SEE NOTE 7)
+.0030
+0.08
"A"
.1200 3.048 REF
C
.0550 1.397
SEE TABLE 1
"A"
.0100 0.254 REF
.0060 0.152 REF
LC-08-TM-01
2 MAX TOE (TYP)
.070 1.765 REF
.2950 7.493 REF
.0375 0.953
-LC: LOCKING CLIP OPTION SHOWN
SECTION "A"-"A"
BSE-XXX-01-D-A
.0375 0.953 REF
"B"
"B"
-FL OPTION
BSE-020-01-X-D-A-FL SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
BSE-XXX-01-D-X-FL
.080 2.03 REF
FIG 2
R
.0375 0.953 REF
.0350 0.889 REF
(No OF POSITIONS X .0315[.80]) + .1625[4.13] REF
-A: ALIGNMENT PIN OPTION SHOWN
BSE-060-01-X-D-A SHOWN
(No OF POS X .0315[.80])
+ .167[4.21] REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. NOTE DELETED.
3. MAXIMUM BURR ALLOWANCE: .0015 [.038].
4. MINIMUM PUSHOUT FORCE: .5 LB.
5. NOTE DELETED.
6. –L PLATING MAY BE SUBSTITUTED FOR –F PLATING.
7. MAX VARIENCE: .002 [.05]
8. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS,
PLEASE CONTACT SAMTEC INTERCONNECT PROCESSING
GROUP.
9. -90 THROUGH -120 POSITION PARTS USE C-269-11-X. DO
NOT SUB C-126-XX-X OR C-224-01-X.
10. POSITIONS 20, 40, 60, 80, 120 ARE TRAY PACKAGED.
SECTION "B"-"B"
SCALE 2 : 1
PACKAGING VIEW
90 & 100 POS ONLY
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.25]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
DESCRIPTION:
TUBE: PT-1-24-03-78
PLUG: TP-09
INSULATOR: BLACK LCP
FLAMMABILITY RATING: UL94VO
SOCKET:PHOS BRONZE
F:\DWG\MISC\MKTG\BSE-XXX-01-X-D-XX-MKT.SLDDRW

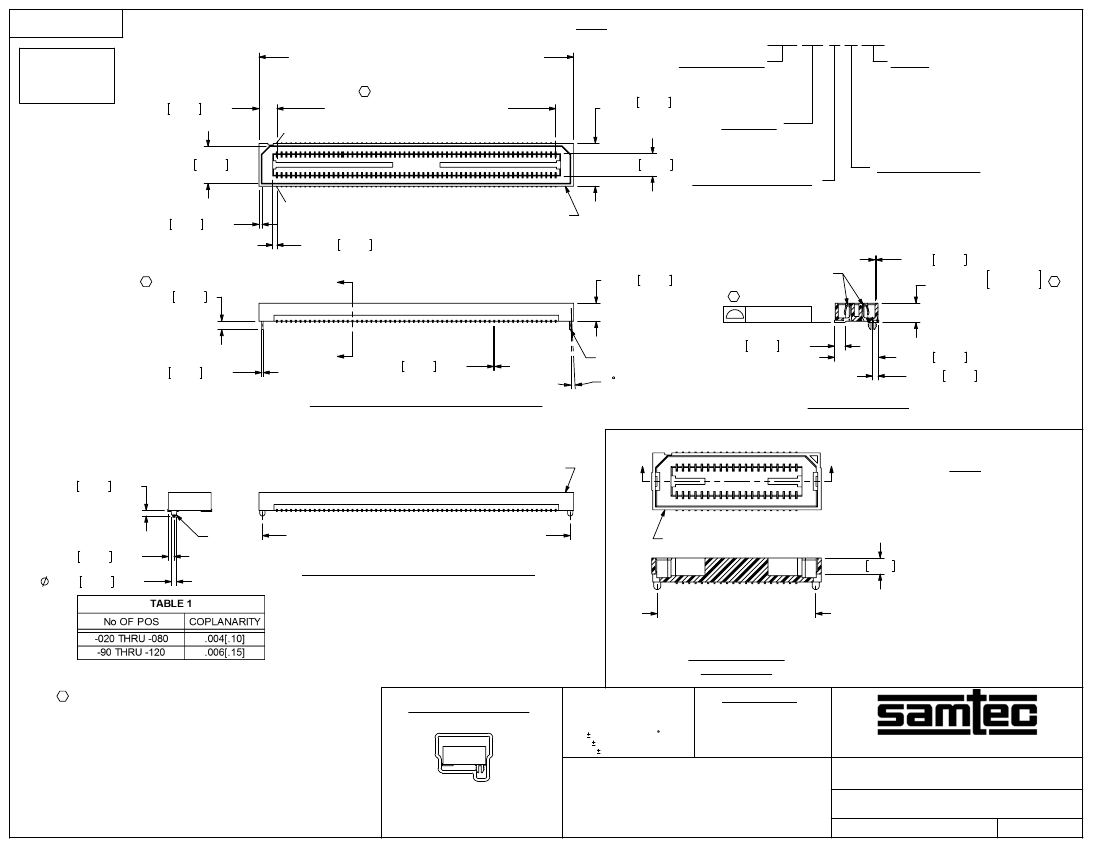

.8mm DOUBLE ROW SOCKET ASSEMBLY
DWG. NO.
BSE-XXX-01-X-D-XX
05/24/1999
SHEET
1
OF
1
BY:
DEAN P
