BD9134MUV_12 Overview

4.5V to 5.5V, 3.0A 1ch Synchronous Buck Converter Integrated FET

Datasheet
4.5V to 5.5V, 3.0A 1ch
Synchronous Buck Converter Integrated FET
BD9134MUV
●General
Description
ROHM’s high efficiency step-down switching regulator
BD9134MUV is a power supply designed to produce
3.3 volts from 5 volts power supply line. Offers high
efficiency with our original pulse skip control technology
and synchronous rectifier. Employs a current mode
control system to provide faster transient response to
sudden change in load.
●Features
Offers fast transient response with current mode
PWM control system.
Offers highly efficiency for all load range with
synchronous rectifier (Nch/Nch FET)
TM
and SLLM (Simple Light Load Mode)
Incorporates soft-start function.
Incorporates thermal protection and UVLO
functions.
Incorporates short-current protection circuit with
time delay function.
Incorporates shutdown function

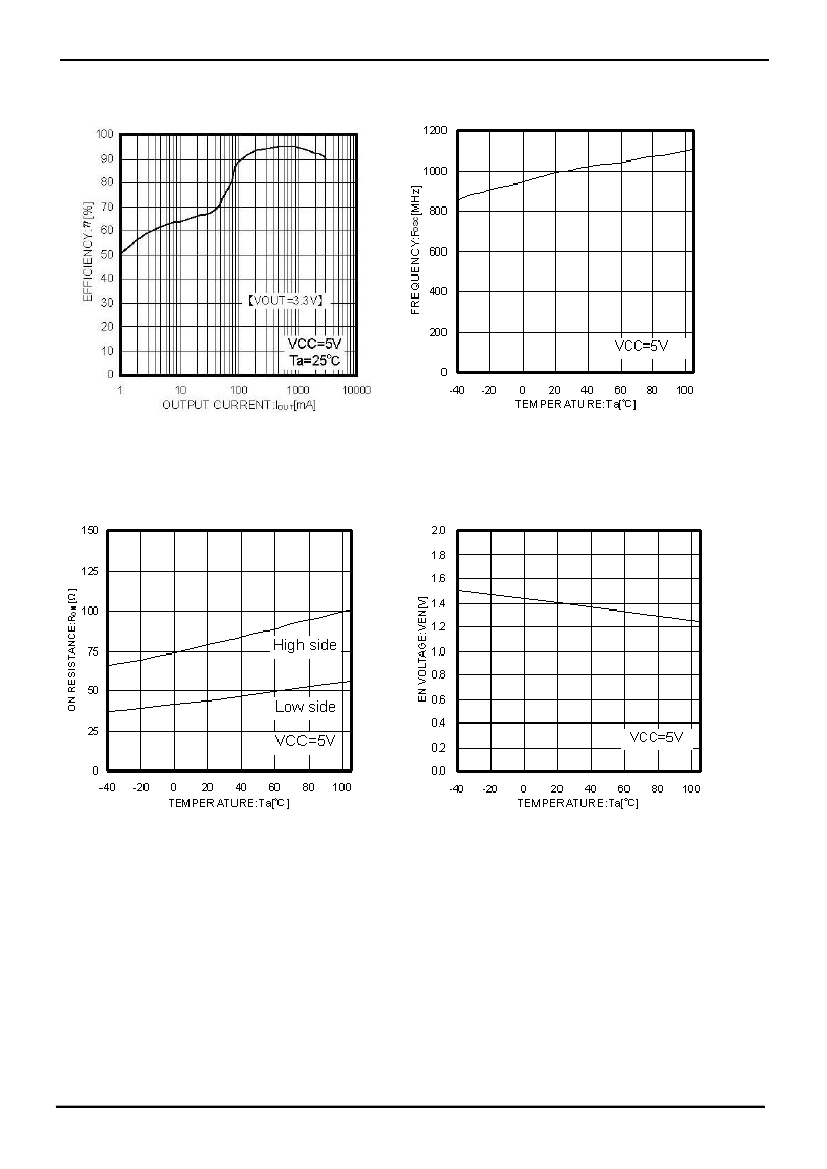

●Key
Specifications
Input voltage range:
Output voltage range:
Output current:
Switching frequency:
High side FET ON resistance:
Low side FET ON resistance:
Standby current:
Operating temperature range:
●Package
VQFN020V4040:
4.5V to 5.5V
3.3V t±0.05V
3.0A(Max.)
1MHz(Typ.)
82mΩ(Typ.)
70mΩ(Typ.)
0μA (Typ.)
-40℃ to +105℃
(Typ.)
(Typ.)
(Max.)
4.00mm x 4.00mm x 1.00mm
●Applications
Power supply for LSI including DSP, Micro computer and ASIC
VQFN020V4040
●Typical
Application Circuit

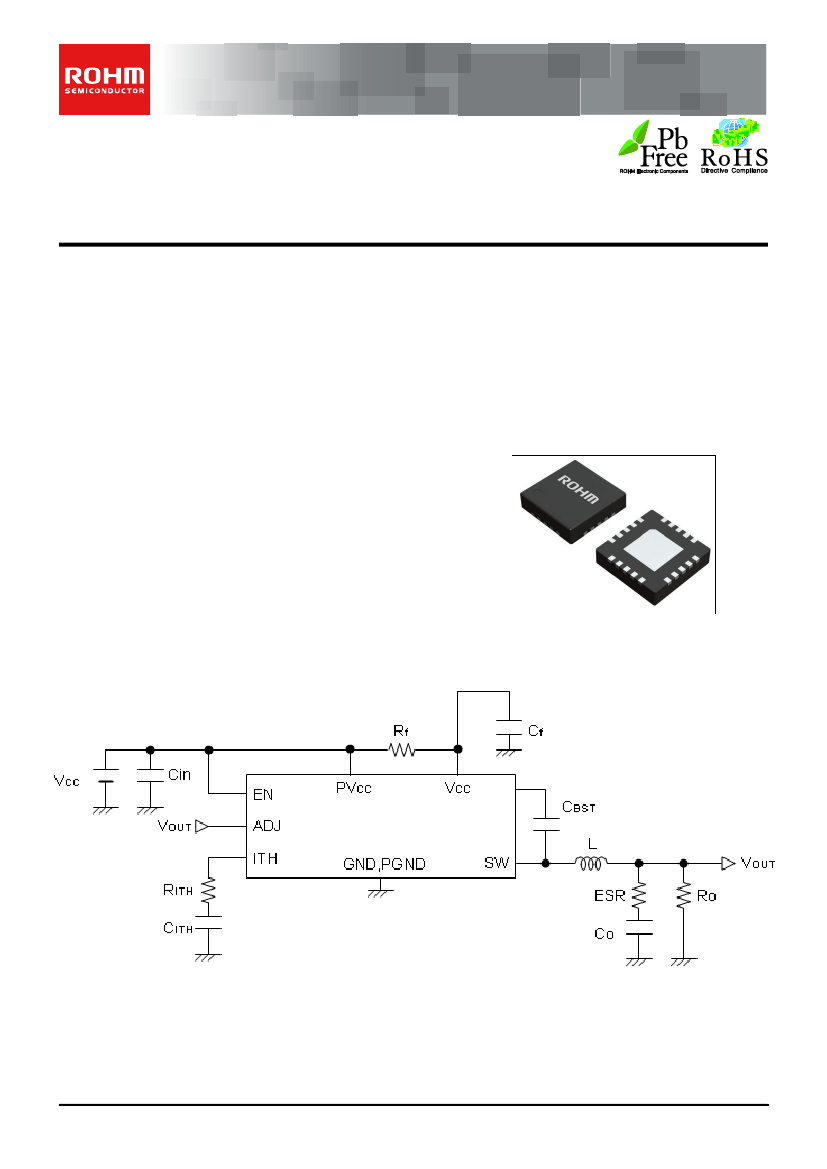

Fig.1 Typical Application Circuit
○Product
structure:Silicon monolithic integrated circuit
www.rohm.com
©2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product is not designed protection against radioactive rays.
1/19
TSZ02201-0J3J0AJ00150-1-2
02.MAR.2012 Rev.001
