BF421_10

Description
50 mA, 250 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92
Categorysemiconductor    Discrete semiconductor
File Size99KB,4 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

BF421_10 Overview

50 mA, 250 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92

BF421_10 Parametric

Parameter NameAttribute value
Number of terminals3
Transistor polarityPNP
Maximum collector current0.0500 A
Maximum Collector-Emitter Voltage250 V
Processing package description铅 FREE, CASE 029-11, TO-226AA, 3 PIN
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
packaging shaperound
Package Sizecylindrical
Terminal formTHROUGH-hole
terminal coatingtin silver copper
Terminal locationBOTTOM
Packaging MaterialsPlastic/Epoxy
structuresingle
Number of components1
transistor applicationsamplifier
Transistor component materialssilicon
Maximum ambient power consumption0.6250 W
Transistor typeUniversal small signal
Minimum DC amplification factor50
Rated crossover frequency60 MHz

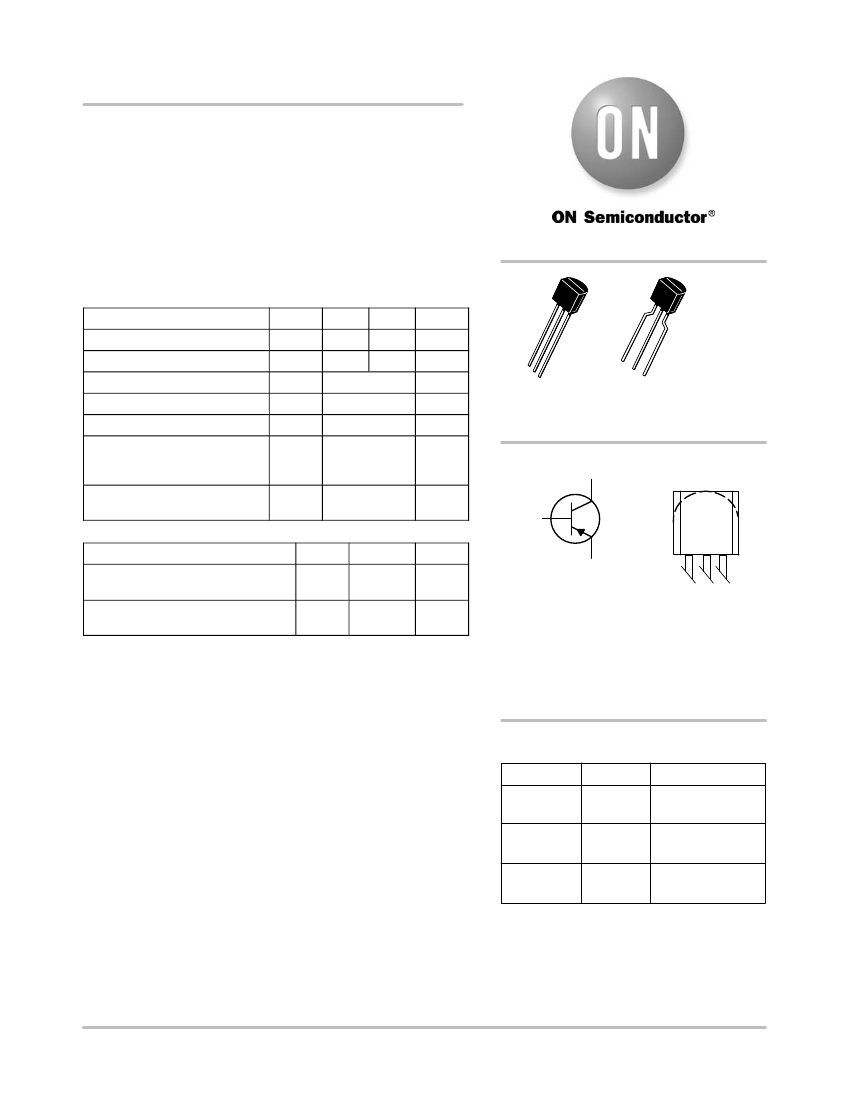

BF421, BF423
High Voltage Transistors
PNP Silicon
Features
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
Rating
Collector
−Emitter
Voltage
Collector
−Base
Voltage
Emitter
−Base
Voltage
Collector Current
Continuous
Collector Current
Peak
Total Device Dissipation (Note 1)
@ T
A
= 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
V
CEO
V
CBO
V
EBO
I
C
I
CM
P
D
BF421
−300
−300
BF423
−250
−250
Unit
Vdc
Vdc
Vdc
mAdc
mA
mW
mW/°C
°C
3
BASE
Symbol
R
qJA
R
qJL
Max
150
68
Unit
°C/W
°C/W
12
http://onsemi.com
−5.0
−500
100
830
6.6
−55
to +150
1
TO−92
CASE 29
STYLE 14
2
3
STRAIGHT LEAD
BULK PACK
3
BENT LEAD
TAPE & REEL
AMMO PACK
COLLECTOR
2
MARKING
DIAGRAM
BF
42x
AYWW
G
G
T
J
, T
stg
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance,
Junction−to−Ambient
Thermal Resistance,
Junction−to−Lead
1
EMITTER
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Mounted on a FR4 board with 200 mm
2
of 1 oz copper and lead length of
5 mm.
BF42x = Device Code
x = 1 or 3
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
BF421ZL1G
BF423G
BF423ZL1G
Package
TO−92
(Pb−Free)
TO−92
(Pb−Free)
TO−92
(Pb−Free)
Shipping
2000/Ammo Pack
5000 Units/Box
2000/Ammo Pack
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2010
July, 2010
Rev. 5
1
Publication Order Number:
BF421/D
