BF579

Description
Silicon PNP Planar RF Transistor
CategoryDiscrete semiconductor    The transistor
File Size122KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BF579 Overview

Silicon PNP Planar RF Transistor

BF579 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVishay
Reach Compliance Codecompliant
Maximum collector current (IC)0.025 A
ConfigurationSingle
Minimum DC current gain (hFE)20
JESD-609 codee3
Maximum operating temperature150 °C
Polarity/channel typePNP
Maximum power dissipation(Abs)0.25 W
surface mountYES
Terminal surfaceMatte Tin (Sn)
Base Number Matches1
Not for new design, this product will be obsoleted soon
BF579 / BF579R
Vishay Semiconductors
Silicon PNP Planar RF Transistor
1
Features
High transition frequency
Low distortion
Lead (Pb)-free component
Component in accordance to
RoHS 2002/95/EC and WEEE 2002/96/EC
BF579
2
e3
1
BF579R
3
3
2
Applications
UHF/VHF uncontrolled prestages with low noise and
low cross modulation.
Electrostatic sensitive device.
Observe precautions for handling.
19212

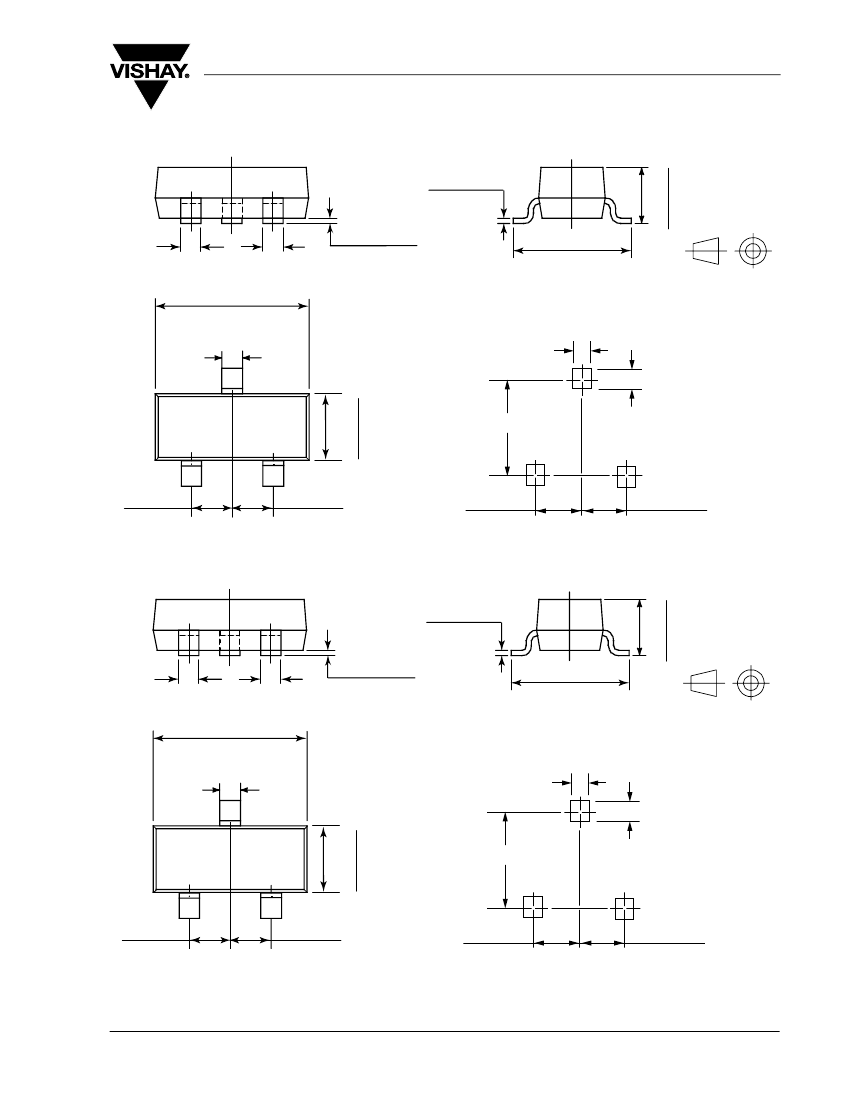

Mechanical Data
Typ:
BF579
Case:
SOT-23 Plastic case
Weight:
approx. 8.0 mg
Pinning:
1 = Collector, 2 = Base, 3 = Emitter
Typ:
BF579R
Case:
SOT-23 Plastic case
Weight:
approx. 8.0 mg
Pinning:
1 = Collector, 2 = Base, 3 = Emitter
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Total power dissipation
Junction temperature
Storage temperature range
T
amb
60 °C
Test condition
Symbol
- V
CBO
- V
CEO
- V
EBO
- I
C
P
tot
T
j
T
stg
Value
20
20
3
25
200
150
- 55 to + 150
Unit
V
V
V
mA
mW
°C
°C
Maximum Thermal Resistance
Parameter
Junction ambient
1)
1)
Test condition
Symbol
R
thJA
Value
450
Unit
K/W
on glass fibre printed board (25 x 20 x 1.5) mm
3
plated with 35
μm
Cu
Electrical DC Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Collector cut-off current
Collector-base cut-off current
Emitter-base cut-off current
Collector-emitter breakdown
voltage
Test condition
- V
CE
= 20 V, V
BE
= 0
- V
CB
= 15 V, I
E
= 0
- V
EB
= 3 V, I
C
= 0
- I
C
= 1 mA, I
B
= 0
Symbol
- I
CES
- I
CBO
- I
EBO
- V
(BR)CEO
h
FE
20
20
50
90
Min
Typ.
Max
100
100
10
Unit
μA
nA
μA
V
DC forward current transfer ratio - V
CE
= 10 V, - I
C
= 10 mA
Document Number 85001
Rev. 1.5, 05-Sep-08
www.vishay.com
1

BF579 Related Products

BF579 BF579R BF579_08
Description Silicon PNP Planar RF Transistor Silicon PNP Planar RF Transistor Silicon PNP Planar RF Transistor
Is it Rohs certified? conform to conform to -
Maker Vishay Vishay -
Reach Compliance Code compliant compliant -
Maximum collector current (IC) 0.025 A 0.03 A -
Configuration Single Single -
JESD-609 code e3 e3 -
Polarity/channel type PNP PNP -
Maximum power dissipation(Abs) 0.25 W 0.22 W -
surface mount YES YES -
Terminal surface Matte Tin (Sn) Matte Tin (Sn) -
Base Number Matches 1 1 -
