BFP193T / BFP193TW / BFP193TRW
Vishay Semiconductors
Silicon NPN Planar RF Transistor
2
1
SOT-143
Features
•
•
•
•
•
Low noise figure
High transition frequency f
T
= 8 GHz
e3
Excellent large signal behaviour
Lead (Pb)-free component
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
3
2
4
1
SOT-343
Applications
For low noise and high gain applications such as
power amplifiers up to 2 GHz and for linear broad-
band amplifiers.
3
1
4
2
SOT-343R
Mechanical Data
Typ:
BFP193T
Case:
SOT-143 Plastic case
Weight:
approx. 8.0 mg
Marking:
193
Pinning:
1 = Collector, 2 = Emitter,
3 = Base, 4 = Emitter
Typ:
BFP193TW
Case:
SOT-343 Plastic case
Weight:
approx. 6.0 mg
Marking:
W19
4
3
18383
Electrostatic sensitive device.
Observe precautions for handling.
Pinning:
1 = Collector, 2 = Emitter,
3 = Base, 4 = Emitter
Typ:
BFP193TRW
Case:
SOT-343R Plastic case
Weight:
approx. 6.0 mg
Marking:
W91
Pinning:
1 = Collector, 2 = Emitter,
3 = Base, 4 = Emitter
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Total power dissipation
Junction temperature
Storage temperature range
T
amb
≤
45 °C
Test condition
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
tot
T
j
T
stg
Value
20
12
2
80
420
150
- 65 to + 150
Unit
V
V
V
mA
mW
°C
°C
Document Number 85015
Rev. 1.3, 05-Sep-08
www.vishay.com
1
BFP193T / BFP193TW / BFP193TRW
Vishay Semiconductors
Maximum Thermal Resistance
Parameter
Junction ambient
1)
1)
Test condition
Symbol
R
thJA
Value
250
Unit
K/W
on glass fibre printed board (25 x 20 x 1.5) mm
3
plated with 35
μm
Cu
Electrical DC Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Collector-emitter cut-off current
Collector-base cut-off current
Emitter-base cut-off current
Collector-emitter breakdown
voltage
Collector-emitter saturation
voltage
Test condition
V
CE
= 20 V, V
BE
= 0
V
CB
= 10 V, I
E
= 0
V
EB
= 1 V, I
C
= 0
I
C
= 1 mA, I
B
= 0
I
C
= 50 mA, I
B
= 5 mA
Symbol
I
CES
I
CBO
I
EBO
V
(BR)CEO
V
CEsat
h
FE
50
12
0.1
100
0.5
150
Min
Typ.
Max
100
100
1
Unit
μA
nA
μA
V
V
DC forward current transfer ratio V
CE
= 8 V, I
C
= 30 mA
www.vishay.com
2
Document Number 85015
Rev. 1.3, 05-Sep-08
BFP193T / BFP193TW / BFP193TRW
Vishay Semiconductors
Electrical AC Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Transition frequency
Collector-base capacitance
Collector-emitter capacitance
Emitter-base capacitance
Noise figure
Test condition
V
CE
= 8 V, I
C
= 50 mA, f = 1 GHz
V
CB
= 10 V, f = 1 MHz
V
CE
= 10 V, f = 1 MHz
V
EB
= 0.5 V, f = 1 MHz
V
CE
= 8 V, I
C
= 10 mA,
Z
S
= Z
Sopt
, Z
L
= 50
Ω,
f = 900 MHz
V
CE
= 8 V, I
C
= 10 mA,
Z
S
= Z
Sopt
, Z
L
= 50
Ω,
f = 2 GHz
Power gain
V
CE
= 8 V, I
C
= 30 mA,
Z
S
= Z
Sopt
, Z
L
= 50
Ω,
f = 900 MHz
V
CE
= 8 V, I
C
= 30 mA,
Z
S
= Z
Sopt
, Z
L
= 50
Ω,
f = 2 GHz
Transducer gain
V
CE
= 8 V, I
C
= 30 mA,
Z
0
= 50
Ω,
f = 900 MHz
V
CE
= 8 V, I
C
= 30 mA,
Z
0
= 50
Ω,
f = 2 GHz
Third order intercept point at
output
V
CE
= 8 V, I
C
= 50 mA,
f = 900 MHz
Symbol
f
T
C
cb
C
ce
C
eb
F
Min
6
Typ.
8
0.5
0.25
1.6
1.2
0.9
Max
Unit
GHz
pF
pF
pF
dB
F
2.1
dB
G
pe
18
dB
G
pe
12
dB
|S
21e
|
2
|S
21e
|
2
IP
3
15
9
33
dB
dB
dBm

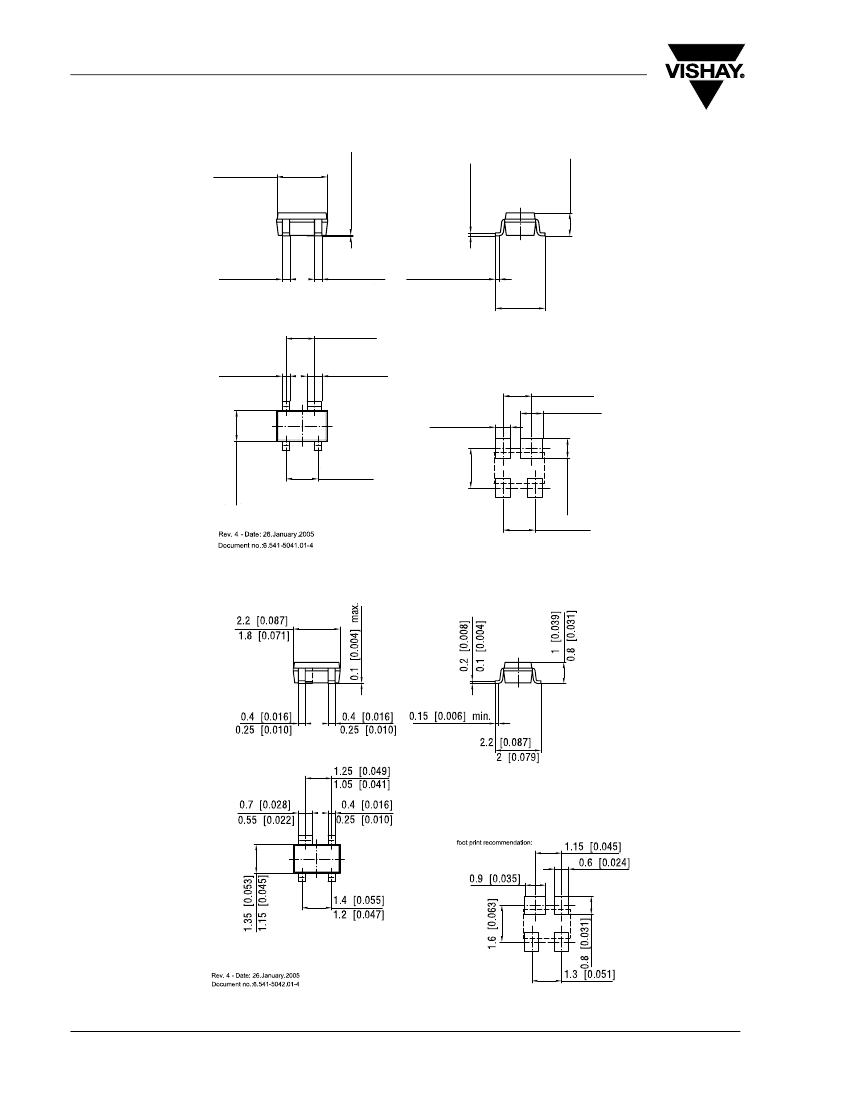

Package Dimensions in mm
0.1 [0.004] max.
1.1 [0.043]
2.6 [0.102]
2.35 [0.093]
1.8 [0.071]
1.6 [0.063]
0.5 [0.020]
0.35 [0.014]
0.9 [0.035]
0.75 [0.030]
foot print recommendation:
3 [0.118]
2.8 [0.110]
0.5 [0.020]
0.35 [0.014]
0.5 [0.020]
0.35 [0.014]
0.15 [0.006]
0.08 [0.003]
1.7 [0.067]
0.9 [0.035] 0.9 [0.035]
0.8 [0.031]
1.2 [0.047]
1.4 [0.055]
1.2 [0.047]
0.9 [0.035]
0.8 [0.031]
2 [0.079]
2 [0.079]
1.8 [0.071]
0.8 [0.031]
1.9 [0.075]
96 12240
Document Number 85015
Rev. 1.3, 05-Sep-08
www.vishay.com
3
BFP193T / BFP193TW / BFP193TRW
Vishay Semiconductors
Package Dimensions in mm
0.1 [0.004] max.
0.2 [0.008]
0.1 [0.004]
2.2 [0.087]
1.8 [0.071]
0.4 [0.016]
0.25 [0.010]
0.4 [0.016]
0.25 [0.010]
0.15 [0.006] min.
2.2 [0.087]
2 [0.079]
1.25 [0.049]
1.05 [0.041]
0.4 [0.016]
0.25 [0.010]
0.7 [0.028]
0.55 [0.022]
foot print recommendation:
1.15 [0.045]
0.09 [0.035]
0.6 [0.024]
1.35 [0.053]
1.15 [0.045]
1.6 [0.063]
1.4 [0.055]
1.2 [0.047]
96 12237
1.3 [0.051]
Package Dimensions in mm
96 12238
www.vishay.com
4
0.8 [0.031]
1 [0.039]
0.8 [0.031]
Document Number 85015
Rev. 1.3, 05-Sep-08
BFP193T / BFP193TW / BFP193TRW
Vishay Semiconductors
