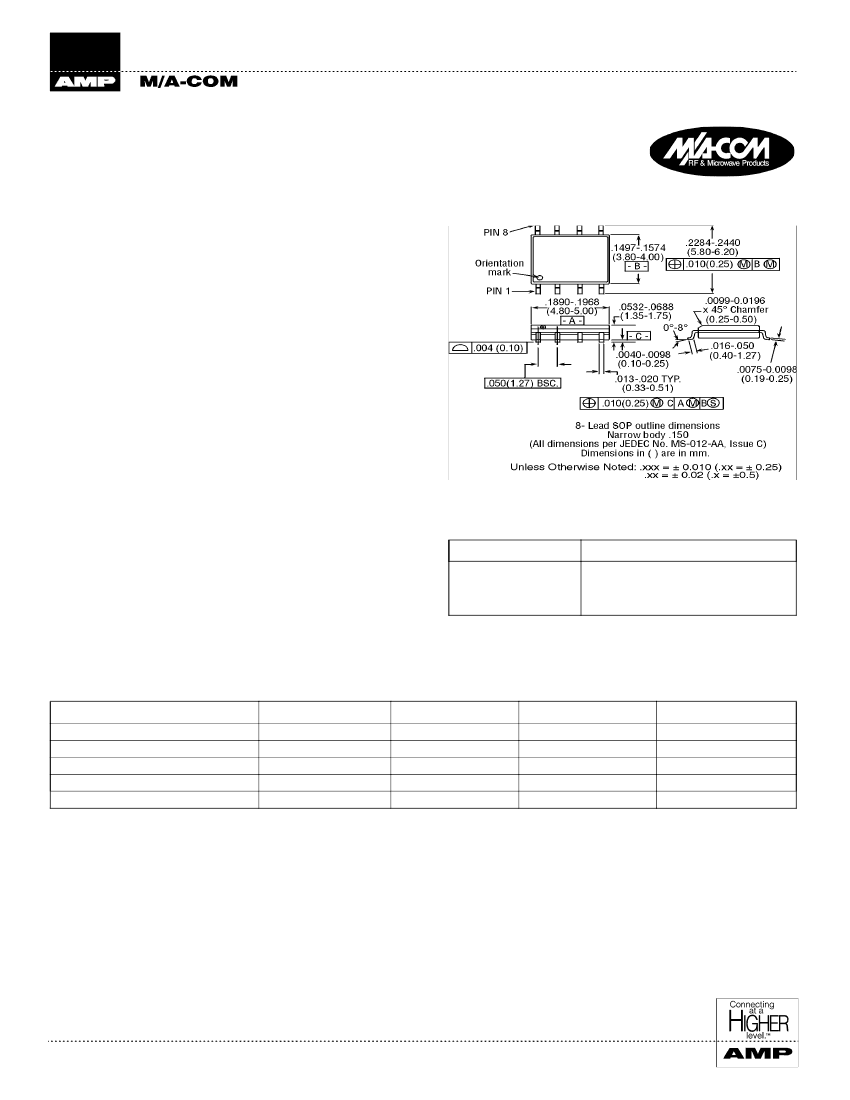

Low Cost Three-Way GMIC SMT Power Divider
DS53-0005
DS53-0005
Preliminary Specifications
Low Cost Three-Way GMIC SMT Power Divider
1850 – 1990 MHz
Features
•
•
•
•
•
•
•
Small Size and Low Profile
Industry Standard SOIC-8 SMT Plastic Package
Excellent Amplitude and Phase Balance
Superior Repeatability
Typical Insertion Loss: 1.0 dB
Typical Isolation: 18 dB
1 Watt Power Handling
SOIC-8
Description
M/A-COM’s DS53-0005 is an IC-based monolithic power divider
using M/A-COM’s GMIC technology in a low cost SOIC-8 plastic
package. This 3-way power divider is ideally suited for
applications where small size, low insertion loss, superior phase/
amplitude tracking and low cost are required. Typical applications
include personal communication systems and other commun-
ication applications where size and PCB real estate are at a
premium. Available in tape and reel.
The DS53-0005 is fabricated using a passive-integrated circuit
process. The process features full-chip passivation for increased
performance and reliability.
Ordering Information
Part Number
DS53-0005
DS53-0005-TR
DS53-0005-RTR
Package
SOIC 8-Lead Plastic Package
1
Forward Tape and Reel
1
Reverse Tape and Reel
1. If specific reel size is required, consult factory for part number
assignment.
Typical Electrical Specifications , T
A
= +25ºC
Parameters
Insertion Loss Above 4.8 dB
Isolation
VSWR Input
Amplitude Balance
Phase Balance
Units
dB
dB
—
dB
°
Min.
—
12
—
—
—
Typ.
1.0
18
1.8:1
0.3
7
Max.
1.4
—
2.0:1
0.6
14
1
1. All specifications apply with a 50-ohm source and load impedance.
V1.00
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
The preliminary specifications data sheet contains typical electrical specifications which may change prior to final introduction.
Low Cost Three-Way GMIC SMT Power Divider
1
DS53-0005

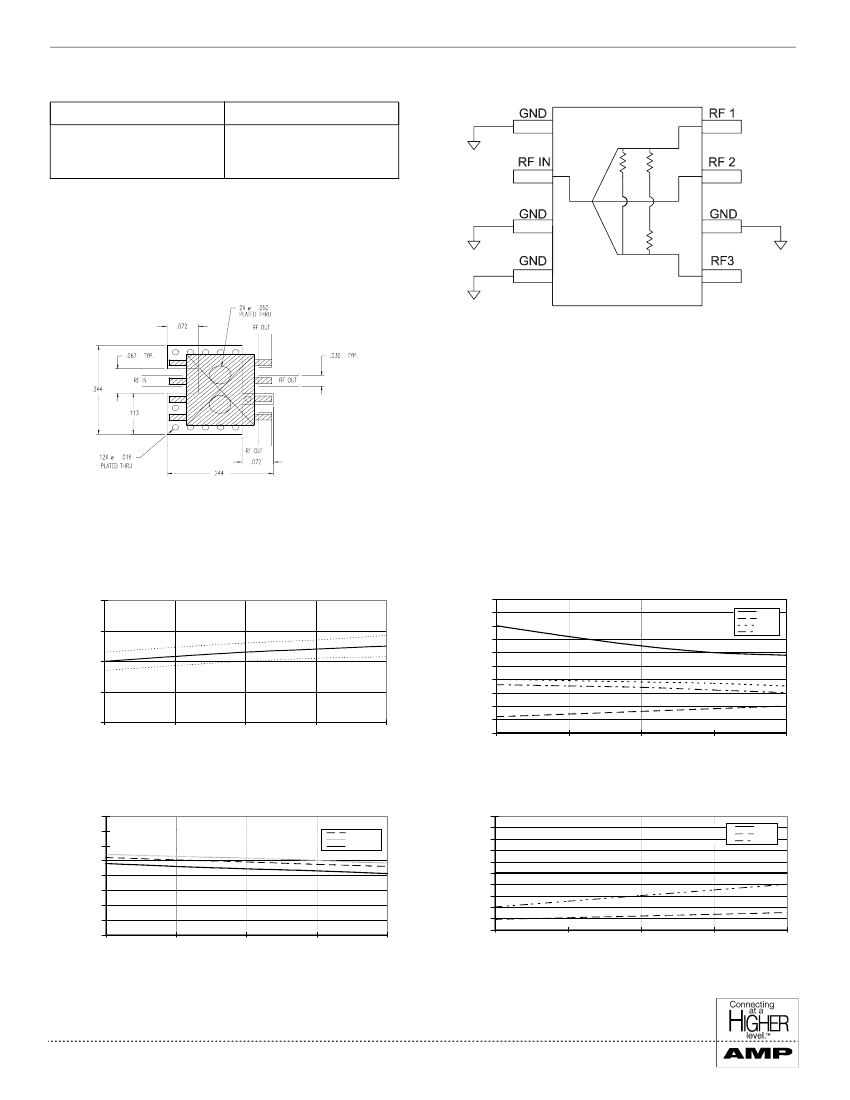

Absolute Maximum Ratings
Parameter
Input Power
Operating Temperature
Storage Temperature
2
Functional Diagram
Absolute Maximum
1W CW
-40°C to +85°C
-65°C to 150°C
1. Exceeding these limits may cause permanent damage.
2. With internal load dissipation of 0.125 W maximum.
Recommended PIN Configuration
Pins labeled as ground should be DC and RF grounded.
Typical Performance @ +25°C
Insertion Loss vs. Frequency
(Dashed lines show amplitude balance window)
0
VSWR vs. Frequency
2
1 .9
1 .8
1 .7
1 .6
1 .5
1 .4
1 .3
1 .2
1 .1
1
1850
R
R
R
R
F In
F1
F2
F3
Insertion Loss dB
-0 .5
-1
-1 .5
-2
1850
1888
1925
1963
2000
F re q u e n c y M H z
VSWR
1888
1925
1963
2000
F re q u e n c y M H z
Phase Balance vs. Frequency
Isolation vs. Frequency
0
-5
R F 1 -R F 2
R F 1 -R F 3
R F 2 -R F 3
(Relative to RF1)
10
8
6
4
2
0
-2
-4
-6
-8
-1 0
1850
R F1
R F2
R F3
Isolation dB
-1 0
-1 5
-2 0
-2 5
-3 0
-3 5
-4 0
1850
1888
1925
1963
Phase, degrees
2000
1888
1925
1963
2000
F re q u e n c y M H z
F re q u e n c y M H z
V1.00
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
The preliminary specifications data sheet contains typical electrical specifications which may change prior to final introduction.
