NSC-01-2MD-12-05 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> NSC-01-2MD-12-05

NSC-01-2MD-12-05: DescriptionOptical Position Encoder, ROTARY OPTICAL POSITION ENCODER; CategoryLED optoelectronic/LED photoelectric; File Size38KB，1 Pages; ManufacturerCUI; Websitehttp://www.cui.com

Download Datasheet Parametric View All

NSC-01-2MD-12-05 Overview

Optical Position Encoder, ROTARY OPTICAL POSITION ENCODER

NSC-01-2MD-12-05 Parametric

Parameter Name	Attribute value
Maker	CUI
Reach Compliance Code	unknown
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

22.0

8.0

C U I Stack, Inc.,

1997

Ø15

2-M3

4.5

Ø5

5 ("MD" TYPE)

500

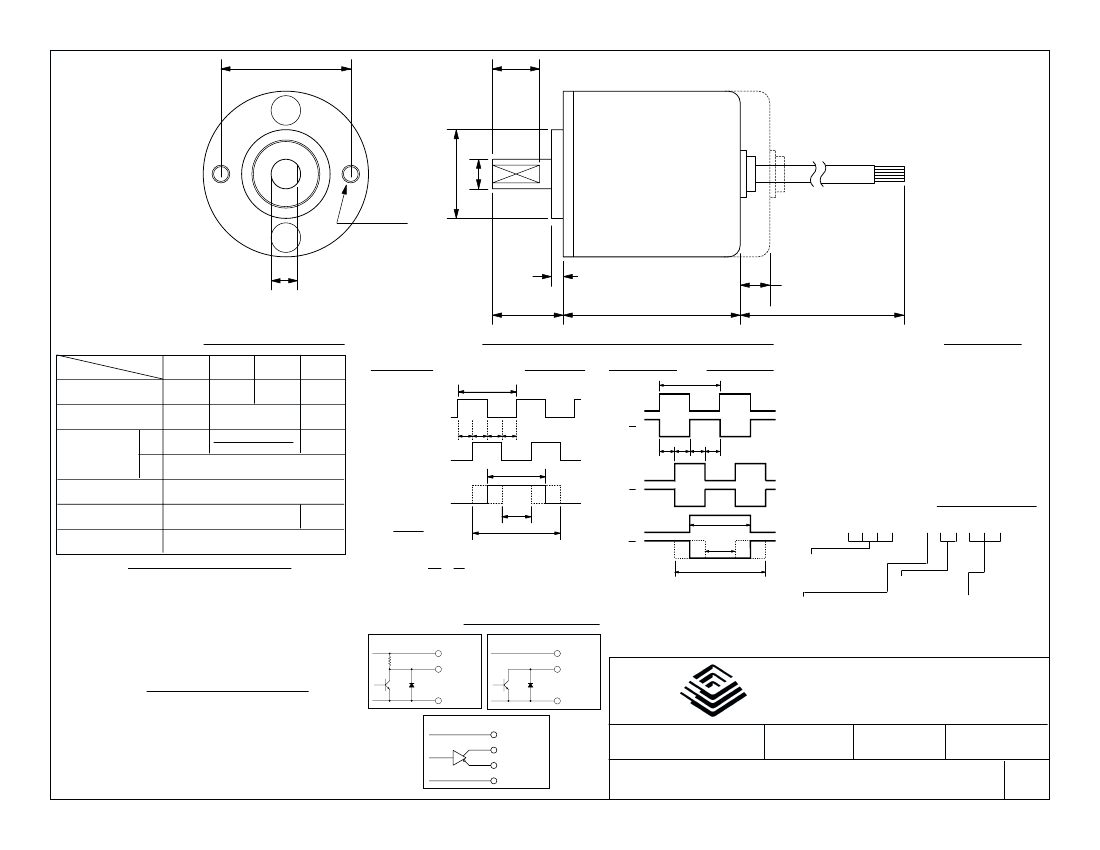

Electrical Specifications

Output Waveform

TYPE

Supply Voltage

Current

Output

Voltage

Sink Current

Signal Risetime

Freq. Response

£80mA

2MC 2MHC 2MD

5 VDC

±10%

Clockwise rotation viewed from front

2M, 2MC, 2MHC

2MD

5 / 12

5 / 12 / 24 12 VDC

VDC ±10% VDC ±10% ±10%

Signal A

abc d

Signal B

Sig A

£60mA

max

£150mA

Vcc -1V

2.5V

0.5V

£200nS

Sig B

Standard Resolutions

NSC-XXXX

006

60 P/R

400 P/R

01 100 P/R

500 P/R

015 150 P/R

600 P/R

02 200 P/R

800 P/R

025 250 P/R

10 1000 P/R

03 300 P/R 1024 1024 P/R

036 360 P/R

*15 1500 P/R

*24VDC N/A

Ordering Instructions

20mA max

1µS

Signal Z

PPR

P P

4 8

h min

h max

Sig Z

NSC-_ _ _ _-2M_-_ _-_ _ _

Resolution

Input voltage:

05-5VDC

Shaft Diameter:

12-12VDC

*24-24VDC

05 - Ø5mm

(*HC type only)

125 - Ø0.125"

150kHz

h min

h max

Mechanical

1. Max Shaft Load, radial: 1.0 kgf

axial: 0.5 kgf

2. Moment of Inertia: 2.0 g•cm

3. Angular Acceleration: 1x10

rad/S

4. Max Slewing Speed: 6000 RPM

5. Starting Torque: 10 gf•cm max.

6. Rotational Life: 1 x 10

rpm•hrs

Environmental

1. Operating Temp: -10° to +70° C

2. Storage Temp: -30° to +80° C

3. Humidity:

£85%

RH, no condensation

4. Vibration: 10~55 Hz, 1.5 mm, 2 hrs

5. Shock: 50G, 11ms, 3 axes, 3 reps

a,b,c,d =

h = P ± 0.75P

Wave Duty Ratio: 50% ± 25%

Output Circuits

Vcc

2kΩ

2MC/2MHC

Vcc

Signal

Output Type:

- TTL Voltage

C - Open Coll

D - Diff Driver

C U I Stack, Inc.

9615 SW Allen Blvd. #103

Beaverton, OR 97005

Tel: 503/643-4899 FAX: 503/643-6129

DRAWN BY

UPDATED

CHECKED

RELEASED

2MD

Vcc

Signal

Inv. Signal

JAS

PART NO.

04/18/01

REV.

NSC-XXXX-2MX-XXX
