SMD604ET-05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> SMD604ET-05

SMD604ET-05: DescriptionTELECOM TRANSFORMER; CategoryPower management transformer; File Size36KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

SMD604ET-05 Overview

TELECOM TRANSFORMER

SMD604ET-05 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TURNS RATIO: 1:1; 1CT:2CT
high	6.223 mm
length	12.827 mm
Manufacturer's serial number	SMD604-05
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L0.505XB0.275XH0.245 (inch)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	6.985 mm

Preview

Download Datasheet

View All

TELECOMMUNICATIONS

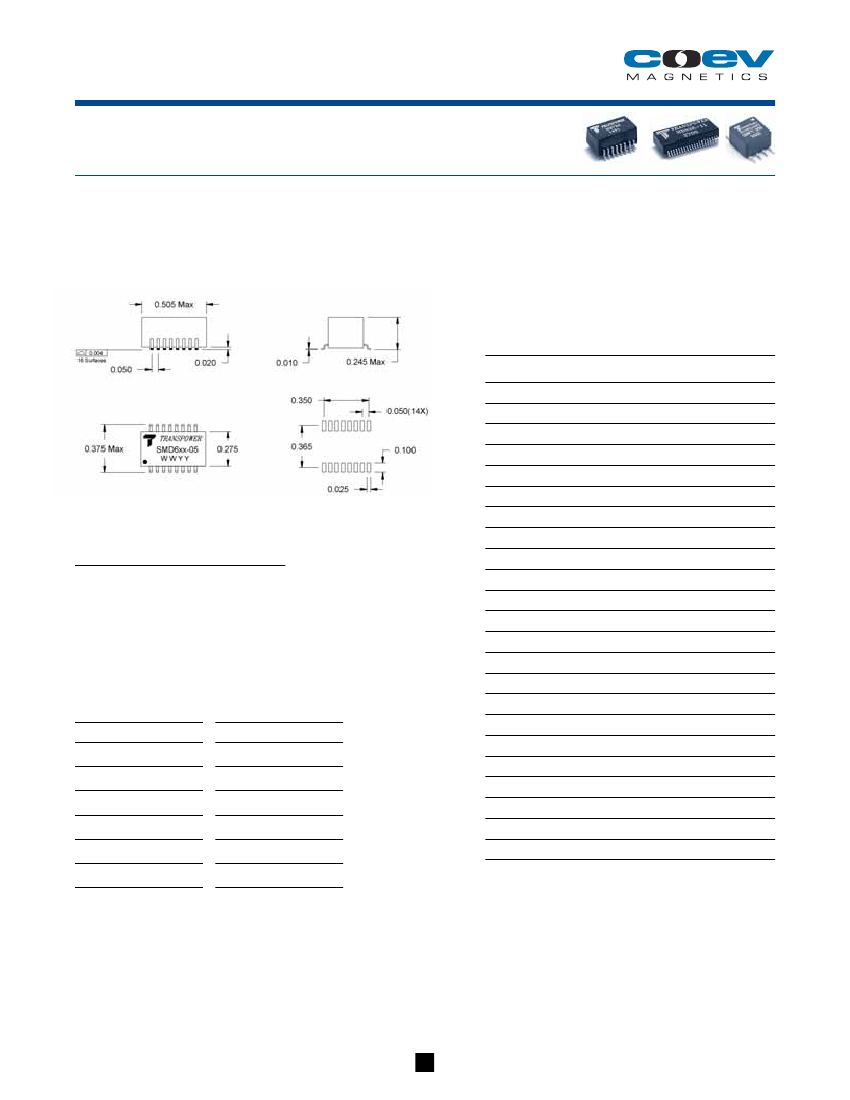

I S O L AT I O N T R A N S F O R M E R S — S U R FA C E - M O U N T

SMD6xx-05:

Single Channel, Dual Transformer (Small Footprint)

SMD6xx-05 Part Number Table

Part

Number

Turns Ratio (Pri:Sec)

Transmit

Receive

SMD601-05

SMD602-05

SMD603-05

SMD604-05

SMD605-05

All dimensions are ±0.005 unless otherwise noted.

All dimensions are in inches.

1:1.15CT

1CT:2CT

1:1/1.26

1CT:1.15CT

1CT:1CT

1CT:1.41CT

1CT:1CT

1CT:1.15CT

1CT:2.42CT

1CT:2CT

1CT:1.36CT

1:1.15CT

1:1.58CT

1:2.4CT

1:2.3CT

1:1.18CT

1:1.26CT

1:1.58CT

1CT:1:0.8

1CT:2.4CT

1CT:2CT

1:1.36CT

1CT:2CT

1CT:1.15CT

1CT:2CT

1CT:1.41CT

1CT:1CT

1CT:1.36CT

1CT:1CT

1CT:2.42CT

1CT:1CT

1CT:2CT

1CT:1.36CT

1:1CT

1:2CT

1:1CT

1:1.26CT

1:1.58CT

1CT:1:0.8

1CT:1CT

SMD606-05

SMD607-05

SMD608-05

T1/E1 Electrical Characteristics @ 25°C

Primary Inductance*:

Leakage Inductance*:

Interwinding Capacitance*:

Dielectric Isolation (Pri:Sec):

1.2mH Min, 1.5 Typ for ET parts

0.6mH Min for ET parts @ -40°C

0.6µH Max

35pF Max

1500 Vrms Min

SMD609-05

SMD610-05

SMD612-05

SMD613-05

SMD614-05

SMD615-05

SMD618-05

SMD619-05

Ohms Max

* All impedance measurements are made with 0.1Vrms@100kHz

Winding DC Resistance

Ratio Number

Ohms Max

Ratio Number

SMD620-05

SMD621-05

SMD622-05

0.8

1.15

1.18

1.26

1.36

0.7

0.8

1.41

1.5

1.58

2.3

2.4

1.0

1.1

1.2

1.5

SMD623-05

SMD624-05

SMD625-05

SMD626-05

For example: SMD603-05 has

0.70

Ω

Max Transmit Primary

1.20

Ω

Max Transmit Secondary

0.70

Ω

Max Receive Primary

0.80

Ω

Max Receive Secondary

Notes:

1) P/N SMD604-05 provides two turns ratios.

For 1:1, use secondary pins 2-3.

For 1:1.26, use secondary pins 1-3.

2) P/N SMD625-05 has split secondary windings.

For 1:1, use secondary pins 1-2 and pins 5-6.

For 1:0.8, use secondary pins 3-4 and pins 7-8.

3) Part numbers may be modified as follows:

SMD6xxET-05 indicates -40C to +85C operation
