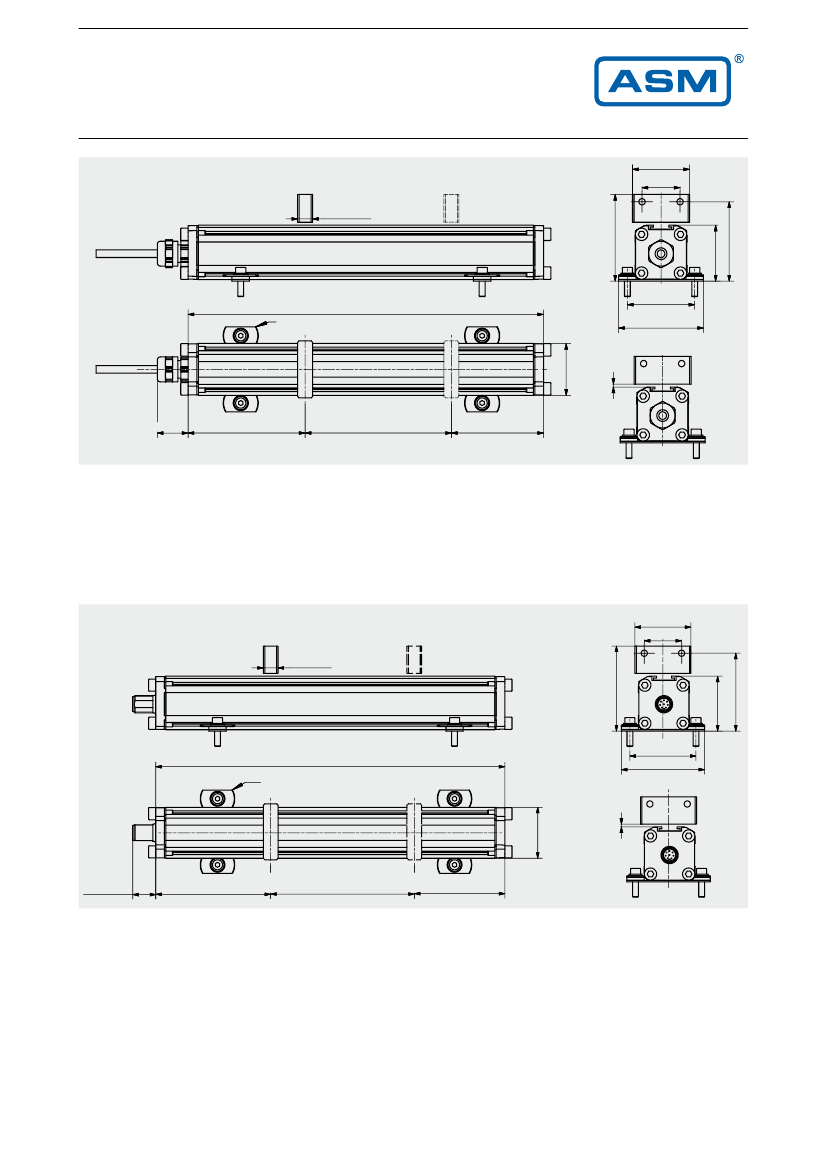

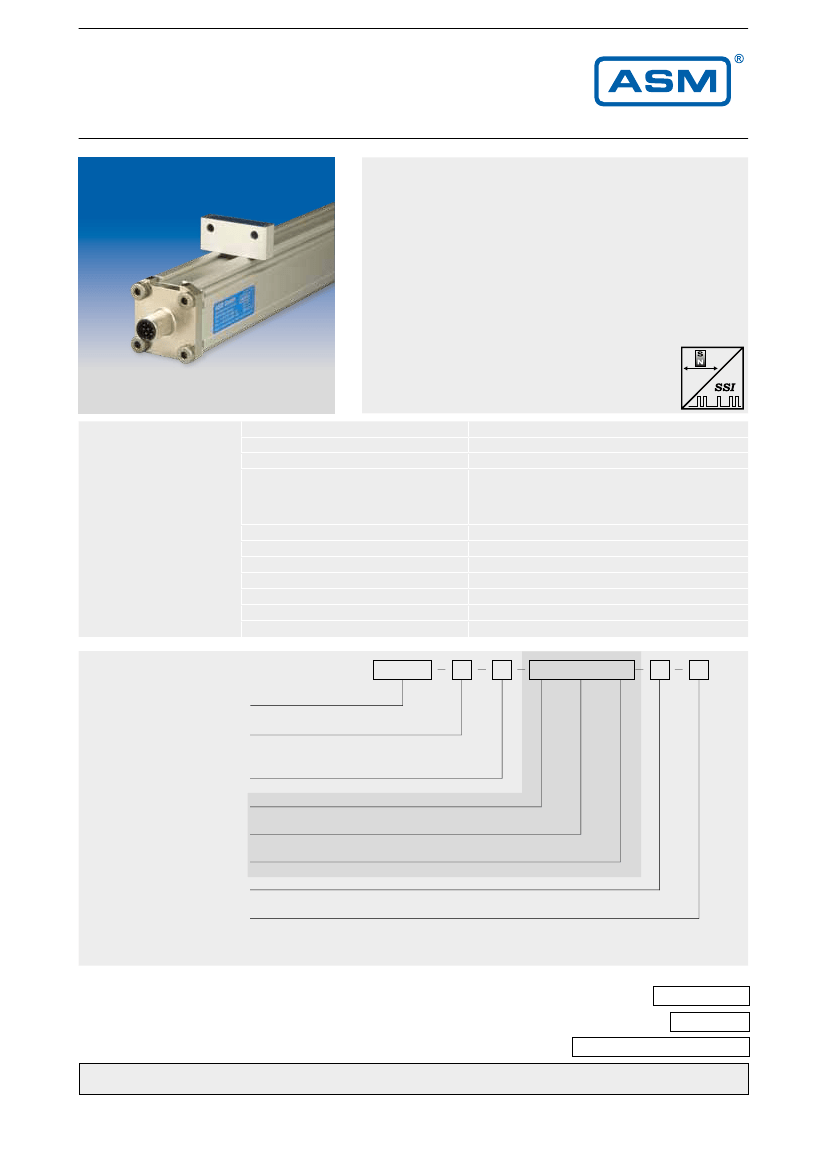

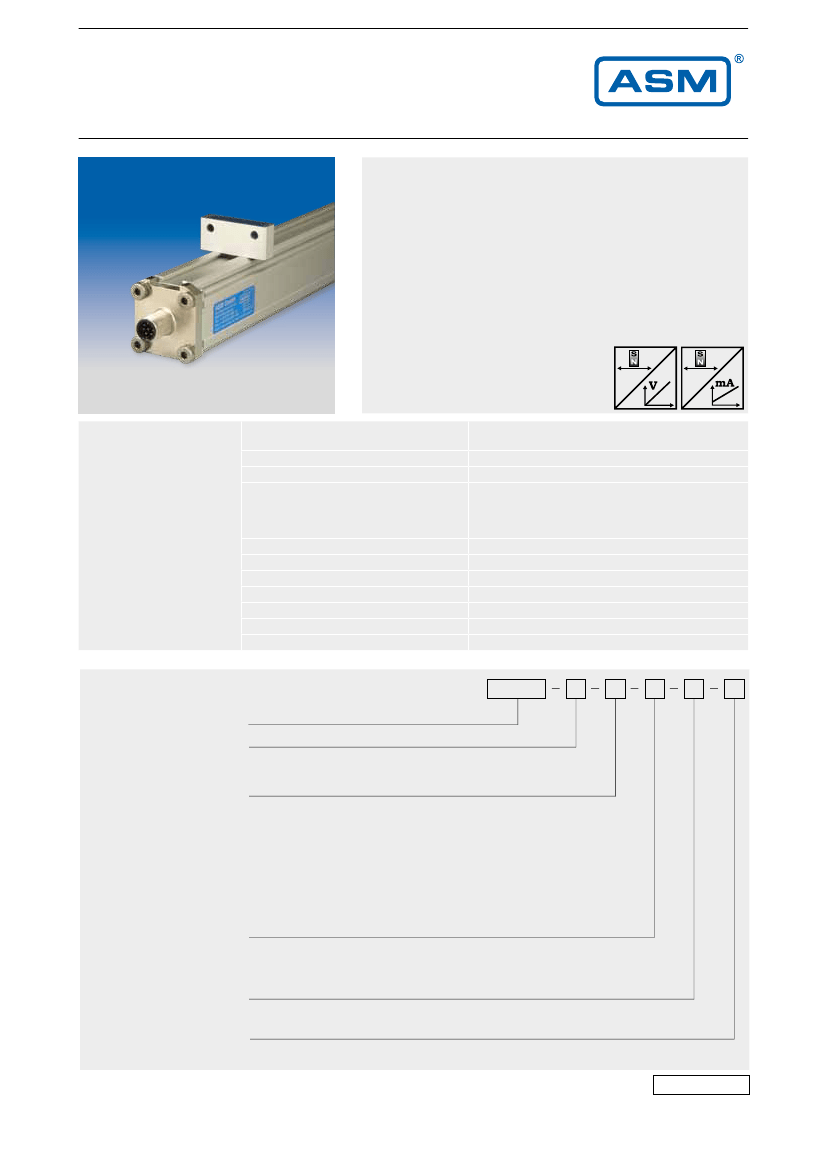

POSICHRON
®
PCQA22
Square Profile Housing with Analog Output
POSICHRON
®
position sensor in square profile
•
•
•
•
•
•
•
Protection class IP64
Measurement range 0 ... 100 to 0 ... 5750 mm
Absolute position measurement
Easy installation with mounting brackets
Wear free position magnet
Contactless
Also available with guided
position magnet
• Analog outputs
Specifications
Output
Resolution
Sampling rate
Linearity
Repeatability
Housing material
Protection class
Shock
Vibration
Connection
EMC, temperature
Voltage
Current
Refer to output specification
Up to 1 kHz, depending on the measurement range
Ranges >500 mm: L10 = ±0.10 % f.s.
L02 = ±0.02 % f.s.
Ranges ≤500 mm: L10 = ±0.5 mm
L02MM = ±0.2 mm
±3 µm
AlMgSi1 / Zn / V4A
IP64 (connector version: with mating connector only)
EN 60068-2-27:2010, 50 g 11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
Connector M12, 8 pin / cable 2 m
Refer to output specification
Order code PCQA22
1 channel
PCQA22
Model name
Measurement range (in mm)
100 ... 5750 (in 10 mm increments)
other lengths upon request
Output
U1
U1/H
U2
U2/U; U2/H
U8
U8/U; U8/H
I1
I1/U; I1/H
= 0 ... 10 V signal conditioner
= U1 with Alarm_HOLD (see page 11)
= 0.5 ... 10 V signal conditioner
= U2 with Alarm_LOW; U2 with Alarm_HOLD (see page 11)
= 0.5 ... 4.5 V signal conditioner
= U8 with Alarm_LOW; U8 with Alarm_HOLD (see page 11)
= 4 ... 20 mA signal conditioner (3 wire)
= I1 with Alarm_LOW; I1 with Alarm_HOLD (see page 11)
Function and characteristics output
P1A
= Position Magnet 1, increasing
P1D
= Position Magnet 1, decreasing
PMU
= Start value, direction & end value adjustable by the customer
Linearity
L02 / L02MM / L10 (for definition see "Specifications" above)
Connection
M12
= Connector M12, 8 pin
KAB2M
= Cable, standard length 2 m, other lengths upon request
Order code mounting set
(see page 7)
DB-PCQA22-E-2015-05
www.asm-sensor.com
1/16
PCQA-BFS1
© ASM GmbH
info@asm-sensor.com
POSICHRON
®
PCQA22
Square Profile Housing with Analog Output
Order Code PCQA22
2 channel,
configurable
PCQA22
Model name
Measurement range (in mm)
100 ... 5750 (in 10 mm increments)
other lengths upon request
Output
= 0 ... 10 V signal conditioner
U1
U1/H
= U1 with Alarm_HOLD (see page 11)
U2
= 0.5 ... 10 V signal conditioner
U2/U; U2/H = U2 with Alarm_LOW; U2 with Alarm_HOLD (see page 11)
U8
= 0.5 ... 4.5 V signal conditioner
U8/U; U8/H = U8 with Alarm_LOW; U8 with Alarm_HOLD (see page 11)
I1
= 4 ... 20 mA signal conditioner (3 wire)
I1/U; I1/H
= I1 with Alarm_LOW; I1 with Alarm_HOLD (see page 11)
Function and characteristics output 1
P1A
= Position magnet 1, increasing
P1D
= Position magnet 1, decreasing
= Difference magnet 1/2, increasing (2 magnets required)
DA
DD
= Difference magnet 1/2, decreasing (2 magnets required)
Function and characteristics output 2
= Position magnet 2, increasing
P2A
P2D
= Position magnet 2, decreasing
DA
= Difference magnet 1/2, increasing
DD
= Difference magnet 1/2, decreasing
VZx.x
2 magnets required
= Velocity with direction detection (with 1 magnet only)
VZx.x = Velocity in steps of 0.1 m/s
Example: VZ1.5 towards start position
towards end position
-1.5 m/s
0
+1.5 m/s
Output U2:
0.5 V
5.25 V
10 V
Output I1:
4 mA
12 mA
20 mA
= Velocity without direction detection (with 1 magnet only)
VAx.x = Velocity in steps of 0.1 m/s
Example: VA1.5 towards start position
towards end position
-1.5 m/s
0
+1.5 m/s
Output U2:
10 V
0.5 V
10 V
Output I1:
20 mA
4 mA
20 mA
VAx.x
Linearity
L02 / L02MM / L10 (for definition see "Specifications" above)
Connection
M12
= Connector M12, 8 pin
KAB2M = Cable, standard length 2 m, other lengths upon request
Square profile, measurement range 1000 mm, 2 current outputs 4 ... 20 mA (I1)
Output 1: Position magnet 1, increasing signal (P1A)
Output 2: Position magnet 2, decreasing signal (P2D)
1. Order example: PCQA22 - 1000 - I1 - P1A - P2D - L10 - M12
Square profile, measurement range 1000 mm, 2 voltage outputs 0.5 ... 10 V (U2)
Output 1: Position magnet 1, increasing signal (P1A)
Output 2: Velocity magnet 1, -1 m/s ... 1 m/s for range 0.5 ... 10 V (VZ1.0)
2. Order example: PCQA22 - 1000 - U2 - P1A - VZ1.0 - L10 - M12
Order code position magnet/slider
(see page 8)
Order code mating connecting cable
(see page 15)
DB-PCQA22-E-2015-05
www.asm-sensor.com
2/16
PCMAG ...
KAB-...M-M12/8F/G-LITZE
© ASM GmbH
info@asm-sensor.com
POSICHRON
®
PCQA22
Square Profile Housing with SSI Output
POSICHRON
®
position sensor in square profile
•
•
•
•
•
•
•
•
Protection class IP64
Measurement range 0 ... 100 to 0 ... 5750 mm
Absolute position measurement
Easy installation with mounting brackets
Wear free position magnet
Contactless
Also available with guided position magnet
Synchronous serial interface (SSI)
Specifications
Output
Resolution
Sampling rate
Linearity
Repeatability
Housing material
Protection class
Shock
Vibration
Connection
EMC, temperature
Synchronous serial interface (SSI)
5, 10, 20, 50, 100 µm
Up to 500 Hz depending on the measurement range
Ranges >500 mm: L10 = ±0.10 % f.s.
L02 = ±0.02 % f.s.
Ranges ≤500 mm: L10 = ±0.5 mm
L02MM = ±0.2 mm
±3 µm
AlMgSi1 / Zn / V4A
IP64 (connector version: with mating connector only)
EN 60068-2-27:2010, 50 g 11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
Connector M12, 8 pin / cable 2 m
Refer to output specification
Order Code PCQA22
Model name
PCQA22
/
/
Measurement range (in mm)
100 ... 5750 (in 10 mm increments)
other lengths upon request
Resolution (in µm)
5 / 10 / 20 / 50 / 100
Output
= Synchronous serial interface
SSI
Code
G/D
= Gray / Dual
Number of data bits
24 / 25
Linearity
L02 / L02MM / L10 (for definition see "Specifications" above)
Connection
= Connector M12, 8 pin
M12
KAB2M = Cable, standard length 2 m, other lengths upon request
Order code mounting set
(see page 7)
Order code position magnet/slider
(see page 8)
Order code mating connecting cable
(see page 15)
PCQA-BFS1
PCMAG ...
KAB-...M-M12/8F/G-LITZE
Order example: PCQA22 - 2500 - 5 - SSI/G/24 - L10 - M12
DB-PCQA22-E-2015-05
www.asm-sensor.com
3/16
© ASM GmbH
info@asm-sensor.com
POSICHRON
®
PCQA22
Square Profile Housing with CAN Output
POSICHRON
®
position sensor in square profile
•
•
•
•
•
•
•
•
Protection class IP64
Measurement range 0 ... 100 to 0 ... 5750 mm
Absolute position measurement
Easy installation with mounting brackets
Wear free position magnet
Contactless
Also available with guided position magnet
CANopen bus or
CAN SAE J1939 output
Specifications
Output
Resolution
Sampling rate
Linearity
Repeatability
Housing material
Protection class
Shock
Vibration
Connection
EMC, temperature
CANopen bus; CAN SAE J1939
50 µm
Up to 1 kHz, depending on the measurement range
Ranges >500 mm: L10 = ±0.10 % f.s.
L02 = ±0.02 % f.s.
Ranges ≤500 mm: L10 = ±0.5 mm
L02MM = ±0.2 mm
±3 µm
AlMgSi1 / Zn / V4A
IP64 (connector version: with mating connector only)
EN 60068-2-27:2010, 50 g 11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
5 pin socket M12
Refer to output specification
Order Code PCQA22
Model name
PCQA22
Measurement range (in mm)
100 ... 5750 (in 10 mm increments)
other lengths upon request
Output
CANOP
= CANopen bus
CANOP/R = CANopen-Bus with integrated terminating resistance
CANJ1939 = CAN SAE J1939
Linearity
L02 / L02MM / L10 (for definition see "Specifications" above)
Connection
M12/CAN = Connector M12, 5 pin
Order code mounting set
(see page 7)
Order code position magnet/slider
(see page 8)
Order code bus cable
(see page 16)
PCQA-BFS1
PCMAG ...
KAB-...M-M12/5F/G-M12/5M/G - CAN
Order example: PCQA22 - 2000 - CANOP - L10 - M12/CAN
DB-PCQA22-E-2015-05
www.asm-sensor.com
4/16
© ASM GmbH
info@asm-sensor.com
POSICHRON
®
PCQA22
Square Profile Housing
Cable output
Start position
Anfangsposition
PCMAG5
PCMAG5
10,2 [0.402]
End position
Endposition
PCMAG5
PCMAG5
39 [1.535]
26 [1.024]
59,3 [2.333]
Total length A = measurement length
143 [5.630] (z.B. 243 [9.567])
Gesamtlänge A = Messlänge +
+ 140 [5.512] (e.g. 240 [9.449])
Befestigungssatz PCQA-BFS1
Mounting set PCQA-BFS1
35,5 [1.398]
2 ± 1 [0.079 ± 0.039]
46 [1.811]
58 [2.283]
± 12 [0.472]
21 [0.827]
80 [3.150]
Measurement length
(e.g.
(z.B. 100 [3.937])
Messlänge
100 [3.937])
63 [2.480]
Cable: outer diameter 5.2 mm ±0.2 mm, wire: cross sectional area 0.25 mm²
Dimensions in mm [inch]
Dimensions informative only. For guaranteed dimensions consult factory.
Connector M12
Start
position
Start
position
PCMAG5
PCMAG5
10,2 [0.402]
End position
Endposition
PCMAG5
PCMAG5
39 [1.535]
26 [1.024]
59,3 [2.333]
38,3 [1.506]
46 [1.811]
58 [2.283]
± 12 [0.472]
Total length A = measurement length +
[5.630] (z.B.
(e.g.
[9.567])
Gesamtlänge A = Messlänge + 143
140 [5.512]
243
240 [9.449])
Befestigungssatzt PCQA-BFS1 /
Mounting set PCQA-BFS1
2 ± 1 [0.079 ± 0.039]
16 [0.630]
80 [3.150]
Measurement length
Messlänge
100 [3.937])
(e.g.
(z.B. 100 [3.937])
63 [2.480]
Dimensions in mm [inch]
Dimensions informative only. For guaranteed dimensions consult factory.
DB-PCQA22-E-2015-05
www.asm-sensor.com
5/16
35,5 [1.398]
© ASM GmbH
info@asm-sensor.com
38,3 [1.506]
54,3 [2.136]
54,3 [2.136]
