BKT-107-01-FM-V-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> BKT-107-01-FM-V-A

BKT-107-01-FM-V-A: DescriptionBoard Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size190KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

BKT-107-01-FM-V-A Overview

Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

BKT-107-01-FM-V-A Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.76 inch
body length	0.167 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BKT
Plug contact pitch	0.019 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Plating thickness	3u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4826 mm
Termination type	SURFACE MOUNT
Total number of contacts	7

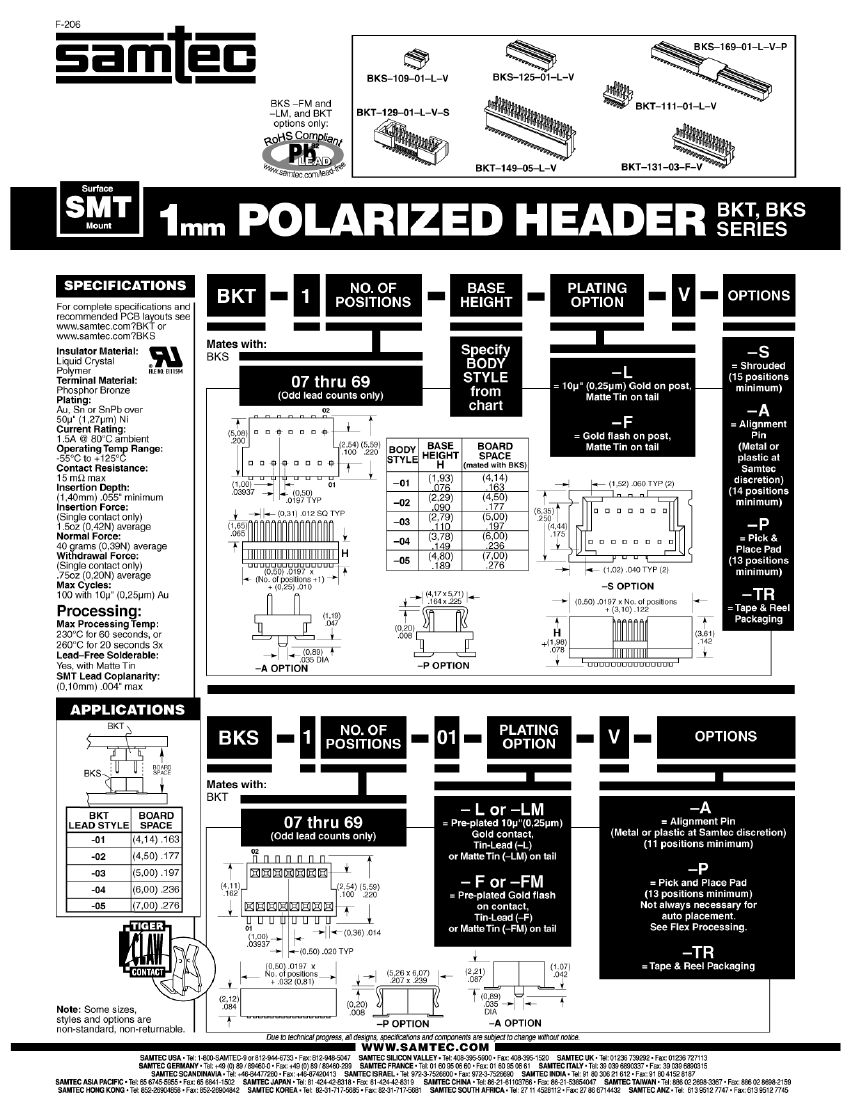

BKT-107-01-FM-V-A Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BKT-107-01-FM-V-A Related Products

	BKT-107-01-FM-V-A	BKT-107-01-FM-V-P	BKT-107-01-F-V-P	BKT-107-01-F-V-S	BKT-107-01-F-V-A	BKT-107-01-L-V-A	BKT-107-01-L-V-P
Description	Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.76 inch	0.76 inch	0.76 inch	0.76 inch	0.76 inch	0.76 inch	0.76 inch
body length	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BKT	BKT	BKT	BKT	BKT	BKT	BKT
Plug contact pitch	0.019 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	3u inch	3u inch	3u inch	3u inch	3u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	7	7	7	7	7	7	7
