BTH-050-01-L-EM2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BTH-050-01-L-EM2

BTH-050-01-L-EM2: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size199KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

BTH-050-01-L-EM2 Overview

Board Connector, 100 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,

BTH-050-01-L-EM2 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	100

BTH-050-01-L-EM2 Preview

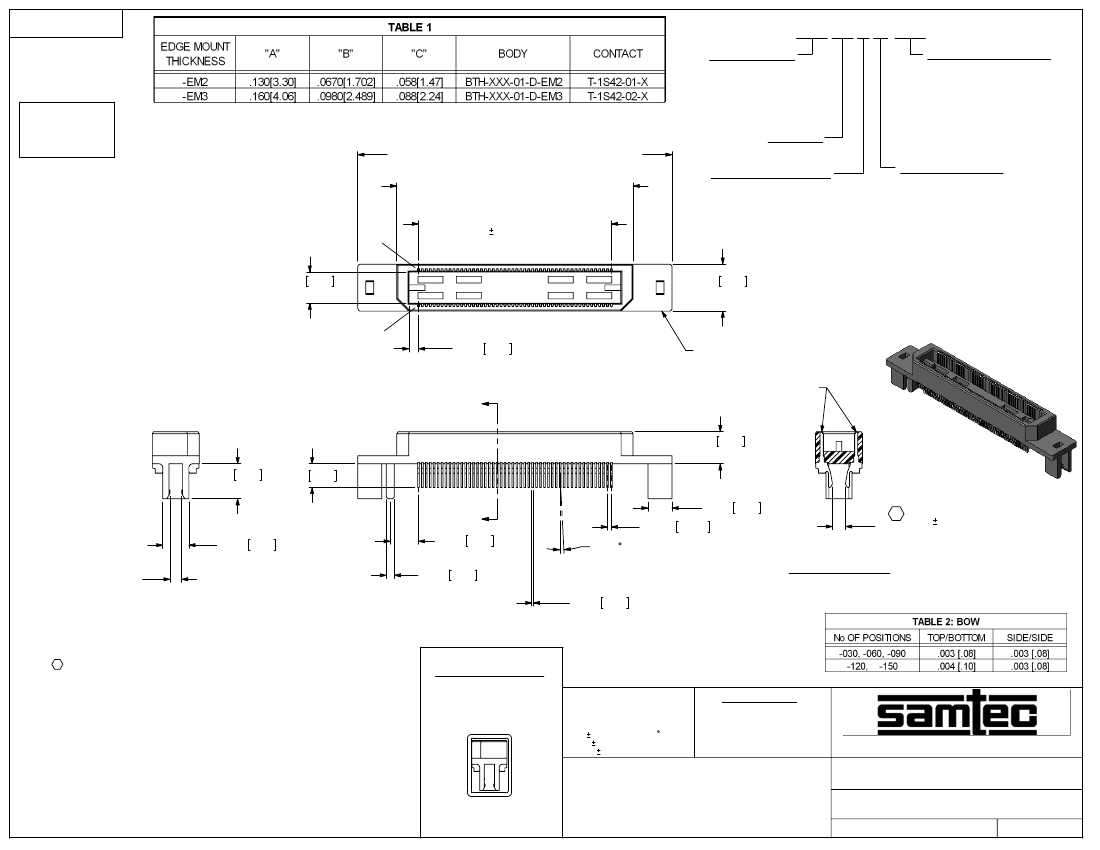

REVISION J

BTH-XXX-XX-X-D-EMX

No OF POSITIONS

-030, -050, -060, -090,

**-120, **-150

(PER ROW)

**SEE NOTE 11

LEAD STYLE

-01

PLATING SPECIFICATION

-F: FLASH SELECTIVE GOLD

(USE T-1S42-XX-F) [SEE NOTE 6]

-L: LIGHT SELECTIVE GOLD

(USE T-1S42-XX-L)

-H:HEAVY GOLD

(USE T-1S42-XX-H)

EDGE MOUNT THICKNESS

-EM2: .064[1.63] +/-.004 PCB

(USE BTH-XXX-01-D-EM2 &

T-1S42-01-X)

-EM3:

(USE BTH-XXX-01-D-EM3 &

T-1S42-02-X)

DO NOT

SCALE FROM

THIS PRINT

(No OF POS x .01969[.5000] + .5868 [14.905] REF

(No OF POS x .01969[.5000]) +.1968[5.000] REF

((No OF POS -1) x .01969[.5000])

.0030[.076]

SEE NOTE 10

ROW SPECIFICATION

-D: DOUBLE

(USE BTH-XXX-01-D-EMX)

.155 3.94

REF

.235 5.97

REF

* = NOT RELEASED FOR PRODUCTION

SEE NOTE 10

.047 1.19 REF

BTH-XXX-01-D-EMX

T-1S42-XX-X

"A"

.160 4.06

REF

.175 4.45

REF

.118 3.00

"A"

.130 3.30 REF

"C" REF

.141 3.58

.040 1.02 REF

.120 3.05 REF

.0197 0.500 REF

2 MAX SWAY

(TYP)

"B" .003[.08]

(INSIDE TO INSIDE OF PIN)

SECTION "A"-"A"

.008 0.20 REF

NOTES:

REPRESENTS A CRITICAL DIMENSION.

PACKAGING VIEW

2. BURR ALLOWANCE: .0015 MAX.

(PARTS TO HAVE POSITION

3. MINIMUM PUSHOUT FORCE: 5 OZ.

#1 LOADED IN SAME

4. MAXIMUM ALLOWABLE BOW: SEE TABLE 2.

DIRECTION AS

5. PARTS TO BE MOLDED TO POSITION.

ARROW ON TUBE)

6. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.

7. NOTE DELETED.

8. BOARD THICKNESS TO BE MEASURED FROM SOLDER PAD

TO SOLDER PAD.

9. SEE TEK TALK GUIDE FOR PROCESSING EDGE MOUNT PARTS TO BOARD.

10. -EM3 IS NOT A STANDARD OFFERING; AVAILABLE AS AN ASP ONLY.

PLEASE CONTACT SAMTEC INTERCONNECT PROCESSING GROUP WITH

ORDER INQUIRIES

11. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS, PLEASE

TUBE: PT-1-24-01-95

CONTACT SAMTEC INTERCONNECT PROCESSING GROUP.

PLUG: TP-03

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0020[.051]

MATERIAL:

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

DECIMALS

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP, COLOR: BLACK

TERMINAL: PHOS BRONZE

.5mm TERMINAL ASSEMBLY, EDGE MOUNT

DWG. NO.

BTH-XXX-XX-X-D-EMX

5/3/2000

SHEET

c:\enterprisevault\DWG\MISC\MKTG\BTH-XXX-XX-X-D-EMX-MKT.SLDDRW

BY:

DEAN P
