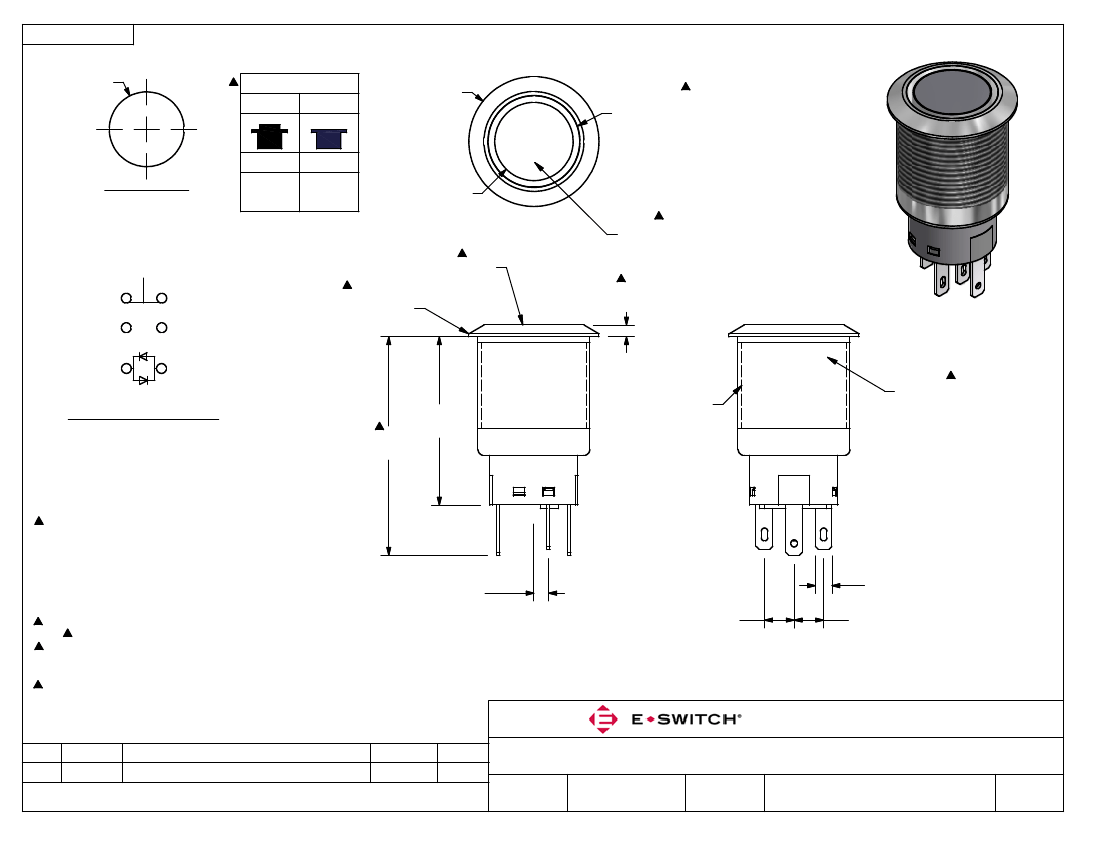

SHEET 1 OF 1
n
19.00
n
22.00
[.866 in]
[.748 in]
SWITCH FUNCTION
POS. 1
POS. 2
RING ILLUMINATION
COLOR: RED/GREEN
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
11.0mm [.433]
1-3
(ON)
1-2
n
13.40
[.528 in]
(ON) = MOMENTARY
ACTUATOR FINISH
MACHINED STAINLESS
FLAT ACTUATOR
1
1
_
GREEN
3
2
+
BODY FINISH
MACHINED STAINLESS
2.00
[.079 in]
RED
CONTACT CONFIGURATION
28.50
[1.122 in]
37.00
[1.457 in]
M19x1.0
NOTE 15
HARDWARE SUPPLIED
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20° to 55°
C
C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 20mA; 1.8V (FORWARD) / 2.8V (REVERSE)
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: RED (FORWARD) / GREEN (REVERSE)
(-)
2.50
[.098 in]
1
1
(+)
(+)
3
2.80
[.110 in]
5.00
[.197 in]
5.00
[.197 in]
A
REV
21330
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
12/13/13
DATE
EBP
BY
TITLE
SCALE
PV4F2B0SS-3G1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
12/13/2013
DR
DWG
REV
EBP
52-PV4F2B0SS3G1
