SAT400
AC Input
60V
Photo-Transistor Optocoupler
Description
The SAT400 consists of a phototransistor optically coupled
to two light emitting diodes. Optical coupling between the
two input IR LEDs and output phototransistor allows for
high isolation levels while maintaining low-level AC signal
control capability. The SAT400 provides an optically
isolated method of controlling many interface applications
such as telecommunications, industrial control and
instrumentation circuitry.
The SAT400 comes standard in a miniature 4 pin DIP
package.
Features
V
CEO
= 60V
Small 4 pin DIP/SMD package
Low input power consumption
High stability
High Isolation Voltage (5000V
RMS
)
Long Life / High Reliability
VDE/EN60747-5-2 Approval
RoHS / Pb-Free / REACH Compliant
Agency Approvals
UL/C-UL:
VDE:
File # E201932
File # 40035191 (EN 60747-5-2)
Applications
Registers, Copiers, Automatic Vending Machines
System Appliances, Measuring Instruments
Computer Terminals, PLCs
Telecommunication Equipment, Telephones
Home Appliances
Digital Logic Inputs
Microprocessor Inputs
Switching Power Supplies
Absolute Maximum Ratings
The values indicated are absolute stress ratings. Functional
operation of the device is not implied at these or any
conditions in excess of those defined in electrical
characteristics section of this document. Exposure to
absolute Maximum Ratings may cause permanent damage
to the device and may adversely affect reliability.
Storage Temperature …………………………..-55 to +125°C
Operating Temperature ………………………-40 to +100°C
Continuous Input Current ………………………………..50mA
Transient Input Current ………………….……………..500mA
Reverse Input Control Voltage …………..…………………6V
Input Power Dissipation …………………………………40mW
Total Power Dissipation ……………………………..200mW
Solder Temperature – Wave (10sec)……………….….260°C
Solder Temperature – IR Reflow (10sec)….…………..260°C

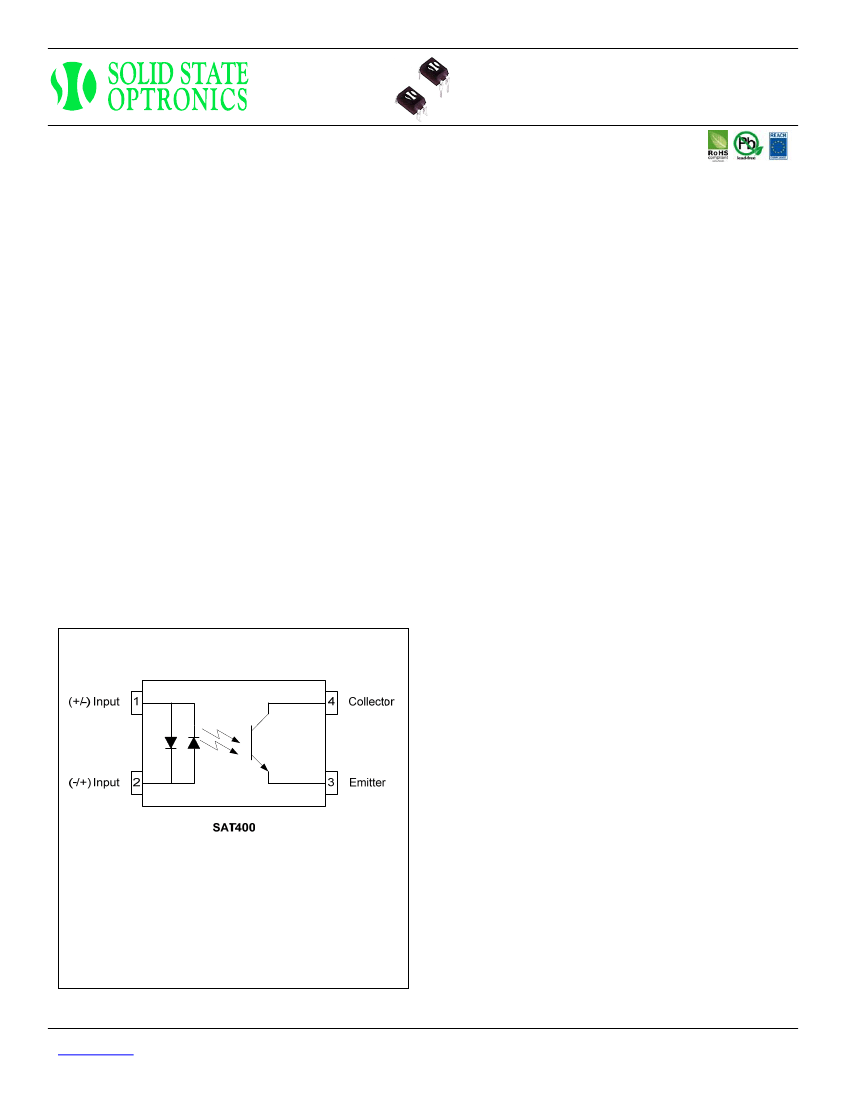

Schematic Diagram
Ordering Information
Part Number
SAT400
SAT400-H
SAT400-S
SAT400-STR
Description
4 pin DIP, (100/Tube)
0.40” (10.16mm) Lead Spacing (VDE0884)
4 pin SMD, (100/Tube)
4 pin SMD, Tape and Reel (1000/Reel)
NOTE: Suffixes listed above are not included in marking on
device for part number identification
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 1 of 10
SAT400/H/S/TR
Rev 2.00 (01/30/2013)
001552

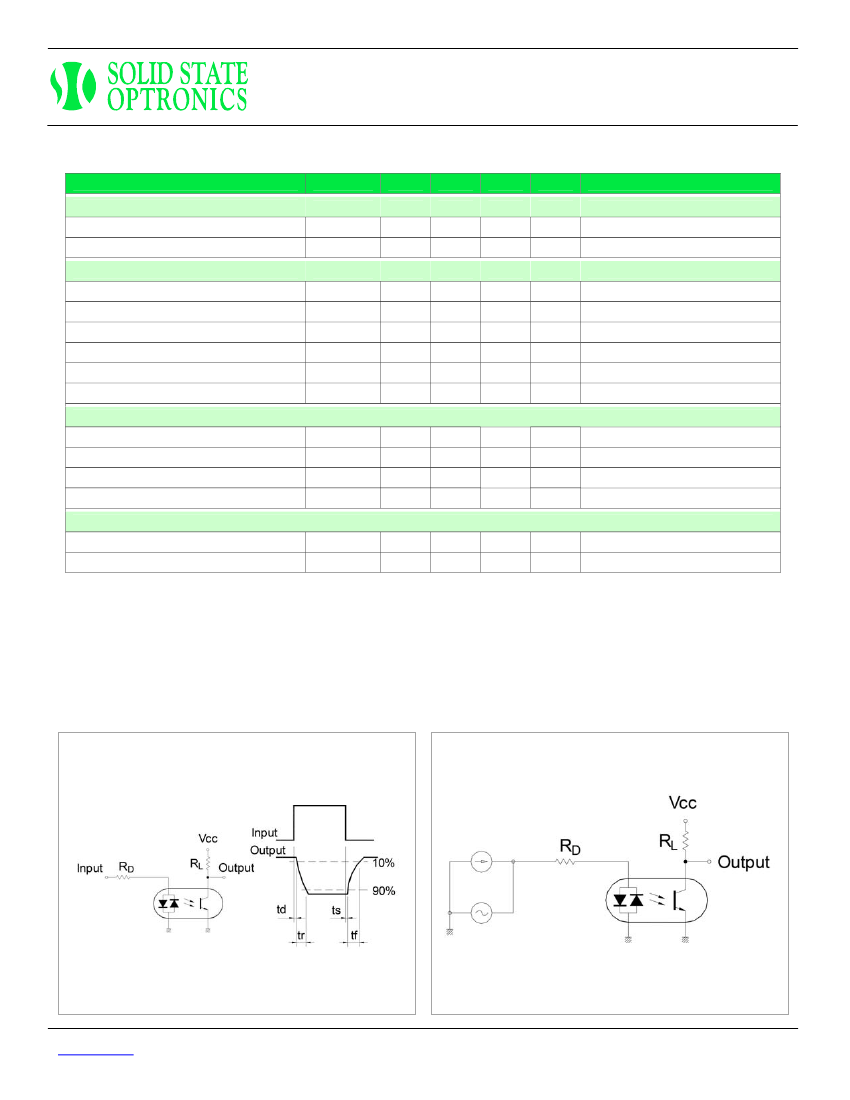

SAT400
AC Input
60V
Photo-Transistor Optocoupler

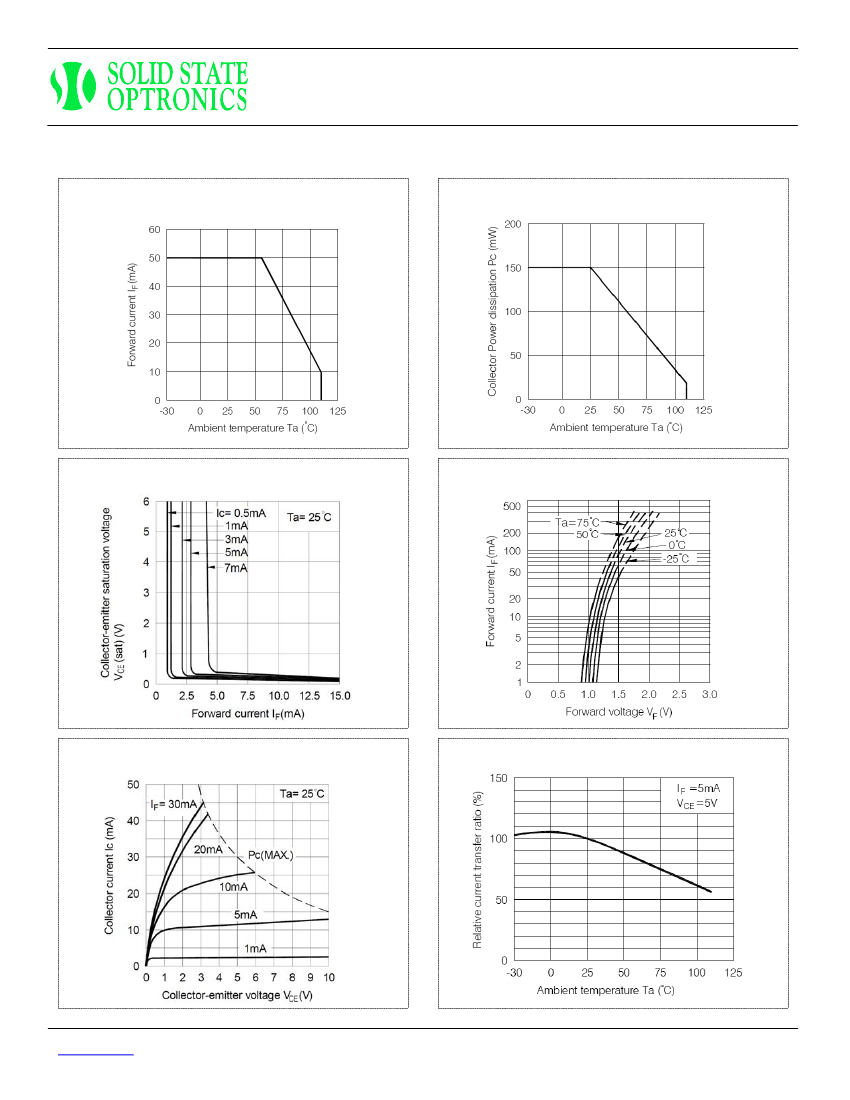

SAT400 Performance & Characteristics Plots,
T
A
= 25°C (unless otherwise specified)
Figure 1:
Forward Current (I
F
) vs. Temperature (°C)
Figure 2:
Collector Power Dissipation (P
C
) vs. Temperature (°C)
Figure 3:
Collector-Emitter Saturation Voltage (V
CE(SAT)
) vs.
Forward Current (I
F
)
Figure 4:
Forward Current (I
F
) vs. Forward Voltage (V
F
)
Figure 5:
Collector Current (I
C
) vs. Collector-Emitter
Voltage (V
CE
)
Figure 6:
Relative CTR (%) vs. Temperature (°C)
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 3 of 10
SAT400/H/S/TR
Rev 2.00 (01/30/2013)
001552
SAT400
AC Input
60V
Photo-Transistor Optocoupler

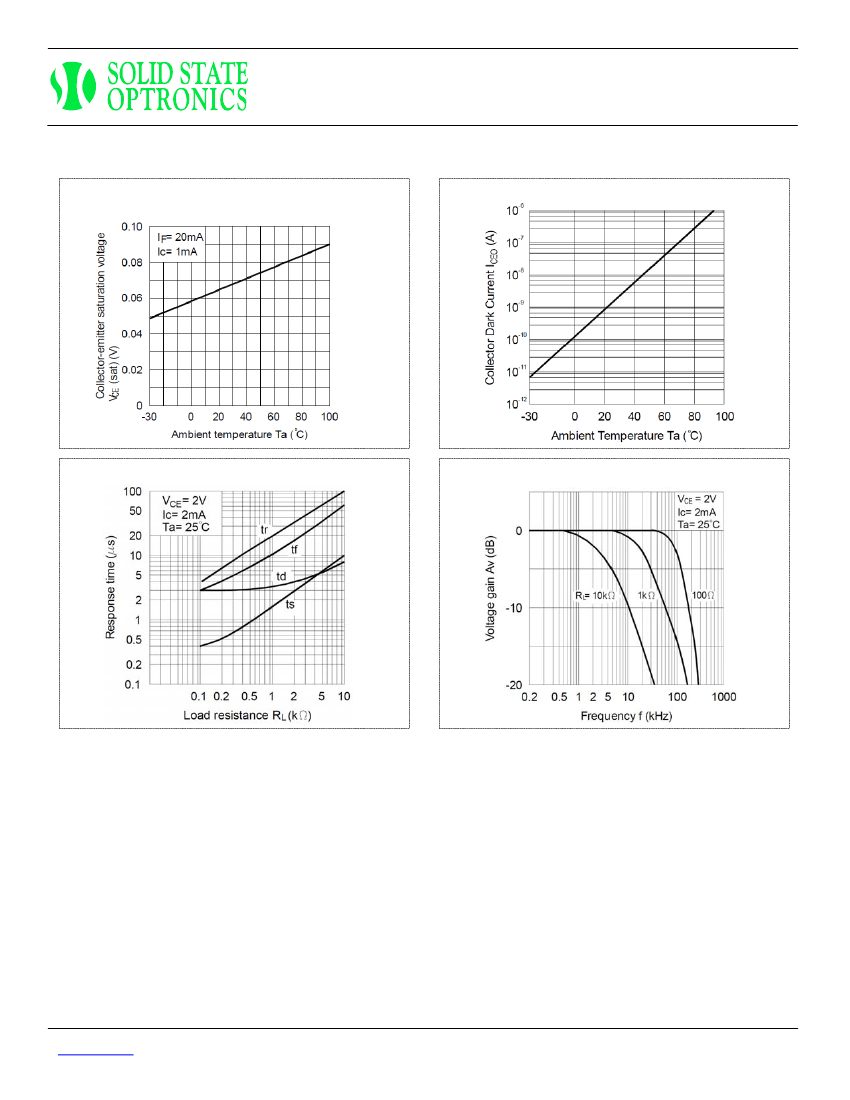

SAT400 Performance & Characteristics Plots,
T
A
= 25°C (unless otherwise specified)
Figure 7:
Collector-Emitter Saturation Voltage (V
CE(SAT)
) vs.
Temperature (°C)
Figure 8:
Collector Dark Current (I
CEO
) vs. Temperature (°C)
Figure 9:
Response Times vs. Load Resistance (R
L
)
Figure 10:
Frequency Response Characteristics
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 4 of 10
SAT400/H/S/TR
Rev 2.00 (01/30/2013)
001552
SAT400
AC Input
60V
Photo-Transistor Optocoupler
SAT400 Solder Reflow Temperature Profile Recommendations
(1)
Infrared Reflow:
Refer to the following figure as an example of an optimal temperature profile for single occurrence infrared reflow.
Soldering process should not exceed temperature or time limits expressed herein. Surface temperature of device
package should not exceed 250ºC:
G
F
D
E
H
B
A
C
Process
Step
A
B
C
D
E
F
G
H
Description
Preheat Start Temperature (ºC)
Preheat Finish Temperature (ºC)
Preheat Time (s)
Melting Temperature (ºC)
Time above Melting Temperature (s)
Peak Temperature, at Terminal (ºC)
Dwell Time at Peak Temperature (s)
Cool-down (ºC/s)
150ºC
180ºC
90 - 120s
230ºC
30s
260ºC
10s
<6ºC/s
Parameter
(2)
Wave Solder:
Maximum Temperature:
Maximum Time:
Pre-heating:
Single Occurrence
260ºC (at terminal)
10s
100 - 150ºC (30 - 90s)
(3)
Hand Solder:
Maximum Temperature:
Maximum Time:
Single Occurrence
350ºC
3s
(at tip of soldering iron)
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 5 of 10
SAT400/H/S/TR
Rev 2.00 (01/30/2013)
001552
