LR3428 datasheet, PDF - EEWORLD Datasheet

LR3428: DescriptionStepping Motor Clock, CMOS, PDIP8, DIP-8; CategoryOther integrated circuit (IC) Consumption circuit; File Size133KB，3 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric View All

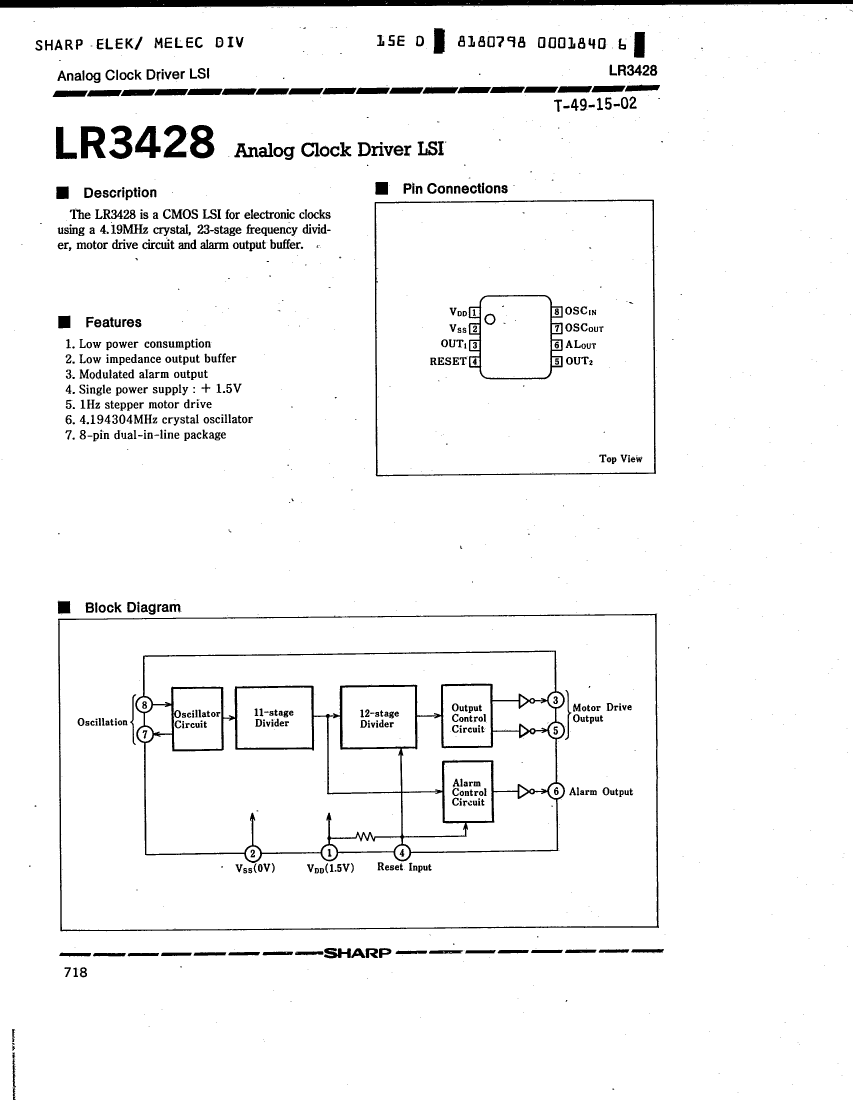

LR3428 Overview

Stepping Motor Clock, CMOS, PDIP8, DIP-8

Parameter Name	Attribute value
Maker	SHARP
package instruction	DIP-8
Reach Compliance Code	unknown
alarm	YES
application	ANALOG CLOCK
Battery empty indicator	NO
Commercial integrated circuit types	STEPPING MOTOR CLOCK
display mode	ANALOG
Frequency fine tuning	NO
JESD-30 code	R-PDIP-T8
length	9.1 mm
Number of functions	1
Number of terminals	8

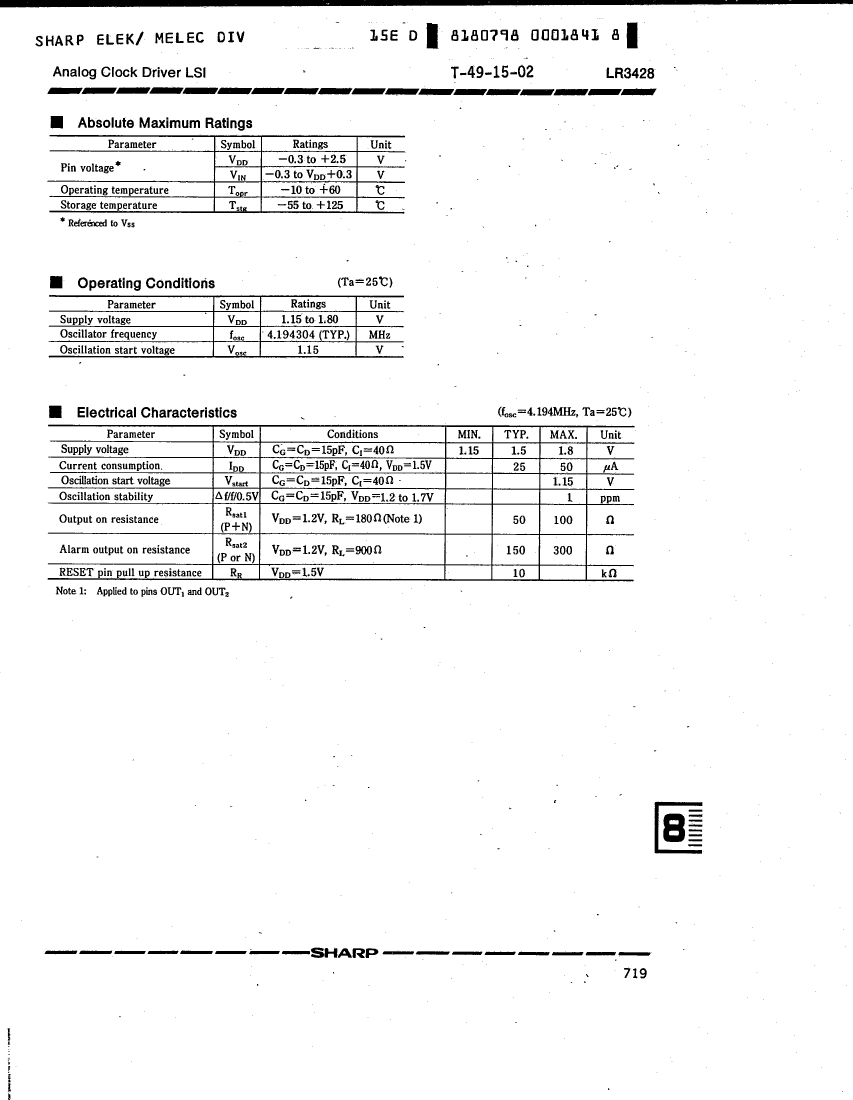

Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Nominal oscillator frequency	4.19430 MHZ
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.4 mm
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	1.8 V
Minimum supply voltage (Vsup)	1.15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
