70 MHz SAW Filter
File Size584KB,6 Pages
ManufacturerTriQuint Semiconductor Inc. (Qorvo)
Websitehttp://www.triquint.com
Download Datasheet Compare View All

857174 Online Shopping

Suppliers Part Number Price MOQ In stock
857174 - - View Buy Now

857174 Overview

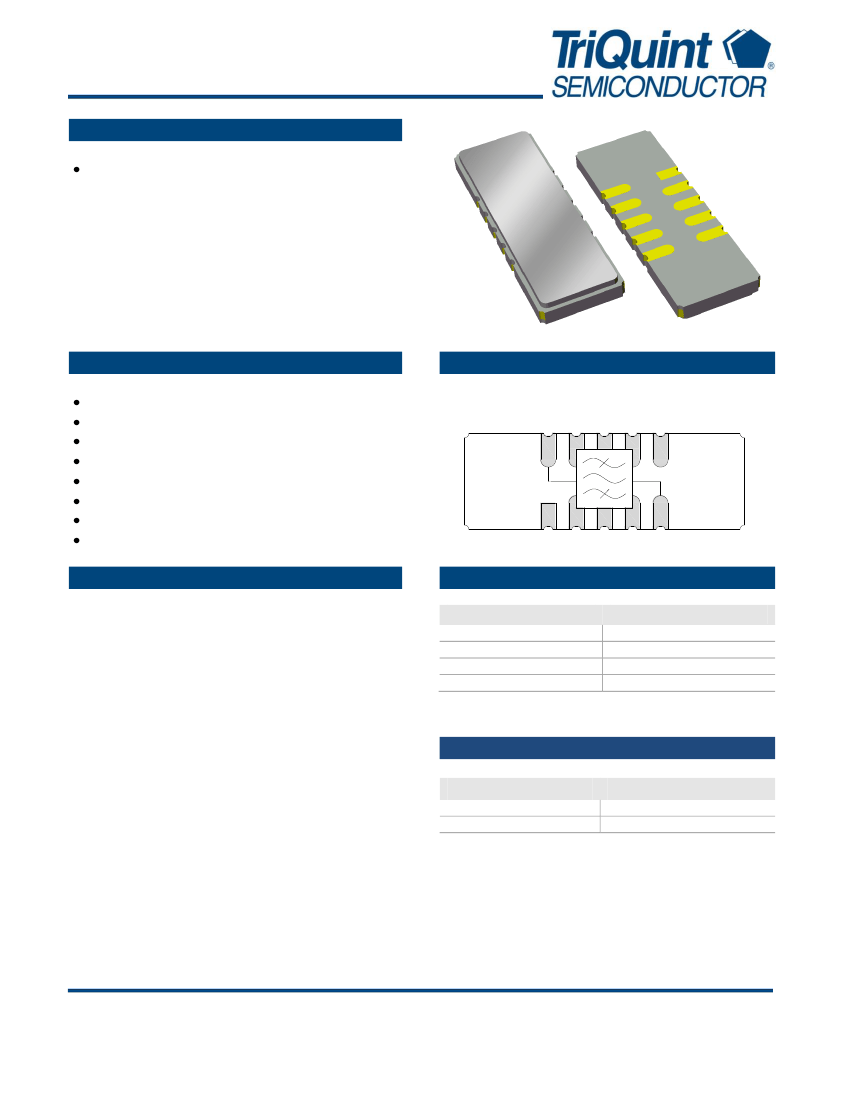

70 MHz SAW Filter

857174
70 MHz SAW Filter
Applications
For Military applications
Product Features
Typical 3 dB bandwidth of 4.9 MHz
Low loss
High Attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small Size
Dimensions: 19.00 x 6.50 x 1.75mm
RoHS
compliant,
Pb-free
Functional Block Diagram
Top view
Input Gnd Gnd Gnd Gnd
10
9
8
7
6
1
2
3
4
5
Gnd Gnd Gnd Gnd Output
General Description
The 857174 is a high-performance IF SAW filter with a
center frequency of 70 MHz and a 3 dB bandwidth of 4.9
MHz.
It features low loss with excellent attenuation, and is
designed to be used with a single ended input and output.
This device is RoHS compliant and Pb-free.
Pin Configuration
Pin # SE
10
5
1,6
2,3,4,7,8,9
Description
RF Input
RF Output
Ground
Case ground
Ordering Information
Part No.
857174
857174-EVB
Description
packaged part
evaluation board
Standard T/R size = 2000 units/reel.
Preliminary Data Sheet: Rev - 9/27/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
