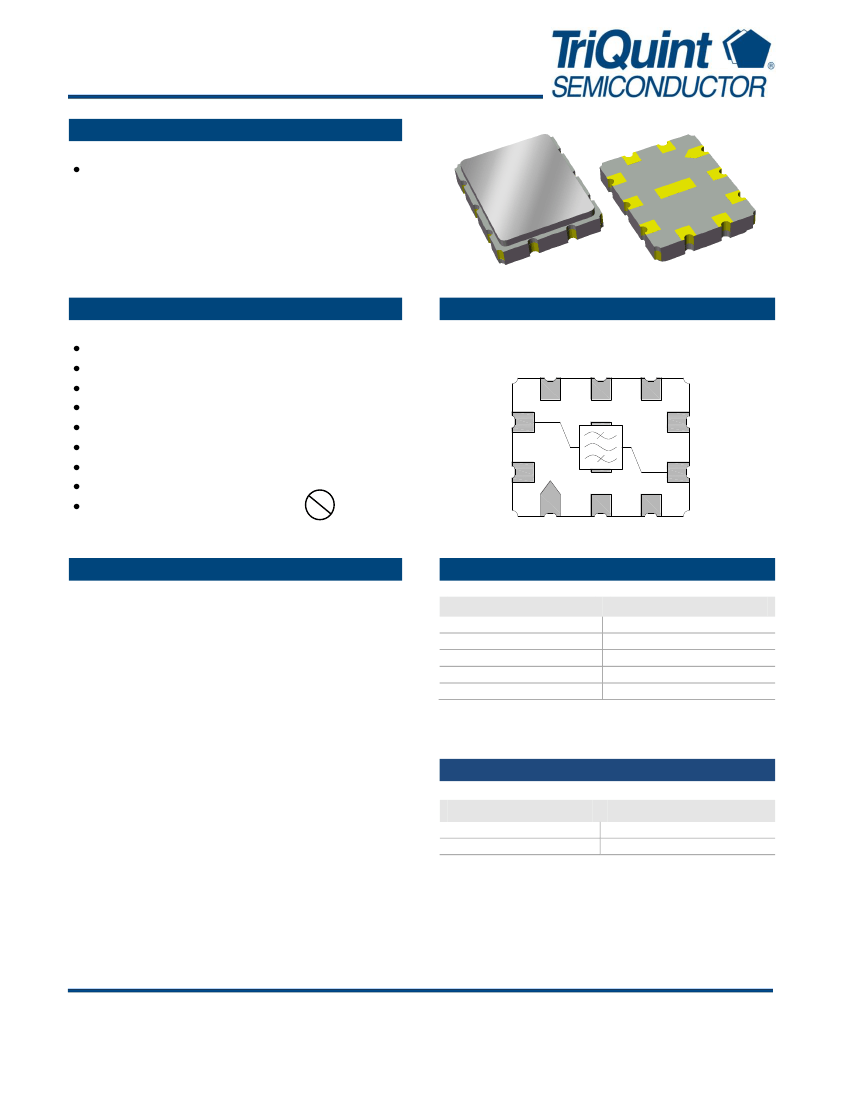

140 MHz SAW Filter
Applications
For Military applications
Product Features
Typical 3dB Bandwidth of 28.5 MHz
Low loss
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small Size
Dimensions: 9.0 x 7.0 x 1.5mm
Hermetically Sealed
RoHS
compliant,
Pb-free
Pb
Functional Block Diagram
Top view
Gnd
8
Input
9
Gnd
7
Gnd
6
5
Output return
Input return 10
1
Gnd
2
Gnd
3
Gnd
4
Output
General Description
The 857176 is a high-performance IF SAW filter with a
center frequency of 140 MHz and a 3 dB bandwidth of 28.5
MHz.
It features low loss with excellent attenuation, and is
designed to be used with a single ended input and output.
The device is RoHS compliant and Pb-free.
Pin Configuration
Pin # SE
9
10
4
5
1,2,3,6,7,8
Description
Input
Input Return
Output
Output Return
Case Ground
Ordering Information
Part No.
857176
857176-EVB
Description
packaged part
evaluation board
Standard T/R size = 2000 units/reel.
Preliminary Data Sheet: Rev - 09/21/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857176
140 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-55 to +105 ºC
Parameter
(3)
Center Frequency
Insertion Loss
Lower 1dB Band Edge
(5)
Upper 1dB Band Edge
(5)
Lower 3dB Band Edge
(5)
Upper 3dB Band Edge
(5)
Lower 40dB Band Edge
(5)
Upper 40dB Band Edge
(5)
Amplitude Variation
(6)
Phase Linearity
Group Delay Variation
Group Delay
Relative Attenuation
(5)
Conditions
at minimum
Min
-
-
-
152.2
-
153.15
120.5
-
-
-
-
-
40
40
40
42.5
-
-
Typical
(4)
140
19.75
-
-
-
-
-
-
-
-
-
-
-
-
-
-
50
50
Max
-
21
127.8
-
126.85
-
-
159.5
1.0
7.0
50
-
-
-
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
dB p-p
deg p-p
ns p-p
µs
dB
dB
dB
dB
127.8 – 152.2 MHz
127.8 – 152.2 MHz
127.8 – 152.2 MHz
127.8 – 152.2 MHz
15 – 90 MHz
90 –120.5 MHz
159.5 – 190 MHz
190 – 350 MHz
Source Impedance (single-ended)
(7)
Load Impedance (single-ended)
(7)
Notes:
1. All specifications are based on the TriQuint schematic shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to minimum insertion loss
6. Is defined as the difference between the maximum and minimum loss within the specified frequency range
7. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Rating
-55 to +105
o
C
-55 to +105
o
C
Operation of this device outside the parameter ranges given above may cause permanent damage.
Preliminary Data Sheet: Rev - 09/21/12
© 2012 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857176
140 MHz SAW Filter

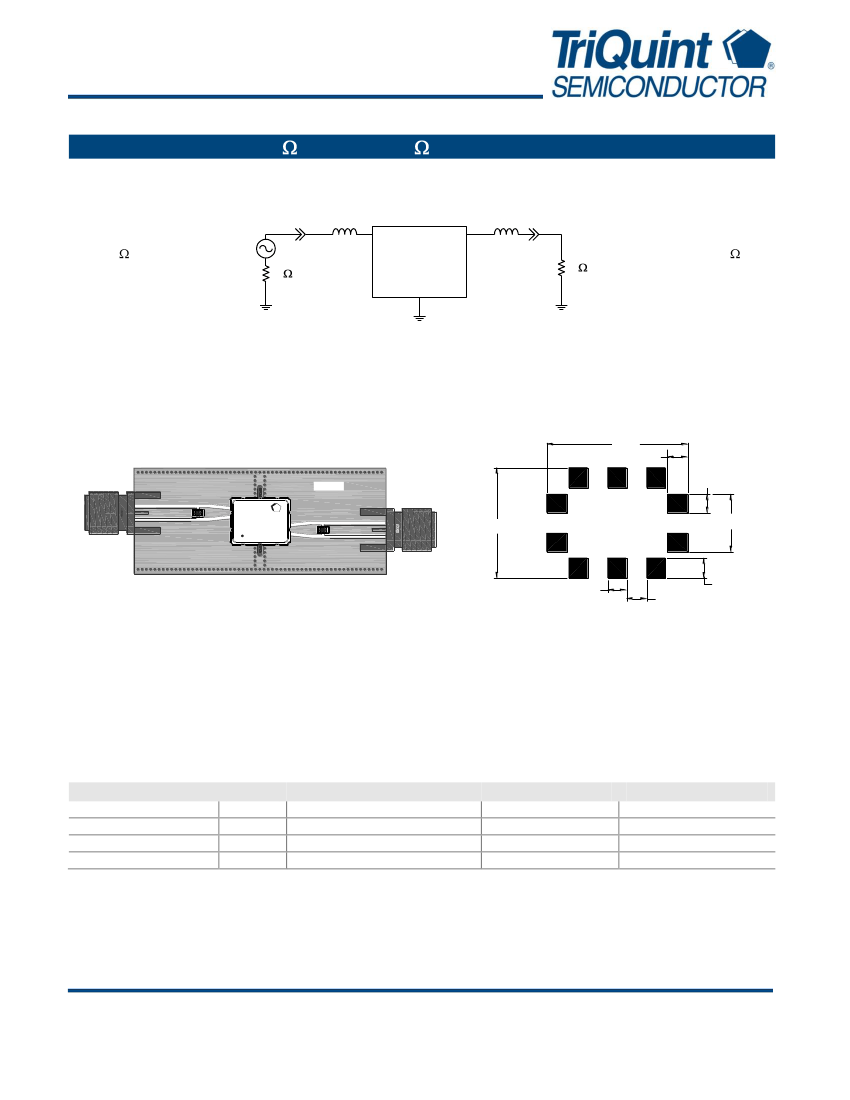

Reference Design – 50
Schematic
120nH
9
4
50
68nH
SE Input, 50
SE Output
50
Single-ended
Input
50
1,2,3,5
6,7,8,10
50
Single-ended
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitics
PC Board
Mounting Configuration
9.19
1.32
960590
1.22
L1
TriQuint
857176
YYWW
L2
7.21
3.76
2.07
1.22
1.32
1.32
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
SMA
PCB
Value
120nH
68nH
N/A
N/A
Description
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 0805, 5%
SMA connector
3-layer
Manufacturer
Coilcraft
Coilcraft
Radiall USA Inc.
multiple
Part Number
0805CS-121XJLC
0805CS-680XJLC
9602-1111-018
960590
Preliminary Data Sheet: Rev - 09/21/12
© 2012 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857176
140 MHz SAW Filter

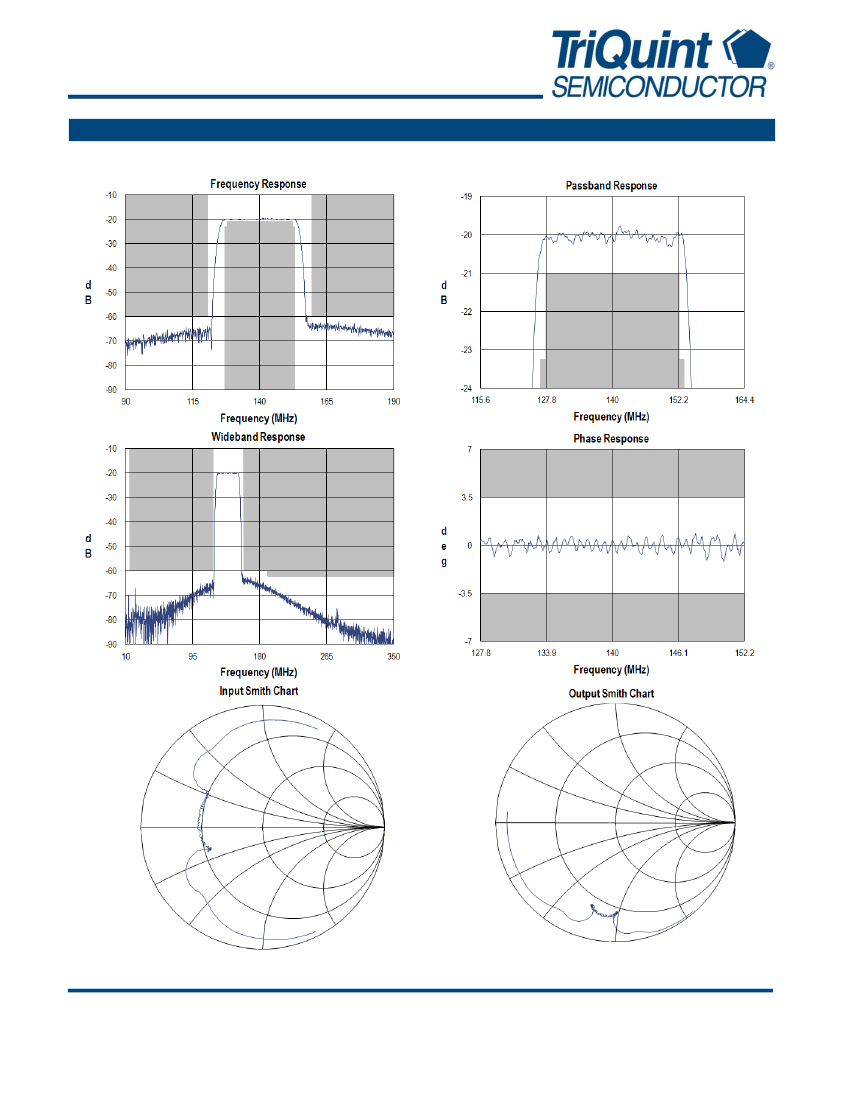

Typical Performance
(at room temperature)
Preliminary Data Sheet: Rev - 09/21/12
© 2012 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857176
140 MHz SAW Filter

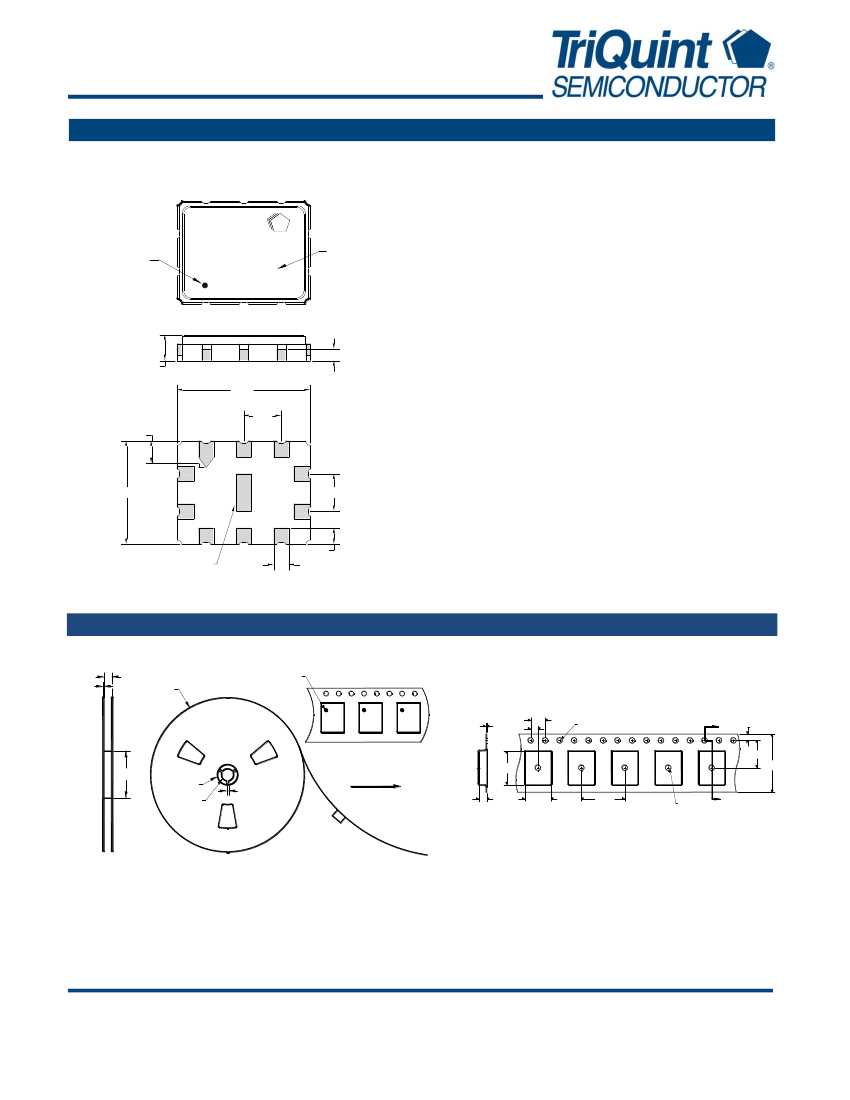

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
857176
YYWW
Package Style: SMP-35B
Dimensions: 9.00 x 7.01 x 1.50 mm
Date Code
ID dot
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of: YY = last two digits of the year,
WW = work week
1.50 NOM.
1.65 MAX.
9.00
2.54
1.80
0.76
7.01
2.54
1.12
1.02 x 2.54
1.02
Tape and Reel Information
Standard T/R size = 2000 units/reel. All dimensions are in millimeters
16.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
7.5
16.0
Ø102
9.22
Ø20.2
Ø13.0
2.0
Direction of travel
2.2
Section A-A
7.22
12.0
Ø1.5
A
Preliminary Data Sheet: Rev - 09/21/12
© 2012 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
