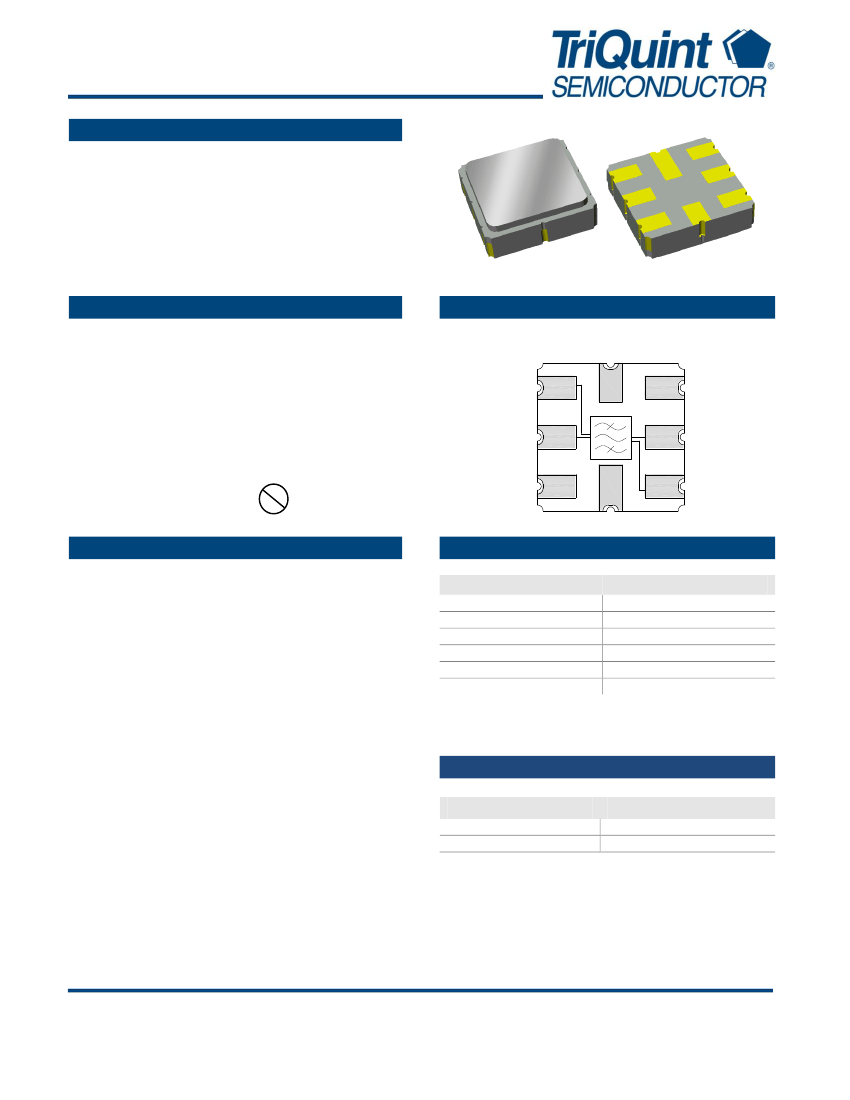

1090 MHz SAW Filter
Applications
For Military applications
Product Features
Usable bandwidth 10 MHz
Low Loss
Balanced operation
Matching is required for optimum performance at
50Ω
Small Size: 3.80 x 3.80 x 1.27 mm
Ceramic Surface Mount Package (SMP)
Hermetically Sealed
RoHS
compliant,
Pb-free
Pb
Functional Block Diagram
Top view
Gnd
Out -
5
4
3
Gnd
Out +
6
2
In -
Gnd
7
8
Gnd
1
In +
General Description
857179 is a general purpose filter designed in a 3.8 x 3.8
mm hermetic package with low insertion loss and high
attenuation.
Pin Configuration
Pin # Balanced
1
2
6
5
3,4,7,8
Description
Input +
Input -
Output +
Output -
Case Ground
Ordering Information
Part No.
857179
857179-EVB
Description
packaged part
evaluation board
Standard T/R size = 4000 units/reel.
Preliminary Data Sheet: Rev A 10/08/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857179
1090 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-55 to +85 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
(5)
Lower 1.25 dB Bandedge
(6)
Upper 1.25 dB Bandedge
(6)
Amplitude Variation
(7)
Group Delay Ripple
(7)
Absolute Attenuation
(8)
Conditions
1085 – 1095 MHz
1085 – 1095 MHz
1085 – 1095 MHz
500 – 1006 MHz
1006 – 1050 MHz
1140 – 1160 MHz
1160 – 1600 MHz
Single-ended
Single-ended
Min
-
-
-
1095
-
-
55
50
50
55
-
-
Typical
(4)
1090
5.6
1073
1100
0.2
7.0
68
56
70
67
50
50
Max
-
6.3
1085
-
1.25
20
-
-
-
-
-
-
Units
MHz
dB
MHz
MHz
dB p-p
ns p-p
dB
dB
dB
dB
Source Impedance
(9)
Load Impedance
(9)
Notes:
1. All specifications are based on the TriQuint schematic shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature, unless otherwise noted
5. Referenced to maximum insertion loss within the specified frequency points
6. Relative to insertion loss at center frequency
7. Total variation over the defined frequency range.
8. Absolute Attenuation measurements are referenced to zero dB
9. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operable Temperature
Storage Temperature
Rating
-55 to +85
o
C
-55 to +85
o
C
Operation of this device outside the parameter ranges given above may cause permanent damage.
Preliminary Data Sheet: Rev A 10/08/12
© 2012 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857179
1090 MHz SAW Filter

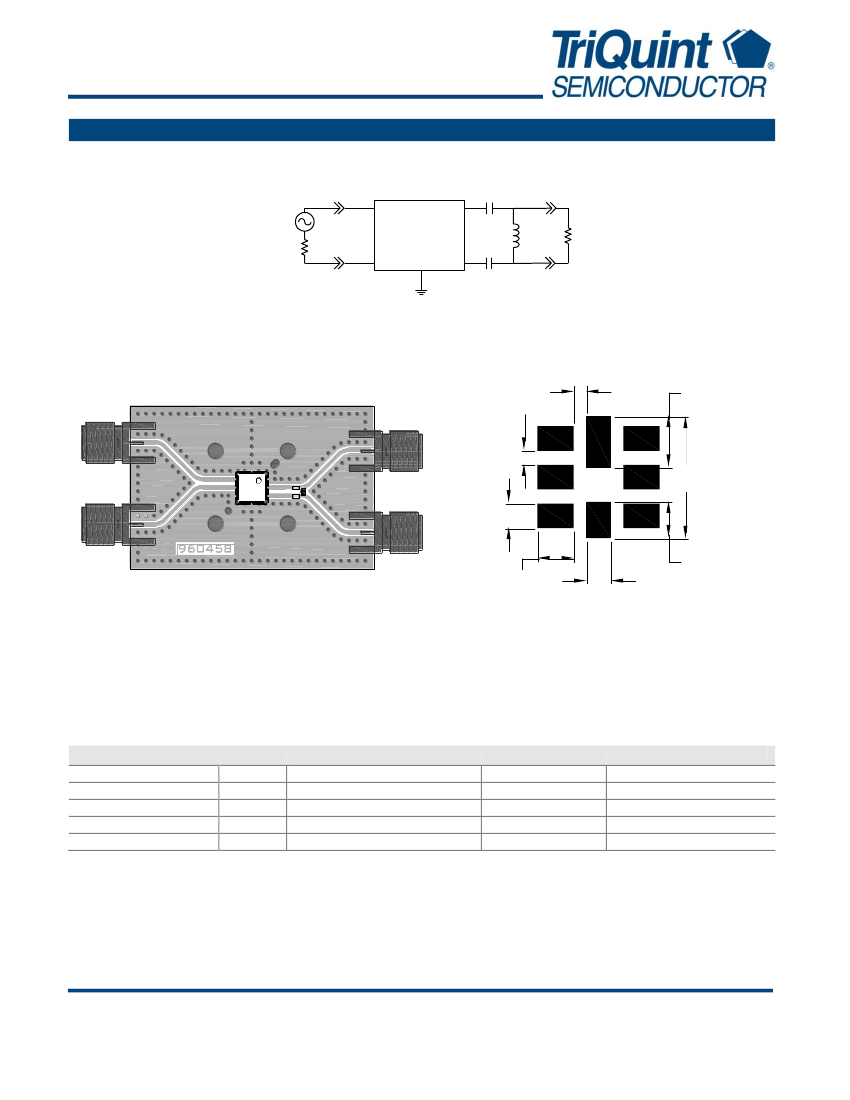

Reference Design
Schematic
1
5
3.3pF
36nH
50
2
3,4,7,8
6
3.3pF
50
50
Balanced
Input
50
Balanced
Output
PC Board
Mounting Configuration
.41
.46
1.70
C1 L2
L1
C2
YYWW
KH
L3 C3
L4
C4
4.01
.81
1.19
.81
1.19
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
C1
C2
SMA
PCB
Value
36nH
3.3pF
3.3pF
N/A
N/A
Description
Coil Wire-wound, 0402, 5%
Chip Capacitor, 0402, 5%
Chip Capacitor, 0402, 5%
SMA connector
3-layer
Manufacturer
Murata
Murata
Murata
Radiall USA Inc.
multiple
Part Number
LQW15AN36NJ00
GRM1555C1H3R3GZ01
GRM1555C1H3R3GZ01
9602-1111-018
960458
Preliminary Data Sheet: Rev A 10/08/12
© 2012 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857179
1090 MHz SAW Filter

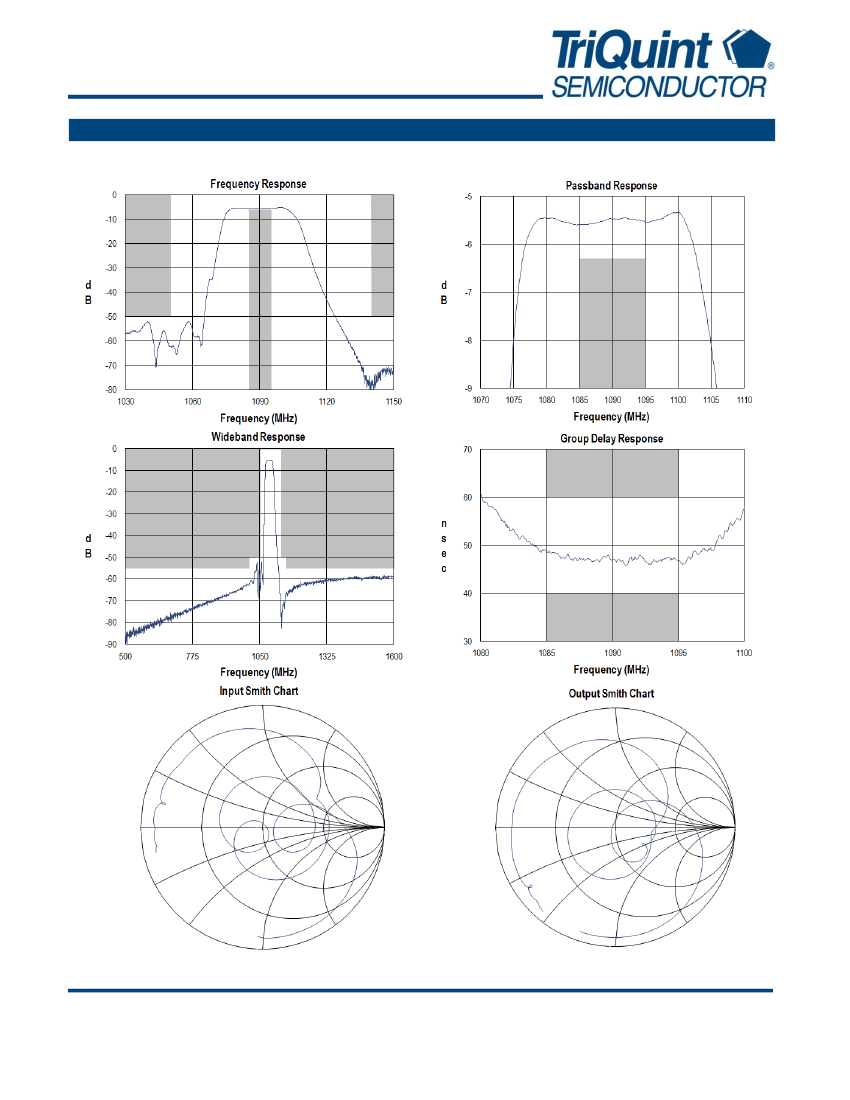

Typical Performance
(at room temperature)
Preliminary Data Sheet: Rev A 10/08/12
© 2012 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857179
1090 MHz SAW Filter

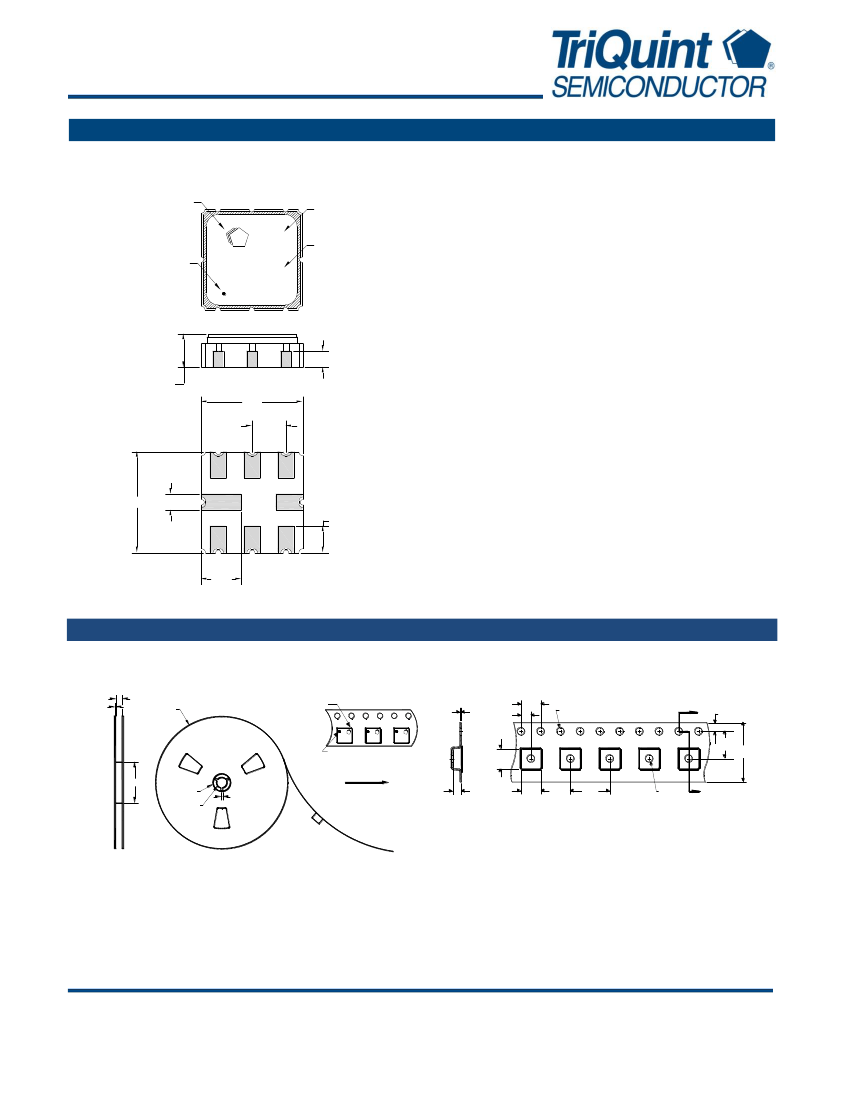

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
logo
Marking
code
Package Style: SMP-15
Dimensions: 3.80 x 3.80 x 1.27 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of: YY =The last two digits of the
year (2 Digits), WW = the calendar week of the year (2
Digits)
KH
ID dot
Date code
YYWW
0.61
1.27 NOM.
1.45 MAX.
3.80
1.27
3.80
0.60
1.00
1.50
Tape and Reel Information
Standard T/R size = 4000 units/reel. All dimensions are in millimeters
12.8
Ø330
TriQuint
logo
4.0
2.0
2.7
0.3
Ø1.5
A
1.75
5.5
Pad 1 ID dot
Ø102
Ø20.2
Ø13.0
1.8
Section A-A
4.1
4.1
8.0
Ø1.5
A
12.0
2.0
Direction of travel
Preliminary Data Sheet: Rev A 10/08/12
© 2012 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
