FZ*: Straight plug for remote handling, cable collet
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
D72: 6.3 - 7.2 mm
Z : Nut for fitting a bend relief
45.66 g
Performance
Configuration
Insulator
Rated Current
2B.310 : 10 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
8 Amps
Specifications
Contact Type: Solder
Max. Matings: 5000
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Contact Dia.: 0.9 mm (0.035in)
Bucket Dia.: 0.8 mm (0.031in)
Max. Solid Conductor: 0.34 mm^2 (AWG 22)
Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
R (max): 4.8 mOhm
Vtest (contact-shell): 1300 V (AC), 1840 V (DC)
Vtest (contact-contact): 1450 V (AC), 2050 V (DC)
Others
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

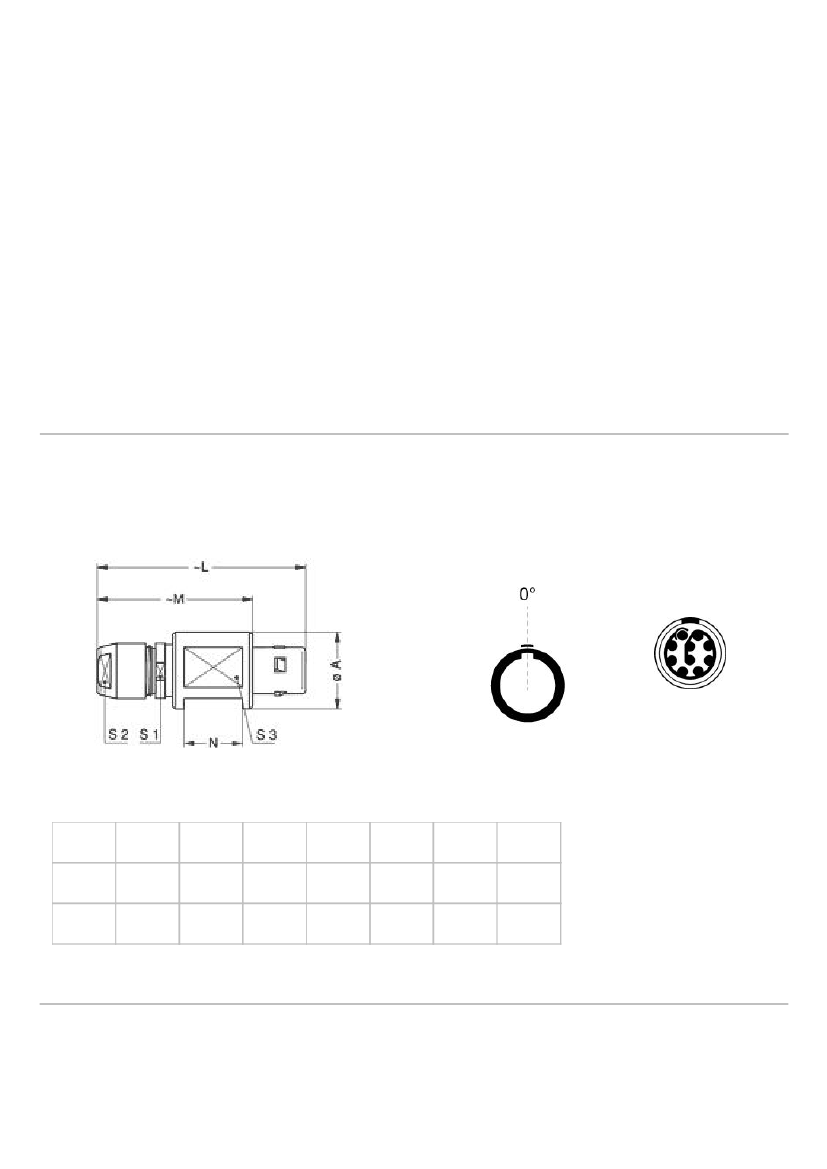

DRAWINGS
Draws
Dimensions
A
mm.
in.
20
0,79
L
49
1,93
M
37
1,46
N
15
0,59
S1
13
0,51
S2
12
0,47
S3
15
0,59
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3

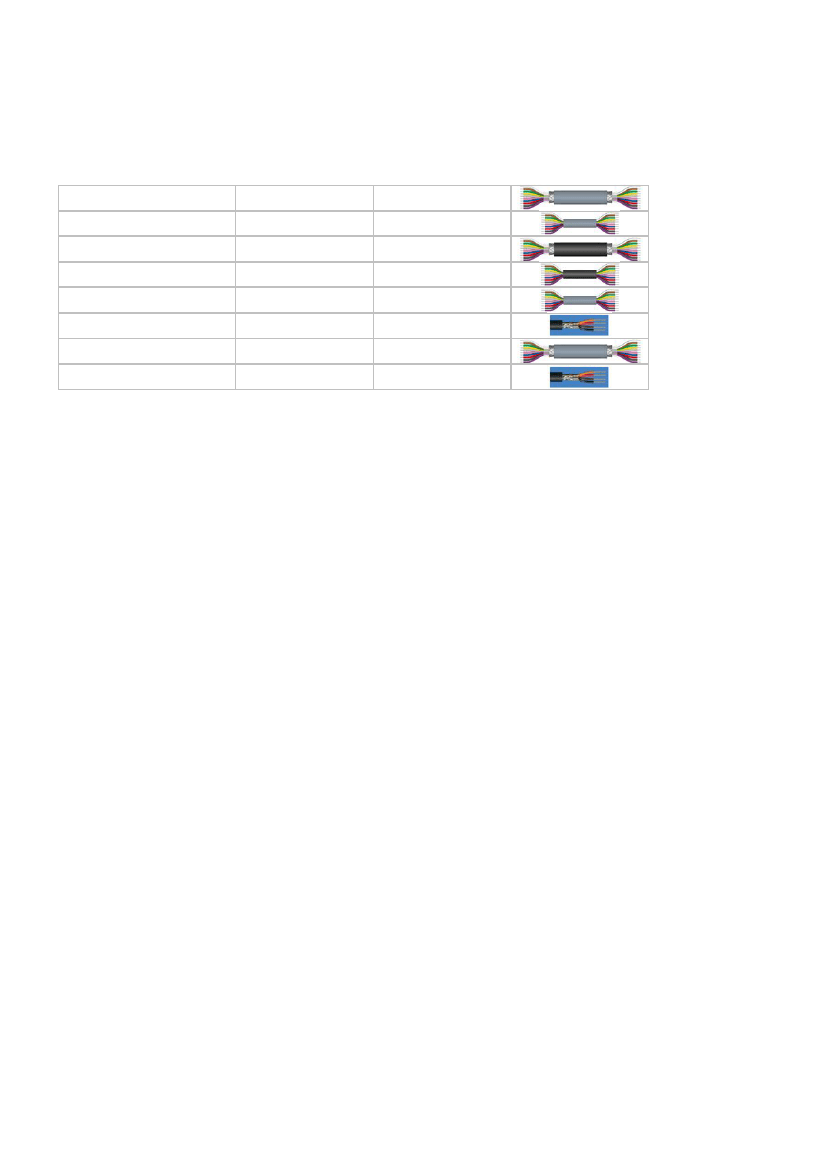

RECOMMENDED BY LEMO
Tools
Spanner wrench: DCD.2B.025.PA120
Cables
CMN.10.T22.068PGCE
CMN.10.T22.068PGZE
CMN.10.T22.068PNCE
CMN.10.T22.068PNZE
CMN.10.T22.068QGZE
210 240
210 250
210 260
TPR (medical)
PVC
PVC
PVC
Grey
Black
Grey
Black
PVC
PVC
GREY
Grey
Black
